    Try it out, it wouldn't hurt.

  2. themiz69

    themiz69 Active LVC Member

    Messages:
    113
    Likes Received:
    0
    Joined:
    Apr 21, 2010
    Location:
    lehigh valley
    K I'll try when I get a chance to run to radio shack. Which wire gets the series resistor in this instance?

  3. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    The black/blue on the turn bulb harness. Try it with the 100ohm 10w resitor, if it works, but dims the light too much, you can go lower but get higer wattage. You might need to get one of those resistors from the led stores online, like the 25ohm 25w resistors or something like that

  4. themiz69

    themiz69 Active LVC Member

    Messages:
    113
    Likes Received:
    0
    Joined:
    Apr 21, 2010
    Location:
    lehigh valley
    i tried all combos i could from the 3ohm v-led resistors to the 100ohm 10watt, series, parallel, both lol. ive pretty much given up. if ur up for the challenge i have a set of bulbs that i could send you to try. let me know cuz id like to get what i paid for but if not thats cool too. interesting note; when i put in the regular chrome bulb i still couldnt get them to blink with the signals. this whole thing is mind bottling lol...

  5. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    The rings wouldn't blink with the filament bulbs either? You did wire white with black/white and brown with black/blue on the headlight turn bulb harness, not the cars harness right?

    If you want me to figure it out sooner than later, you can just ship me those extra LED bulbs and I'll pay to ship them back to you once I'm done. If you want to, then pm me and I'll give you my address.

  6. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    Never mind, I just order some led turn bulbs. I'll work on that next week.

  7. themiz69

    themiz69 Active LVC Member

    Messages:
    113
    Likes Received:
    0
    Joined:
    Apr 21, 2010
    Location:
    lehigh valley
    i did white to black/white and brown to black/blue on the harness that can be fully removed from the headlight with the bulb intact.

  8. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    They should blink with the turn bulbs if they are filament bulbs then. So even with filament bullbs they did not work?

  9. themiz69

    themiz69 Active LVC Member

    Messages:
    113
    Likes Received:
    0
    Joined:
    Apr 21, 2010
    Location:
    lehigh valley
    nope. they dimmed slightly when the signal came on but thats it. also please check my reply in the front turn signals post because i did the brake lights and the error message is still there.

  10. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
  11. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    On Gen I lights do you cut off the tabs in the back of the halos? And do you cut the plastic piece holding both sides of the halo together? I'm sort of test fitting them into an old light of mine and I can't seem to get them to fit properly. I would like to mount them to the black bezel.

  12. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA


    I dont know what is done to gen1 rings. From the pics though, it seems like the gen1 rings dont fit as good to the bezel as gen2s. It looks like the bezel is flat on the bottom and the reflectors aren't full circles on the bottom, affecting how the circular ring fits on it.

  13. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    Thanks Alex. I pm'd Soopa to see if he has any pointers.

  14. col batitong

    col batitong Active LVC Member

    Messages:
    173
    Likes Received:
    5
    Joined:
    May 7, 2011
    Location:
    Clear Lake Texas
    Keep me updated also due to I am going to install my angel eyes version 2, for my Gen 1 lights, this coming thursday. Thanks.

  15. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    You got it

  16. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    He said to cut the tabs off the back, but he has never cut the part connecting the rings to make them full circles. I just cut the tabs off of mine so I'm gonna try to install them soon. I will post pics in my build thread.

  17. col batitong

    col batitong Active LVC Member

    Messages:
    173
    Likes Received:
    5
    Joined:
    May 7, 2011
    Location:
    Clear Lake Texas
    Kool Thank u very much, I will do this by Thursday.

  18. 06Nick

    06Nick LVC Member

    Messages:
    13
    Likes Received:
    7
    Joined:
    May 10, 2012
    Location:
    NY
    Hi Alax I have my angel eyes in and iv been doing a lot of research on this whole wireing setup now I know you wire them to blink with the turn signal But say I just wanted the angel eyes to be on with the parking lights and I just wanted the amber bulb to go on when I signaled how do I make this happen? I noticed with Bullschmidts car just his angel eyes were on with the parking lights I tried almost every way I could think of wireing these up 2 work like this I can not get it too work the way I want any help or info would be much appreciated without ur pics and instruction I would have never been able to do this awesome mod so I thank you!

  19. RodLS

    RodLS Dedicated LVC Member

    Messages:
    1,004
    Likes Received:
    49
    Joined:
    Jul 15, 2010
    Location:
    Vancouver, WA
    Get some LED turn bulbs and wire the angel eyes the same way Alax7 shows. The angel eyes will turn on as the running lights, the turn bulb will stay off. When you signal the angel eyes will stay on and the turn bulb will blink.

  20. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA

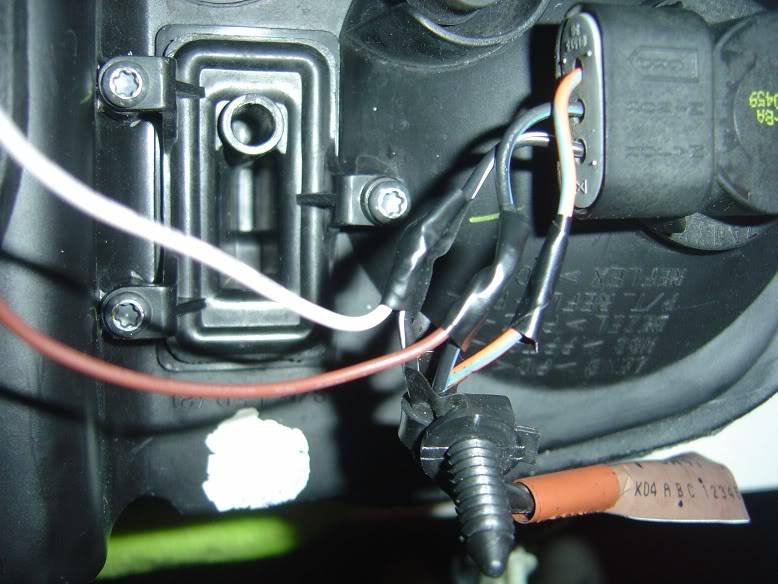

    I wired mine exactly as they are in this picture, but when I have the angel eyes on and try to use my turn signal they kinda blink oddly opposite of the turn signal. Anybody have any suggestions? I am fiddling with them right now. They work fine without the turn signal on.

  21. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    The directions on lskoncepts say to wire one to the orange/blue and one to the black/blue wire. Gonna try that next.

  22. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    Not all things are interchangeable from gen1 to gen2 so the wiring might be different.

  23. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    True. I kinda forgot for a minute I was looking at the wiring from your car, which is a Gen II. Thanks Alex. Clear turns look sick by the way.

  24. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    Ok I tired every single wiring possiblity with the three wires on the turn bulb and the only 2 ways that work are: white to orange/blue, brown to blue/black & white to black/white, brown to blue/black. Those combinations cause the angel eyes to blink oddly with the turn signal though and the car says to check the turn signal. I don't understand why I am making this so hard. Nothing is working for me. HELP from anyone with a gen 1!!!

  25. Ben's LS

    Ben's LS Dedicated LVC Member

    Messages:
    1,405
    Likes Received:
    31
    Joined:
    Apr 21, 2011
    Location:
    PA
    got it to work
