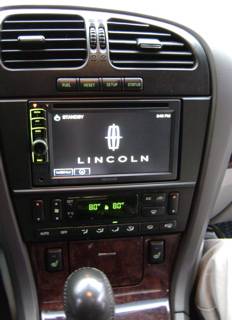

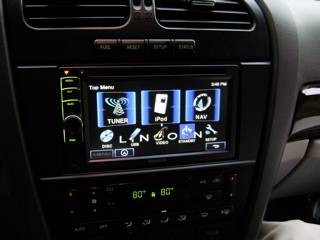

    This is a Double DIN installation for 2000-2002 Lincoln LS.

    This system uses the factory tweeters in the console and the factory subwoofer system.

    Note: For best results the rear Subwoofer upgrade has to be performed 2000-2001 (See "Subwoofer Upgrade 2000-2001" Post) and the correct factory speakers have to be installed (See "Best Factory Speaker & Water Drains" Post). A surge capacitor is recommended for the double DIN head unit. If you LS does not have factory tweeters, ones can be obtained from a salvage vehicle, trace out hole shape on a piece of paper, cut holes in your console, install speakers and snap in the speaker covers. If you car does not have a subwoofer system, get one out of a salvage LS the wiring is already there, just add a connector to the radio.

    This results in a super clean, power sound system that you will have to hear to believe. RolinLS has heard this system in Mr. Howie's Silver Lincoln LS.

    2000-2002 Lincoln LS
    Double DIN Installation Instructions

    Parts Required: Metra 95-5000B Double DIN Face plate adapter
    Metra 70-5519 (Alpine with Sub Amp) (2000-2002)
    Metra 71-5520-1 (2003 & Up)
    ASWC steering wheel control module
    American International FWH-600 (use for steering controls 00-02).

    Factory radio removal:

    1) Pull parking brake lever up to set parking brake.
    2) Turn the ignition key on and move shift lever into Drive (D).
    3) Turn ignition off & remove key.

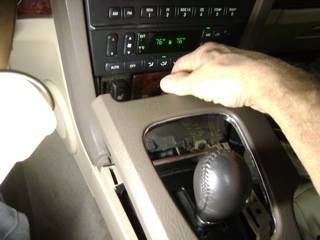

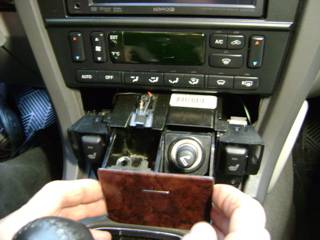

    4) Push the ashtray in and hold in. While holding the ashtray inward, put fingers underneath ashtray surround panel and remove surround panel.

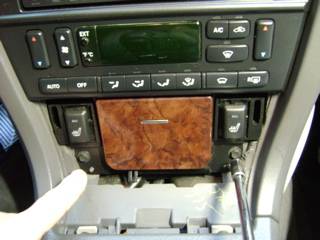

    5) Using a 7mm socket, remove the two screws on either side of the ashtray.

    6) Pull ashtray out approx. 2.5 inches. If removed any further damage to ashtray wires may occur.

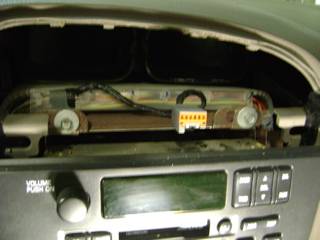

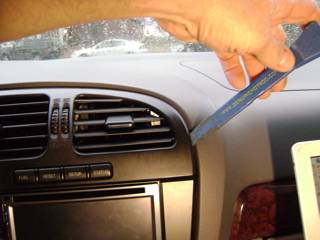

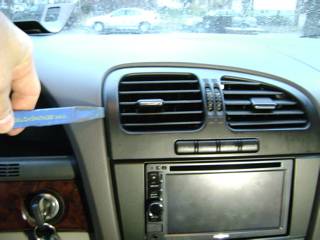

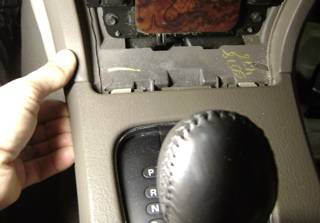

    7) Using a pry tool remove upper air-conditioning vent by prying on both sides evenly.

    8) Tilt AC outlet upward and remove the grey connecter if car is equipped with message center buttons.

    9) With an 8 MM socket remove 2 upper and lower mounting screws that hold radio and climate control system into dash. Be sure not to drop the lower mounting screws into consol. Hold washer with your finger to prevent screw from falling inside the console.

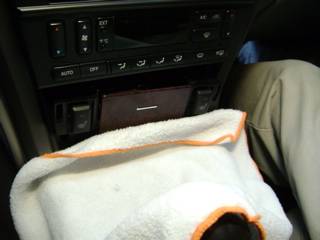

    10) Drape Towel over consol and shifter to prevent scratching trim and shifter while removing radio/climate control assembly. Remove radio and climate control assembly.

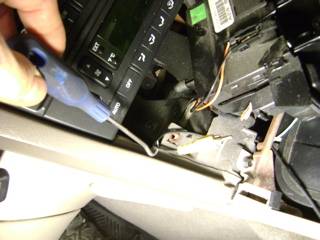

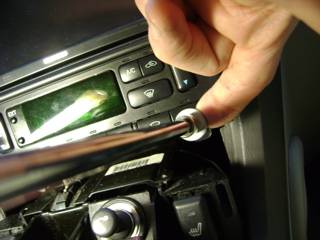

    11) Lay radio/climate control assembly on its side and remove the 4 Phillips screws that hold the climate control head in place. Do not drop the climate control module.

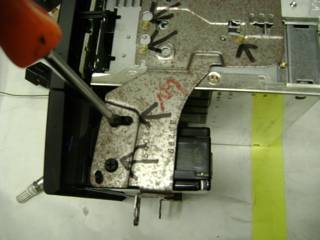

    12) Remove the 6 screws that hold the radio in place with a 4mm socket.

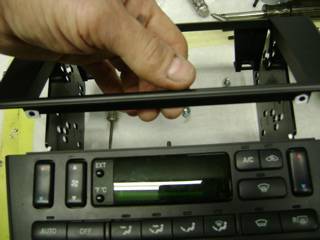

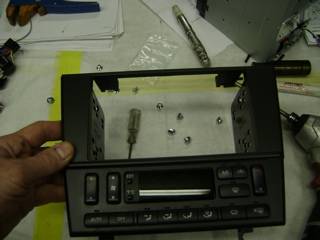

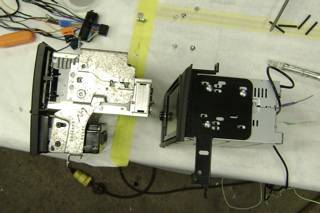

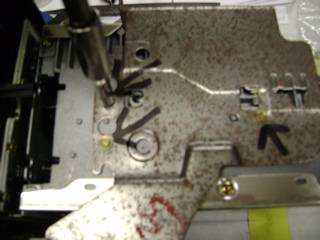

    13) Install the climate control module to the Metra side brackets. Line up the two pins highlighted with white paint and tighten the Phillips screws.

    14) Line up the two plastic pins in the climate control with the two holes in the Metra radio faceplate adapter (highlighted with white paint).

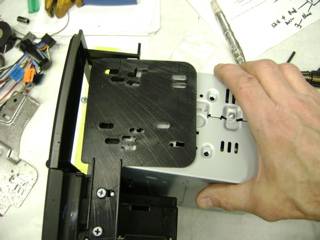

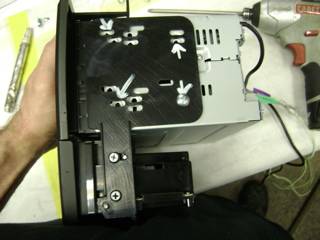

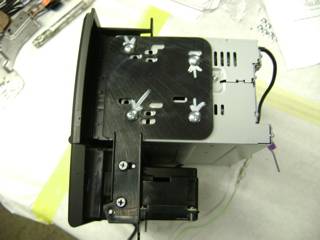

    15) Install the double DIN Receiver line up with screw holes in the metra mounting plates while keeping the face plate flush. Tighten the Phillips radio mounting screws. (Metra supplies 3 per side. Two additional screws may by obtained for more secure mounting, four per side).

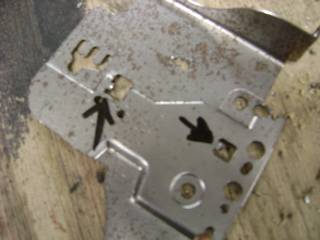

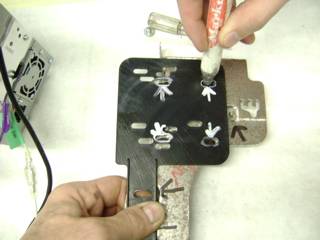

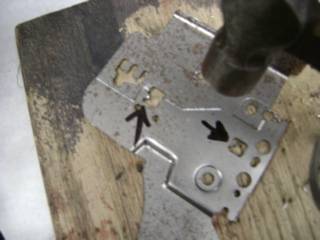

    16) An alternate method is to reuse the metal mounting brackets. Use the Metra mount plates as a template to mark new mounting screw holes in the steel plates. Slot the holes after drilling to allow for adjustment.

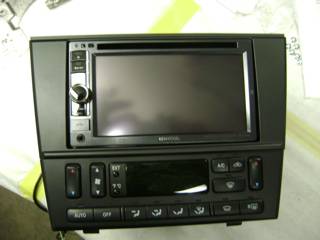

    17) After installing radio/climate control brackets and faceplate, install connectors and wires for Reverse sense and Parking Brake switch safety wire.

    18) Connect the Wire harness adapter wires to the Double DIN radio wires.

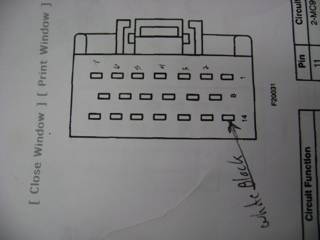

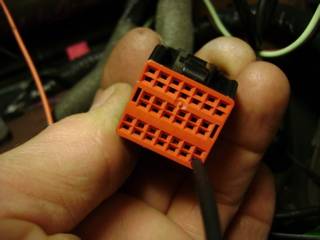

    19) Connect the ASWC white/green wire to cavity/pin #14 of Black Connector C240a. The #14 pin is the lower right corner pin as you look at the connector. (Using a modified connector from the FWH600 kit will fit the factory connector for the steering wheel control to make a cleaner installation.)*Connect Red AXWC wire to ACC red wire of harness adapter. Connect Black ASWC wire to black ground wire of harness adapter. Connect brown ASWC wire to blue/yellow steering wheel remote input wire (Kenwood units). Before making a permanent connection install a 12K ohm resister between the brown ASWC wire and the blue/yellow wire.

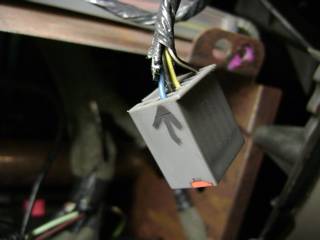

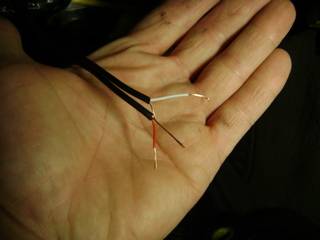

    a. *To modify the connector from the FWH600 kit, take the wires out of the large square connector shell. Use a “T” pin to release the clip to remove the connectors. Install one wire in the right lower corner (with the front of the connector facing away from you) to match up with pin #14. Connect this wire to the Blue/Yellow wire of the AWSC.

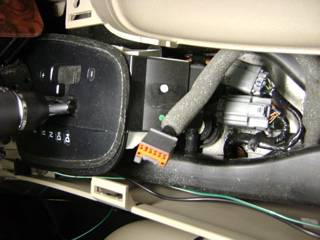

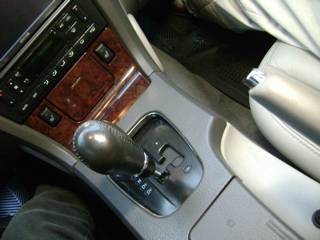

    20) Lift the front of the center console top plate on each side of the shifter (with your fingers) and lift up from the console. Be sure to remove the connector to the traction control/ATS switch before completely removing console top plate.

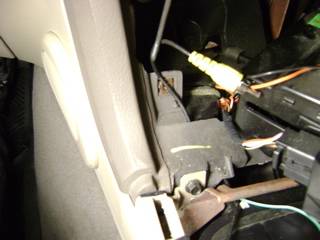

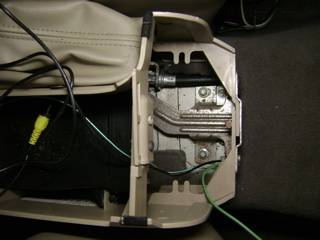

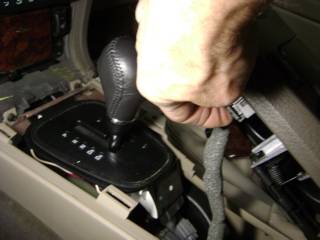

    21) Route the rear camera RCA cable and the rear camera power wire though the console on the left side away from the shift linkage and parking brake mechanism. Route cable and wire under the metal bracket and under the ashtray mounting plate. Use a hook tool to facilitate wire routing.

    22) To program the ASWC to a Kenwood radio, turn ignition key to accessory position with the 12K resistor mounted between the brown and the Kenwood remote (blue/yellow) wire. Wait until the red LED stops flashing. Remove 12k resistor and make a permanent connection at the brown wire to the blue/yellow wire. Test steering wheel controls, they should work properly now.

    23) Place double DIN unit on the rag at shifter/console area, connect the double DIN unit but do not install in dash.

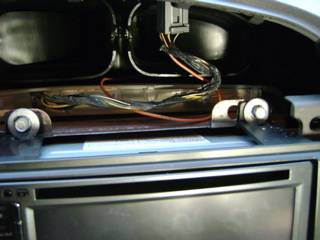

    24) On the 00-02 Lincoln LS the Orange Illumination wire will not be active on the wire harness adapter. The double DIN radio illumination wire will have to be connected to the Blue/Orange wire on the message center buttons grey connector that was disconnected in step 8.

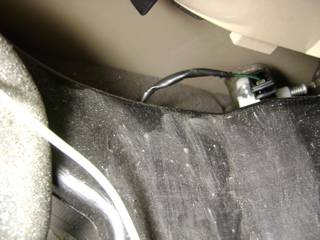

    25) Connect parking brake sense wire to parking brake switch located just under the parking brake boot. Console does not have to be removed to gain access. Connect to wire on install on connector.

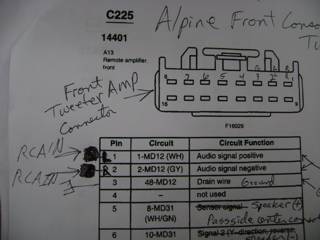

    26) Connecting the factory front tweeters to the aftermarket double DIN system will require finding the Right and Left input wiring to the factory front amplifier mounted under the steering wheel/dash area (has off white plastic with aluminum heat sink 4” X 2.25” in size). Connect two RCA cables R & L from the aftermarket radio Front RCA output terminals. Disconnect green connector from the front amplifier and access the wires that go into pin 1 (Left channel + ) and pin 2 (Right channel +) and pin 3 ground for both channels. Cut all three wires two inches away from green connector and connect the RCA Right (red) wire to connector side grey wire, connect RCA cable Left (+) white wire to connector side white wire. Connect both RCA cable shield grounds to the bare wire from pin 3 of green connector. Insulate all 3 wires then reconnect to amplifier. After connecting turn on radio and make sure that the speaker in the left side of the console is Right channel and the speaker in the right side of the console is Left channel.

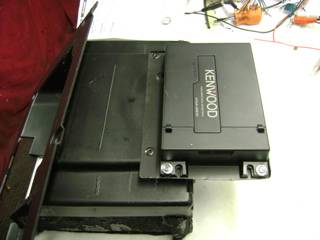

    27) Installing Navigation add on unit. 2001 & 2002 remove the glove box and mount the navigation module to the top of the glove box right behind the latch opening. This makes SD car updates easy just by opening the glove box.

    28) Connect the ACC wire (red) to ACC feed either behind the radio or at the fuse box in the R side kick panel. Connect the yellow wire to a (+) 12V at all times either behind the radio or at the fuse box in the right side kick panel.

    29) Install a “reboot” round lighted (LED) switch next to the valet switch in the glove box liner. Connect the Red power circuit from the ACC to one terminal of the switch. Connect the red wire to the Navigation unit to the other terminal of the switch. Connect the black ground wire from the Nav. unit to a chassis ground. Ground the lighted switch to the chassis (can use same spot). This switch is for rebooting the Nav. unit if it ever locks up.

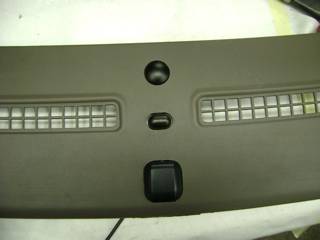

    30) Remove the defrost grille and cut a square hole with a dremel tool that matches up with the antenna. The supplied metal plate will have to be trimmed to fit next to the headlamp light sensor. The double sided sticky tape will hold the antenna to the defrost trim plate.

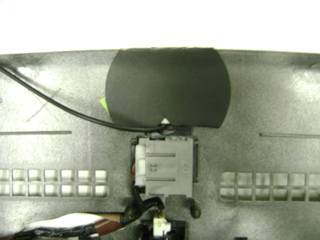

    31) Route antenna wire under the defrost trim plate to the module area by the glove box. Reinstall the defrost trim plate. Route the interface cable to the radio and plug into the back of the radio.

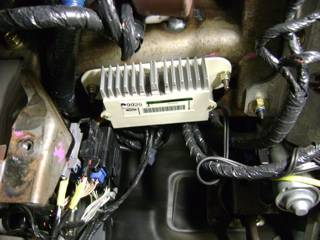

    32) For 2000-2001, Perform the Subwoofer amp upgrade and remount the amplifier in the fender.

    33) For 2002 Lincoln LS purchase the amp for 2001 Lincoln LS. The 2002 uses the pickup truck amp (Lincoln Blackwood truck) and it will make a loud pop if used on this system. The older style amp used on 2001 LS, Town car and other Ford product. This amp has more power and does not pop when turned on. Can be mounted under the deck in same location as the original amp and same connectors will fit the amp.

    Last edited: Mar 10, 2012
    • Like Like x 1
    • PaulD

      PaulD LVC Member

      Messages:
      31
      Likes Received:
      0
      Joined:
      Jun 15, 2010
      Location:
      Norman
      Tips....both of these worked on my 2003 TBird when I installed a Kenwood 6960 double din Nav system
      1) The "parking brake" sense is just a check for ground. If you ignore the parking brake switch and just ground that wire, you will be able to operate the Nav system while moving
      2) You can get rid of the POP in the rear amp by installing a +5V Fixed-Voltage regulator (Part number 7805 at Radio Shack). The stock amp does not like that 12V power surge. Wiring this regulator into the amp feed wire reduces the voltage down to 5V. No POP!

    • LS4me

      LS4me Dedicated LVC Member

      Messages:
      9,966
      Likes Received:
      272
      Joined:
      Apr 23, 2004
      Location:
      San Diego
      Hmmmmmmm.......... Will anything like this work with the stock NAV system?

    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,517
      Likes Received:
      1,417
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      No. It doesn't even check the parking brake. It checks the vehicle speed signal. If you disconnect that, the nav won't work.

    • Mr.Howie

      Mr.Howie Active LVC Member

      Messages:
      62
      Likes Received:
      2
      Joined:
      Feb 29, 2012
      Location:
      St. Louis

      You are right about both items, the parking brake sense is there for safety legal reasons.

      In most states it is illegal for the driver to watch a video (Movie while driving). The manufacturers use the parking brake to determine if the vehicle is stopped. Some people bypass with a ground or switch or just pull up the parking brake just enough to trip the switch.

      Wiring options are at your own risk.

      The older amp seemed to be stronger than the newer 2003 amp, they give them away at salvage yards.

    • Mr.Howie

      Mr.Howie Active LVC Member

      Messages:
      62
      Likes Received:
      2
      Joined:
      Feb 29, 2012
      Location:
      St. Louis
      They won't work together, the nav. unit on the THX system controls the display & touch feature.
      The stock navigation system is out of date compared to the New GPS systems. Garmin even shows a view of the intersection with street signs after you get the lane guidance, plus allows an optional antenna for traffic information on your GPS.

    • LS4me

      LS4me Dedicated LVC Member

      Messages:
      9,966
      Likes Received:
      272
      Joined:
      Apr 23, 2004
      Location:
      San Diego
      I know it's dated, but I don't really care. I much prefer the stock look to aftermarket systems. The factory system works fine for me. I was just wondering if there was a way to access the system while moving.

    • Alax7

      Alax7 Dedicated LVC Member

      Messages:
      7,816
      Likes Received:
      38
      Joined:
      Dec 18, 2008
      Location:
      LA


      Yes, just install a switch to cut the signal from the speed wire located on the nav harness in the trunk. I did it, I use it so my passenger can input an address while ont he freeway and such. When the signal is interrupted, the nav will display your vehicle as not moving, when you turn the switch back on to allow the signal to cross, it will update shortly, you just have to keep driving.

    • Alax7

      Alax7 Dedicated LVC Member

      Messages:
      7,816
      Likes Received:
      38
      Joined:
      Dec 18, 2008
      Location:
      LA
      The VSS switch wire connects to the dvd nav map player in the trunk. It is found on the 24 pin connector and it is white with a green stripe.

    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,901
      Likes Received:
      350
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
      or you can just use a 1450 ohm resistor inline with the turn on wire.

      also if you dont want to see the GPS antenna, you can actually just mount it under the same piece of plastic, it will still receive the signal great right through the plastic.

    • LS4me

      LS4me Dedicated LVC Member

      Messages:
      9,966
      Likes Received:
      272
      Joined:
      Apr 23, 2004
      Location:
      San Diego
      Thanks. I just might do this.

    • blwnbyu

      blwnbyu Dedicated LVC Member

      Messages:
      542
      Likes Received:
      22
      Joined:
      Sep 16, 2012
      Location:
      montana
      I FINALLY found a thread that answers almost every question I have.. except one..

      I have a PAC SWI-RC steering wheel interface and am installing a Kenwood DNX-9990HD

      I cannot find any info from PAC that actually lists the correct connector or wiring colors..

      Any help with this one?

    • Mr.Howie

      Mr.Howie Active LVC Member

      Messages:
      62
      Likes Received:
      2
      Joined:
      Feb 29, 2012
      Location:
      St. Louis
      34) Adding a rear view camera...(The LS uses a module to operate all the rear lights. It sends a ground signal to a light bulb to activate tail lamp, brake lamp, reverse lamp.) The camera operates with a (+) signal to turn on the camera. The camera power has to come from the battery saver circuit. The most convenient source is at the right rear trunk lamp (+) circuit. This is always on when the car ignition is on and activates when the key FOB is activated or the door is opened. A separate relay has to be installed to provide the head unit with a (+) signal instead of a (-) signal during reverse lamp activation. A wire from the (-) module side of the reverse lamp has to be run from the trunk lid wiring under the rear seat to the center console. A relay then has to be installed using a (+) circuit at on of the connectors under the console. Use the (-) signal from the module to trigger the relay coil to provide a (+) signal to the radio head unit.
      Pin 85 (-) signal from reverse lamps
      Pin 86 (+) positive signal from battery saver circuit at connecter under console.
      Pin 30 (+) from battery saver circuit.
      Pin 87 (+) signal to radio head unit reverse signal.
      Pin 87a not used.

      Do not use the amp power wire to turn on the camera. All cameras have a heating element to keep the lense from fogging. Too much current for the amp turn on circuit. This will overload the circuit and cause intermittent failure.

      Last edited: Jan 22, 2013
    • purevilpleasure

      purevilpleasure Dedicated LVC Member

      Messages:
      947
      Likes Received:
      26
      Joined:
      Aug 17, 2012
      Location:
      Lamont
      Great write up....now just need the RAP part of it in here.

    • chulojay

      chulojay New LVC Member

      Messages:
      7
      Likes Received:
      0
      Joined:
      Mar 11, 2013
      Location:
      Toronto,On
      Great Thread

      Thanks you Mr. Howie you saved me a lot of work.

      While installing My new Sony XAV64BT I had trouble finding the dimmer wire
      then later read in your thread that there's non and just to hook up to
      The blue/orange cable by the message centre ,in my Lincoln LS I did not have a message center so I hooked it up to the blue/orange wire in the traction control button by the emergency brake.
      One other thing I noticed was that my tweeters don't seem to be working and I tried to find the amp but I can't . Is the amp hidden above the peddles in a 2001 lincoln ? Mine came with the alpine system but without subwoofers..
      Thanks for your help this forum is priceless .

    • LS4me

      LS4me Dedicated LVC Member

      Messages:
      9,966
      Likes Received:
      272
      Joined:
      Apr 23, 2004
      Location:
      San Diego
      Alax, I assume that's at the DVD reader? Can I use the wh/gr wire at the head unit?

    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,901
      Likes Received:
      350
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
      it should be bolted up just to the left of the steering column.




      another easy to get to wire for illumination is at the ashtray.

    • Gonzo

      Gonzo New LVC Member

      Messages:
      7
      Likes Received:
      0
      Joined:
      Aug 22, 2013
      Location:
      Chesapeake, VA
      Originally Posted by Mr.Howie
      This is a Double DIN installation for 2000-2002 Lincoln LS.

      This system uses the factory tweeters in the console and the factory subwoofer system.

      Note: For best results the rear Subwoofer upgrade has to be performed 2000-2001 (See "Subwoofer Upgrade 2000-2001" Post) and the correct factory speakers have to be installed (See "Best Factory Speaker & Water Drains" Post). A surge capacitor is recommended for the double DIN head unit. If you LS does not have factory tweeters, ones can be obtained from a salvage vehicle, trace out hole shape on a piece of paper, cut holes in your console, install speakers and snap in the speaker covers. If you car does not have a subwoofer system, get one out of a salvage LS the wiring is already there, just add a connector to the radio.

      This results in a super clean, power sound system that you will have to hear to believe. RolinLS has heard this system in Mr. Howie's Silver Lincoln LS.

      2000-2002 Lincoln LS
      Double DIN Installation Instructions

      Parts Required: Metra 95-5000B Double DIN Face plate adapter
      Metra 70-5519 (Alpine with Sub Amp) (2000-2002)
      Metra 71-5520-1 (2003 & Up)
      ASWC steering wheel control module
      American International FWH-600 (use for steering controls 00-02).

      Factory radio removal:

      1) Pull parking brake lever up to set parking brake.
      2) Turn the ignition key on and move shift lever into Drive (D).
      3) Turn ignition off & remove key.
      4) Push the ashtray in and hold in. While holding the ashtray inward, put fingers underneath ashtray surround panel and remove surround panel.

      5) Using a 7mm socket, remove the two screws on either side of the ashtray.

      6) Pull ashtray out approx. 2.5 inches. If removed any further damage to ashtray wires may occur.

      7) Using a pry tool remove upper air-conditioning vent by prying on both sides evenly.

      8) Tilt AC outlet upward and remove the grey connecter if car is equipped with message center buttons.

      9) With an 8 MM socket remove 2 upper and lower mounting screws that hold radio and climate control system into dash. Be sure not to drop the lower mounting screws into consol. Hold washer with your finger to prevent screw from falling inside the console.

      10) Drape Towel over consol and shifter to prevent scratching trim and shifter while removing radio/climate control assembly. Remove radio and climate control assembly.

      11) Lay radio/climate control assembly on its side and remove the 4 Phillips screws that hold the climate control head in place. Do not drop the climate control module.

      12) Remove the 6 screws that hold the radio in place with a 4mm socket.

      13) Install the climate control module to the Metra side brackets. Line up the two pins highlighted with white paint and tighten the Phillips screws.

      14) Line up the two plastic pins in the climate control with the two holes in the Metra radio faceplate adapter (highlighted with white paint).

      15) Install the double DIN Receiver line up with screw holes in the metra mounting plates while keeping the face plate flush. Tighten the Phillips radio mounting screws. (Metra supplies 3 per side. Two additional screws may by obtained for more secure mounting, four per side).

      16) An alternate method is to reuse the metal mounting brackets. Use the Metra mount plates as a template to mark new mounting screw holes in the steel plates. Slot the holes after drilling to allow for adjustment.

      17) After installing radio/climate control brackets and faceplate, install connectors and wires for Reverse sense and Parking Brake switch safety wire.

      18) Connect the Wire harness adapter wires to the Double DIN radio wires.

      19) Connect the ASWC white/green wire to cavity/pin #14 of Black Connector C240a. The #14 pin is the lower right corner pin as you look at the connector. (Using a modified connector from the FWH600 kit will fit the factory connector for the steering wheel control to make a cleaner installation.)*Connect Red AXWC wire to ACC red wire of harness adapter. Connect Black ASWC wire to black ground wire of harness adapter. Connect brown ASWC wire to blue/yellow steering wheel remote input wire (Kenwood units). Before making a permanent connection install a 12K ohm resister between the brown ASWC wire and the blue/yellow wire.

      a. *To modify the connector from the FWH600 kit, take the wires out of the large square connector shell. Use a “T” pin to release the clip to remove the connectors. Install one wire in the right lower corner (with the front of the connector facing away from you) to match up with pin #14. Connect this wire to the Blue/Yellow wire of the AWSC.

      20) Lift the front of the center console top plate on each side of the shifter (with your fingers) and lift up from the console. Be sure to remove the connector to the traction control/ATS switch before completely removing console top plate.

      21) Route the rear camera RCA cable and the rear camera power wire though the console on the left side away from the shift linkage and parking brake mechanism. Route cable and wire under the metal bracket and under the ashtray mounting plate. Use a hook tool to facilitate wire routing.

      22) To program the ASWC to a Kenwood radio, turn ignition key to accessory position with the 12K resistor mounted between the brown and the Kenwood remote (blue/yellow) wire. Wait until the red LED stops flashing. Remove 12k resistor and make a permanent connection at the brown wire to the blue/yellow wire. Test steering wheel controls, they should work properly now.

      23) Place double DIN unit on the rag at shifter/console area, connect the double DIN unit but do not install in dash.

      24) On the 00-02 Lincoln LS the Orange Illumination wire will not be active on the wire harness adapter. The double DIN radio illumination wire will have to be connected to the Blue/Orange wire on the message center buttons grey connector that was disconnected in step 8.

      25) Connect parking brake sense wire to parking brake switch located just under the parking brake boot. Console does not have to be removed to gain access. Connect to wire on install on connector.

      26) Connecting the factory front tweeters to the aftermarket double DIN system will require finding the Right and Left input wiring to the factory front amplifier mounted under the steering wheel/dash area (has off white plastic with aluminum heat sink 4” X 2.25” in size). Connect two RCA cables R & L from the aftermarket radio Front RCA output terminals. Disconnect green connector from the front amplifier and access the wires that go into pin 1 (Left channel + ) and pin 2 (Right channel +) and pin 3 ground for both channels. Cut all three wires two inches away from green connector and connect the RCA Right (red) wire to connector side grey wire, connect RCA cable Left (+) white wire to connector side white wire. Connect both RCA cable shield grounds to the bare wire from pin 3 of green connector. Insulate all 3 wires then reconnect to amplifier. After connecting turn on radio and make sure that the speaker in the left side of the console is Right channel and the speaker in the right side of the console is Left channel.

      27) Installing Navigation add on unit. 2001 & 2002 remove the glove box and mount the navigation module to the top of the glove box right behind the latch opening. This makes SD car updates easy just by opening the glove box.

      28) Connect the ACC wire (red) to ACC feed either behind the radio or at the fuse box in the R side kick panel. Connect the yellow wire to a (+) 12V at all times either behind the radio or at the fuse box in the right side kick panel.

      29) Install a “reboot” round lighted (LED) switch next to the valet switch in the glove box liner. Connect the Red power circuit from the ACC to one terminal of the switch. Connect the red wire to the Navigation unit to the other terminal of the switch. Connect the black ground wire from the Nav. unit to a chassis ground. Ground the lighted switch to the chassis (can use same spot). This switch is for rebooting the Nav. unit if it ever locks up.

      30) Remove the defrost grille and cut a square hole with a dremel tool that matches up with the antenna. The supplied metal plate will have to be trimmed to fit next to the headlamp light sensor. The double sided sticky tape will hold the antenna to the defrost trim plate.

      31) Route antenna wire under the defrost trim plate to the module area by the glove box. Reinstall the defrost trim plate. Route the interface cable to the radio and plug into the back of the radio.

      32) For 2000-2001, Perform the Subwoofer amp upgrade and remount the amplifier in the fender.

      33) For 2002 Lincoln LS purchase the amp for 2001 Lincoln LS. The 2002 uses the pickup truck amp (Lincoln Blackwood truck) and it will make a loud pop if used on this system. The older style amp used on 2001 LS, Town car and other Ford product. This amp has more power and does not pop when turned on. Can be mounted under the deck in same location as the original amp and same connectors will fit the amp.
      34) Adding a rear view camera...(The LS uses a module to operate all the rear lights. It sends a ground signal to a light bulb to activate tail lamp, brake lamp, reverse lamp.) The camera operates with a (+) signal to turn on the camera. The camera power has to come from the battery saver circuit. The most convenient source is at the right rear trunk lamp (+) circuit. This is always on when the car ignition is on and activates when the key FOB is activated or the door is opened. A separate relay has to be installed to provide the head unit with a (+) signal instead of a (-) signal during reverse lamp activation. A wire from the (-) module side of the reverse lamp has to be run from the trunk lid wiring under the rear seat to the center console. A relay then has to be installed using a (+) circuit at on of the connectors under the console. Use the (-) signal from the module to trigger the relay coil to provide a (+) signal to the radio head unit.
      Pin 85 (-) signal from reverse lamps
      Pin 86 (+) positive signal from battery saver circuit at connecter under console.
      Pin 30 (+) from battery saver circuit.
      Pin 87 (+) signal to radio head unit reverse signal.
      Pin 87a not used.

      Do not use the amp power wire to turn on the camera. All cameras have a heating element to keep the lense from fogging. Too much current for the amp turn on circuit. This will overload the circuit and cause intermittent failure.











      so when you say the trunk lamp, do you mean the brake light? or the actual trunk cargo light? i am in the middle of wiring this thing up and i cannot figure it out. I understand where i need the negative from the reverse light.. im just lost right now.:confused: any help would be appreciated( even some pics!)

      thanks!

    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,517
      Likes Received:
      1,417
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      The actual trunk light. You know, the one that lights up the inside of the trunk. If he had meant a brake light, he would have said a brake light. (Of course, a brake light would work too, similar circuit.)

      The positive wire to the trunk light is turned on (12V switched on) anytime the car is awake. This is true even when the trunk light is off because the negative wire to the trunk light is switched on (grounded) only when the trunk lid is open.

    • Gonzo

      Gonzo New LVC Member

      Messages:
      7
      Likes Received:
      0
      Joined:
      Aug 22, 2013
      Location:
      Chesapeake, VA

      So now i see where I get my constant 12v which would go to my pin 30... What about pin86.. can I use the same location for that, if not.. what do you mean by "at connector by console"

      Forgive me, I am new to all of this and I figured why not try it before I paid someone else to do it.

      Thanks

    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,517
      Likes Received:
      1,417
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      I'm not the original poster. I'm not sure what he meant there.
      This is all about a relay to turn the negative reverse signal into a positive one, correct? Are you sure that your headunit won't work with a negative trigger signal? Most will, you just have to set it for negative instead of positive. If it only works with a positive trigger, there' still no need for a relay. The REM sends out a positive reverse trigger signal to the rear view mirror. Just tap into that signal.

    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,901
      Likes Received:
      350
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
      +10, there has been very few headunits that i have seen that the reverse wire wont trigger from a negative signal.

    • Gonzo

      Gonzo New LVC Member

      Messages:
      7
      Likes Received:
      0
      Joined:
      Aug 22, 2013
      Location:
      Chesapeake, VA
      sorry guys and gals, another question.. I told you I was new to this lol

      so when he said "pin 86 (+) positive signal from battery saver circuit at connector under console" what does the device(connector) look like? anyone have a picture of what I'm looking for or can point me in the right direction. I have everything else wired in, I just need help and I'm getting really confused and would hate to mess anything up. if you can reply here or PM me, I would greatly appreciate it!

      Thanks All!!

      -Gonzo

    • Mr.Howie

      Mr.Howie Active LVC Member

      Messages:
      62
      Likes Received:
      2
      Joined:
      Feb 29, 2012
      Location:
      St. Louis
      The Pin numbers are the numbers on the underside of the relay. All plug in type relays have these numbers it is a universal system. For example pin 85 and pin 86 are the relay coil pins.

    • antonio fuller

      antonio fuller Well-Known LVC Member

      Messages:
      362
      Likes Received:
      3
      Joined:
      Sep 22, 2008
      Location:
      Decatur, Georgia, United States
      Ok now you got installation for 2003- 2006. Lol I got a 2006 had a 2001 in put a flip in it wish I jad seen this
