2007 Jaguar STR Brakes Confirmed

Lincoln LS

  1. FDR

    FDR Dedicated LVC Member

    Messages:
    1,929
    Likes Received:
    126
    Joined:
    Jan 20, 2014
    Location:
    Central NJ
    Lenny at Motorsport-tech said the thinnest they could make with the second lip is 10mm. I'm gonna try the 5mms for now because I don't want to get into replacing studs. If the hub really is larger than 5mm, then I won't worry about it (I'm not near the car and can't measure myself). If not, well there are plenty of forum anecdotes of spacers being fine. It's only temporary anyway and I'll keep my speed under 80

  2. 1LoudLS

    1LoudLS Dedicated LVC Member

    Messages:
    9,902
    Likes Received:
    350
    Joined:
    Mar 31, 2008
    Location:
    Ann Arbor
    I would not use any spacers that were not hub AND wheel centric. it will be next to impossible to get the wheel centered right when putting them on (you will have a terrible vibration when driving)

    and since our lug nuts are a flat style, they wont work to center the wheel on the hub as you tighten them...

  3. FDR

    FDR Dedicated LVC Member

    Messages:
    1,929
    Likes Received:
    126
    Joined:
    Jan 20, 2014
    Location:
    Central NJ
    Supposedly, according to Lenny and I think Eibach, the hub sticks out more than 5mm. That doesn't sound right, but lip height isn't something I've considered before, and I'm back at school so I can't check until Thursday at least.

    Zeus wheels grow on me more and more. I used to think they were too close to the stock Sport 5-spoke, but they look good. Clean style, subtle beefy appearance. They might be the only OEM Jag wheels I'd consider since I'm pretty set on 18s if OEM. But Barcelonas do look better...

    http://www.allfactorywheels.com/ has Zeuses for $152 each, either width. $730 shipped to my door. Barcelonas jump up to 277 each, 1200 shipped. That [almost] guaranteed fitment is tempting, but tires are expensive and could easily turn this into $2k in wheels, $2500 with brakes.

    Plus, I don't like spending money twice. My plan was to buy nice wheels with summer tires and keep the stockers with all seasons or winter tires, then get winters, then do the brakes, so I don't want to be "stuck" with one set of decent all seasons and pay again later. Then again, that thinking is what got me here in the first place. My caliper was sticking, so why buy a replacement when I can upgrade? I hate me sometimes. I hate this rabbit hole I constantly throw myself down. That's why she's named Alice.

    When does my career start? I'd like to have more fun money, please. I should get my resume together since it's now internship application season

  4. DeviLSh

    DeviLSh Dedicated LVC Member

    Messages:
    559
    Likes Received:
    84
    Joined:
    Apr 26, 2007
    Location:
    Des Plaines
    FDR we are in the same position. My front left caliper is making a ton of noise (groaning) so I do not want to bother replacing when I can do the Jag STR upgrade. But with stock 17's and their incremental cost of 18"+ wheels and tires to go with it are holding me back from the upgrade. To spend the $$ on OEM brakes now, when I will most likely get the Jag brakes and larger wheels eventually would be a waste of current funds. We really are our own worst enemies...

    Even our two wheel considerations are similar - I think the Zeus' are a good buy (did allfactorywheels give you a shipping quote for you to arrive at that number of $730?) but like you I also like the Barcelonas. They are made by BBS too, which makes them a decent alternative to new aftermarket wheels. The concavity and design of the barcelona is more sophisticated but I like the whimsical approach to a STR Zeus being on an LS, and the design fits the era of car a littler better. As you stated, it is also a nice alteration of the oem LS 17" 5-star. so that look is retained.

    Do you happen to know the weight of the Zeus or Barcelona? I just weighed my Stock 17" wheel/tire combo last night and it came in at 48.5#. Reduction in unsprung weight is always good, maybe that will help you sway your decision in which wheel to choose.

    What field are you looking to intern in?

  5. FDR

    FDR Dedicated LVC Member

    Messages:
    1,929
    Likes Received:
    126
    Joined:
    Jan 20, 2014
    Location:
    Central NJ
    I believe Kumba reported the S-type Sport 326mm rotors fit in the front. Same caliper, different pads/rotors/bracket. That might be enough for you, but I'm stupidly hooked on the 15"/365s now. Looking back, though, I don't think spending the money twice is ever actually an issue since it takes so long for me to do things anyway (for various reasons)

    Yes, the $730 is the delivered price. $152x4 in wheels, ~$70 in shipping, ~50 in tax

    Concave wheels are my favorite, which is why the Forgestar F14s are so attractive. I can't can't can't stand convex/bowl/collander wheels. They just scream Pep Boys Special to meI was also interested in Niche Targas, but I saw an LS with 19" Targas and stock rear brakes and was thoroughly disappointed. But now I'm going with the bigger brakes ahead of schedule... I'd prefer 18s, but I hear Targas, at least, have undersized barrels, so they may not clear 365mm fronts. I'm going to have to get some measurements from someone with those. At least then there's a larger crowd of StR owners to pool from

    No idea about the weights. Admittedly, it's not a concern for me.

    I'm going to school for mechanical engineering technology (mech engineering lite with less calc, no DiffEq, and more hands on learning)

  6. FDR

    FDR Dedicated LVC Member

    Messages:
    1,929
    Likes Received:
    126
    Joined:
    Jan 20, 2014
    Location:
    Central NJ
    The hub sticks out 7mm, but the wheels have a bevel on the bore that recedes 3mm, meaning a 5mm spacer won't work. As stated before and confirmed in about 4 seconds, the mag-style lug nuts have quite a lot of room to move in the wheel and won't center the wheel. A 3mm spacer may work, but you start to question if it's even worth it at that point. I guess the spokes and calipers really aren't going to move so it should be fine, but this is just such a concerning thing for me because I have so little knowledge here. An impact hard enough to smack the spokes into the caliper or a pothole large enough to bend the rim would probably destroy much more than just the wheel and brakes

    It looks like replacing studs isn't too bad with the proper tool. Maybe longer studs and 10mm spacers are in my future. Maybe not.

  7. xford

    xford Well-Known LVC Member

    Messages:
    413
    Likes Received:
    17
    Joined:
    May 13, 2009
    Location:
    Newport Beach

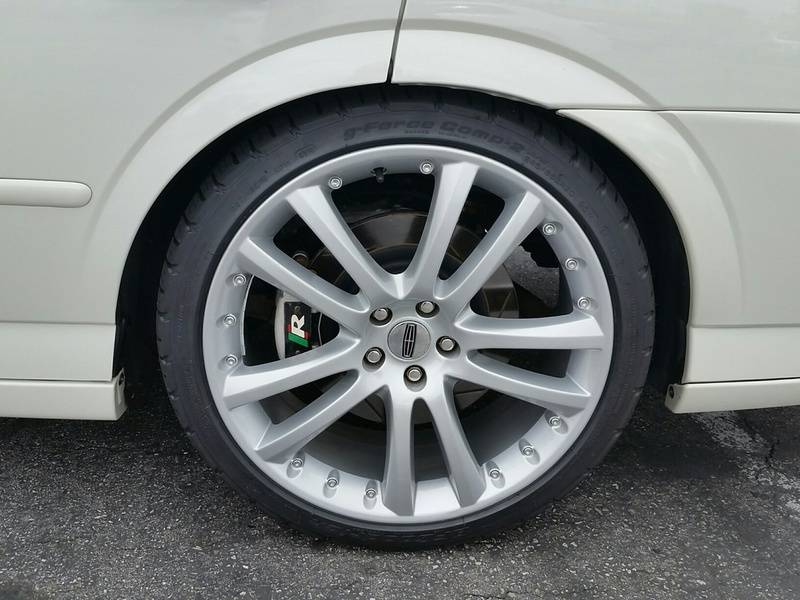

    Finally got around to getting the proper spare to clear the STR Calipers. Got a great deal IMO at around $100 shipped from e-bay - spare still has nubs and appears never driven on. Also got new shoes -245/35ZR-20 BFGOODRICH G-FORCE COMP-2 A/S XL - highly rated at Tire Rack - I like the tread pattern and noise level/reponsiveness 20160312_070703_resized.jpg 20160313_132423_resized.jpg 20160313_132351_resized.jpg

    • Like Like x 2
    • FDR

      FDR Dedicated LVC Member

      Messages:
      1,929
      Likes Received:
      126
      Joined:
      Jan 20, 2014
      Location:
      Central NJ
      Any particular reason for going with the StR spare instead of a fullsize wheel?

    • xford

      xford Well-Known LVC Member

      Messages:
      413
      Likes Received:
      17
      Joined:
      May 13, 2009
      Location:
      Newport Beach
      If you mean vs. a Jag Senta knock off it would just be a weight and cost thing. Also not sure of the fitment in the spare tire well but I am sure it would be close as the Jag STR spare has about the exact same outer diameter as the BF Goodrich's. Significantly lighter and less expensive, however, and I have had relatively good luck in avoiding flat tires - knock on wood...

    • FDR

      FDR Dedicated LVC Member

      Messages:
      1,929
      Likes Received:
      126
      Joined:
      Jan 20, 2014
      Location:
      Central NJ
      I'd just feel happier with any used Jaguar rim with a regular tire instead of a spare tire with speed and distance limitations, but I can understand putting more value in weight and cost since used Zeus rims go for $150 alone without the tire. I've never used my spares either, though

    • DeviLSh

      DeviLSh Dedicated LVC Member

      Messages:
      559
      Likes Received:
      84
      Joined:
      Apr 26, 2007
      Location:
      Des Plaines
      For anyone that has done this recently - I am on rockauto and the A1 carodne #'s appear to have changed from what was more recently posted.

      FL: 193894
      FR: 193895

      Pictures show a caliper w/o the bracket, but the description states: "w/ install hardware". Before I order, I wanted to see if anyone has ordered these and could confirm if the carrier bracket is included or not. (I will also email Rockauto).

      Second - does anyone have a part# for the fron caliper bolts from Jaguar? Was gonna run to the dealer if I cannot find online.

      Thanks

      EDIT: Pretty sure the "B" in the part number indicates a bracket is included.

    • LS4me

      LS4me Dedicated LVC Member

      Messages:
      9,966
      Likes Received:
      272
      Joined:
      Apr 23, 2004
      Location:
      San Diego
      I would think "install hardware" are clips and things of that nature. I'd put money the bracket is sold separately.

    • 04_Sport_LS

      04_Sport_LS Dedicated LVC Member

      Messages:
      2,880
      Likes Received:
      302
      Joined:
      Jun 12, 2012
      Location:
      Somewhere around Lake Erie
      For those interested... IIRC,,, you can upgrade the front of the LS to the standard S-Type 13" rotors and calipers. Those SHOULD fit inside the 17" wheels. There's an old thread somwhwere around here that discusses it.

    • DeviLSh

      DeviLSh Dedicated LVC Member

      Messages:
      559
      Likes Received:
      84
      Joined:
      Apr 26, 2007
      Location:
      Des Plaines

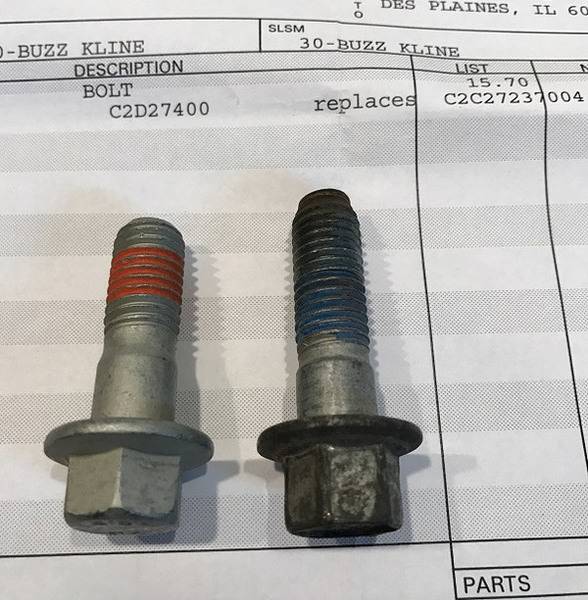

      For Anyone who wants to order the Jag bolts - they are Jag Part #: C2D27400, M12x35mm, $8/ea. I ordered from: Terry's Jaguar @ www.terrysjag.com


      • Like Like x 1
      • DeviLSh

        DeviLSh Dedicated LVC Member

        Messages:
        559
        Likes Received:
        84
        Joined:
        Apr 26, 2007
        Location:
        Des Plaines
        I have now completed the full F&R '07 STR swap, using a mix of new and re-manufactured parts. I ran into some issues/mistakes/bad luck during the install which delayed me finally getting the car on the road. But I have it back now, and my god do these brakes feel fantastic. The bite is still a bit soft initially, but once you get on the pedal this car halts to a stop. Similar thoughts to what others have said, but the car feels as if it shed substantial weight. Very impressed with the results, would recommend to anyone looking to overhaul their brakes and looking for a good performance upgrade. Please remember these brakes are bigger and therefore heavier.

        Problems I encountered:
        TAKE NOTE - as others have noted, there are nubs on the inside caliper brackets that will touch the rotors. (At least mine had them) Like an idiot, I did not notice until my first drive, and assumed the noise was pad break in/dust shields, took < 1/8 mile before I had done the damage. File these down, and test the rotation before getting the car on the ground.


        Take it easy on the brake banjos, and the bleeders. This goes without saying, but I managed to strip the Front-Left caliper's banjo upon install. Causing the need for thread repair (helicoil insert). After that was repaired, I began bleeding, and managed to also strip the Rear-Right bleeder. So I also had that repaired, twice - as it still leaked after the first. :D Maybe its because it is my busy time of year at work, and I was under stress, but i was being pretty careful and managed to damage both calipers which were "new" reman'd units. So be careful!

        Here is the pricing breakdown - All parts were for Jag STR 2007:
        Front Calipers - Ebay- "PhD Car Parts" - Centric 141.20028 and 141.20027 - $340
        Rear Calipers - Rockauto - 19-B3899 and 19-B3898 - $290
        Rotors - Centric 125.2002 & 125.2002 - Rockauto - $265
        Pads - Centric Semi-Met. 104.10950 & 104.12402 -Rockauto - $ 60
        SSLines - (LS) Centric 950.61006 & 950.61503 - Rockauo - $130
        Rear Caliper Stiffening Kit: TyrolSport - #: TSRCSVW - $110
        Front Caliper Bolts (4) - C2D27400 - Jaguar - $ 16
        Fluid - $ 20
        Total -----------------------------------------------------------------------> $ 1,231


        Still a great price point if you do your own work, as this involves replacing everything but the master cylinder. And I overspent on the stiffening kit and lines. It can be done for cheaper, but availability of the parts seems to be getting a bit more difficult. Especially the rear calipers.

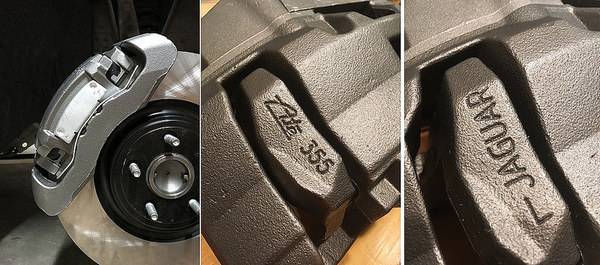

        Onto some Pictures - Tried to add to this thread some more comparisons, but nothing too new here to see other than the stiffening kit. (love these by thew way, they were too small for the front, but they fit in the rears. The company had some oversized units in stock that fit nice and snug into the rear guide holes. Should help with uneven pad wear and pedal feel.

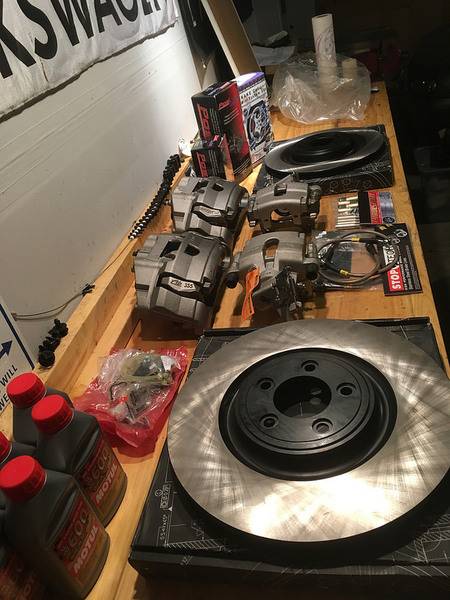

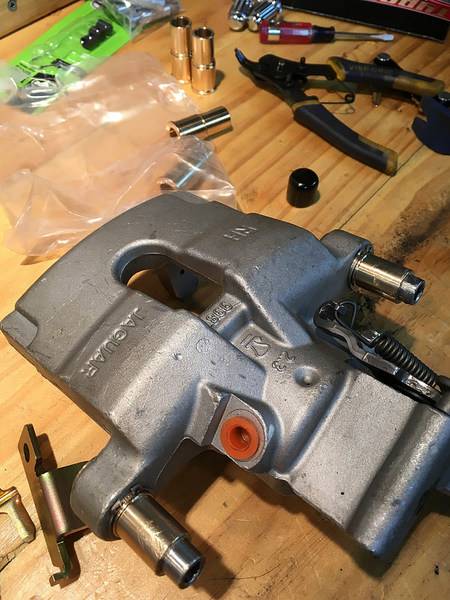

        Parts ready:

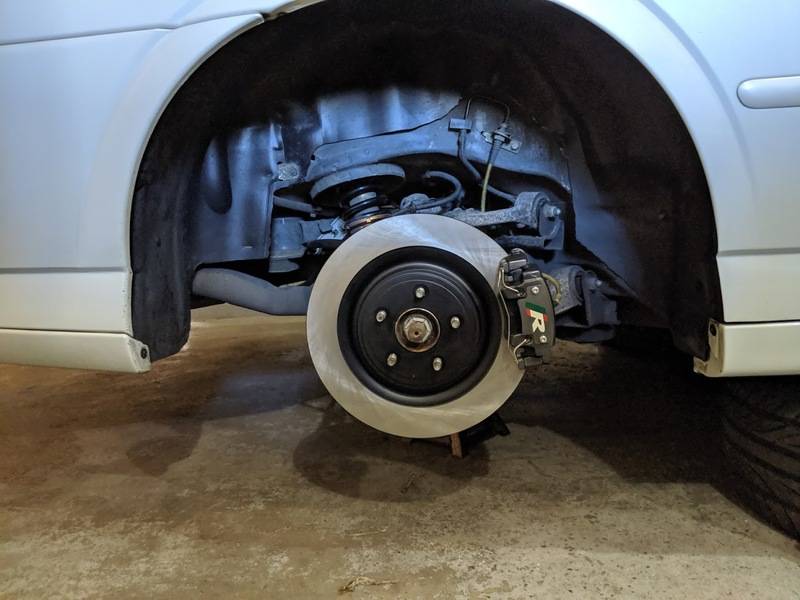

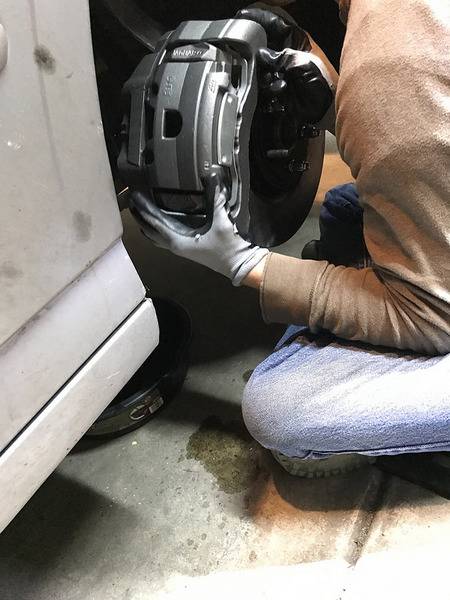

        Rear installed:

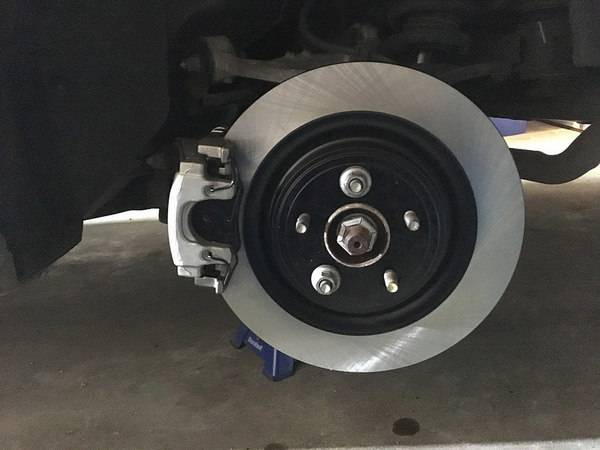

        Front details:

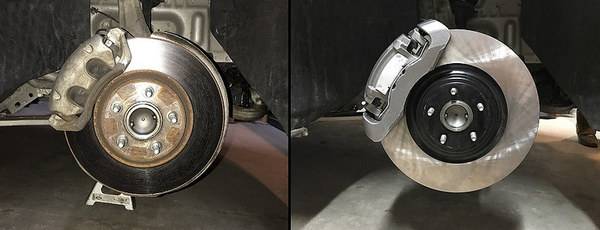

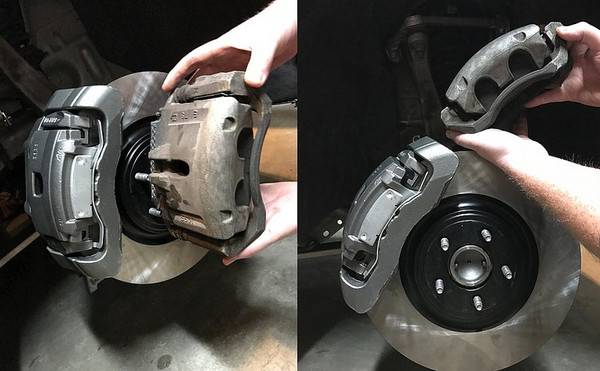

        Comparisons: LS vs STR

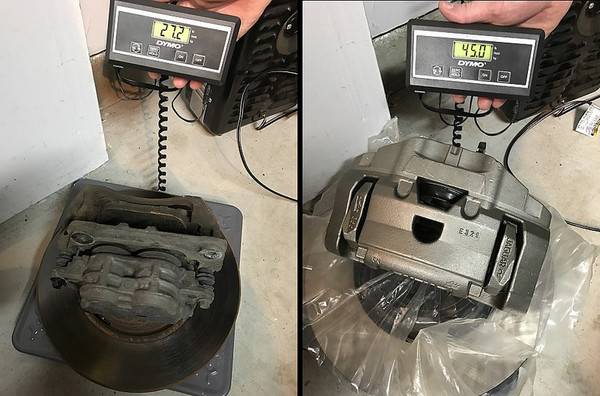

        Extra stopping power comes at a cost... Rears were within 1-2lbs of LS stuff. About 26# per rear corner, if I remember correctly (no pic of rears weighed, sorry)

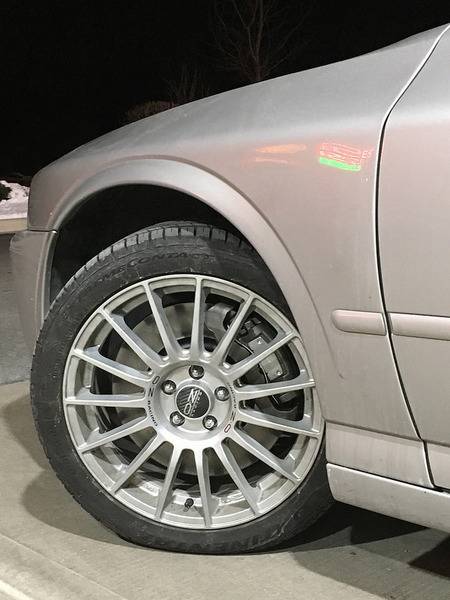

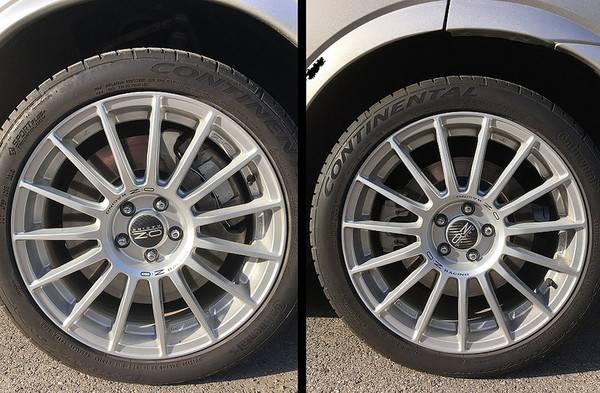

        Clears the 18x8,et 45 just barely up front, and easily in the rear. Fills the area nicely.

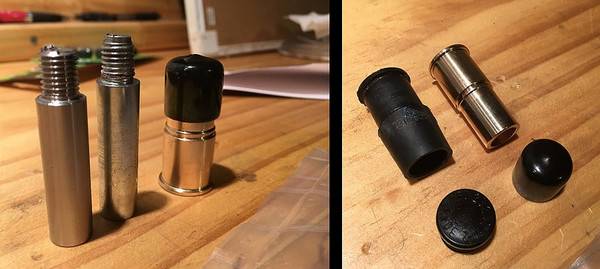

        Tyrolsport Caliper stiffening kit: In short, these are machine bronze inserts for caliper guides. They reduce unwanted caliper flex found on ATE style calipers. They come with hightemp dust caps and snap rings. More info @ www.tyrolsport.com

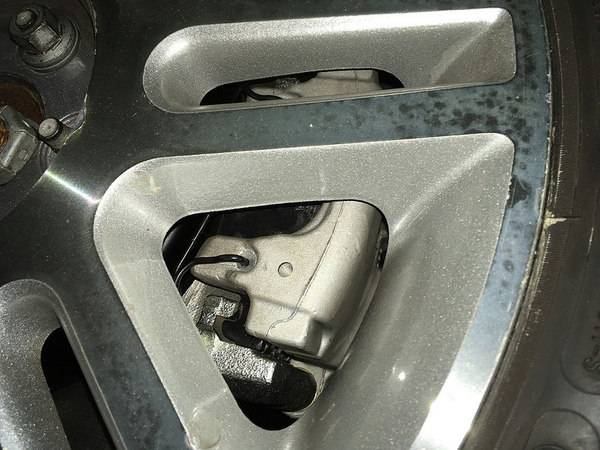

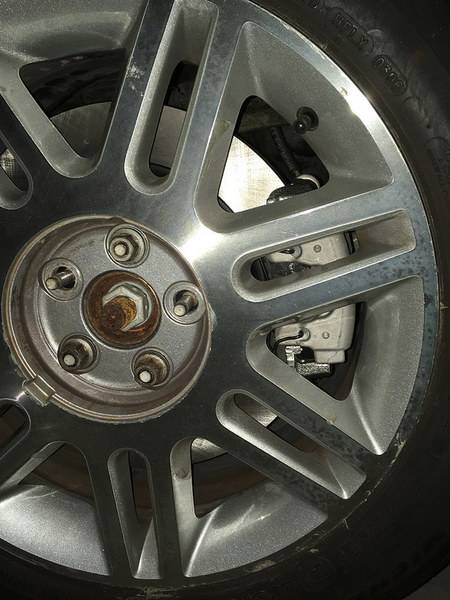

        Rears BARELY clear the oem wheel:



        And some shameless plugs :D Thanks to Dwiggy for pioneering this, and all the others who posted info in this thread. very helpful, and great upgrade.



        Additional notes -
        1 - ebrake (gen2) no modification necessary for install
        2 - SS lines were for LS, worked on Jag parts fine.
        3 - Banjo and bleed holes are all M10x1.0 on the Jag parts.

        Last edited: Mar 19, 2017
        • Like Like x 4
        • RodLS

          RodLS Dedicated LVC Member

          Messages:
          1,012
          Likes Received:
          61
          Joined:
          Jul 15, 2010
          Location:
          Vancouver, WA
          Finally after 7 years I get around to doing this. I wanted to do this mod since dwiggy first posted about it but I didn't have the funds or time. When I did have the funds I went and bought an Evo X and the LS was relegated as a backup car. Now many years later the LS was about due for a brake job and one of the calipers had developed a nasty creak. Perfect time do to this upgrade.

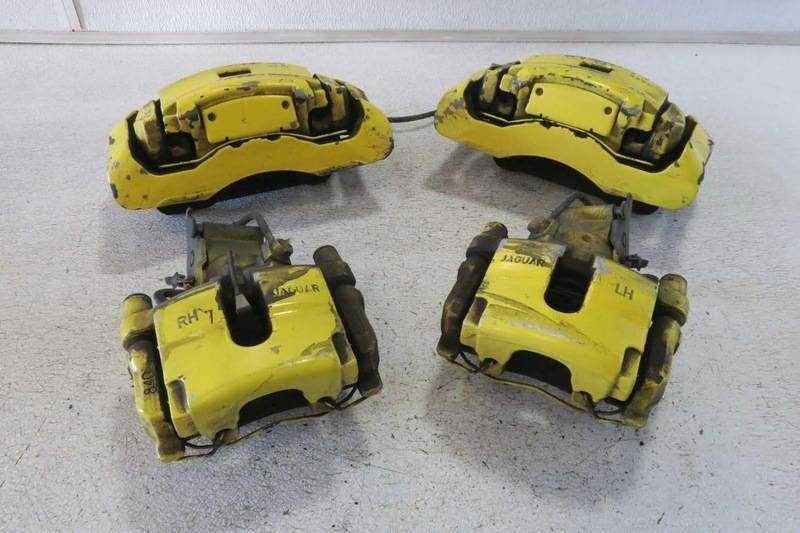

          I found these calipers on ebay for a 2011 Jaguar XJ non supercharged for $125 plus shipping. The plan was to strip them completely down to rebuild and refinish them.

          k2Irn7l2-ITxn27AWCIVE6v4pCNLr2WJGYmRtJ6bMm2n_pKv2teewBPWagg0JnhaBhFJBCOgmJaR6YuiuK=w1454-h969-no.jpg

          RkEleQ2zMKdoL9yrpJE7AQS_1ePv8Kyq7U3JhplyX2vsjwGYI_ptuZ7E7rmQngTOiL3qge-jOPtsJvsOke=w1292-h970-no.jpg

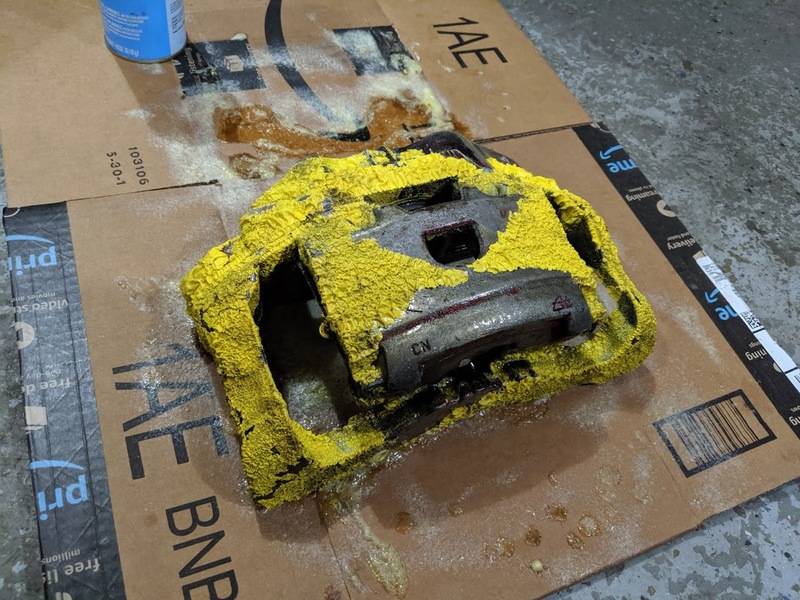

          Aircraft paint stripper took most of it off.
          fKsH92ZXawmh-jLC-N6S05g0CVSS1rE6naQoVZ-pny837-CSgNLwtqQdHWA2_DM3arCa6tSIXBjYPR_6pF=w1292-h970-no.jpg

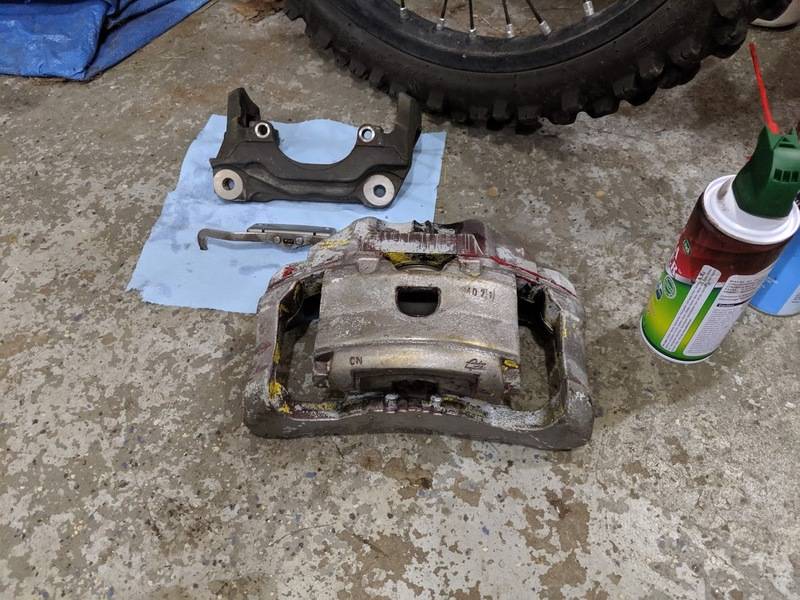

          The remaining paint and rust was removed with wire wheels.
          sEPA1ROPldtYU_jKy_zWG-P09fuGuycdLaBYQ6EzrQsqd8srOXsme9QBpjftGSKqre8Wltr1QWC1IYJU0o=w1292-h970-no.jpg

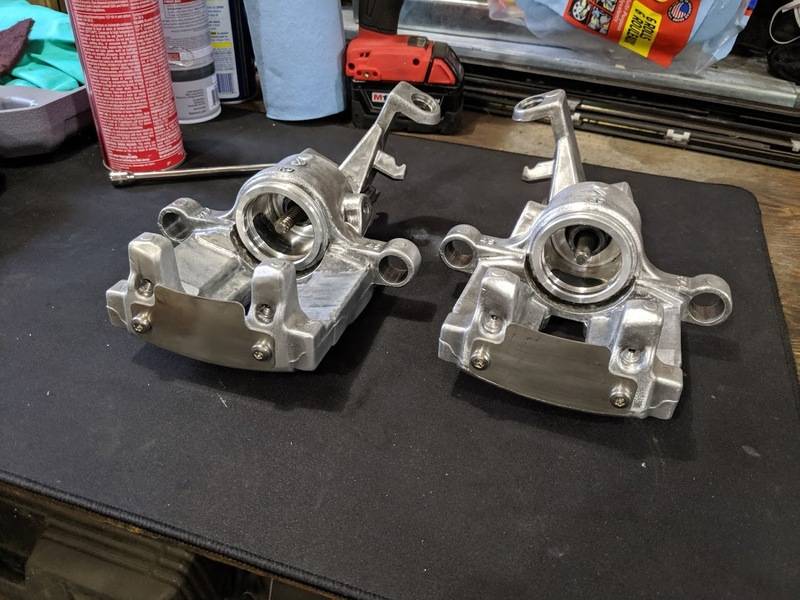

          Disassembled, cleaned up, and ready for paint.
          Jp4Xzm-1UW1Z7TR6DfuGLjMjXO_-ixvTGO2bS7G7MdvTicF0TkzlifTWtoafbhrVPne9nidDxvPfmNiXzp=w1292-h970-no.jpg

          I went with VHT Nu-Cast Iron and clear coat.
          lM-4ZPCPeSdq2hxgN-r0VmBREa1uAvTIWdvNGZ7O6MtRn20wwGcBhMwTYpTo5rFUKIbEPOhTv_mchIikPm=w1292-h970-no.jpg

          Decals from ebay.
          rlE_nuOVI_AP-FA2O_jrihtOIKKthCep5dI7k49uzbyrpybgzuBK6v8oeY0KNcTzGyuCxlq5Q7moaNFLhf=w1292-h970-no.jpg

          Fronts installed. The spring pieces that have the decal plate are very difficult to get on without messing up the new paint.
          XkMLLScygHP823RLMcDBbHsTwfhJIb1chOrg7yT2QcGLRueWN8pbF47f8xZqbSPc9QUYxrmOgk8fQPwJSH=w1292-h970-no.jpg

          0V2WoIixdJZtOhsDPCPhQNshKcbVkVMq8pSgmhP9YJVvHsCStqkqV6Px1NpwP1BoFTlLGS_p7yYMhiGbtN=w1292-h970-no.jpg

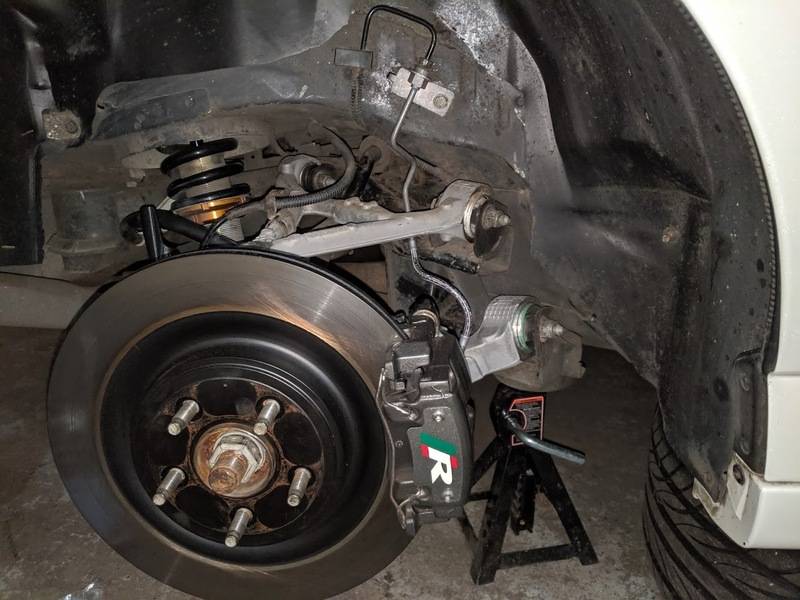

          Rear done.
          bvUFNpc_cd7088GPWDDk6VVtuScpr1Mu3eP8XMc1gGQGAHsFI8J4bP2QZeLAg2wGdFzosjVzBg4uGYS8Z-=w1292-h970-no.jpg

          ixZNwgudhxF1KDAT4oWeYh68u4SX0pADK2Pe9PVhWY26Od3ZPGKWIpxTYTYyTf0DKK-KNH8eIEel-5taEV=w1292-h970-no.jpg

          I have the StopTech SS brake lines from many years go but I didn't like the routing for the rear lines with these calipers. It was really close the the wheels (one side was actually rubbing) and control arms. The front lines were a bit short, at full lock they are stretched fairly tight. So I replaced them with OEM Jaguar SS lines. The Jaguar lines are a bit expensive but I think it's worth the peace of mind.

          The front now isn't stretched.
          B94lRXjOiccq1RiWGg65Khm7pkKImQXPKjbN1eUOD_DyrbsaeMXTWrPgybthaH7-JzacVSHF3qKTMPJ1IF=w1292-h970-no.jpg

          XoZXxUIicLFTWOVct3fm5XmHgCbHHg5Yq4odBjEpa1Vw6T_N9n0AD5XwGCwIMAYSIEwBDOlhZC3qWIo4sM=w1292-h970-no.jpg

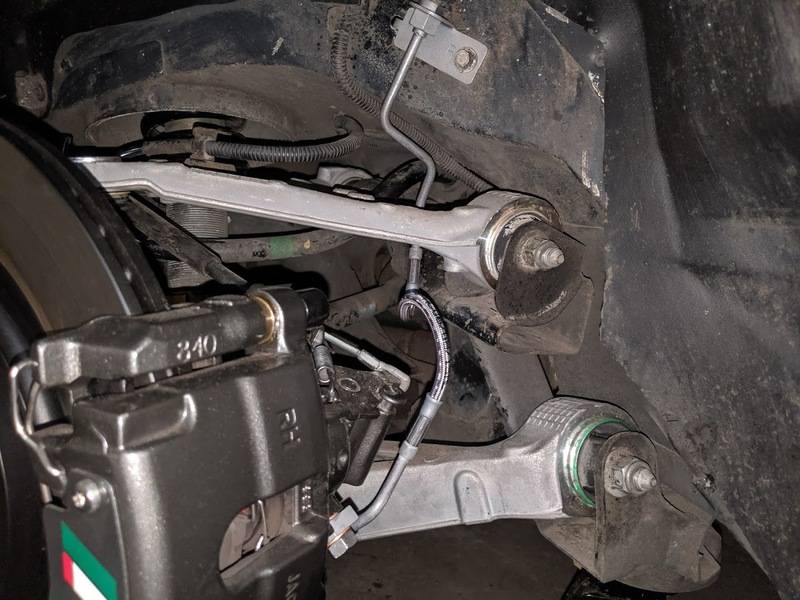

          The rear is mostly hard line.
          z2sA55Scw43ztAqb76FtCmoB6L0PMWuay29Gc1g7I7P0o-Xec9JD_n_bQhMQsUEaZoIfP24ULSPocKjEqB=w1292-h970-no.jpg

          VEf0QLe_uUHltYiy3JYuXNe297u4icX5jJMTvoRBR0RzpmY7f23rOxP9ioYKtNRWktbWJSKzgiIQJCURD4=w1292-h970-no.jpg

          Got to have the orange 18" spare.
          rvo0LcXB3ML909bAiruzqfMd-MagrPtPUhXZcQoV0PrG5WIYwxvFtZU16DHjfMOLxVmmH7gQWGZeO3zxyK=w1292-h970-no.jpg

          They fill my 19" Volvo Vulcanis nicely.
          nRbzn8vdZS5DjXk3oWE8IA8EZEQQ9Ptvw-LjW39dTZX8ytgCmlMbc-x07sapWClXAuIpxNsImGSO9S4EpQ=w1292-h970-no.jpg

          Cb2Y3mkhHoR3ASdrPhA1f81BrzZd3UavaBByXgcgkXxGDAeoXEcIv1BRJiLGIZAKMkfM-Afxau71aw2Hg2=w1292-h970-no.jpg

          6BNpUJGc3sjE08dIhyraDz2o1Qagx-5xGMQBJUb0wtkJ7m6cscqhD3Y1ZHmbFShdbM3LAJxKVzpT14eHpR=w1292-h970-no.jpg

          Overall I'm mostly satisfied with the upgrade. The pedal still initially feels mushy, there is probably no way around that. Once you get past the mush they have some serious stopping power and its repeatable. The factory brakes would overheat too easy.

          Thanks to dwiggy, jmtiseo, xford, DeviLSh, and others for all the great information needed to do this.

          Last edited: Oct 7, 2019
          • Like Like x 3
          • 04_Sport_LS

            04_Sport_LS Dedicated LVC Member

            Messages:
            2,880
            Likes Received:
            302
            Joined:
            Jun 12, 2012
            Location:
            Somewhere around Lake Erie
            If the pedal feels mushy... then you probably still have air in the brake system.

          • RodLS

            RodLS Dedicated LVC Member

            Messages:
            1,012
            Likes Received:
            61
            Joined:
            Jul 15, 2010
            Location:
            Vancouver, WA
            I doubt it. I bled them several times to see if that was the issue. The problem is the first 1" or so of brake pedal travel doesn't do a whole lot. Compared to other vehicles you got to push the pedal a lot farther to get the initial bite.

          • 04_Sport_LS

            04_Sport_LS Dedicated LVC Member

            Messages:
            2,880
            Likes Received:
            302
            Joined:
            Jun 12, 2012
            Location:
            Somewhere around Lake Erie
            Did you use a scan tool to open the ABS solenoids? If not... probably still air in system.

            Sounds to me like you are compressing air in that first inch.

            • Agree Agree x 1
            • RodLS

              RodLS Dedicated LVC Member

              Messages:
              1,012
              Likes Received:
              61
              Joined:
              Jul 15, 2010
              Location:
              Vancouver, WA
              No I didn't, never thought of that. I think forscan can do it, I'll have to give it a try.
