2007 Jaguar STR Brakes Confirmed

dwiggy

Active LVC Member
Joined
Oct 10, 2011
Messages
183
Reaction score
21
Location
Madisonville

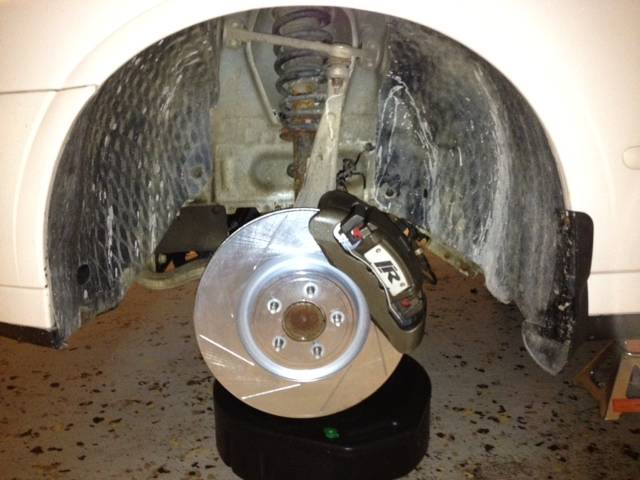

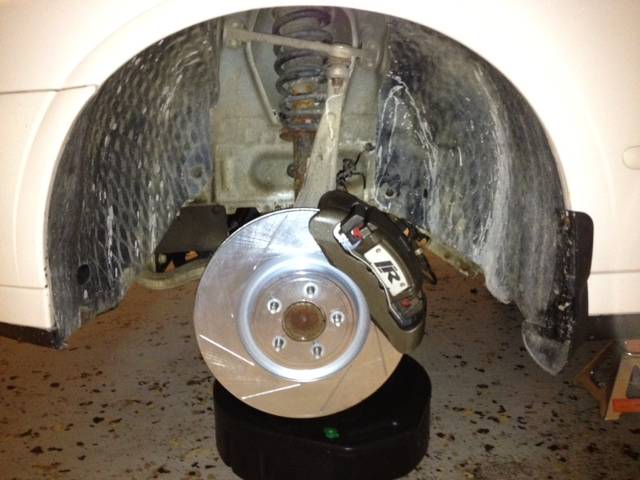

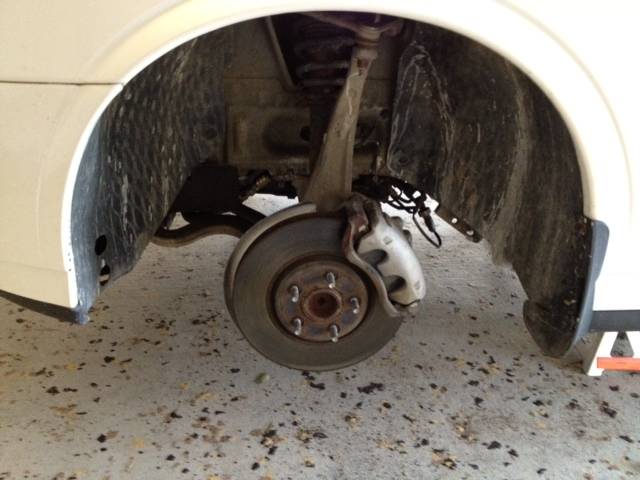

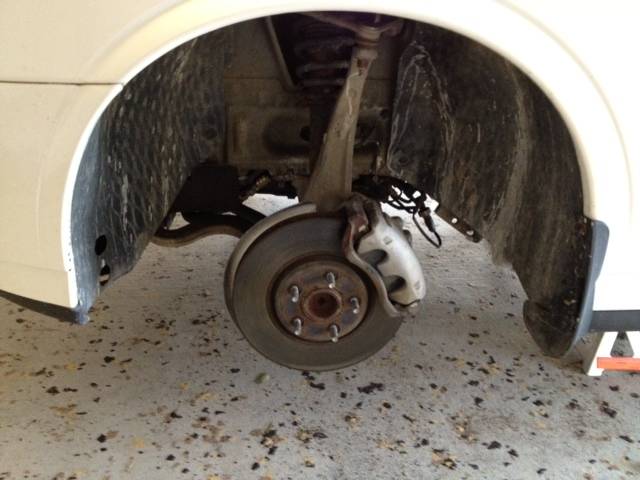

Fronts are a direct bolt on.
photo(6).JPG photo(4).JPG

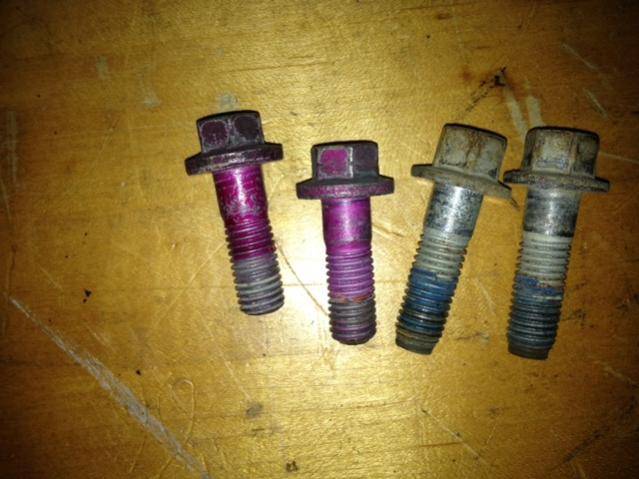

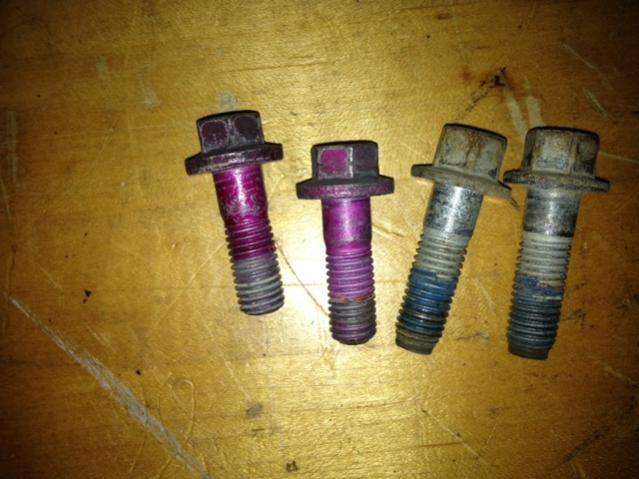

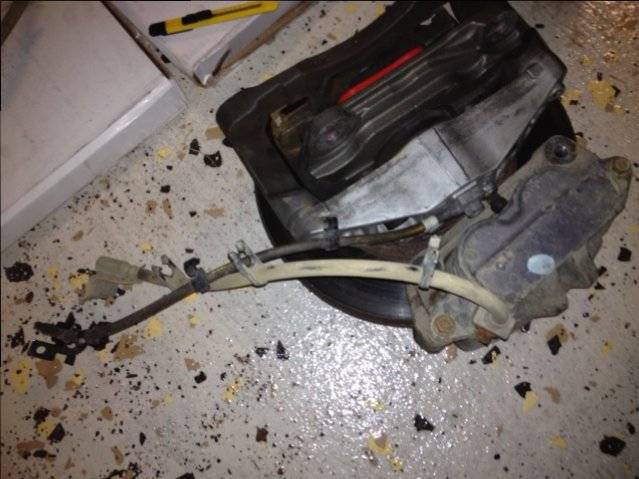

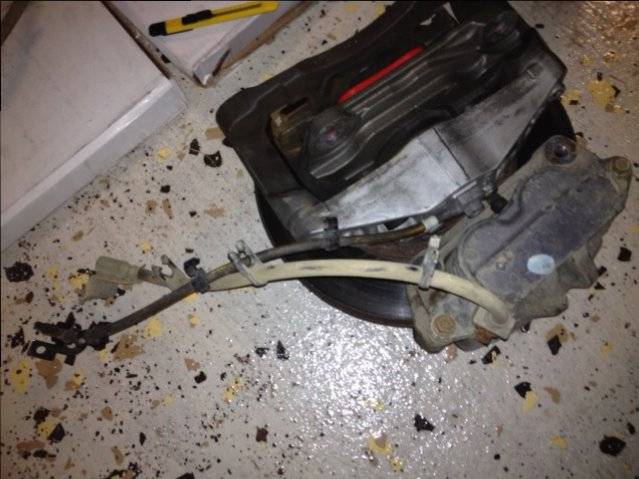

Jag bolts are a little shorter.

Jag stainless brake lines are the same length as LS factory lines.

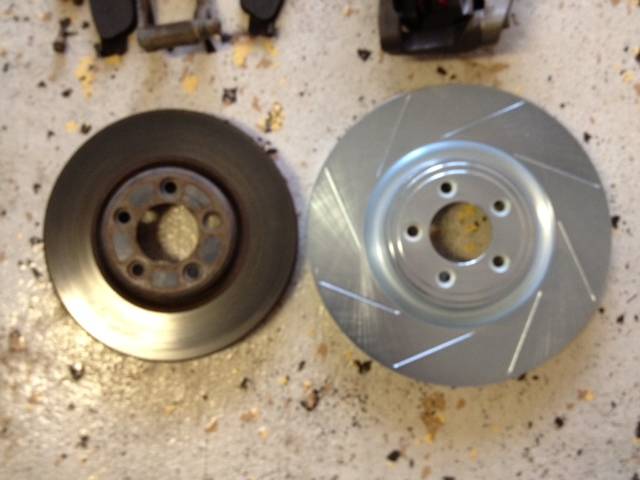

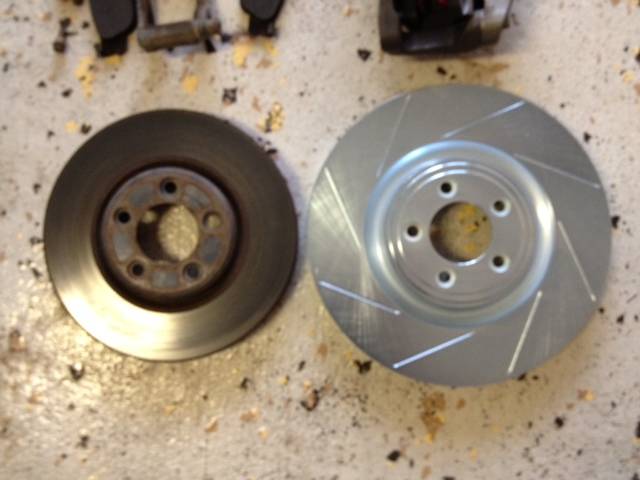

LS rotor is 11.81" Jag STR rotor is 14"

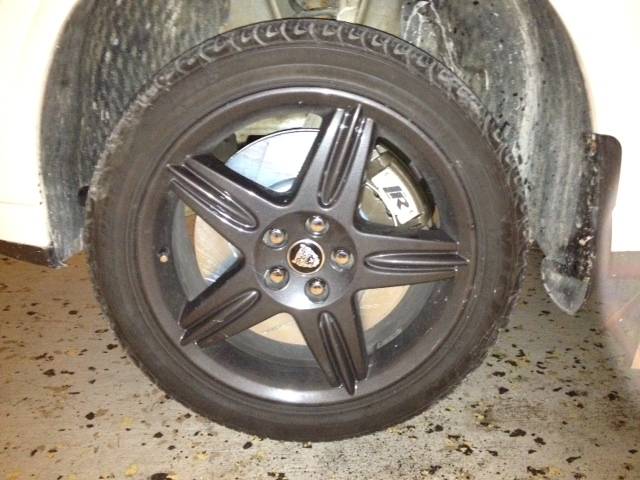

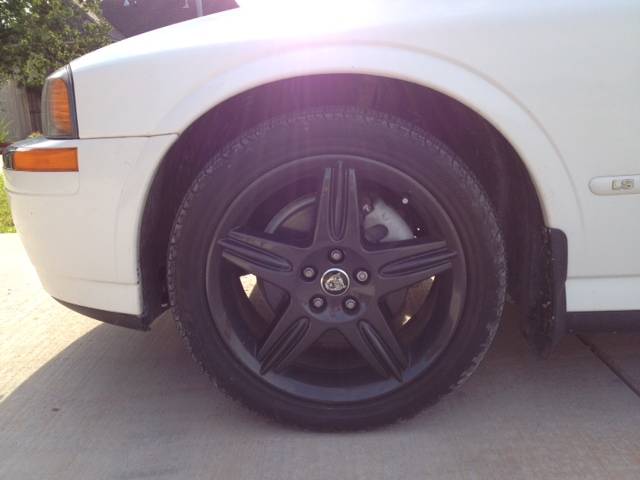

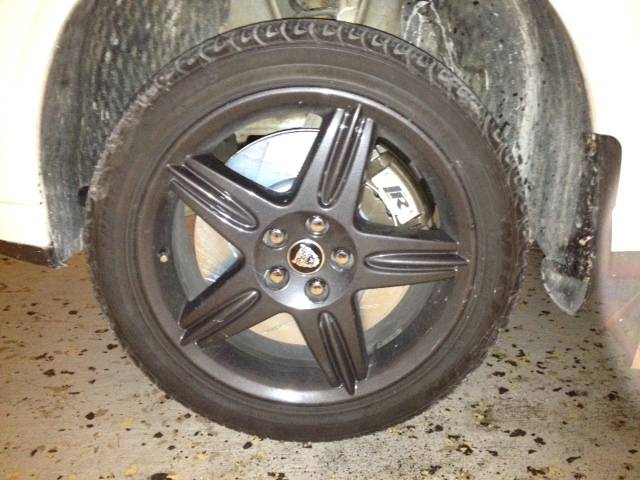

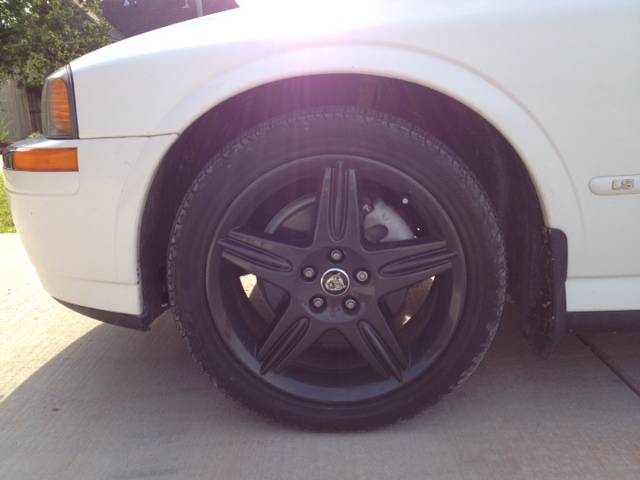

18" wheels are a close fit.
photo(7).JPG photo(1).JPG

If you can replace your brakes you can do this swap.















marcredd

Dedicated LVC Member
Joined
Feb 17, 2007
Messages
3,069
Reaction score
24
Location
Ironton
Just when I said I was not going to spend any more money this year. LOL. Thank you sir.


jmtiseo

The Peanut Gallery
Joined
Jul 10, 2011
Messages
2,573
Reaction score
32
Location
Romeo, MI
Those look great and I bet perform so much better. What's your comparison on that? How much clearance would you say there is? Enough for a 17" wheel?


chris2523

93 Mark VIII
Joined
Nov 8, 2007
Messages
7,911
Reaction score
266
Location
Central MO
Those look great and I bet perform so much better. What's your comparison on that? How much clearance would you say there is? Enough for a 17" wheel?

its pretty unlikely that 17s will clear a 14" rotor and caliper, but maybe..


grotty101

IS AWESOME
Joined
Mar 17, 2012
Messages
98
Reaction score
0
Location
Pardeeville
Thanks so much! Looks very good, and I will for sure be doing this in the near future after finding time to change my coils..you say the fronts just bolt on, but what about the rears? Do you know of they will fit with any modification?


jmtiseo

The Peanut Gallery
Joined
Jul 10, 2011
Messages
2,573
Reaction score
32
Location
Romeo, MI
its pretty unlikely that 17s will clear a 14" rotor and caliper, but maybe..

I'm not to confident in it but it doesn't hurt to ask. I know us folk up here in the north who drive their cars year round would have to opt for 18" winter wheels if this brake upgrade tickles their fancy.


Kumba

Dedicated LVC Member
Joined
Mar 15, 2011
Messages
2,040
Reaction score
44
Location
Tampa
I'm assuming the parts list goes as follows:
Rotor
Bracket
Caliper
Pads
Bolts (assuming you got yours from a junkyard with the brackets)


BlackLS06

Dedicated LVC Member
Joined
Sep 5, 2010
Messages
5,953
Reaction score
29
Location
DFW
Sweet!!

Is that front caliper still just a dual piston design??


HDDave

Dedicated LVC Member
Joined
Jan 6, 2006
Messages
666
Reaction score
6
Location
SE CT
Looks perfect! I agree - a list of parts and part numbers would be very helpful to anyone who wants to upgrade :shifty:


marcredd

Dedicated LVC Member
Joined
Feb 17, 2007
Messages
3,069
Reaction score
24
Location
Ironton
Made a call to the Jag Dealership. Front calipers are $291 per side. The brackets are $105 per side. 3 day delivery time. Needless to say, I will be exhausting the salvage yard options before ever going through Jag.


02LincLS

Dedicated LVC Member
Joined
Feb 26, 2008
Messages
1,227
Reaction score
17
Location
N/A
$800 for the front? That's "cheap". Look at the price of the stoptech big brake kit. Perhaps as a group we could knock it down some more. Not sure you'd want a caliper from the junkyard that's been sitting. The bracket might be good to get there though.

Correct me if I'm wrong, I think its 4 piston calipers up front on the STR. I'm also curious about the rear.

When I no longer swap to 17's off season, these will likely make their way onto my LS. My brakes look tiny with 18's on. Nice job willing to slap down the money to see if this works. Keep us posted of any issues or just general enjoyment.

Once they're broken in, time or measure distance how long it takes to do a 120-0 stop:D We can make sure the vehicles weigh close to the same and see what kind of difference there is... every foot counts!

Maybe I should just get an STR next:p


kaball

Well-Known LVC Member
Joined
Oct 19, 2011
Messages
389
Reaction score
0
Location
Daytona Beach
Damn nice job! I just wish there was a junk yard around that carried s-types or ls parts.


dwiggy

Active LVC Member
Joined
Oct 10, 2011
Messages
183
Reaction score
21
Location
Madisonville
To sum it all up

Did a parts lookup from Rock Auto:
Parts list:
CENTRIC Semi Loaded Calipers with Brackets Front $132.00 X 2 (Left and Right Specific)
CENTRIC Semi Loaded Calipers with Brackets Rear $151.00 X 2 (Left and Right Specific)
RAYBESTOS Semi Metalic OEM Pads Front $38.00
RAYBESTOS Semi Metalic OEM Pads Rear $37.00
RAYBESTOS OEM Replacement Rotors Front $107.00 X 2
RAYBESTOS OEM Replacement Rotors Rear $39.00 X 2

Total without shipping $933.00 front and rear.

Everything is on backorder but you can get it if you are patient.

I'd do the brake lines too.

17" wheel will not clear. My 18s are really close.

The dust shield clears. I bent them back a bit but they don't touch.

I bought the rotors off of eBay for 327+Free shipping.
I found the calipers on eBay for 499 and offered them 399 + shipping.
My calipers had the factory bolts, stainless lines, Red Stuff pads with zero wear (I got a good deal).

Car stops like it shed a 1000 pounds!

The front calipers are not 45/38mm dual piston like the OEM. They are a single 60mm piston.


02LincLS

Dedicated LVC Member
Joined
Feb 26, 2008
Messages
1,227
Reaction score
17
Location
N/A
The front calipers are not 45/38mm dual piston like the OEM. They are a single 60mm piston.

I see conflicting info after a quick search on the calipers. Some say dual, some say 4 piston... Were they ever 4 piston at one point?

I also saw the rotors are 14.3 inches?


Kumba

Dedicated LVC Member
Joined
Mar 15, 2011
Messages
2,040
Reaction score
44
Location
Tampa
I see conflicting info after a quick search on the calipers. Some say dual, some say 4 piston... Were they ever 4 piston at one point?

I also saw the rotors are 14.3 inches?

That's the second generation 2003-2005 Jaguar STR. The first generation 2000-2002 STR did not have 4-piston brembos. In fact, the first generation was just a 4.2L NA engine instead of the 4.0L NA. The third generationg 2006-2009 STR was still supercharged, but they swapped out some of the more boutique components like the Brembo brake calipers for ones made by regular suppliers. If I am remembering right, the third generation calipers have a lot of similarity with some of the calipers used on Jeeps. I never verified that so no harm no foul.

Rotor diameters were also different between the years. :)

The 2003-2005 STR was considered the best generation for that model. That's why they are still fairly pricey used.



Using some quick and dirty math, there is about 4% more hydraulic surface area (11309mm2 vs 10897mm2) on the STR caliper pistons. So you aren't loosing anything going to the single piston other then extra wheel clearance. Although I still believe that two pistons react better then one, it has been explained to me that's not always the case.

Again, with some dirty math, there is about 10% more mechanical leverage versus the 320mm brake upgrade I did or about 16% more then the stockers. Not sure how that works out to braking force but there is this crazy engineer guy floating around here who can answer that :)
