    M3 Mirrors



    I've wanted to update my mirrors to M3 looking mirrors for a while.

    Here's what I did:
    - purchased the el'cheapo mirros from e-bay

    - then I cut out the clear signal window lens
    - I then 'trimmed' the lens with a dremel tool
    - I took my LS mirrors off my car
    - I then cut a hole in my LS mirror housing
    - I then epoxy’ed the clear lens in the hole

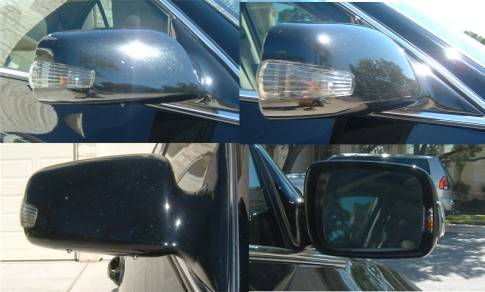

    Here's the result:



    • Like Like x 1
    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      more outside pics:

      full car pic.jpg

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      I then:
      - wired in two amber bulbs into the mirror interior housing
      - one pointed to the outside (toward the clear lens)
      - one pointed inside

      I also drilled in 3 puddle lights:
      - one toward the clear lens
      - two in the bottom of the mirror housing


      Mirror Lamps.jpg

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      I then wired the lights up:

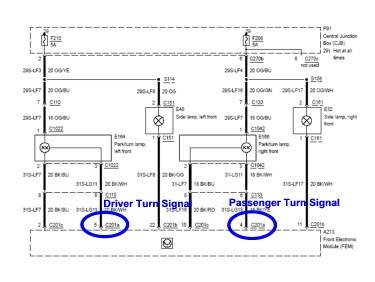

      Here's the diagram for the turn signals:



    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX

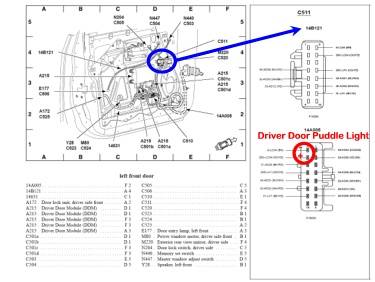

      Here's the driver's door:

      Driver Door.jpg

      Driver door wiring.JPG

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX

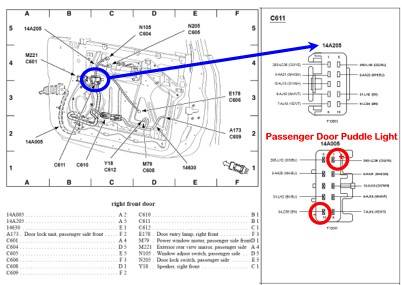

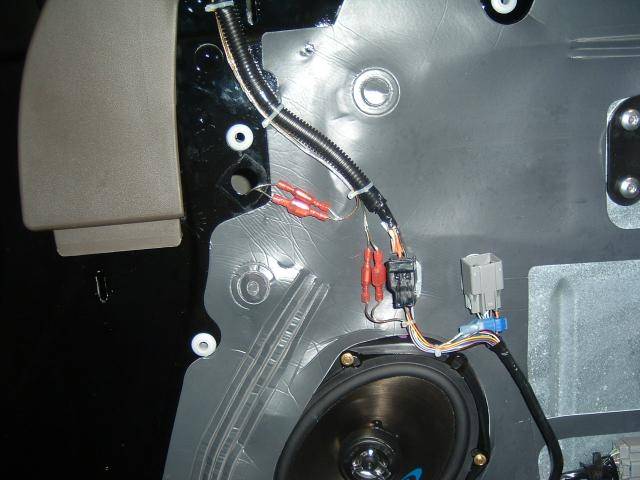

      Here's the passenger door:

      Passenger Door.jpg

      passenger door wiring.JPG

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX

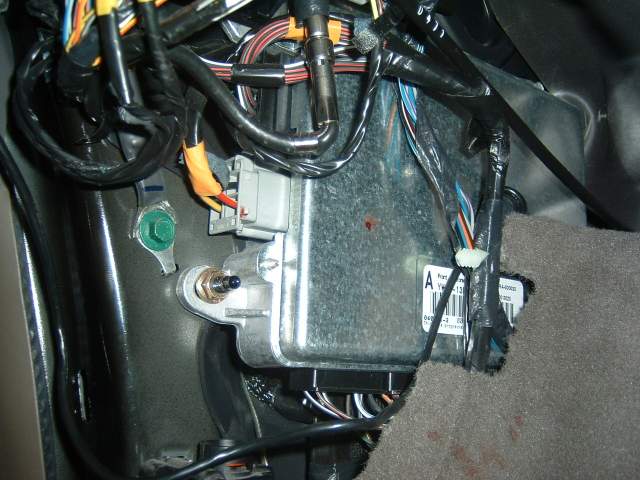

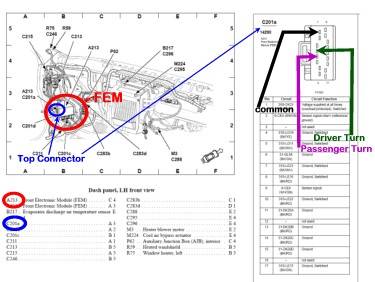

      Hooking up the signal wires were tricky - as the LS uses a multiplex wiring system - there is a Front Electronics Module:


      FEM pic.JPG

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX

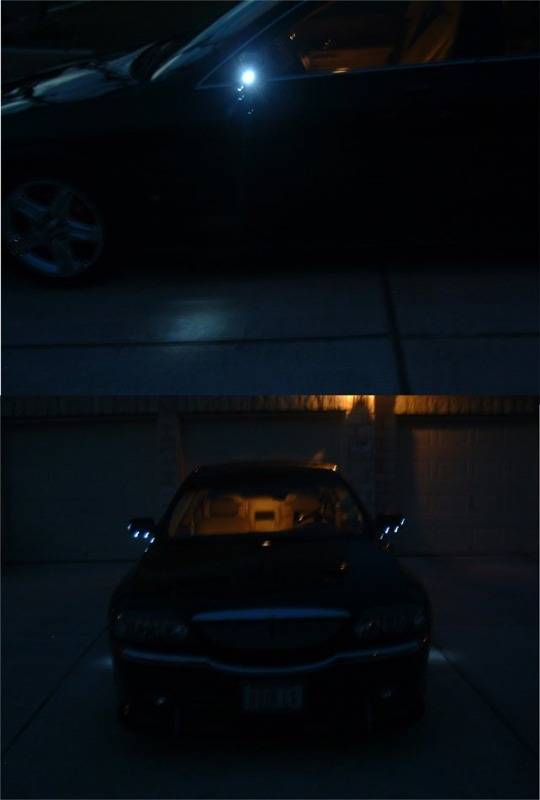

      night time puddle light pics:

      Puddle Lights.jpg

    • ohioLS

      ohioLS Dedicated LVC Member

      Messages:
      779
      Likes Received:
      0
      Joined:
      Dec 6, 2004
      Location:
      Greenville
      HOLY Toledo again what a job, want to fly to Ohio and install a set in mine!?

      Nice work great discreption and detail!

      -Scott-

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX

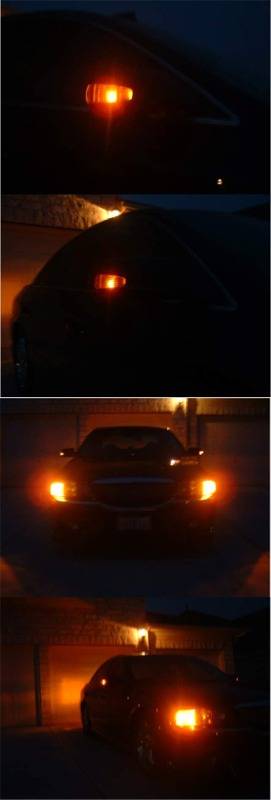

      Pic of the turn signals:

      Turn Lamps at Night2.jpg

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      to Add LED V-Signals in your mirrors:

      while you are at it:

      LED V Turn Signal Mirrors



      I followed the instructions posted a while ago from the Taurus Club:

      http://www.taurusclub.com/modules.php?name=News&file=article&sid=106


      I purchased :
      - 12,000mcd RED LEDs off e-bay (100 LEDs for $18)
      - 560ohm resisters from Radioshack

      I then
      - soldered 9 LEDs in parallel into a V and attached a resistor to one leg
      - covered them in glue to keep it water tight
      - pulled the mirror out of the housing
      - pulled the mirror out of the plastic holder
      - peeled the heater pad off the corner of the mirror (and cleaned the glue goop off the mirror)
      - cut enough of the plastic housing away to mount the LEDs
      - filled the cavity with black silicon sealant (to keep it water tight)
      - attached the LEDs to the turn signal wires (already in my mirror from my earlier project)

      took a couple of hours - but pretty easy.

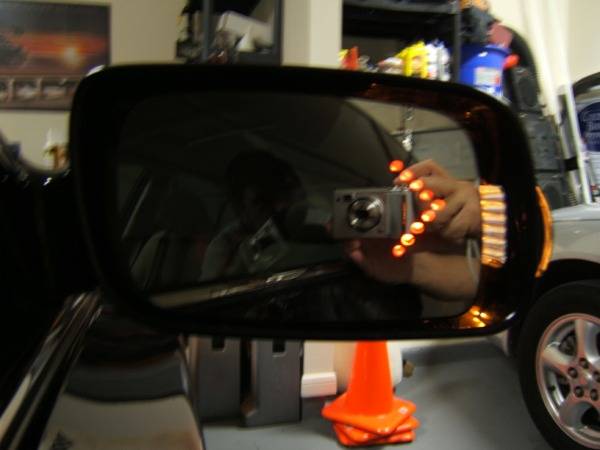

      pic of LED.JPG

    • GrayGhost1

      GrayGhost1 Guest

      Oh yeah! I remember this project. Very nice and detailed instructions. Looks good!

    • SurfjaxLS

      SurfjaxLS Dedicated LVC Member

      Messages:
      788
      Likes Received:
      0
      Joined:
      Dec 18, 2004
      Location:
      Austin
      I think we all need to find a cool custim project to try to one up Quik.

    • Dartastic

      Dartastic Dedicated LVC Member

      Messages:
      507
      Likes Received:
      0
      Joined:
      Mar 15, 2005
      Location:
      SF Bay Area

      Dont think it can be done!! WTF do you do for a living again Quik? :Beer

    • LennDawg

      LennDawg Dedicated LVC Member

      Messages:
      873
      Likes Received:
      0
      Joined:
      Jun 24, 2004
      Location:
      Syracuse, New York
      lookin good Quik, the mans a genius :Beer

    • GrayGhost1

      GrayGhost1 Guest

      He's a hitman with the Mafia!

    • Dead President

      Dead President Well-Known LVC Member

      Messages:
      333
      Likes Received:
      0
      Joined:
      Apr 14, 2005
      Location:
      Houston, TX
      :Beer

    • lloydrage

      lloydrage Dedicated LVC Member

      Messages:
      839
      Likes Received:
      0
      Joined:
      Jan 29, 2006
      Location:
      USA
      Quik do you still have this on your car? I was thinking of doing it myself and it looks kind of hard.

      Has anyone else done this?

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      8
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      sure - those are the stock mirrors so they are on the car.

      I think itsnotmydaddys did the LED Vs.
      I don't think anyone else tried the M3s....

    • lloydrage

      lloydrage Dedicated LVC Member

      Messages:
      839
      Likes Received:
      0
      Joined:
      Jan 29, 2006
      Location:
      USA
      I might give this a try. I guess now I have to find the cheap ones on ebay so I can take them apart.

    • J3FF

      J3FF Dedicated LVC Member

      Messages:
      705
      Likes Received:
      0
      Joined:
      Jan 1, 2006
      Location:
      Lexington
      Would you like to make me some.

    • Lincoln Jealous

      Lincoln Jealous Dedicated LVC Member

      Messages:
      3,126
      Likes Received:
      13
      Joined:
      Aug 8, 2009
      Location:
      Location: Location: Location: Location: Location:
      wow quik, im impressed, this is some GREAT work!

    • PetesSweets86

      PetesSweets86 Dedicated LVC Member

      Messages:
      6,119
      Likes Received:
      0
      Joined:
      Dec 24, 2008
      Location:
      Seattle
      nice stuffers :-D

    • lincoln_1999

      lincoln_1999 Active LVC Member

      Messages:
      153
      Likes Received:
      0
      Joined:
      Jan 28, 2008
      Location:
      Riyadh , Saudi Arabia
      Awesome job :) .

    • gt95coupe

      gt95coupe Dedicated LVC Member

      Messages:
      1,276
      Likes Received:
      2
      Joined:
      Apr 30, 2005
      Location:
      Chattanooga,Tennessee
      threads never die there just brought up like its yesterdays topic... when its actually been 3 years
