Powerflex Polyurethane Bushing Install

Lincoln LS

  1. De-marko

    De-marko Dedicated LVC Member

    Messages:
    1,870
    Likes Received:
    31
    Joined:
    Jan 20, 2008
    Location:
    VC KS./sticks
    I know these bushings have been talked about on here before for the rear lower control arms and I know at least one had purchased them but hadn't installed them. There's probably others.

    My '02 LSE with almost 200K in miles had started to really feel loose in the rear end especially on the highway with a cross wind. I had replaced the front tie rods and rear lateral bars, which needed to be replaced, had helped but hadn't eliminated the floaty feeling. By jacking the car up and using a crow bar, I could move the control arms around a 1/2 inch or so with no effort! I could have just installed the stock style fluid filled bushings but if I'm going to do it I might as well do these.

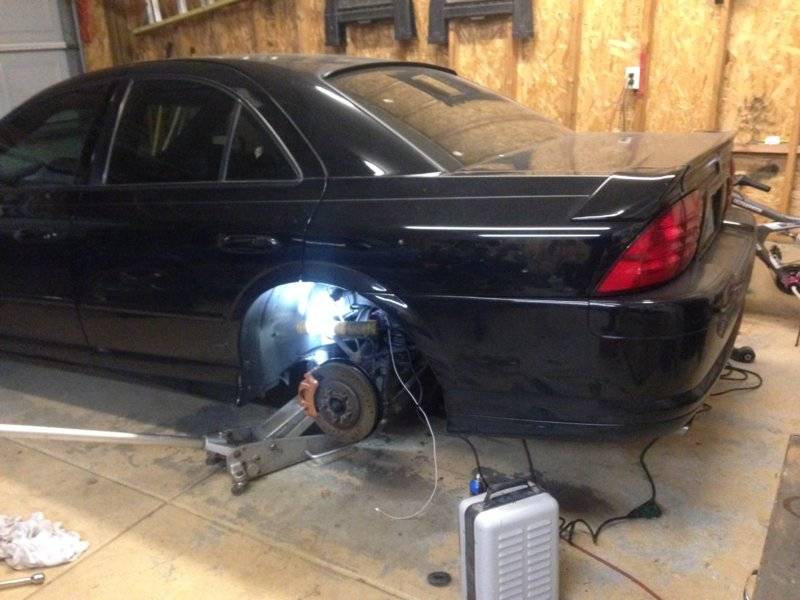

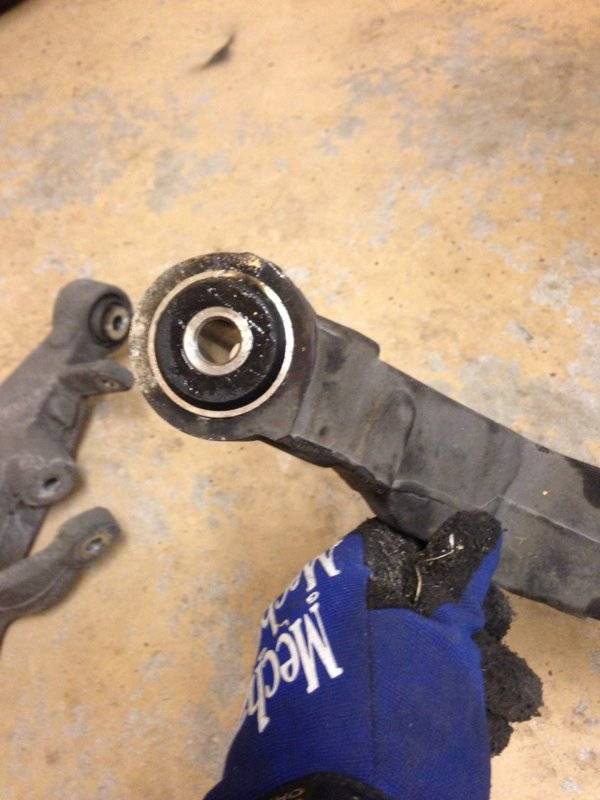

    Well, I picked these up from Power flex a little before Christmas and had them installed at a local shop in a spare set of lower rear control arms that I had. With it being so cold I held off on actually installing the arms until this last weekend.

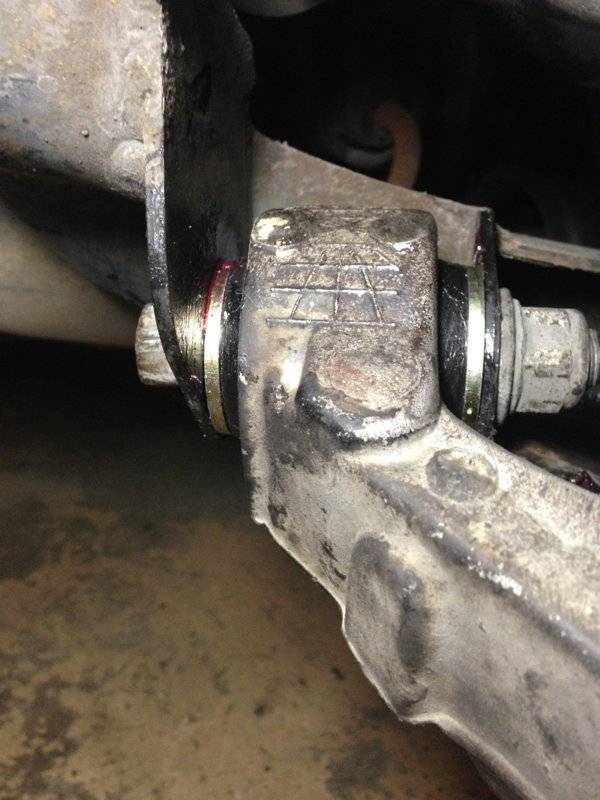

    Man, talk about a night and day difference!! I didn't realize how bad my car was until I swapped the arms! The car has a definite tight feeling especially in the turns, the rear tracks the front like its on rails, Incredible! Very flat in the turns and very responsive! The ride quality change is barely noticeable with no deterioration in comfort. You wouldn't think Poly had been installed. An alignment is necessary after the install.

    For those that don't know, Powerflex doesn't list the LS, but its Jaguar counterpart, the S type is listed. PowerflexUSA You have to use the bushings from the 98-02 cars which is a perfect fit at least for the 1st Gen LS, I'm not sure on 2nd Gen. There are 3 bushings for each arm for a total of six.

    Jaguar S Type (98 - 02) Rear Lower Arm Outer Bushing
    Jaguar S Type (98 - 02) Rear Lower Arm Inner Front Bushing
    Jaguar S Type (98 - 02) Rear Lower Arm Inner Rear Bushing

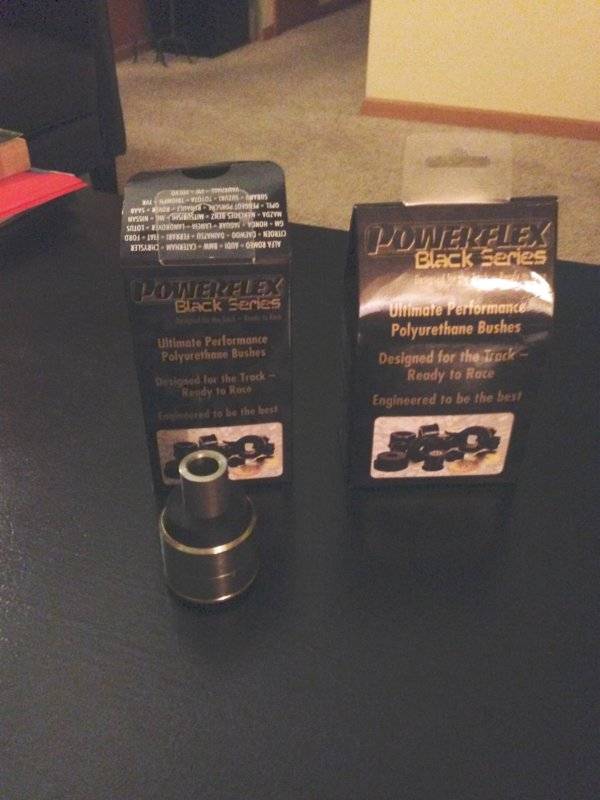

    The bushings I purchased are the Black series which is reported to be 90% stiffer then stock. If you have to swap bushings I highly recommend these!!

    car 1.jpg

    car 2.jpg

    car 3.jpg

    car 4.jpg

    • Like Like x 1
    • AmsterDutch

      AmsterDutch Dedicated LVC Member

      Messages:
      1,636
      Likes Received:
      263
      Joined:
      Jul 9, 2017
      Location:
      Midwest
      The fix is spot on my friend....a properly handling Lincoln LS is exactly how you describe it....like riding on rails around turns/corners...enjoy the ride my friend

      • Like Like x 1
      • Andrizzle

        Andrizzle Dedicated LVC Member

        Messages:
        5,076
        Likes Received:
        73
        Joined:
        Mar 11, 2009
        Location:
        Oklahoma
        Does it need a hydraulic press?

        Also is that an apple charger cord in the first photo?

        • Like Like x 1
        • De-marko

          De-marko Dedicated LVC Member

          Messages:
          1,870
          Likes Received:
          31
          Joined:
          Jan 20, 2008
          Location:
          VC KS./sticks
          What up man?

          You can for sure, the guy that installed them used an air powered C-clamp type apparatus.

          :D Ha! Yes it is. One cable was powering the light, the other the heater, My phone was running down while listening to the Black Keys so I had to plug into the light!

        • embe

          embe Well-Known LVC Member

          Messages:
          211
          Likes Received:
          5
          Joined:
          Dec 14, 2011
          Location:
          ontario
          Like an arbor press maybe?

        • De-marko

          De-marko Dedicated LVC Member

          Messages:
          1,870
          Likes Received:
          31
          Joined:
          Jan 20, 2008
          Location:
          VC KS./sticks

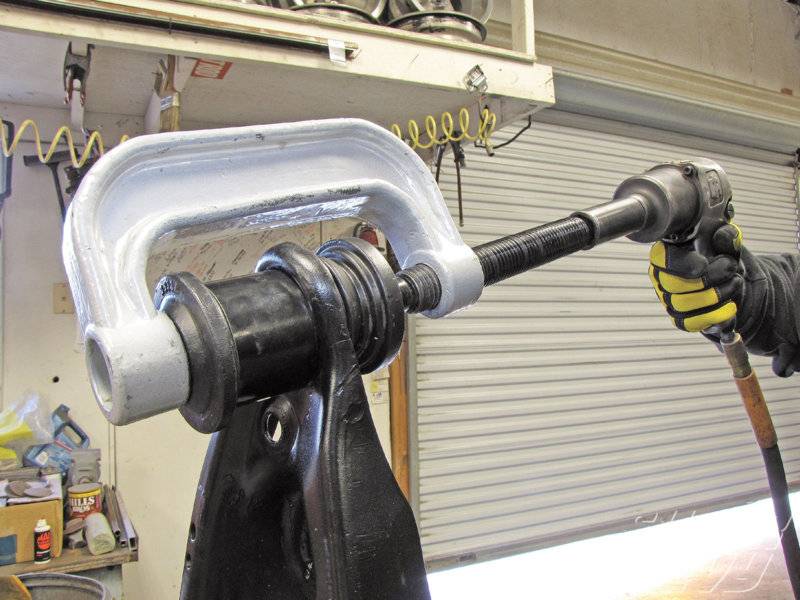

          No, It looks like this but instead of the screw portion of the clamp it had a air powered cylinder, hand held.


          • Like Like x 1
          • AmsterDutch

            AmsterDutch Dedicated LVC Member

            Messages:
            1,636
            Likes Received:
            263
            Joined:
            Jul 9, 2017
            Location:
            Midwest
            Nice! The not messing around tool

          • MadProfessor

            MadProfessor LVC Member

            Messages:
            31
            Likes Received:
            3
            Joined:
            Oct 24, 2017
            Location:
            Ekron,Ky
            I'm glad you posted this thread and I got to read the comments by members.
            I have been seriously thinking about selling my car because it is one of the worst handling cars that I have ever owned.
            I love everything about this car except THE HORRIBLE HANDLING.
            I wouldn' dare drive this car into a corner hard...it will scare the hell out of you.
            It floats,it won't track with the front end and the rear will break loose without warning.
            For the past 10 years I have been driving my small cars, Saturn and Fieros,and figured that's just how the LS handled because of the size and weight.
            But then I read that this car should track like it's on rails....
            Think I need to get mine on the rack and start checking some rear bushings.

            Last edited: Feb 18, 2018
            • Like Like x 1
            • Agree Agree x 1
            • MadProfessor

              MadProfessor LVC Member

              Messages:
              31
              Likes Received:
              3
              Joined:
              Oct 24, 2017
              Location:
              Ekron,Ky
              Forgot to mention that so far I have replaced the tie rods,sway bar links,control arms and an alignment.
              I have struts on order and will have those installed once they get here.

              Last edited: Feb 18, 2018
            • De-marko

              De-marko Dedicated LVC Member

              Messages:
              1,870
              Likes Received:
              31
              Joined:
              Jan 20, 2008
              Location:
              VC KS./sticks
              Cool on getting those items replaced. Check your LCA bushings out, I'd lay money on it that they are shot!

            • 55CrownVic

              55CrownVic Active LVC Member

              Messages:
              69
              Likes Received:
              3
              Joined:
              Mar 31, 2011
              Location:
              Collinsville, OK
              Got your windshield replacement post and now I am going to do the bushings. Thanks again.

            • DeviLSh

              DeviLSh Dedicated LVC Member

              Messages:
              559
              Likes Received:
              84
              Joined:
              Apr 26, 2007
              Location:
              Des Plaines
              • Like Like x 1
              • De-marko

                De-marko Dedicated LVC Member

                Messages:
                1,870
                Likes Received:
                31
                Joined:
                Jan 20, 2008
                Location:
                VC KS./sticks
                Awesome, that's a great write up!

                I was very impressed with them! I can imagine your car was really firmed up with the whole catalog thrown at your LS! I'll bookmark your link.

              • rgorke

                rgorke Well-Known LVC Member

                Messages:
                462
                Likes Received:
                65
                Joined:
                Aug 5, 2017
                Location:
                Camarillo, CA
                Have you guys noticed any difference in road noise with the ES bushings? Not feel, but road noise...is it louder than before you installed them or quieter with new and/or poly bushings?

                I am continually trying to reduce interior cabin noise...but that is entirely a different thread.

              • AmsterDutch

                AmsterDutch Dedicated LVC Member

                Messages:
                1,636
                Likes Received:
                263
                Joined:
                Jul 9, 2017
                Location:
                Midwest
                Great question I was wondering the same thing, can't wait to install these come spring

              • De-marko

                De-marko Dedicated LVC Member

                Messages:
                1,870
                Likes Received:
                31
                Joined:
                Jan 20, 2008
                Location:
                VC KS./sticks
                For me, I haven not noticed any extra noise at all. With the car being so much tighter and smooth with no play it seems as if it is quieter but I'm sure there's no difference.

              • AmsterDutch

                AmsterDutch Dedicated LVC Member

                Messages:
                1,636
                Likes Received:
                263
                Joined:
                Jul 9, 2017
                Location:
                Midwest
                * BUMP* for those who want info on the Powerflex Black series Bushings

              • Archangel

                Archangel Active LVC Member

                Messages:
                59
                Likes Received:
                5
                Joined:
                Oct 22, 2015
                Location:
                Garner

                Glad to hear that...I have the squeak thing going too, looked under the rear and Da-Yummm! All of the bushings are wasted, I mean all of em. The rear lateral links are shot too.
                Just ordered up the PowerFlex bushings, new UCA's and a pair of lateral links. My sway bar end links are good as I had them replaced a couple years back.
                I'll let Y'all know how it rides in about week or two.

              • Archangel

                Archangel Active LVC Member

                Messages:
                59
                Likes Received:
                5
                Joined:
                Oct 22, 2015
                Location:
                Garner
                I know its been awhile since this post.
                What route did you go with on replacing the rear struts if I may ask?
                I'm seriously considering the Bilstien and new springs for the rears.
