    I'm sorry I may have described it incorrectly. I ordered a quick strut, which has the spring and shock within for the fronts. The rear of the TC had an air ride setup but it was converted to spring since the previous owner decided not to get the air ride serviced.

  2. joegr

    joegr Dedicated LVC Member

    Messages:
    17,300
    Likes Received:
    2448
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    Yeah. Sorry, I did mean rear for the air suspension.
    A lot of places call them struts, but they aren't. I have a 325i. That car does have struts. There is a difference.

  3. BILLBOATS

    BILLBOATS Active LVC Member

    Messages:
    197
    Likes Received:
    13
    Joined:
    Sep 29, 2014
    Location:
    Akron
    I own a mark too that has low miles and not snow driven. Compared to other non luxury cars I have owned, with lower new cost, my 42,000.00 1996 Mark 8 sure needed a lot more things with 120,000 miles . These marks and I love mine, take a lot of fixing for a car that sold for 40 grnd. I would expect new owners who experienced LS lemons sedans to never buy another mark. There is too much big and small stuff to go bad on a car this expensive when new.For instance, no horn at 120 k, fix, find clock spring all over gods green earth 80 used 120 new, took 1 year, Intake manifold runner controls. Took 3 years to find.Had to drive on illegal plates for lack of parts to pass Ohio e check. Drove real slow and under speed limit until winder. Then drove my winter beater. Got luckey and found a 1996 at pull a part. Took both rt and left imrc. 3 dollars each. They thought they were choke pull offs., Front end needs a ball joint at 120K, Easy to find. Want to rebuild entire front end. Moog prefered. Electric truunk and glass door never worked. The drivers door lock fell out. Took 2 years to find another orginal. Orginal wheels were taken off the car before sold. Took 3 years and 300 bucks to find a set of 4 in Michigan. Nice road trip, I enjoyed. I am restoring everything back to working condition and orginal Plan on keeping it till I die. Then will it on or sell it before I go because persons I know won't take care and couldn't keep up with expensive repairs. Bu now I have the entire board mad at me. It is what it is

  4. heyjewel

    heyjewel Well-Known LVC Member

    Messages:
    238
    Likes Received:
    11
    Joined:
    Oct 5, 2015
    Location:
    auburn
    What is your source for the teflon o-rings? I need some.

  5. 04_Sport_LS

    04_Sport_LS Dedicated LVC Member

    Messages:
    1,681
    Likes Received:
    129
    Joined:
    Jun 12, 2012
    Location:
    Somewhere around Lake Erie
    I've only skimmed bit and pieces of this thread... but if anybody is looking for a place to rent the cam tools:

    http://www.specialtyautotoolrentals.com/product_info.php?products_id=252

    Don't know how reputiable they are... but I added roughly a month rental to the cart,,, and it was $125 + $45 deposit. A week is only about $31+$45. Didn't go to checkout to see how much shipping was. That depends on location. Deposit may not be necessary.

    FAQ's:

    http://www.specialtyautotoolrentals.com/faq.php?osCsid=i5lhccgeuq95618ks9on9jpdr6

    Not affilited with company or website. Just showing the tools can be rented reasonably.

  6. 04_Sport_LS

    04_Sport_LS Dedicated LVC Member

    Messages:
    1,681
    Likes Received:
    129
    Joined:
    Jun 12, 2012
    Location:
    Somewhere around Lake Erie
    %$@&!!! link errors!!!

    specialtyautotoolrentals.com

  7. oddball

    oddball Dedicated LVC Member

    Messages:
    1,180
    Likes Received:
    93
    Joined:
    Aug 18, 2010
    Location:
    Dallas, TX
    Christopher's Foreign Parts is, I believe, cheaper, and has a broad assortment of parts and tools.

    Parts stores carry teflon rings, but finding the correct size can be a chore. Napa will have a box that you can sort through. The other stores will likely have an assortment. The easiest path is going to the dealer's parts desk.

  8. 55CrownVic

    55CrownVic Active LVC Member

    Messages:
    56
    Likes Received:
    2
    Joined:
    Mar 31, 2011
    Location:
    Collinsville, OK
    I bought my cam chain kit from Christophers. The cam tool set I ordered from Amazon. About 75.00 new. Rather have it than
    rent since I didn't know how long I was going to take to do the job.

    Last edited: Jan 10, 2017
  9. grizzlyls

    grizzlyls Well-Known LVC Member

    Messages:
    490
    Likes Received:
    33
    Joined:
    Mar 10, 2016
    Location:
    California
    Wow. If I had seen that source, I would have got it for my mech. Post a link for others maybe? :)

  10. 04_Sport_LS

    04_Sport_LS Dedicated LVC Member

    Messages:
    1,681
    Likes Received:
    129
    Joined:
    Jun 12, 2012
    Location:
    Somewhere around Lake Erie
    Quote oddball:

    "Christopher's Foreign Parts is, I believe, cheaper, and has a broad assortment of parts and tools."

    Depends on how you look at it. Christopher's website says about the Lincoln cam set:


    IF YOU WISH TO RENT THE TOOL KIT, JUST GO AHEAD AND PURCHASE IT.

    • THEN WHEN YOU RETURN IT , I WILL REFUND YOUR DEPOSIT TO YOU.

    So you're gonna pay $400 to rent the tool,,, then get your money back EXCEPT for shipping both ways. Some people doing the timing chains on the LS,,, are laying out cash for the parts... to the point they can't afford another $400. Be it however temporary,,, $400 could cut into the parts budget.

    I just simply offered another alternative that would most likely be time saving, (and possibly cheaper), in the long run... because more funds could be put toward parts. The "specialty tools" website... ships the tools with a return shipping label. Just box up when done,,, and call the shipper to pick it up.

    Granted... what Christopher's offers for parts for the LS,,, is great... and the "master link" setup they use on the timing chains is ingenious to the point that the front cover on the LS may not need to be removed, (depending on the knowlege, tools, and experience of the person doing the repairs).

    I guess my point is when buying $900 in parts,,, a person may not be able to afford another "temporary" $400... but may be able to afford another $100 total,,, to get the job done.

    It all depends on circumstances.

  11. 04_Sport_LS

    04_Sport_LS Dedicated LVC Member

    Messages:
    1,681
    Likes Received:
    129
    Joined:
    Jun 12, 2012
    Location:
    Somewhere around Lake Erie
    Also... if for some reason a person decides to pull the cam gears, (gen 1), or cam phasers, (gen 2),,, keep in mind that the bolts that attach them to the cams... are ONE TIME USE ONLY according to Ford. So make sure you buy new bolts if you pull the cam gears/phasers. They're only about $5 each.

  12. TrowaBarton

    TrowaBarton LVC Member

    Messages:
    14
    Likes Received:
    2
    Joined:
    Sep 15, 2017
    Location:
    Hutchinson KS
    I am currently attempting to pull off the timing chain replacement on my 00 LS, I think I am going to get the job done thanks to this post. I do have a couple questions/just to make sure things. Am I correct in thinking I am going to be able to move the ac compressor out of the way enough to attack the PS pump without losing refrigerant? Also do you think I might be able to fashion something to hold the cams and just zip tie the crankshaft through the CPS hole and the window next to it??

  13. De-marko

    De-marko Dedicated LVC Member

    Messages:
    1,780
    Likes Received:
    32
    Joined:
    Jan 20, 2008
    Location:
    VC KS./sticks
    Hey, Are you wanting to replace just the upper tensioners or all 4? If all 4 you'll have to remove the A/C compressor unfortunately, there is just NO room for anything and would have to be to facilitate removing the front timing cover. If you are just doing the top two, other members here have successfully replaced them with just removing the Cam covers. It's tight but "do-able"!

    Yes, you could use some flat bar stock to line the "flats" of the cams up. I think some have done that with the bar stock with drilled holes to fit into the cam cover fastener holes, have to use long bolts though. Not sure on the zip tie thing, it may work.
    Let us know the progress of your replacement!

  14. Csutter35

    Csutter35 LVC Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    May 2, 2017
    Location:
    US
    Im having a hard time finding this but what are the torque spec for the cams, cam shaft but MAINLY the tensioners front BOLTS and on top of the motor secondary tensioner along WITH what are the torque number for the timing cover bolts.

  15. joegr

    joegr Dedicated LVC Member

    Messages:
    17,300
    Likes Received:
    2448
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    Again, it's important to say which generation (cams changed a lot), and which engine.

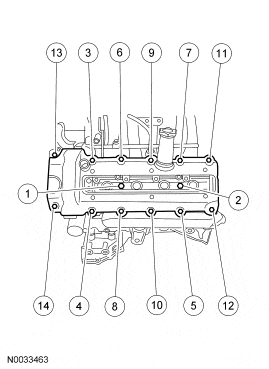

    The valve cover bolts are 89 inch-pounds, not foot pounds. Exact tightness is not critical. The shoulder on the bolts determines how much pressure is applied to the gaskets, not the torque on the bolts. They need to be tight enough not to vibrate loose, and that's it. You do need to remove then and install them in the correct order though, to prevent warping of the plastic cover.

    I can probably look up the other torque specs for the 1st gen V8 tonight.

  16. TrowaBarton

    TrowaBarton LVC Member

    Messages:
    14
    Likes Received:
    2
    Joined:
    Sep 15, 2017
    Location:
    Hutchinson KS
    I have gotten the ac compressor off but still connected to lines (just kinda dropped it out of my way), the PS pump off and the alternator off, but am stuck not able to get the compression fitting off the fan pump so I can get the bolt behind it... I can't seem to even get a wrench on the thing to even attempt to turn it!! Anyone have tips for getting something on it?? I certainly wish I was only attempting secondary tensioners but unfortunately when one of the tensioners crumbled it broke the driver side primary chain so I MUST get all the way in... I have made progress but so many of the bolts are crazy stuck and this fan pump really has me frustrated tonight... any tips are much appreciated

    I have a 2000 LS 3.9 V8

    EDIT - I re-read the thread from start to finish and am seeing that De-marko didnt take the hydraulic line off! Unfortunately I went after the bolt behind it and rounded it right off! I think I will try to get in there with a dremel next and see if I can get the head of it cut off.

    Last edited: Sep 25, 2017
  17. TrowaBarton

    TrowaBarton LVC Member

    Messages:
    14
    Likes Received:
    2
    Joined:
    Sep 15, 2017
    Location:
    Hutchinson KS

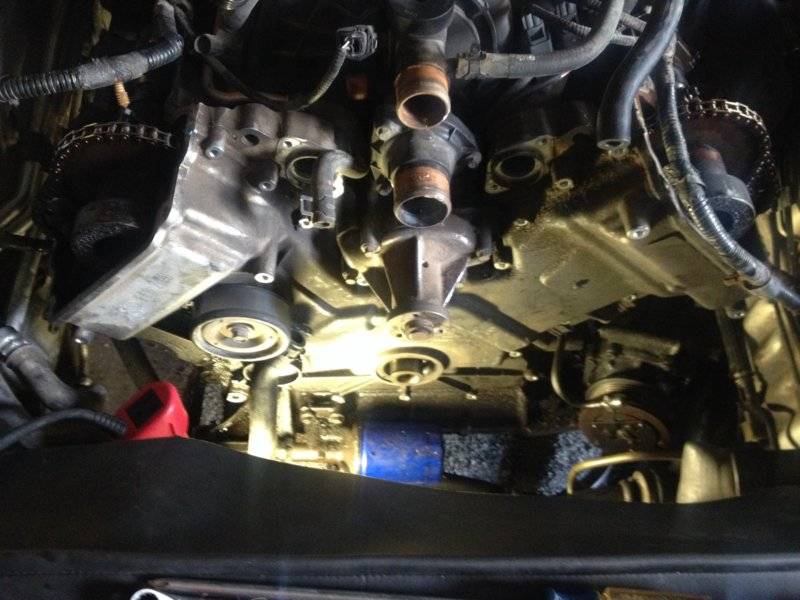

    This is where I'm at currently, hope to have a better pic today with the cover off. image.jpg

  18. TrowaBarton

    TrowaBarton LVC Member

    Messages:
    14
    Likes Received:
    2
    Joined:
    Sep 15, 2017
    Location:
    Hutchinson KS
    image.jpg image.jpg

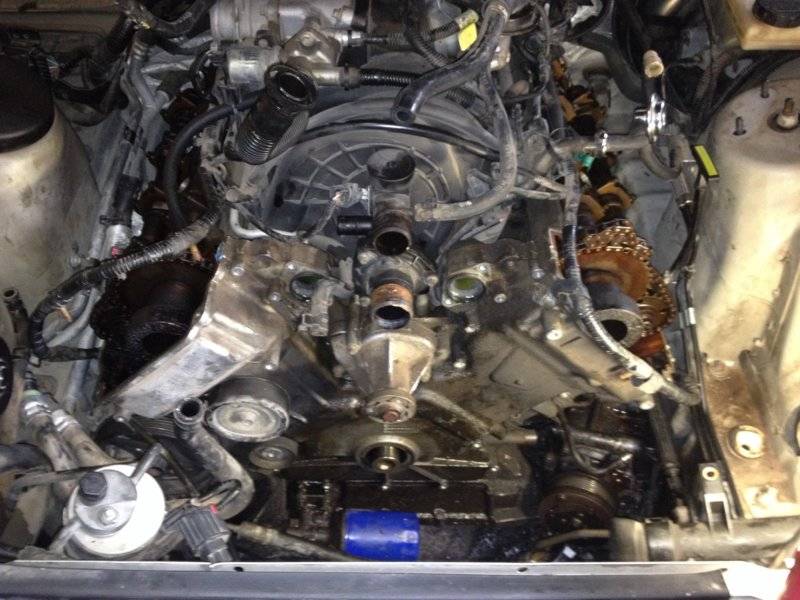

    Made progress, it wasn't pretty... But the pumps off!! Just have to get the bracket off and the cover should come free! But... Off to work for now

  19. TrowaBarton

    TrowaBarton LVC Member

    Messages:
    14
    Likes Received:
    2
    Joined:
    Sep 15, 2017
    Location:
    Hutchinson KS

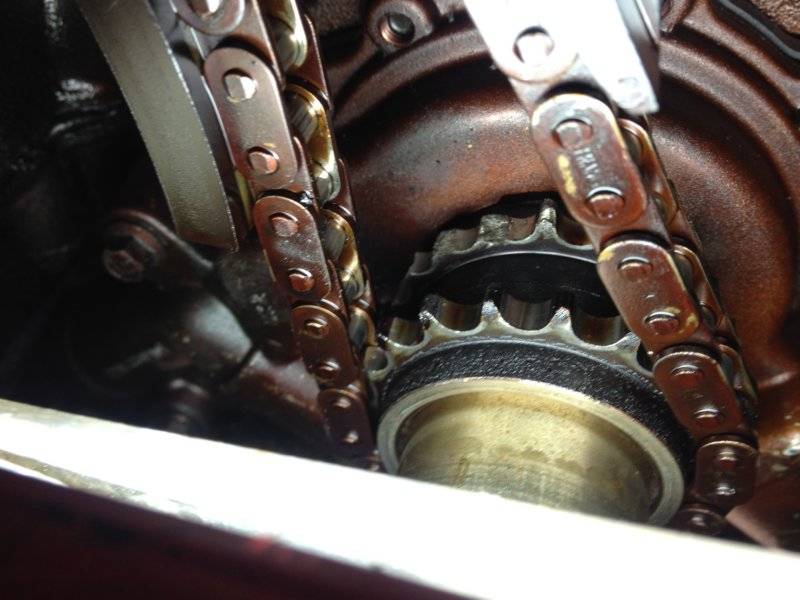

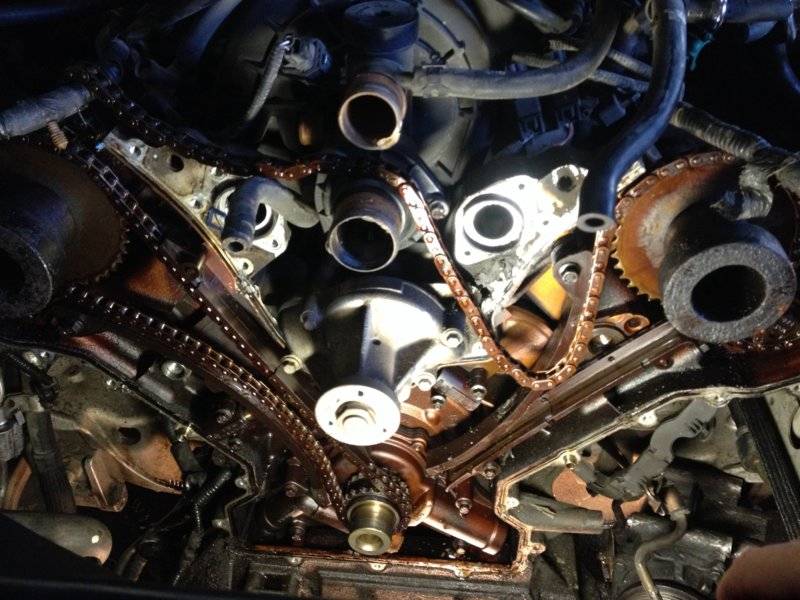

    image.jpg image.jpg So I got inside the timing case, seeing the damage is a bit worrisome... Anyone have a crankshaft gear they want to sell me??

  20. 55CrownVic

    55CrownVic Active LVC Member

    Messages:
    56
    Likes Received:
    2
    Joined:
    Mar 31, 2011
    Location:
    Collinsville, OK
    You might try grizzlyls, he has some posts on this thread, He was going to update his valve train and may have the gear you need. I have a cam locating tool set includes the crank locating tool. Used it on my 01 V8. Paid 75 dollars for it, will sell it for 50 plus postage. I'm in Tulsa, OK area so not too far from Hutch.

  21. 55CrownVic

    55CrownVic Active LVC Member

    Messages:
    56
    Likes Received:
    2
    Joined:
    Mar 31, 2011
    Location:
    Collinsville, OK
    Also Auto Zone will loan a tool set that will remove and install the pulley for the fan pump. Makes installing it much easier. Made removing it much easier without the pulley in the way.

  22. TrowaBarton

    TrowaBarton LVC Member

    Messages:
    14
    Likes Received:
    2
    Joined:
    Sep 15, 2017
    Location:
    Hutchinson KS
    I'm just curious with everyone seeing the problem with my engine what you guys think about the chance I will ever get her to start again... I feel like when the primary chain broke the springs on the valves sort of pushed the cams into a sort of safe position, but still very worried about the possibility of catastrophic failure in the head...

  23. joegr

    joegr Dedicated LVC Member

    Messages:
    17,300
    Likes Received:
    2448
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    That's not at all how it works! The cam didn't break, the chain did. If you suddenly removed the cam, then yes the springs would instantly close all the valves, but that's not what happened. Instead, the chain stopped turning the cam. Even if the spring force of the valves could turn a cam (it really can't, let alone quickly), then you'd still have the problem that some would be closed (safe), and some would be open (big problem). There's no position to turn the cam to that has all the valves closed.

    You have damaged valves, and may even have damaged pistons. Get/rent a borescope and have a look into each cylinder.

  24. oddball

    oddball Dedicated LVC Member

    Messages:
    1,180
    Likes Received:
    93
    Joined:
    Aug 18, 2010
    Location:
    Dallas, TX
    FWIW, as I have had happen first hand, sometimes the piston damage is on the bottom and won't be easily noticed via borescope. In my case, granted it was an Olds 350 with aftermarket pistons, the top of the piston looked fine, but the oil ring land over the wrist pin snapped off. The oil ring retainer then wedged between the piston and cylinder causing extensive damage. Didn't realize anything was wrong for a while because it actually ran halfway decent.
    Time to tear the sucker down for a rebuild. Or roll the dice.

    • Agree Agree x 1
    • TrowaBarton

      TrowaBarton LVC Member

      Messages:
      14
      Likes Received:
      2
      Joined:
      Sep 15, 2017
      Location:
      Hutchinson KS
      I have been leaning towards the roll the dice option, however after finding out that I am going to need to get a $150 crank gear, I'm starting to weight the cost of rolling the dice a bit heavier...
