    I'm so excited to share my work with everyone. I've for the longest time wanted to have air ride in the LS. My plans have finally come to fruition.

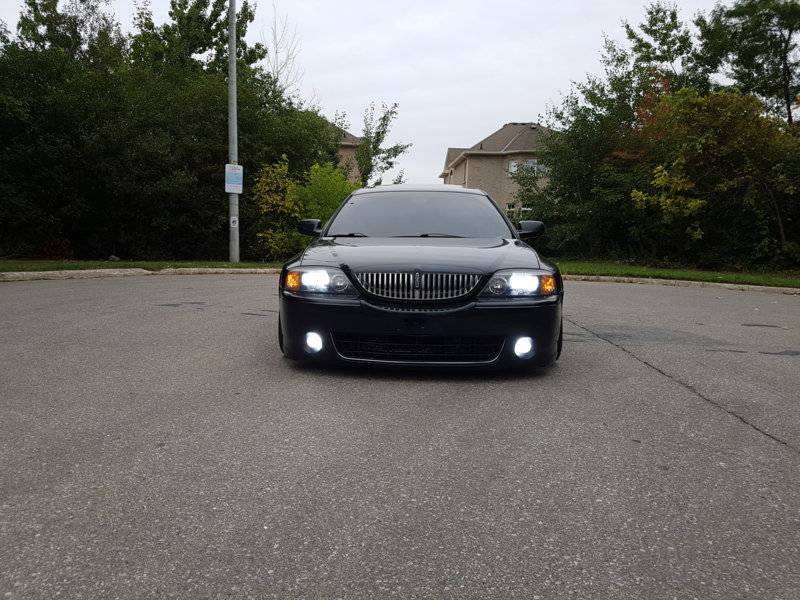

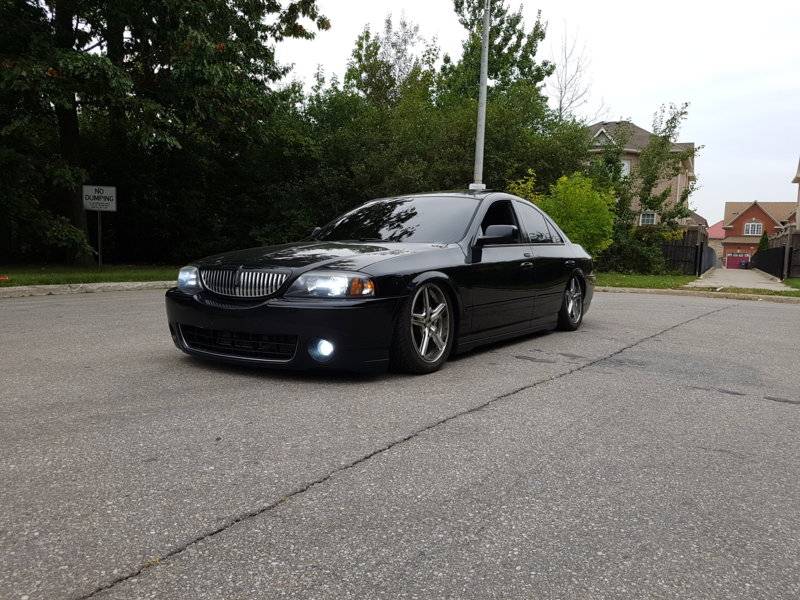

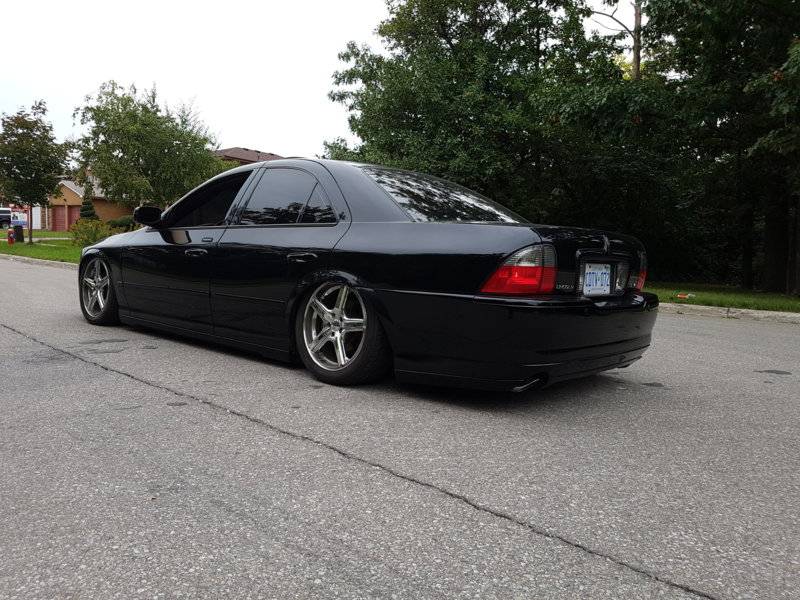

    Here you go. 2006 Lincoln LS Ultimate equipped with Air Lift 3P air management.

    20180927_165112.jpg 20180927_165012.jpg 20180927_165045.jpg

    • Like Like x 4
    • Agree Agree x 1
    • joegr

      joegr Dedicated LVC Member

      Messages:
      18,542
      Likes Received:
      2789
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      Is this so that you can vary ride height, increase riding comfort, or both?

    • IcedLS

      IcedLS LVC Member

      Messages:
      35
      Likes Received:
      15
      Joined:
      Jul 10, 2016
      Location:
      Ontario
      Mainly to vary ride height. Drive with the look of coilovers. Raise to get places coil overs can't. Dump to park.

      Ride comfort is just a bonus for me. It rides less sporty and more soft with very little bounce. Similar to oem air suspension on my 06 Navigator for comparison..

    • V8inMA

      V8inMA Active LVC Member

      Messages:
      53
      Likes Received:
      2
      Joined:
      Jun 9, 2005
      Location:
      South Hadley
      Love the look, nice work !

    • 112 LS

      112 LS Dedicated LVC Member

      Messages:
      542
      Likes Received:
      48
      Joined:
      Jun 22, 2004
      Location:
      NJ
      Wow that is slammed.. looks sick!

      Would be cool if you could show pics of what the install looks like behind the wheels.

    • IcedLS

      IcedLS LVC Member

      Messages:
      35
      Likes Received:
      15
      Joined:
      Jul 10, 2016
      Location:
      Ontario
      It's coming. I've got pictures of the entire process. I was just too excited to share the completed project that I skipped right to the end result.

    • alanmcarden

      alanmcarden LVC Member

      Messages:
      25
      Likes Received:
      16
      Joined:
      Dec 30, 2013
      Location:
      Tennessee
    • Svets96

      Svets96 Dedicated LVC Member

      Messages:
      528
      Likes Received:
      63
      Joined:
      Jul 18, 2005
      Location:
      North East Ohio
      Wow does that look good!

      The chrome grille and lights make it really pop.

    • De-marko

      De-marko Dedicated LVC Member

      Messages:
      1,868
      Likes Received:
      56
      Joined:
      Jan 20, 2008
      Location:
      VC KS./sticks
      Wow!! Right on man! Yeah pics of the process!!

      • Agree Agree x 1
      • AmsterDutch

        AmsterDutch Dedicated LVC Member

        Messages:
        777
        Likes Received:
        117
        Joined:
        Jul 9, 2017
        Location:
        Minnesota
        What percentage is the front windshield? That looks dark as night ... Like the wheels on that black paint and over all mod looks really clean. Nice!

      • Andrizzle

        Andrizzle Dedicated LVC Member

        Messages:
        5,062
        Likes Received:
        165
        Joined:
        Mar 11, 2009
        Location:
        Oklahoma
        Can we see it fully aired up? Also pics of install like others said!

        It looks awesome.

      • IcedLS

        IcedLS LVC Member

        Messages:
        35
        Likes Received:
        15
        Joined:
        Jul 10, 2016
        Location:
        Ontario
        Thanks, I'll do one better then a pic; here's a video I just shot, apologies for the quality.


      • IcedLS

        IcedLS LVC Member

        Messages:
        35
        Likes Received:
        15
        Joined:
        Jul 10, 2016
        Location:
        Ontario
        The windsheild is tinted only 20%. It looks so dark because every other glass available is tinted 5%.

      • IcedLS

        IcedLS LVC Member

        Messages:
        35
        Likes Received:
        15
        Joined:
        Jul 10, 2016
        Location:
        Ontario

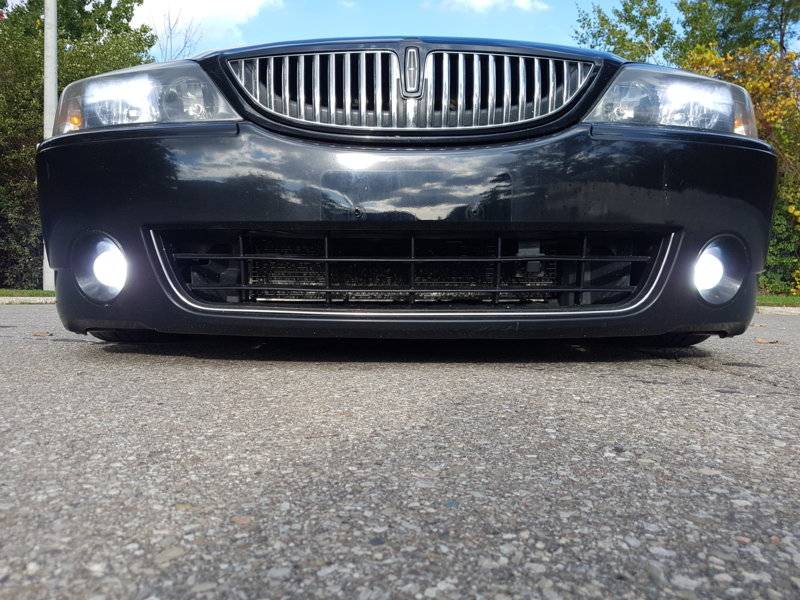

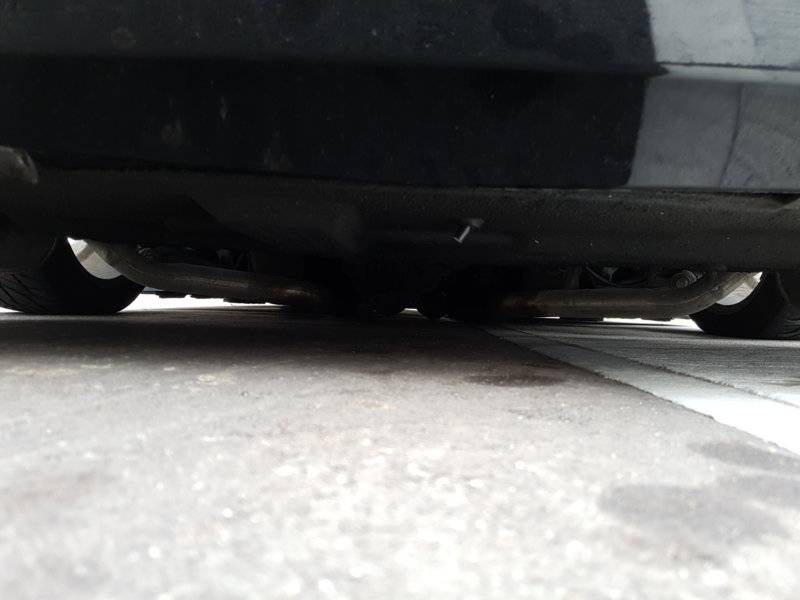

        Laying as low as it could possibly go. Next thing I would like to do is fill in the small gap between the car and the earth, perhaps a splitter all around.

        20181010_163750.jpg 20180930_125656.jpg

      • IcedLS

        IcedLS LVC Member

        Messages:
        35
        Likes Received:
        15
        Joined:
        Jul 10, 2016
        Location:
        Ontario
        This is by no means a tutorial. Just pics taken during each stage.

        First, you'll need to gather everything necessary before starting or nothing will work.

        I used Air Lift 3p air management. For about $2000 - $2500 CDN it will come with everything you need (tank, compressor, hoses, fittings, wiring, valves, etc.) except the suspension components. This is where, for our cars, is easier to find a unicorn. I managed to pickup a used set. You can have a custom set made for about $3000 CDN.

        Because I already had the management and not the suspension yet, I started there. Installing the wiring was super easy because our battery is in the back. Route a remote trigger wire to the fuse labeled spare in the passenger kick panel. Then route the data cable for the controller under the rear seats, under the carpet and into the arm rest compartment.

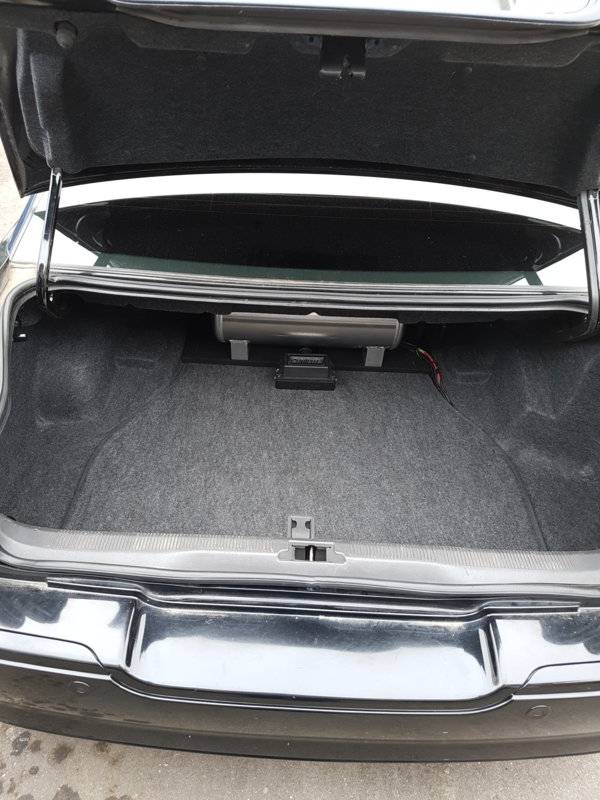

        Next mounted the components on a piece of 3/4" mdf and then into the trunk. Wasn't going for show quality, just wanted it to work. Plans are to later do a display with hard lines. Great thing is that the spare is fully accessible.

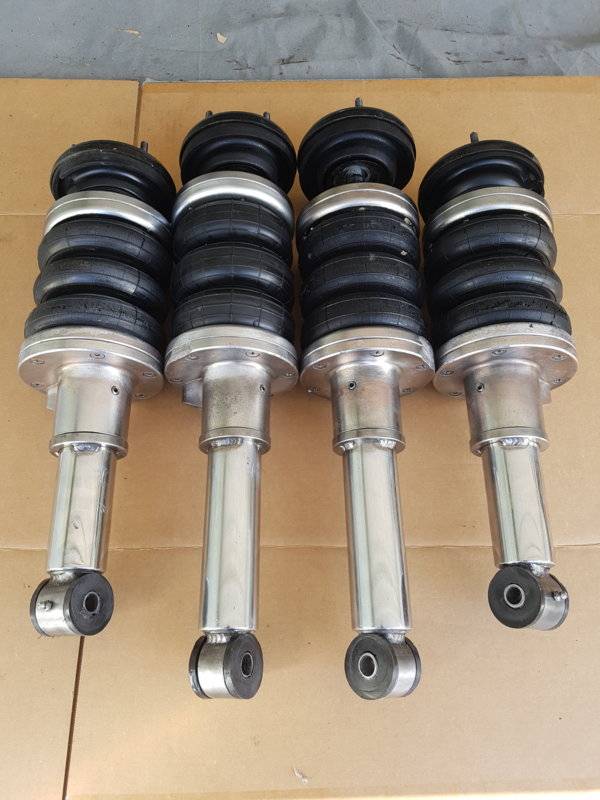

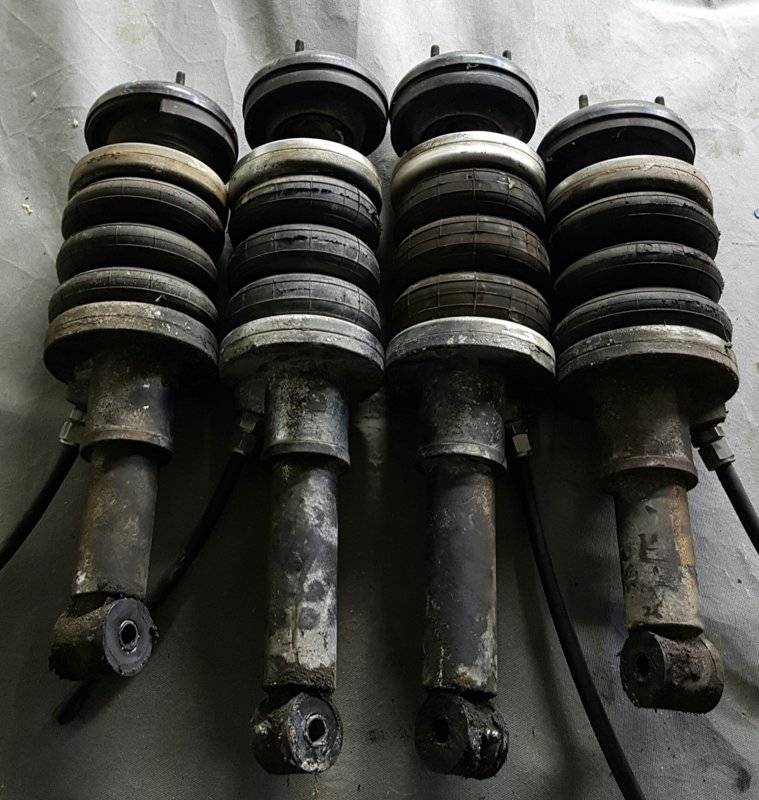

        When I got the used air struts, the definitely looked used. So I cleaned them up before putting them in.

        20180914_230842.jpg 20180922_132120.jpg

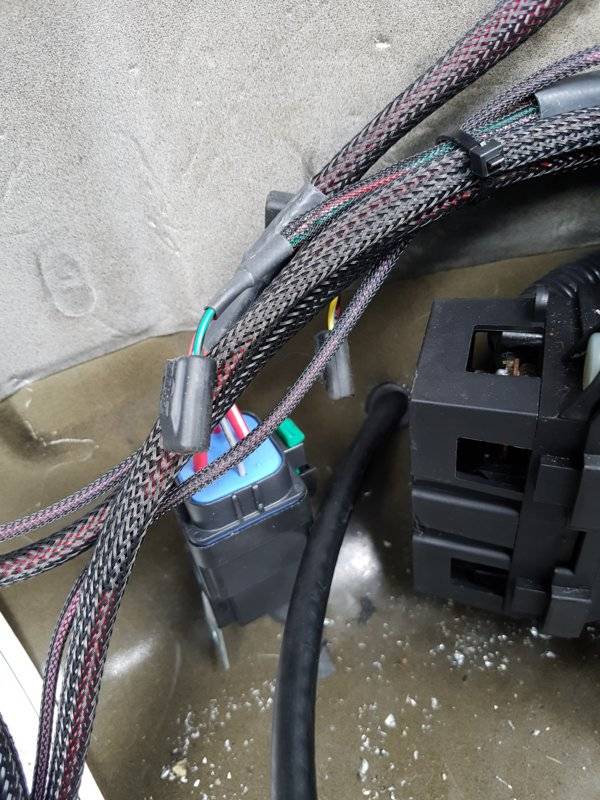

        While installing the bags, the 3/8" air lines were routed at this time too. Rear was easy. Drill two small holes in spare wheel well, add grommets and pass the line through.

        20180927_155119.jpg 20180927_155123.jpg

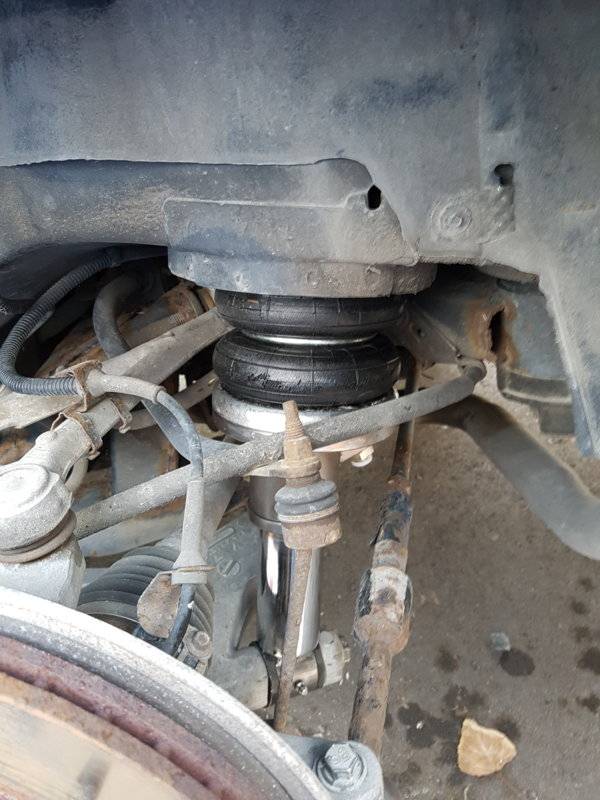

        Remove old struts and replace with air struts. Route the air lines away from moving parts and secure.

        20180927_091712.jpg 20180927_100137.jpg

        I could have used 90 degree fittings here but I already had those straight ones.

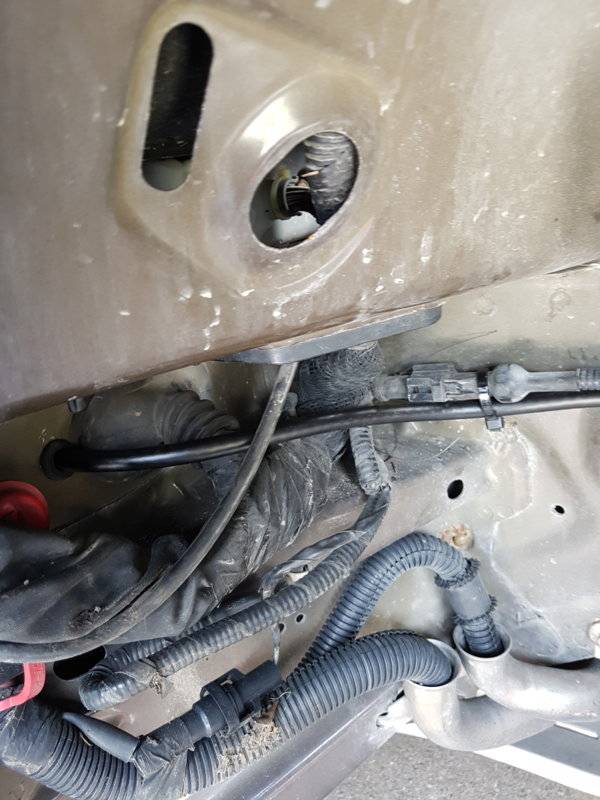

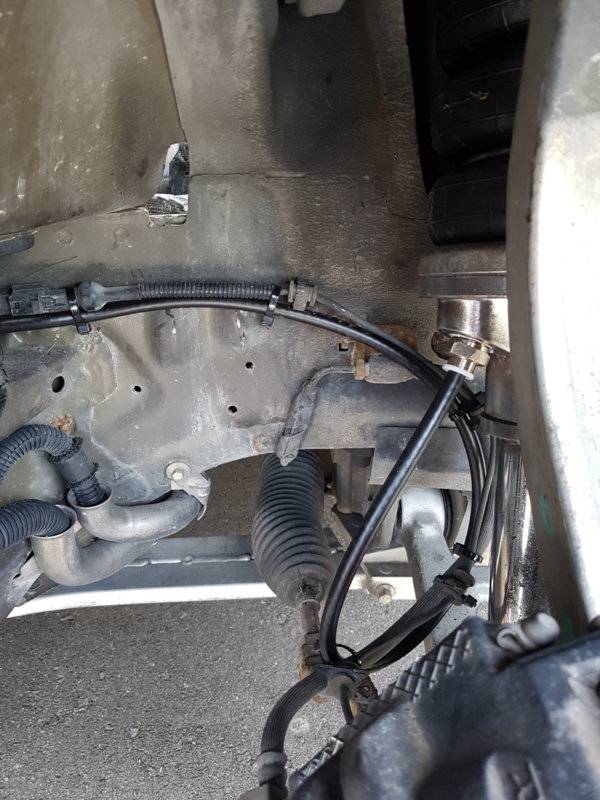

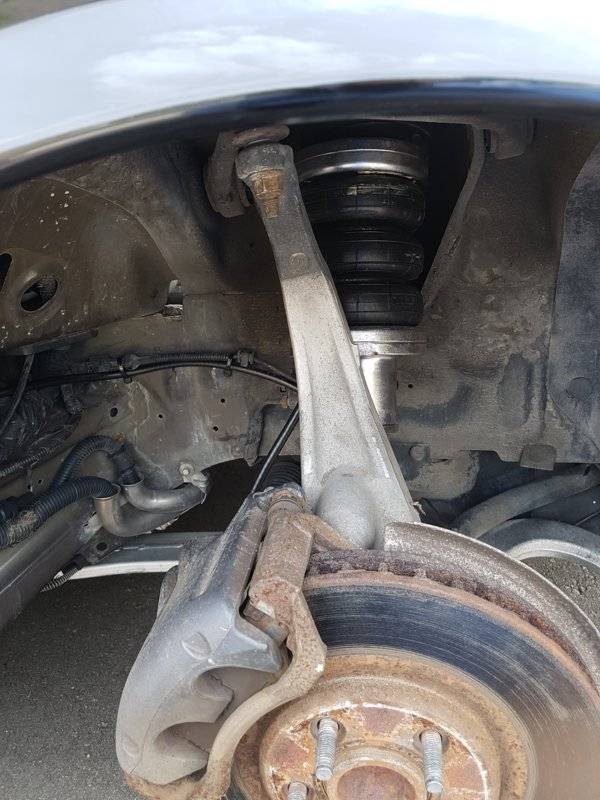

        Front takes a little more time to route the air lines. It can be ran under the car with no issues but I chose to run them inside. The passenger side has space for a new hole and grommet, the driver side will have to go through the factory boot. Remove strut and install air strut. Route and strap the air line along side the brake line. Removing the wheel well liners makes this go smoothly.

        20180927_130249.jpg 20180927_130257.jpg 20180927_130301.jpg

        Only one side is shown for each as it's just a mirror of each other. Don't judge the rotors, I've put only 200 km on the car this year.

        That's all there is too it. If you need specific details, send me a message.

        Last edited: Oct 11, 2018
        • Like Like x 2
        • lincoln_zero

          lincoln_zero Dedicated LVC Member

          Messages:
          598
          Likes Received:
          33
          Joined:
          Aug 10, 2012
          Location:
          ICE COLD CANADA
          WOW!!!! LOOKS AMAZING!!

          Well done sir.

        • ford_freak93

          ford_freak93 Active LVC Member

          Messages:
          62
          Likes Received:
          0
          Joined:
          Aug 6, 2007
          Location:
          Floral Park, New York, United States
          who made the bag struts?

        • IcedLS

          IcedLS LVC Member

          Messages:
          35
          Likes Received:
          15
          Joined:
          Jul 10, 2016
          Location:
          Ontario
          Unfortunately because I got them used, I'm not sure. There's no stamps or branding anywhere on any of the struts. From what I've searched, it looks like a universal strut custom made for the LS. It was direct bolt on with zero modifications.
