How do I wire this cord to my reverse light?

Lincoln LS

  1. FlavourShot

    FlavourShot Active LVC Member

    Messages:
    52
    Likes Received:
    6
    Joined:
    Dec 11, 2019
    Location:
    Canada

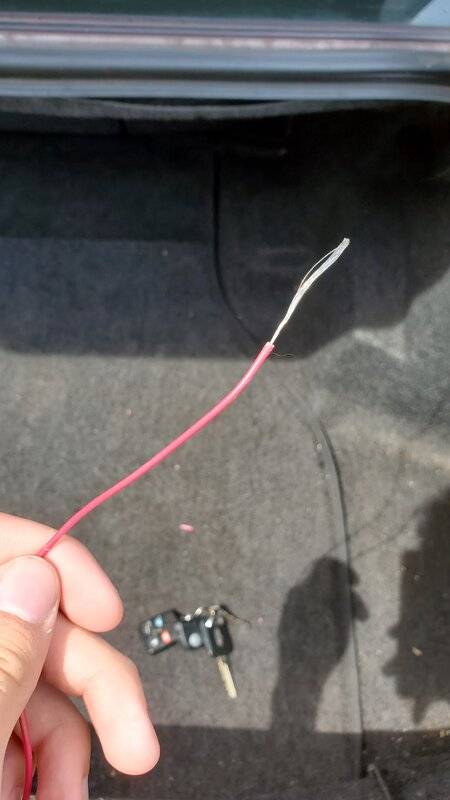

    By browsing through similar threads I've seen people talk about the use of relays but I'm not sure how I'd use one in this situation. I only have this single wire that branches off from the video cable:

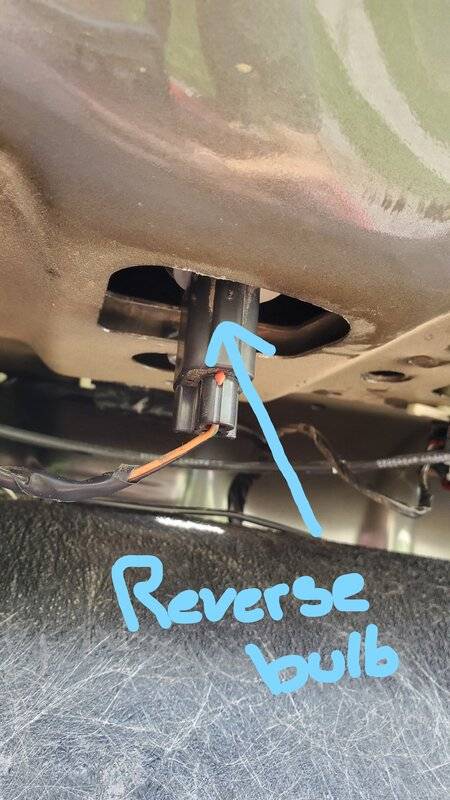

    I can't use the front of the vehicle as the wire is fixed to the video cable wire. I tried loosely wiring to these connectors:

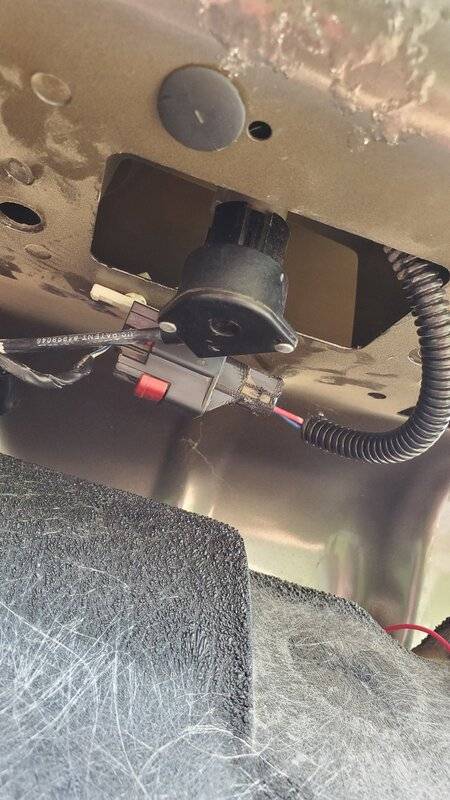

    But the results were inconsistent to say the least. I also tried wiring to whatever these connectors are:


    To no avail. What are my options here? :rolleyes:

  2. joegr

    joegr Dedicated LVC Member

    Messages:
    20,237
    Likes Received:
    1,590
    Joined:
    Dec 10, 2005
    Location:
    Gulfport

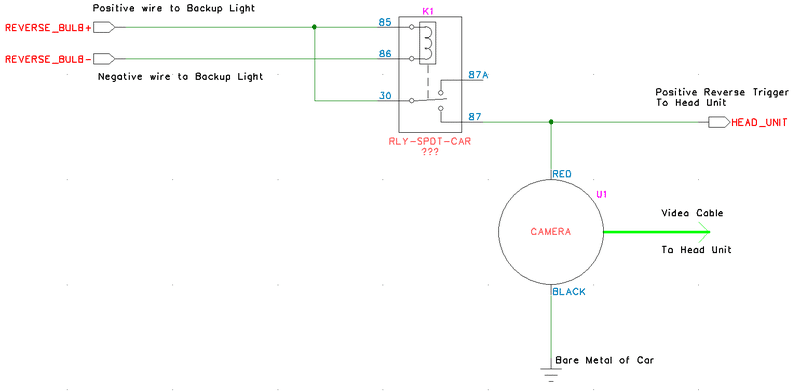

    Your camera needs a switched positive (hot in reverse, off otherwise). The LS switches ground instead. You do need a relay.

    Reverse bulb+ should be Orange/black (left side) or Orange/green (right side).
    Reverse bulb- should be Black/green (left side) or Black/red (right side).
    The connection labeled Head Unit is your single red wire.

    • Like Like x 2
    • FlavourShot

      FlavourShot Active LVC Member

      Messages:
      52
      Likes Received:
      6
      Joined:
      Dec 11, 2019
      Location:
      Canada
      Awesome diagram. I'll be picking up some relays from Amazon then. What is the line labeled 87A?

    • joegr

      joegr Dedicated LVC Member

      Messages:
      20,237
      Likes Received:
      1,590
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      87A is the normally closed contact of the relay. There is no need (or use) to connect anything to that in this case.

      • Like Like x 1
