2006 Lincoln LS ...Starter solenoid is going out?

Lincoln LS

  1. AmsterDutch

    AmsterDutch Dedicated LVC Member

    Messages:
    1,646
    Likes Received:
    264
    Joined:
    Jul 9, 2017
    Location:
    Midwest
    The 2006 has been sitting for a couple months now ...battery went dead ...charged battery and tested it ...all came out fine ...I had to start driving it again due to my 2002 LSE getting a bearing replaced ...having an issue with the 2006 not starting ...when I turn the key and try to start it ...no cranking...no nothing...the battery is fully charged ...tested battery and reads 12.43 without the key on ...what's weird is I will turn the key several times and randomly it will fire up no problem all of a sudden....I have a brand new starter on the shelf in the garage ...should I go ahead and throw it in? I'm Wondering if someone can tell me from experience how long it takes to replace a starter in the LS ...never had to replace a starter in this car ever? I know my 2006 Jeep I had to lower the drive shaft...just wanna know if there is any tricks to make it easier...thanks

  2. joegr

    joegr Dedicated LVC Member

    Messages:
    19,886
    Likes Received:
    1,498
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    12.43V with no load is a discharged battery, unless it is very cold there.

    I have to ask once again, why guess at it when it is so easy to test.
    There are three terminals on the starter/solenoid assembly, "B", "M", and "S." While someone holds the key fully clockwise (start position), measure voltage between the bare metal of the engine or starter and the "S" terminal. If you don't get at least 11 volts, then your problem is somewhere else. If you do have 11+ volts and the starter is not doing anything, then measure the "B" terminal (key still at start). If it is less than 9V, then your problem is between the battery and the starter. If it is 11+, then measure the "M" terminal. If it is less than 9V, then the solenoid switch in the starter is bad. If it is 11+, then the starter motor itself is bad. If so, a light tap with a hammer may cause it to start, this time.

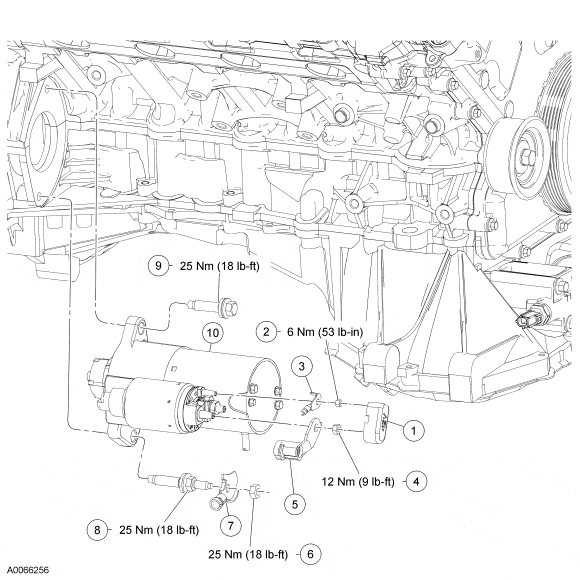

    There is nothing to remove to get to the starter or to change it out.

  3. AmsterDutch

    AmsterDutch Dedicated LVC Member

    Messages:
    1,646
    Likes Received:
    264
    Joined:
    Jul 9, 2017
    Location:
    Midwest
    Okay sounds simple enough...What should my battery read with no load? And yes its -6 degrees here...

  4. AmsterDutch

    AmsterDutch Dedicated LVC Member

    Messages:
    1,646
    Likes Received:
    264
    Joined:
    Jul 9, 2017
    Location:
    Midwest
    I guess I should ask...If its -6 degrees isnt it. Normal for a battery to drop down to 75%? And/Or 12.45?

  5. joegr

    joegr Dedicated LVC Member

    Messages:
    19,886
    Likes Received:
    1,498
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    12.6 V is the minimum for full charge, at reasonable temperatures.

    • Like Like x 1
    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,886
      Likes Received:
      1,498
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      Possibly so. We never see such temperatures here.
