Wiring Diagram

[bputty]

For my 2000 LS, 3.9 liter, V-8 engine, would someone please furnish me a wiring diagram of all the engine compartment sensors ? All the connections to/from both the PCM and ECM.

Additionally, if anyone has a “routing” diagram of the same components, I sure could use it.

If not asking too much, a part number list of the engine compartment wiring harnesses would be nice.

Thanks,



[joegr]

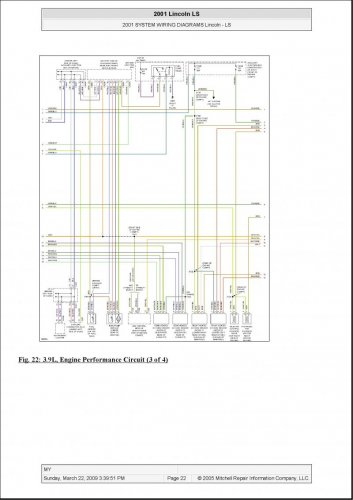

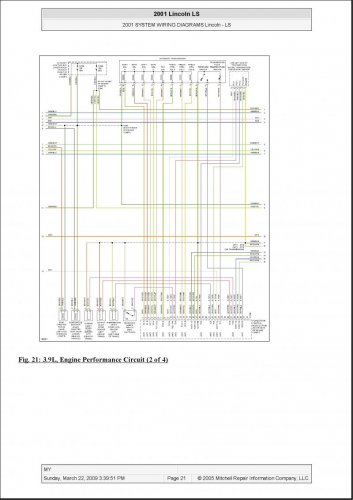

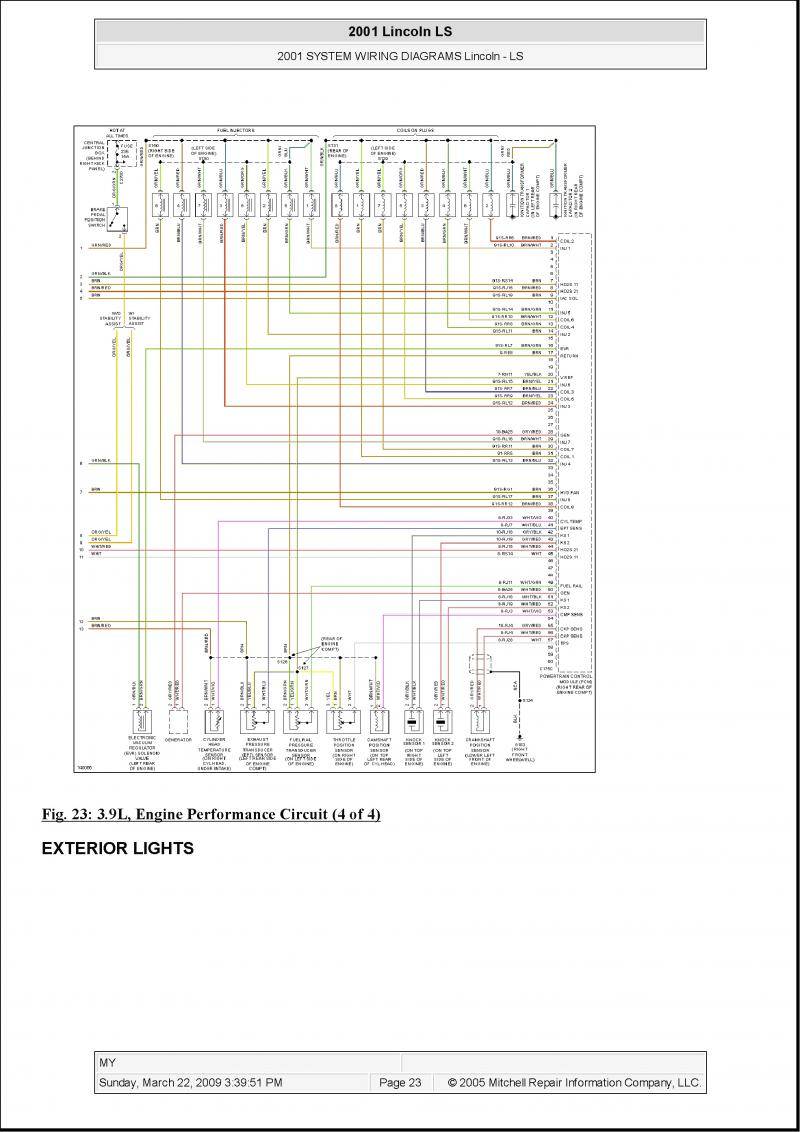

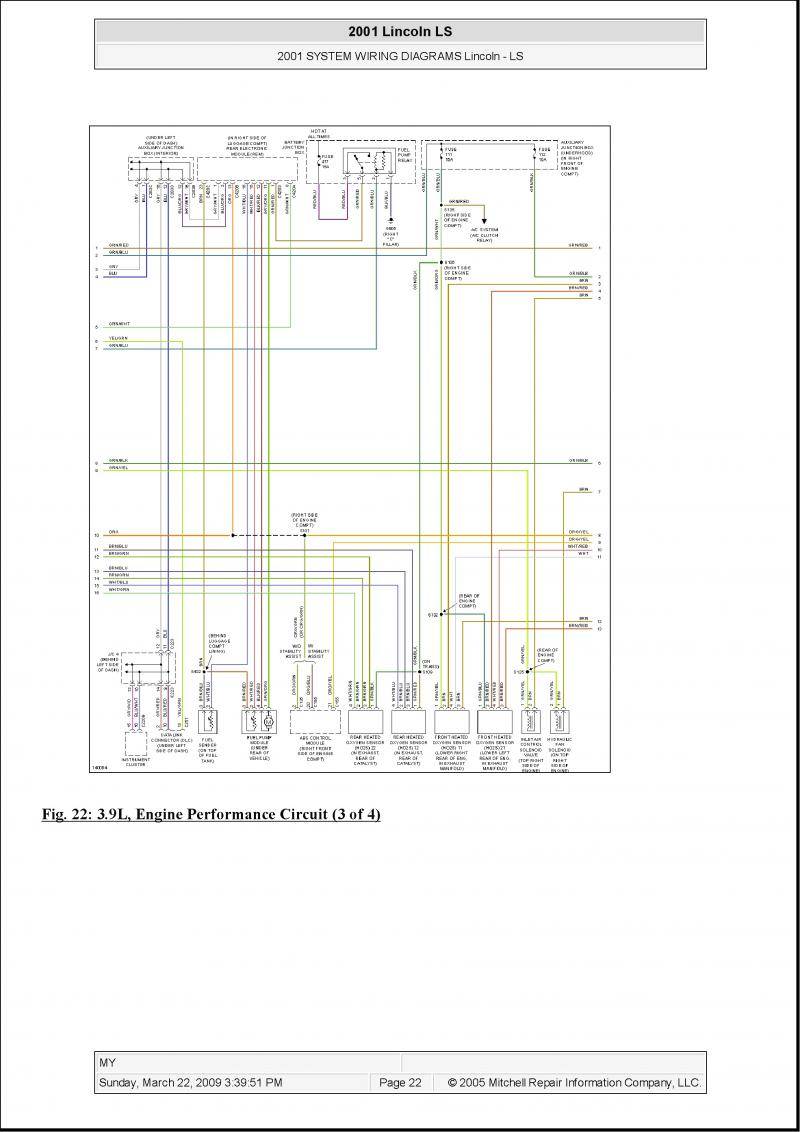

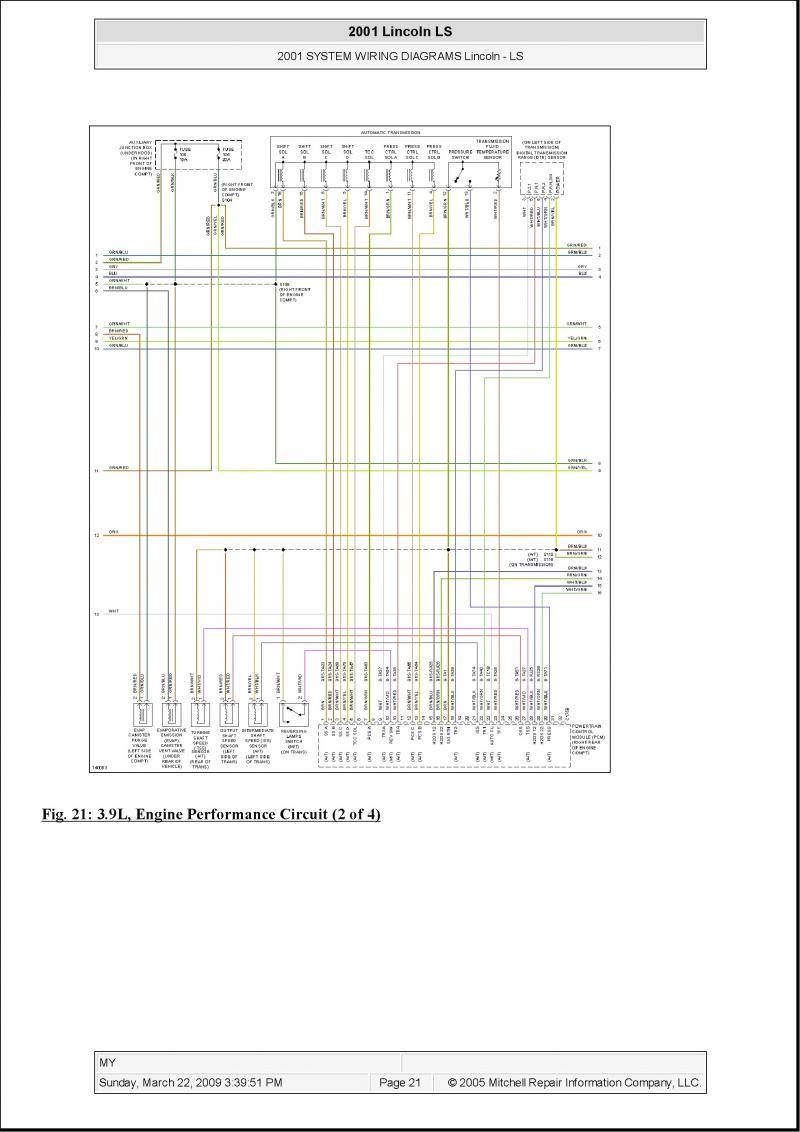

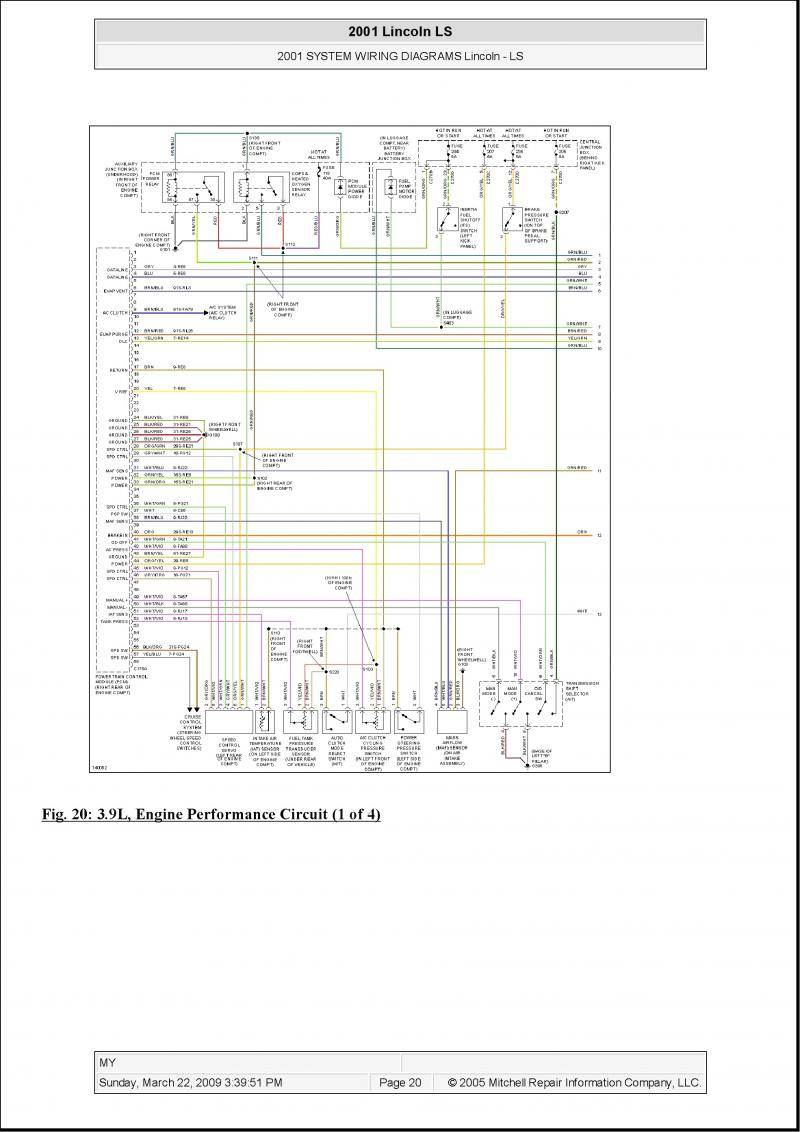

Okay.



[1LoudLS]

man, Mitchell has such better diagrams than Alldata does...



[joegr]

man, Mitchell has such better diagrams than Alldata does...

Still not as good as the factory diagrams (in my opinion).



[G-RELL]

those are great to read!



[FDR]

Perhaps I thanked too soon... It turns out I can't actually read half the text! but it's a better starting point than staring at an assembled engine bay



[joegr]

Perhaps I thanked too soon... It turns out I can't actually read half the text! but it's a better starting point than staring at an assembled engine bay

I'd offer to e-mail the complete diagrams PDF, but it is probably too large for most e-mail systems.



[1LoudLS]

could always pay for it for $17 for a month or $26 for a year...



[joegr]

could always pay for it for $17 for a month or $26 for a year...

Crazy talk...
