Strut-tower mounted Bosch Relays

[DPDISXR4Ti]

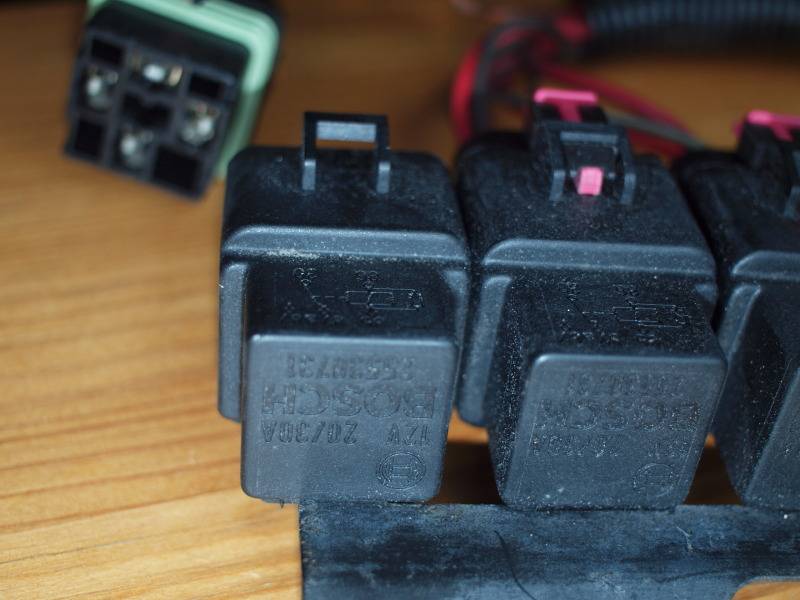

I'm looking to re-use (in a foreign application) the 4-wire weather-tight Bosch relays/harness, as salvaged from a circa 1997 DeVille. These are the ones that are ganged two or three together on a bracket mounted to the driver-side strut tower in the engine bay. Bosch uses two part# on these relays just to confuse us - 25530731 on top and 0 332 204 182 on the side. Just figured I'd include this in case anyone ever wants to search on this.

I could probably figure the operation out from the mini-schematic imprinted on the side of the relay, but I'd feel better if I had hard-copy schematic that showed wire colors, just to be sure.

BTW, what is the original use for these relays on the Cadillac?

Appreciate any input....



[DPDISXR4Ti]

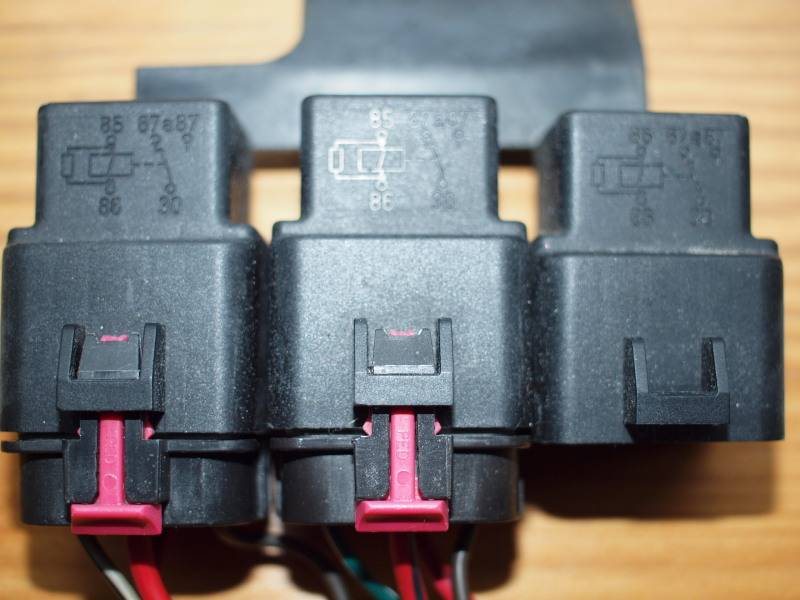

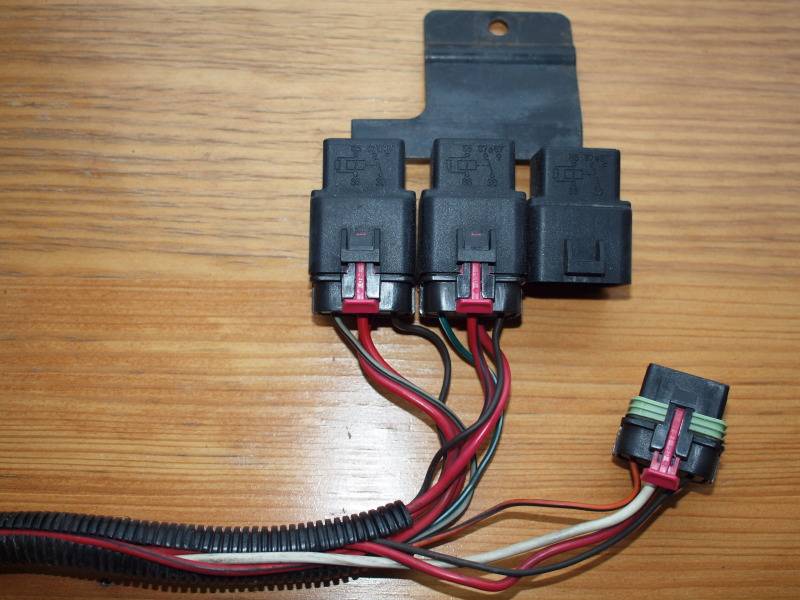

Someone was asking me about these relays the other day so I thought I'd dig up this old thread and post some pics....

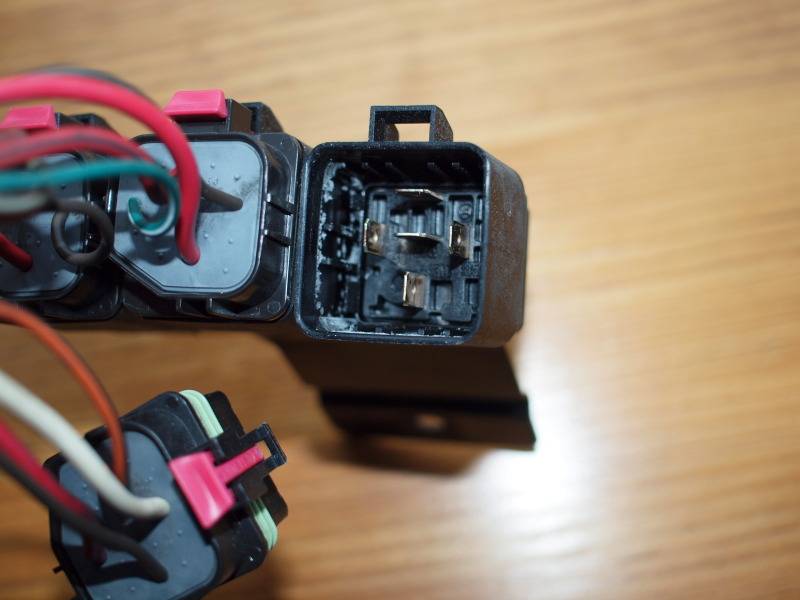

As you can see, it's a 5-pin relay but only four are used for this application. Probably just a way to reduce the number of required replacement parts.

Anyone happen to have a schematic? I realize you can figure it out from the "schematic" imprinted on the relay cover, but it would be easier to have a full wiring schematic for reference.
