Need Torque specs intake manifold bolts on 2003 Lincoln LS V8

lincolnHelp

New LVC Member
Joined
Apr 14, 2018
Messages
2
Reaction score
0
Location
chcc
Hey guys, been looking all over for this info for a family member. I've seen varying specs for 2005 and 2002 but can't seem to find anything for 2003. The family member is a retired mechanic so he knows what to do, he just needs to specs for this. Anyone have any idea?

Thank you.

2003 is exactly the same as 2004, 2005, and 2006

2006 Lincoln LS Workshop Manual

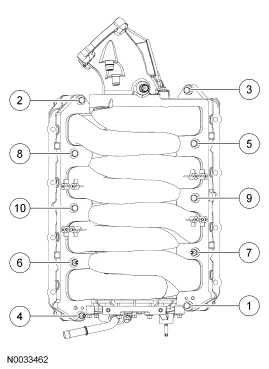

Remove the 7 bolts and 3 studs in the sequence shown.

  • s6x~us~en~file=n0033462.gif~gen~ref.gif
  1. Remove the intake manifold and discard the gaskets.

Installation

  1. s6x~us~en~file=ani_caut.gif~gen~ref.gif
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean the surfaces.


    Clean the gasket sealing surfaces.
  1. Install new gaskets, the intake manifold, the 7 bolts and the 3 studs in the sequence shown.
    • Tighten to 20 Nm (15 lb-ft).

  • s6x~us~en~file=n0033462.gif~gen~ref.gif
  1. Connect the 2 throttle body coolant tubes.
  1. Install the radio interference ignition capacitors and nuts.
    • Tighten to 10 Nm (89 lb-in).
  1. Install the engine wiring harness retainer and the 2 nuts.
    • Tighten to 10 Nm (89 lb-in).

  • s6x~us~en~file=a0065046.gif~gen~ref.gif
  1. Connect the 8 fuel injectors and the radio interference ignition capacitor electrical connectors.

  • s6x~us~en~file=a0065050.gif~gen~ref.gif
  1. Install the 2 engine appearance cover brackets and the 4 nuts.
    • Tighten to 6 Nm (53 lb-in).
  1. Attach the engine wiring harness to the engine appearance cover brackets.
  1. Attach the vacuum harness retainers to the LH engine appearance cover bracket.
  1. Connect the vacuum supply tube.

  • s6x~us~en~file=n0005302.gif~gen~ref.gif
  1. Install the crankcase ventilation tube.
  1. Connect the EGR system module-to-exhaust manifold tube to the EGR system module.
    • Tighten to 40 Nm (30 lb-ft).
  1. Connect the EGR system module electrical connector and the vacuum harness to the EGR system module.
  1. Connect the fuel rail temperature sensor electrical connector.
  1. Connect the EVAP hose to the intake manifold.
  1. Connect the throttle body electrical connector.
  1. Connect the fuel pressure sensor electrical connector and vacuum hose.
  1. Connect the TP sensor electrical connector.
  1. Install the 6 bolts and the cross-vehicle brace.
    • Tighten to 20 Nm (15 lb-ft).

Thank you, this was very helpful.

Are the engines in the 2003 and 2006 models the same? Can the 2006 guide be used for pretty much every repair reference on the 2003 model or are there major differences?
