Need Help with all these codes

Lincoln LS

  1. Dirk Jones

    Dirk Jones New LVC Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Nov 7, 2019
    Location:
    St. Louis

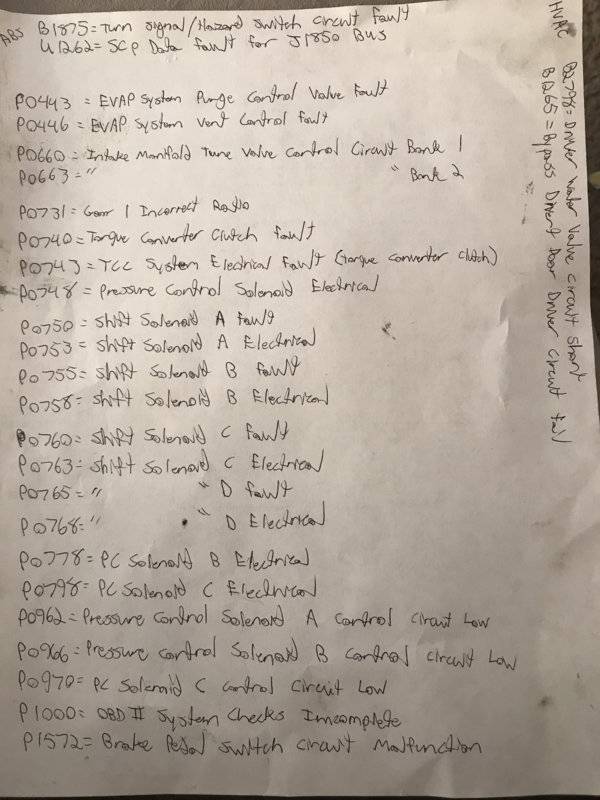

    I have a 2005 Lincoln LS and I've been having these same codes for a while. I just returned from Meineke and they couldn't help me so they just wrote all the codes. I don't know much about cars so I'm hoping to get the problem fixed.
    I know for sure I changed all my solenoids before so I'm not sure why I need to do it again a year later. Also, if you know the codes, what parts do i need to buy?


  2. joegr

    joegr Dedicated LVC Member

    Messages:
    19,596
    Likes Received:
    1,432
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    So, you have an intermittent turn signal switch (multi-function switch) problem. If they are working correctly 99% of the time, then you can ignore this.

    Don't worry about momentary data bus faults.

    You have problems with the fuel evap system. This is mostly an emissions thing. You can fix it (not expensive, usually) or ignore it. It can be difficult to troubleshoot.

    Apparently, you have the V6 (it's always best to say which engine you have). You have some issue with the IMRC. I'd troubleshoot and fix that.

    Your DCCV (heater valve) is shorting out. I'd fix that. Besides the climate control problems, this can cause electrical noise that causes all sorts of seemingly unrelated problems.
    The bypass door code is a software bug. Ignore it. (Even the service manual says to ignore it.)

    P1000 is the result of recently disconnecting the battery or clearing codes, or the EVAP faults.
    P1572 - They didn't press the brake pedal at the right time.

    The transmission codes are all likely the result of the solenoid assembly being bad (Did you replace with new OEM, or "rebuilt" from ebay?), or the connector not being fully seated, or the wiring to it being damaged.

    • Like Like x 1
    • Dirk Jones

      Dirk Jones New LVC Member

      Messages:
      2
      Likes Received:
      0
      Joined:
      Nov 7, 2019
      Location:
      St. Louis
      Yes sorry, i do have the v6.
      How would we troubleshoot the eval and dccv? I'm assuming i'd need to buy the heater control valve? I also usually get my parts from RockAuto. But now that I look at what a shift solenoid is, I did not replace the actual block so I'm assuming i need to buy that.

    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,596
      Likes Received:
      1,432
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
    • DaleGrib

      DaleGrib Dedicated LVC Member

      Messages:
      632
      Likes Received:
      67
      Joined:
      May 14, 2018
      Location:
      North Carolina
      Be sure to use OEM when replacing the DCCV (heater valve) You will regret it otherwise.

    • 04_Sport_LS

      04_Sport_LS Dedicated LVC Member

      Messages:
      2,880
      Likes Received:
      302
      Joined:
      Jun 12, 2012
      Location:
      Somewhere around Lake Erie
      Yes. The dolenoid pack is one whole unit.

      Last edited: Nov 8, 2019
    • 04_Sport_LS

      04_Sport_LS Dedicated LVC Member

      Messages:
      2,880
      Likes Received:
      302
      Joined:
      Jun 12, 2012
      Location:
      Somewhere around Lake Erie
      Yes.

    • 04_Sport_LS

      04_Sport_LS Dedicated LVC Member

      Messages:
      2,880
      Likes Received:
      302
      Joined:
      Jun 12, 2012
      Location:
      Somewhere around Lake Erie
      Rock Auto is a good place to buy parts from. Just don't buy the cheapest stuff... because you will get what you pay for.

      As far as the DCCV and transmission solenoid pack... it is sincerely recommended to buy the factory Ford/Motorcraft parts. Same goes for the cooling system too.

    • 04_Sport_LS

      04_Sport_LS Dedicated LVC Member

      Messages:
      2,880
      Likes Received:
      302
      Joined:
      Jun 12, 2012
      Location:
      Somewhere around Lake Erie
      And as a strong suggestion... I would stay away from muffler shops for any kind of work... except for exhaust. You will pay through the nose for what they charge.

      • Agree Agree x 1
