Anyone have a print out for a 97 ECM/PCM?
97 ECM pinout
- Thread starter SATURN5
- Start date
94m5
Dmaup's Daddy
Yes. Gimme a bit and I'll put it up for you.
NetKeym
Dedicated LVC Member
Here is a few diagrams for a 1997 Mark VIII

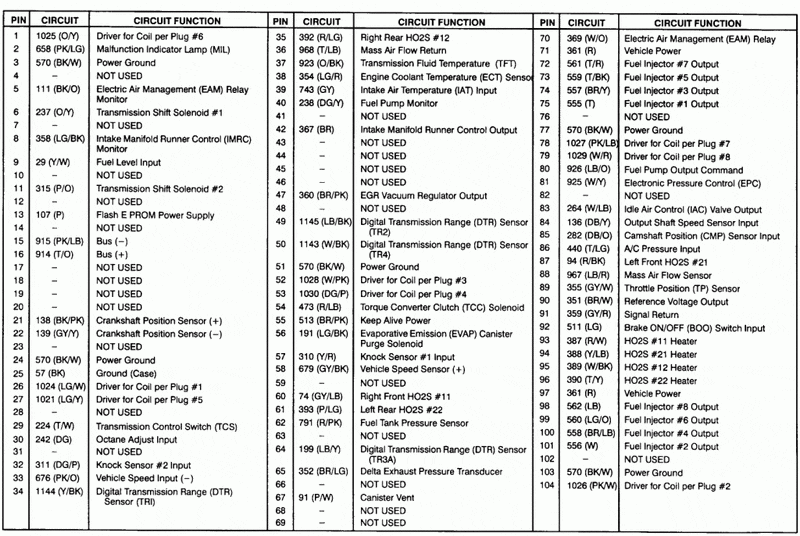

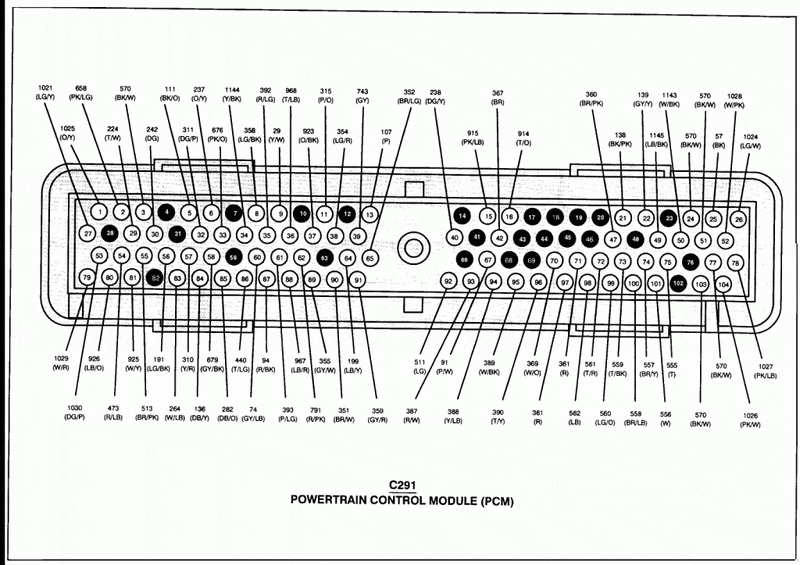

ECM Pinout:

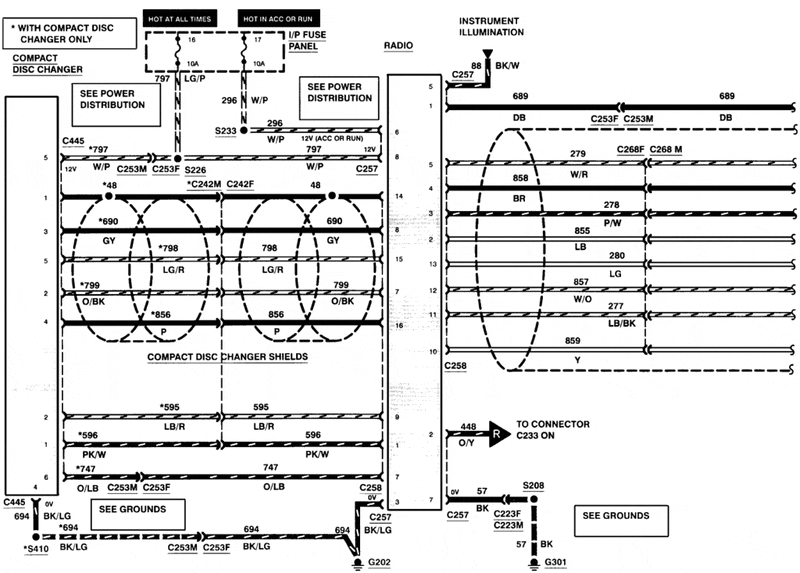

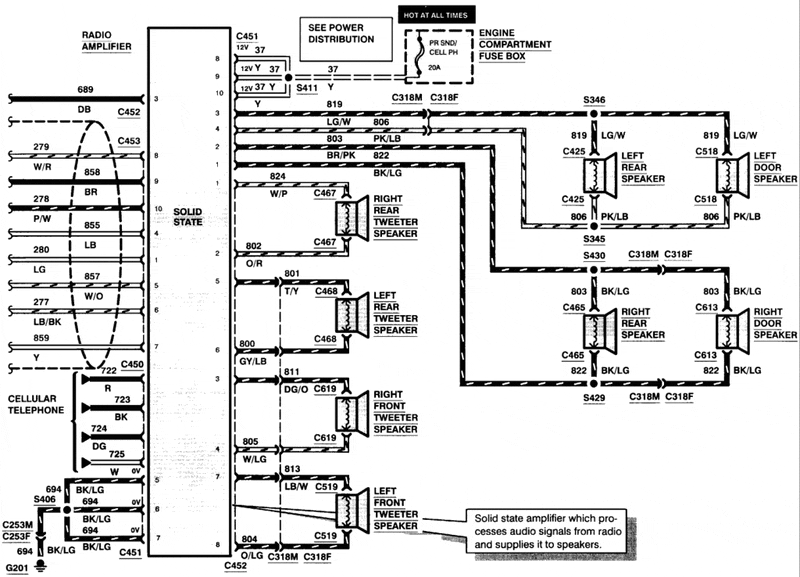

JBL System:

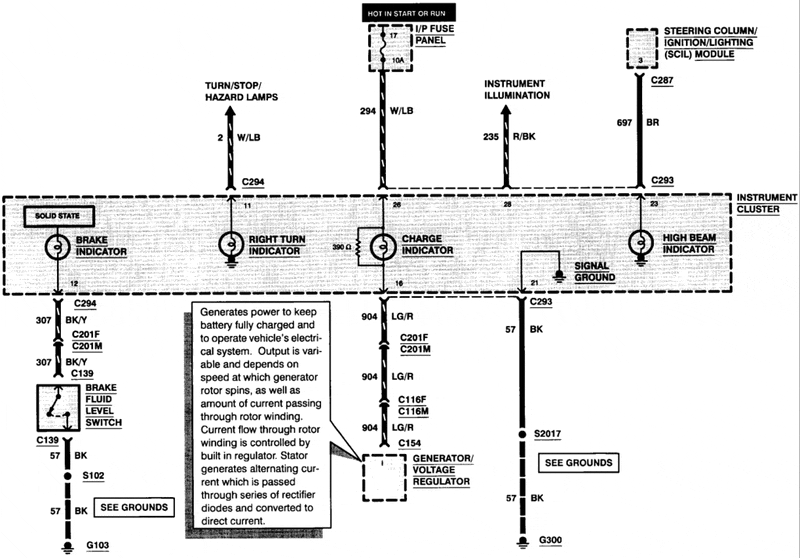

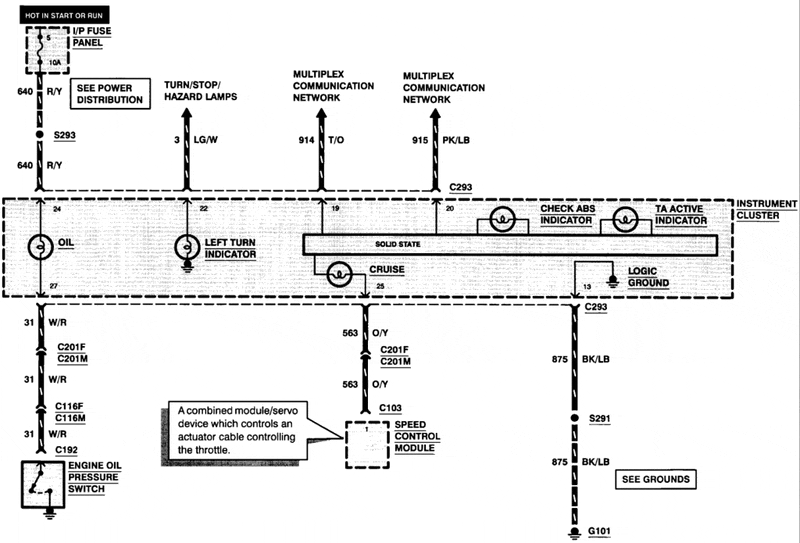

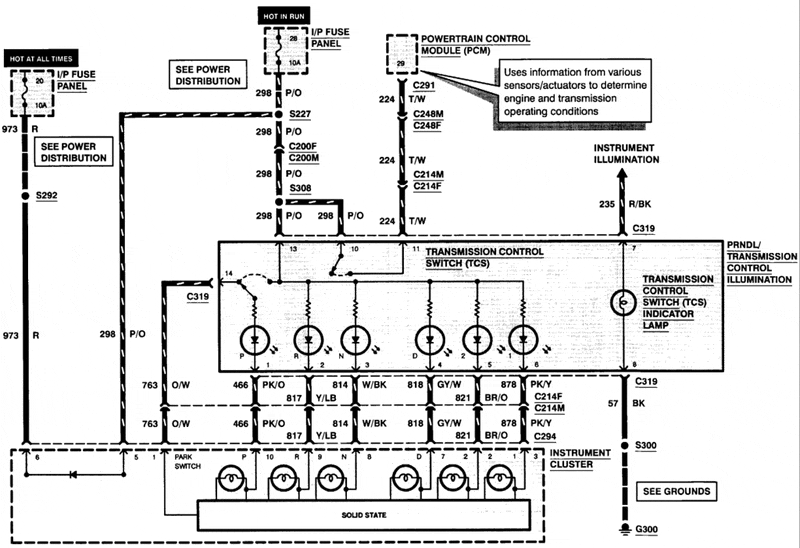

Instrument Cluster:

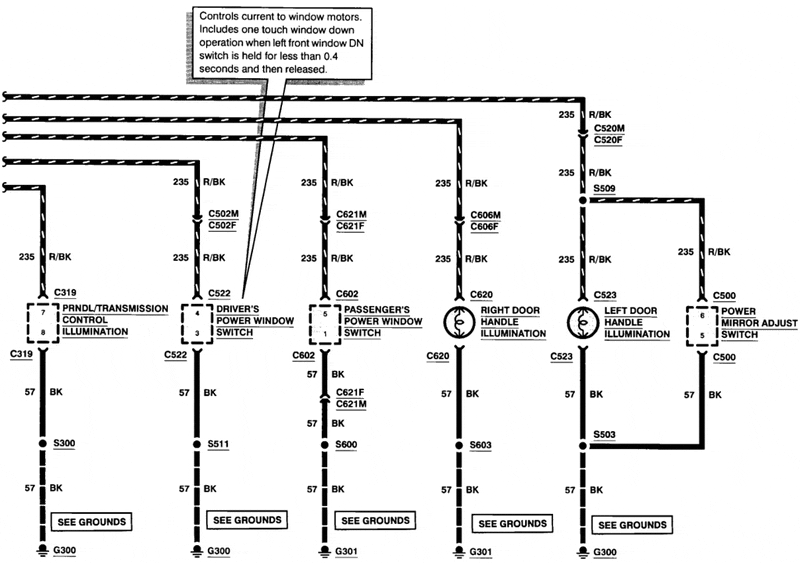

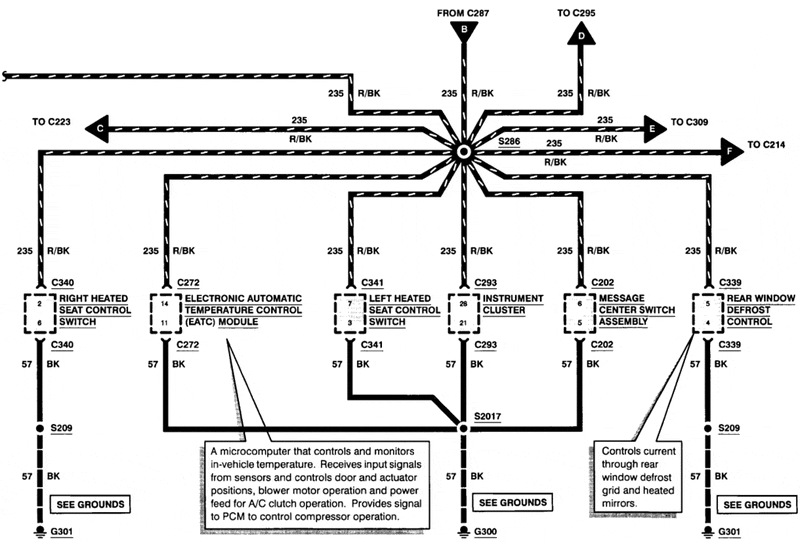

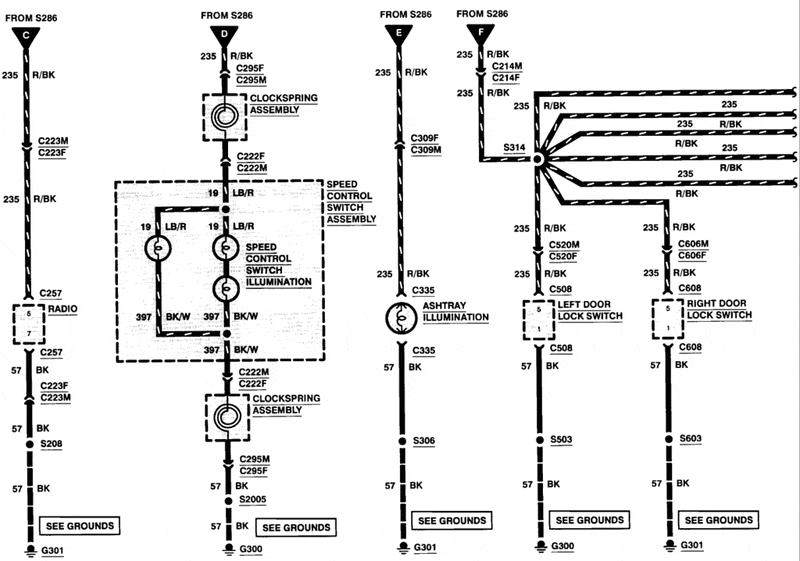

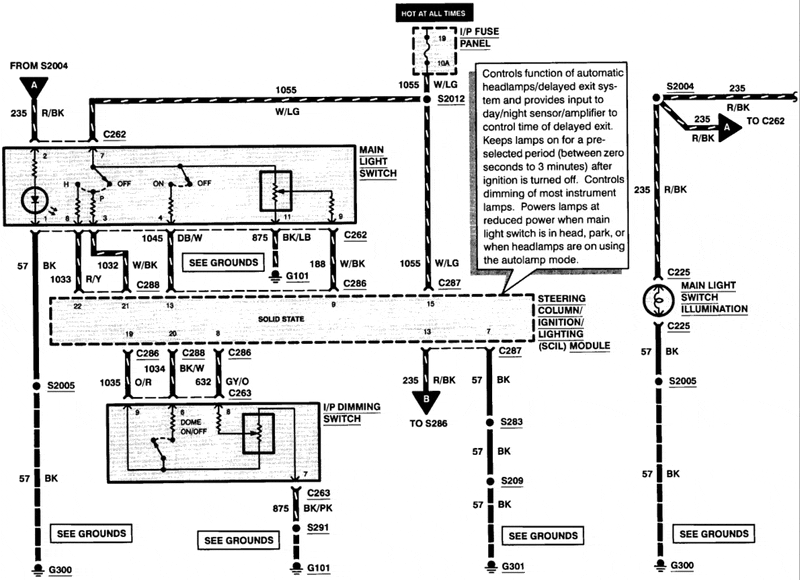

Instrument Illumination:
ECM Pinout:
JBL System:
Instrument Cluster:
Instrument Illumination:
SATURN5
Dr. Frankenstang
Thanks....
I have to wonder if switching to an earlier ECM would be better for my needs (F100 swap). Other then rewiring the coils shouldn't be to bad..
