2006 Lincoln ls Parking Actuator location

[DaleGrib]

Can anyone please share the location and any diagrams of the parking brake actuator please? And what tools I should need to remove it Thanks in advance!



[joegr]

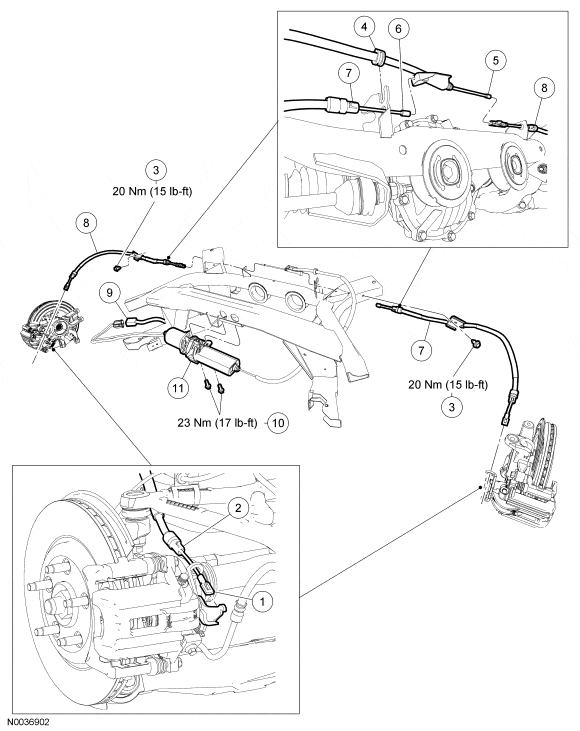

Parking Brake — Exploded View

Item Part Number Description
1 — Parking brake cable end (part of 2A635/2A823)
2 — Parking brake cable and conduit (part of 2A635/2A823)
3 W706703 Parking brake cable bracket bolts (2 required)
4 2598 Electronic parking brake actuator cable grommet (part of 2598)
5 2598 Electronic parking brake actuator cable end (part of 2598)
6 2A823 LH parking brake cable end
7 2A823 Parking brake cable and conduit (LH)
8 2A635 Parking brake cable and conduit (RH)
9 — Electronic parking brake actuator assembly electrical connector
10 W708829-S429 Electronic parking brake actuator assembly bolts (2 required)
11 2598 Electronic parking brake actuator assembly

Removal

NOTE: The electronic parking brake (EPB) system must be reset following the EPB system reset procedure if the battery has been discontinued. Refer to Electronic Parking Brake (EPB) Resetting in the diagnostic section.

1. Release the tension on the parking brake cables by connecting the diagnostic tool to the vehicle and following the diagnostic tool instructions to slacken the EPB cables.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .

1. Separate the EPB actuator cable from the parking brake cable and conduits at the equalizer.

1. Release the EPB actuator cable grommet from the subframe.

1. Disconnect the EPB actuator electrical connector.

1. Remove the 2 EPB actuator assembly bolts.
   • To install, tighten to 23 Nm (17 lb-ft).

1. To install, reverse the removal procedure.
