Help, with where vacuum line hoses go?

[warrioralumni08]

Well, I should have took pictures before disassembling the engine, came back to bite me in the ass. If anybody could please, take a picture of the engine from the top, looking down on the manifold? Also, pictures to where the pcv valve hose leads to, imrc vacuum hose, egr valve hose, and the T connector on the manifold. Again, I just need to see where the hoses lead and connect to. Help would be greatly appreciated, since time is coming close to assembling the engine back! Must say, looks nice and I can't wait.



[chicken]

It would really help if you said what year it is



[Mark8Murder]

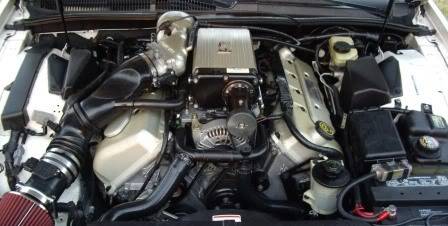

This Help....? Lol, sorry it's all I got......



[Sapperfire]

This Help....? Lol, sorry it's all I got......

Hahahahaha



[warrioralumni08]

It would really help if you said what year it is

Sorry Chicken, it's a Gen 1, 94.

This Help....? Lol, sorry it's all I got......

Haha, well at least you tried! Not nice to tease people with what's under that hood, but you deserve a cookie none the less! Nom nom nom!
