door panel removal

[n8bachelor]

I love my LS!! But I am and have always been an audiophile, I must replace the stock system in my '04 V6. I need some pointers in removing the door panels. I found several screws along the bottom of the door but removing them got me nowhere. I dont want to damage any of the interior by removing it incorrectly so some advise would be greatly appreciated. I will be installing Alpine component 5x7 in the front doors, either 6x9's or component 6.5 in the rear deck and an Alpine 9851 in the dash. I have read the proceedure for removing the stock head unit but am still a bit apprehensive about removing the air vents... do they really just pull out? I gave a little tug but really didnt want to break them so I never got them all the way out. Also is there anywhere to get an interior colored mounting kit? Those generic ABS kits just look cheap!



[mholhut]

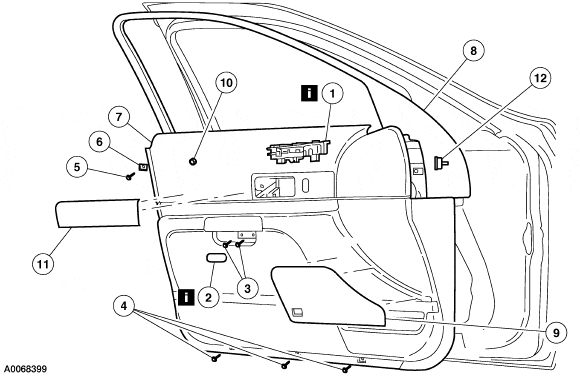

Fronts: http://home.comcast.net/~lincolnautoworks/pdf/door fr panels.pdf

Rears: http://home.comcast.net/~lincolnautoworks/pdf/door rr panels.pdf

Then just pop the panels off. May have to wedge something in there to aide in popping the first couple plastic connectors. 1st time is a whore, it gets easier the more you do them.

Dual air vent at the top of the radio stack does just pull out / unsnap. Same with the surround for the ashtray.



[n8bachelor]

Thanks a ton man.... the doors shouldnt be a problem now. Any advise on a nice head unit install? I have seen a couple of decent ones here on LVC... but would really like the color to match the factory.



[Mexican3001]

wrong topic to post in sorry.
