On the front shock the manual says to make reference marks on the spring shock plate and shock. The problem is when I replace the shock I loose my reference mark. What is the best way to line up the 4 bolts on the top of the shock cap with the big bolt that holds the strut to the bottom?
aligning front shock to tower
- Thread starter apl
- Start date
RigsLS
Dedicated LVC Member
- Joined
- Mar 10, 2012
- Messages
- 7,756
- Reaction score
- 532
Just align them up as you see how it's supposed to go back together and head straight to an alignment shop afterwards.
the fronts needed to be dialed in for camber alignment. the rears do not and can not.
Top four bolts on the front suspension just go back in where you found them.

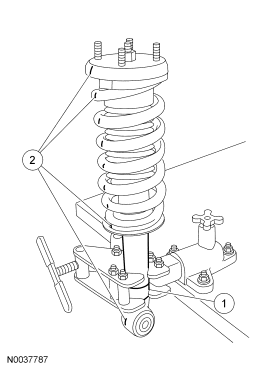

When they make mention of making a mark, they are referring to the upper mount and shock itself.
A visual line all the way from top to bottom.

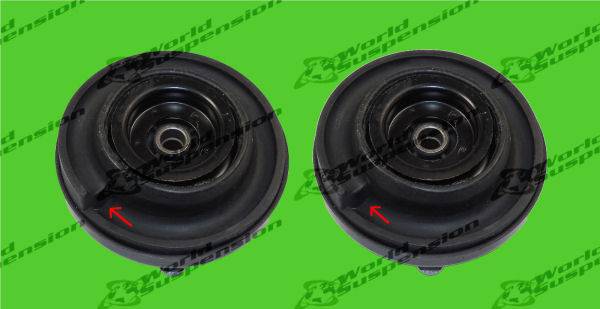

The upper mount on the inside will have a groove where the strut should sit butted against it's end into the sleeve.
Once you have it in hand you'll see how the spring is supposed to sit aligned with the top plate. Look inside the shock absorber upper mount.
When doing RE&RE work, always observe how it comes apart, take pictures if you have to.
Put it back together with new parts same way as it came out.
---- EDIT:
To clarify, when you tighten the top tension nut back on, the top four bolts need to be inline with the bottom of the shock assembly so that when you go to put it back in the car, the top four bolts can go through the holes while at the same time the bottom of the shock can be aligned with it's mounting bolt and nut.
If you don't pay attention to the top-to-bottom alignments when putting it back together, you could end up with where the bottom of the shock bolts in but your top four nuts are offset and then won't fit back into the holes at the top of the fender.
It all has to be aligned so the bottom bolt and top four nuts can go back in.
Hope you understand what I mean.
the fronts needed to be dialed in for camber alignment. the rears do not and can not.
Top four bolts on the front suspension just go back in where you found them.
When they make mention of making a mark, they are referring to the upper mount and shock itself.
A visual line all the way from top to bottom.
The upper mount on the inside will have a groove where the strut should sit butted against it's end into the sleeve.
Once you have it in hand you'll see how the spring is supposed to sit aligned with the top plate. Look inside the shock absorber upper mount.
When doing RE&RE work, always observe how it comes apart, take pictures if you have to.
Put it back together with new parts same way as it came out.
---- EDIT:
To clarify, when you tighten the top tension nut back on, the top four bolts need to be inline with the bottom of the shock assembly so that when you go to put it back in the car, the top four bolts can go through the holes while at the same time the bottom of the shock can be aligned with it's mounting bolt and nut.
If you don't pay attention to the top-to-bottom alignments when putting it back together, you could end up with where the bottom of the shock bolts in but your top four nuts are offset and then won't fit back into the holes at the top of the fender.
It all has to be aligned so the bottom bolt and top four nuts can go back in.
Hope you understand what I mean.
jjcool00
Dedicated LVC Member
So what you want to do to make this job much easier for yourself is mark where the spring meets the shock. Then sit the new shock down next to it and mark that shock in the same spot. Make sure you place the spring on the shock in the spot it was on the new shock - if this makes sense. This way you have no issues lining it up. I've done it several times - trust me I know. If you don't mark it you will have to place the shock in up top first, then turn the shock with ur hands until the big bolt lines up at the bottom - this can be very difficult.
