Project: Hotrod Lincoln

Documented goals and processes for completing an engine swap into a 2002 Lincoln LS Sport

Start Date: July 17, 2012
End Date:___________

Project owner: Anton Wyler

Goal: Make a 523 Horsepower Lincoln LS ​



Project: Hotrod Lincoln
Year: 2002
Model: LS V8 Sport
Make: Lincoln

Modifications done so far:
- Full 2.25 custom exhaust
- Magnaflow high flow catalytic Converters
- FlowMaster supper 44 mufflers
- Guages
- Fuel ratio
- boost
- water temp
- volts
Oem Gauges
- tach, temp, speed, fuel level

Objective:

We are aiming for about 530 Horsepower at the crank by using a 2002-current Jaguar XKR engine with an Eaton M112 supercharger. One internal goal will to also be able to modify the pully with ease to adjust boost pressure. Right now an immediate issue is that there is little to no pulley aftermarket and the snout on the S/C will need extensive modification. Part of this Horsepower goal will require me to modify the differential and drive shaft for safety measures. Also I will be flaring the fenders to allow for a wider tire for better traction and to assist the launch.




XKR MOTOR THREADS


Intake
http://www.jaguarforums.com/forum/xk8-xkr-17/done-mina-intake-where-buy-cold-air-65078/

Lots of stuff from 2002 XKR (pulley mod)
http://www.jaguarforums.com/forum/x...s-all-my-mods-written-up-complete-pics-60584/

Pulley Mod Writeup
http://www.jaguarforums.com/forum/xk8-xkr-17/supercharger-pulley-adventures-46329/

Differential / Gearing
http://www.jaguarforums.com/forum/xk8-xkr-17/what-other-model-differentials-will-fit-xk8-61079/

Parts and Knowledge base:

Knowledge:
-All torque specs for motor and trans
-engine diagrams and parts list
-Parts list, check
-Wiring Diagrams

Parts needed:
-engine as whole w/sc
-Intake elements (have filter)
-Motor mounts?
-various Line
-fuel
-coolant
-vacuum
-One Piece Drive shaft
-Rear Diff, with 4.11:1 gearing

Future Parts:

-twin screw and required parts for 623 Horse at crank


Available Knowledge to be found on Jaguarforums.com and Lincolnvscadillac.com

Last edited:
Okay so this is going to be my project thread, this is where I will post all information I can, as well please keep the junk out, if you have questions please refer to the other thread as this will be the build thread. Do not expect to see this updated everyday, but more as place for me to store information at this time.

My general XKR motor thread can be found here

I'll be following buddy, good luck. Let me know if i can help in any way

going with an 8.8 from a cobra/mark viii? seems like a common swap.

however, 4.10s will be a lot of gear with 530 hp. many boosted mark viii's and cobras at that power level go with 3.55s.
the higher gear helps build boost a little better and doesn't destroy the tires every time you come near the throttle.

chris2523 said:
going with an 8.8 from a cobra/mark viii? seems like a common swap.

however, 4.10s will be a lot of gear with 530 hp. many boosted mark viii's and cobras at that power level go with 3.55s.
the higher gear helps build boost a little better and doesn't destroy the tires every time you come near the throttle.
Click to expand...

Yeah, after looking more into this I may go with 3.73 gears or close to

So I am checking over with the Jag Guys, (JG from now on) about what gears they are using with this motor as well if the Jag is using a one or two piece drive shaft. Just need to know what I need before I need it.

I wish you well on your journey. This could get scary interesting! Just reading it gives me goose bumps. Good luck!

Yeah, I can't wait to get started... This has m more excited than any other project.

Good luck.

Would love to see a 5.0 swap into one.

2002_lincolnLS said:
are you referring to the coyote motor? Dwiggy did an old pushrod 5.0, I think he said the coyote motor is two wide for the engine bay
Click to expand...

No, The 5.0 AJV8:

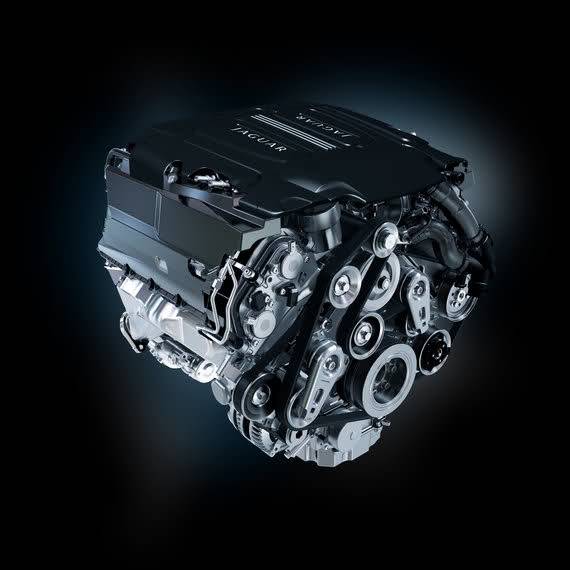

Its supposed to have similar dimensions and weight to the 4.2 but with much more power and torque. Its only been out for two years now so it would be very expensive if you could find one.

The XF used the 4.2 for 2009 and then it switched to the 5.0 and the dimensions of the XF are almost the same as the LS, i parked next to one and they were very close. The engine should fit. Would make one hell of a power plant even the N/A version.

oooh okay yeah, I think that may be a little out of the budge. It would make for a badass car though

Yea i was going to say which motor you using since the early 2000 XKRs had 4.2 liter supercharged engine and the current one has 5 liter supercharged engine. Two different motors.

FYI, the current 5 liter is a Jaguar design, but built by Ford in Wales.

05 LS8 said:
Yea i was going to say which motor you using since the early 2000 XKRs had 4.2 liter supercharged engine and the current one has 5 liter supercharged engine. Two different motors.

FYI, the current 5 liter is a Jaguar design, but built by Ford in Wales.
Click to expand...

it will be the 4.2 found in the the 2000-2006 XKR, I believe that the 4.0 was in the xk8 but I am not 100% yet, but that's why I joined the jag forum.

By the way, you should check out jaguarforums.com with the new ride. seems to be a good place

Gotcha.

I have been a member on there for a while.....maybe about 6 months. Thanks though.

Jaguar AJ-V8

4.0L NA
AJ26
1997-1998 Jaguar XJ8
1997-1998 Jaguar XK8

AJ27
1999-2004 Jaguar XJ8
1999-2004 Jaguar XK8

AJ28
2000-2002 Jaguar S-Type 281 hp (210 kW), 287 lb·ft (389 N·m)

4.0L S/C
AJ26S
1998-1999 Jaguar XJR
1998-1999 Jaguar XKR

AJ27S
2000-2003 Jaguar XJR
2000-2003 Jaguar XKR
2000-2002 Vanden Plas
2002 Daimler Super V8

3.9L NA
AJ30
2000-2002 Lincoln LS, 252 hp (188 kW) 267 lb·ft (362 N·m)
2002 Ford Thunderbird, 252 hp (188 kW) 267 lb·ft (362 N·m)

AJ35
2003-2006 Lincoln LS, 280 hp (209 kW) 286 lb·ft (388 N·m)
2003-2005 Ford Thunderbird, 280 hp (209 kW) 286 lb·ft (388 N·m)

4.2L NA
AJ34
2002–2006 Jaguar XK-series 294 hp (219 kW), 303 lb·ft (411 N·m)
2006–2008 Jaguar XK-series 300 hp (224 kW), 310 lb·ft (420 N·m)
2002–2008 Jaguar S-Type 4.2, 300 hp (224 kW) and 310 lb·ft (420 N·m)
2003–present Jaguar XJ8, 300 hp (224 kW) and 310 lb·ft (420 N·m)
2009–present Jaguar XF, 300 hp (224 kW) and 310 lb·ft (420 N·m)

4.2L SC
AJ34S
2003-2009 Jaguar XJR/Super V8, 400 hp (298 kW) and 408 lb·ft (553 N·m)
2002-2006 Jaguar XKR, 400 hp (298 kW) and 408 lb·ft (553 N·m)
2006-2008 Jaguar XKR, 420 hp (313 kW) and 410 lb·ft (560 N·m)
2002-2008 Jaguar S-Type R, 400 hp (298 kW) and 408 lb·ft (553 N·m)
2005–present Daimler Super Eight
2009-2010 Jaguar XF, 420 hp (313 kW) and 408 lb·ft (553 N·m)

5.0L
AJ133
2009–present Jaguar XFR, 510 PS (380 kW; 500 hp) and 625 N·m (461 lbf·ft)
2009–present Jaguar XJR, 510 PS (380 kW; 500 hp) and 625 N·m (461 lbf·ft)
2011–present Jaguar XKR-S, 550 PS (400 kW; 540 hp) and 680 N·m (500 lbf·ft)
2009–present Jaguar XKR, 510 PS (380 kW; 500 hp) and 625 N·m (461 lbf·ft)
2009–present Jaguar XF, 385 PS (283 kW; 380 hp) and 515 N·m (380 lbf·ft)
2009–present Jaguar XJ, 385 PS (283 kW; 380 hp) and 515 N·m (380 lbf·ft)
2009–present Jaguar XK, 385 PS (283 kW; 380 hp) and 515 N·m (380 lbf·ft)
2009–present Land Rover Range Rover, 375 hp (280 kW) and 375 lb·ft (508 N·m)
2009–present Land Rover Range Rover, 510 hp (380 kW) and 461 lb·ft (625 N·m)
2009–present Land Rover Discovery, 375 hp (280 kW) and 375 lb·ft (508 N·m)
2009–present Land Rover Range Rover Sport, 510 hp (380 kW) and 461 lb·ft (625 N·m)
2009–present Land Rover Range Rover Sport, 375 hp (280 kW) and 375 lb·ft (508 N·m)

Other Variants
Land Rover 4.2L
2006 Land Rover Range Rover Sport 385 hp (287 kW) and 406 lb·ft (550 N·m)
2006 Land Rover Range Rover 400 hp (298 kW) and 413 lb·ft (560 N·m)

Land Rover 4.4L
2005 Land Rover Discovery - 300 hp (224 kW), 315 lb·ft (427 N·m)
2006 Land Rover Range Rover Sport - 300 hp (224 kW) @ 5500 rpm, 315 lb·ft (427 N·m) @ 4000 rpm
2006 Land Rover Range Rover - 305 hp (227 kW) @ 5750 rpm, 325 lb·ft (441 N·m) @ 4000 rpm

Aston Martin 4.3L/4.7L
2005–present Aston Martin V8 Vantage

2002_lincolnLS said:
oooh okay yeah, I think that may be a little out of the budge. It would make for a badass car though
Click to expand...

Budget??? You have gone from just heads to a full swap. The B word is completely shot full of holes at this point my friend. :)

I had my engine bulit last year with the intent of going with a turbo or a supercharger but once Cammerfe offered me a great price on his Nitrous kit, it was too good of a HP per dollar solution to pass upon.

well the project budget is about 5k for the stuff I want to do it should be feasible. I have to have a budget or I will go wild and get off track.

Two months and no update? Another dead engine swap thread?

cam, not 100% sure yet, I need to get with, or find so to speak a local jag guy to discuss. And LS4me, if you read the op, I am not just rushing into this, tons of prep research still to do. It will happen don't worry. But I am not going to rush into and screw it up. It needs to run and work as if it was oem or there is no point.
