Want to see inside Front air shock?

[Right on the Mark]

I had to cut these up for parts and wanted to see inside one of these suckers.

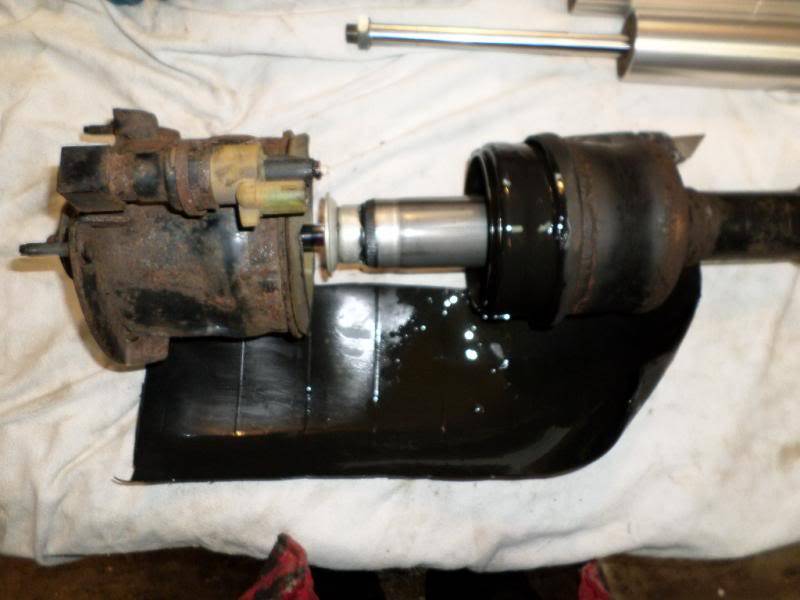

First thing I did was cut rubber bladder off. You can see its covered in shock oil that was leaking out of shock. Other one came out dry.

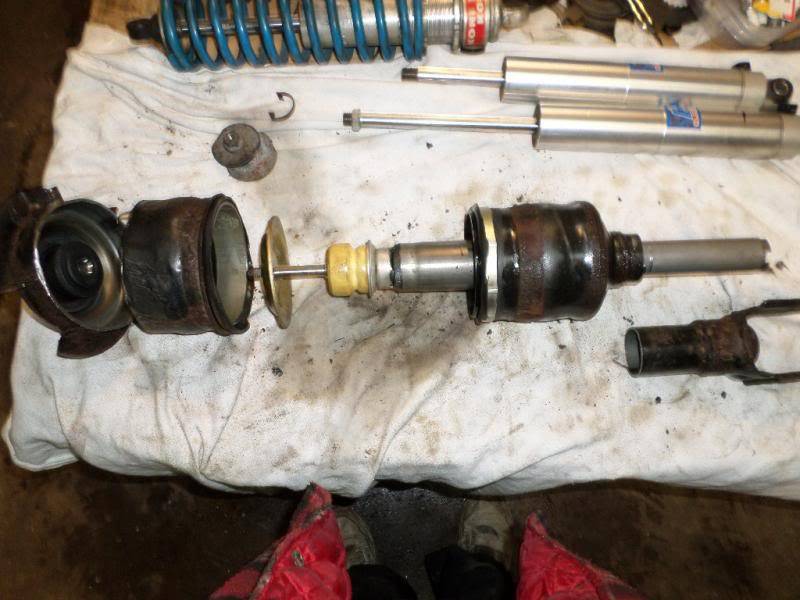

Here is everything cut apart. You can see how Ford band crimps the bag to shock housing, the gold ring.

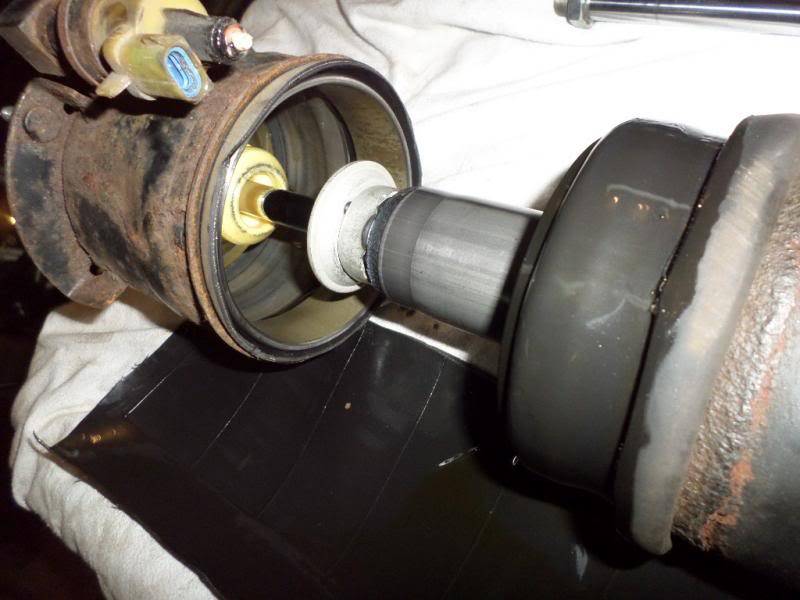

You can see how the top of the bag is secured. They insert bag about 1.5 inches then they press a steel ring to super hold bag in place

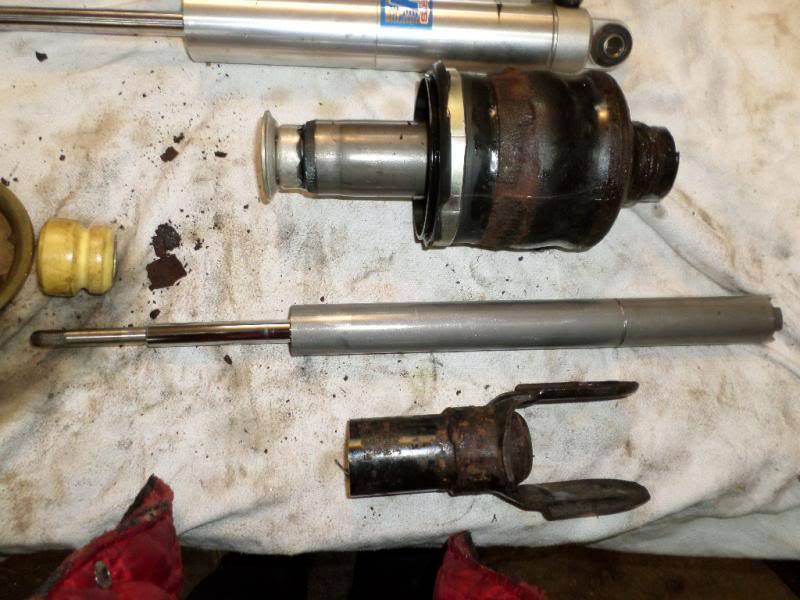

Here is the shock shaft and tube pulled out.



[97MarkJA]

Whatcha makin?



[Roadboss]

Nice post. Now you can see why Eddie stopped handling the re-man units.



[slowmkviii]

Cool
Different than gen 2s
http://www.lincolnvscadillac.com/fo...front-shock-cartridge-install-progress-thread



[Right on the Mark]

Cool
Different than gen 2s
http://www.lincolnvscadillac.com/fo...front-shock-cartridge-install-progress-thread

Yeah wow the Gen2's are totally different. They had to do it to make them easier to make I bet. Gen2's better to stick a cartridge in.
