SRB's, Spacer's and LCA's

Lincoln Mark VIII

  1. Spree

    Spree Dedicated LVC Member

    Messages:
    1,164
    Likes Received:
    68
    Joined:
    May 26, 2012
    Location:
    Cambridge City, IN
    Thank's to:

    DLF
    http://www.lincolnvscadillac.com/showthread.php?t=77865

    slowmarkviii
    http://www.lincolnvscadillac.com/showthread.php?t=74935

    and

    http://www.lincolnvscadillac.com/showthread.php?t=46645
    For the torque specs.

    For there detailed thread's on the forward SRB spacer and torque specs. This is what I came up with. Going to work tomorrow (on my day off) to play with the CNC and hopefully the spacer's come home with me. Going to make this out of a 1.5" solid bar so there is no welding.

    SRB's are here and look great!
    1" drill bit to re-drill stock forward SRB washer to accept new spacer.

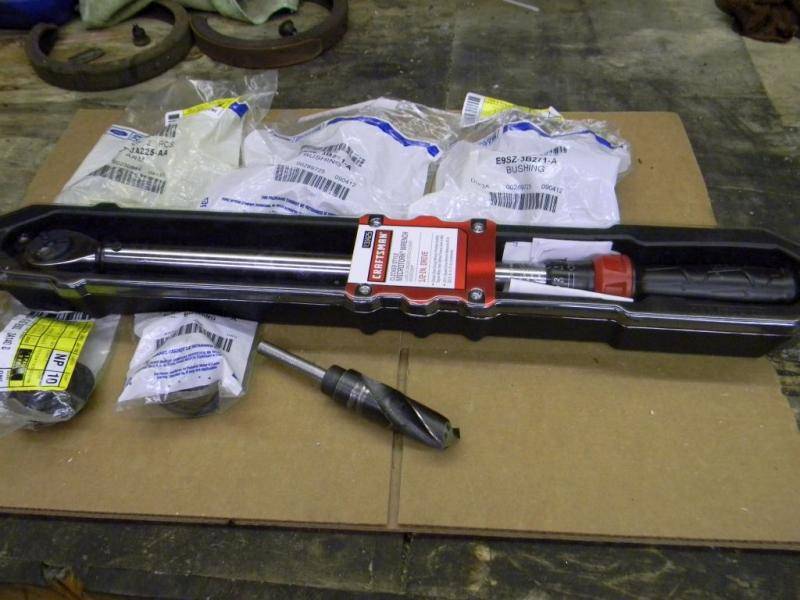

    Had to buy a bigger torque wrench (needed it anyway).
    Lower Control Arm's will be here middle of next week.
    Deep well high impact socket set up to 32MM will be here middle of next week (love buying tool's).

    I can't seem to find a thread on replacing any of these on LVC or Google so maybe this will be it!
    Anything else I need to know before attempting this?

    Shut air ride off.
    Remove air spring (just so I don't damage it).
    Remove caliper (hang out of the way).
    Remove wheel speed sensor?
    Remove lower ball joint.
    Mark cam bolt so I can put it back to the original location as close as possible.
    Remove cam bolt.
    Remove LCA to SRB nut.
    Remove LCA to frame nut.
    Don't have to remove tie rod end (is this true)? Swing spindle out of the way.
    Replace all the bad crap and re-assemble.
    Maybe not in this order, did I miss anything?

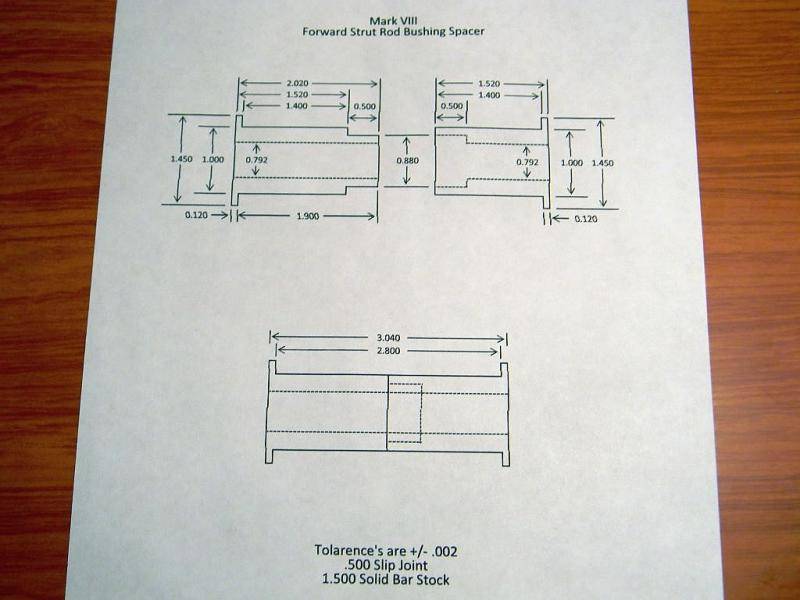

    Strut Rod Bushing Spacer Specs (1).jpg

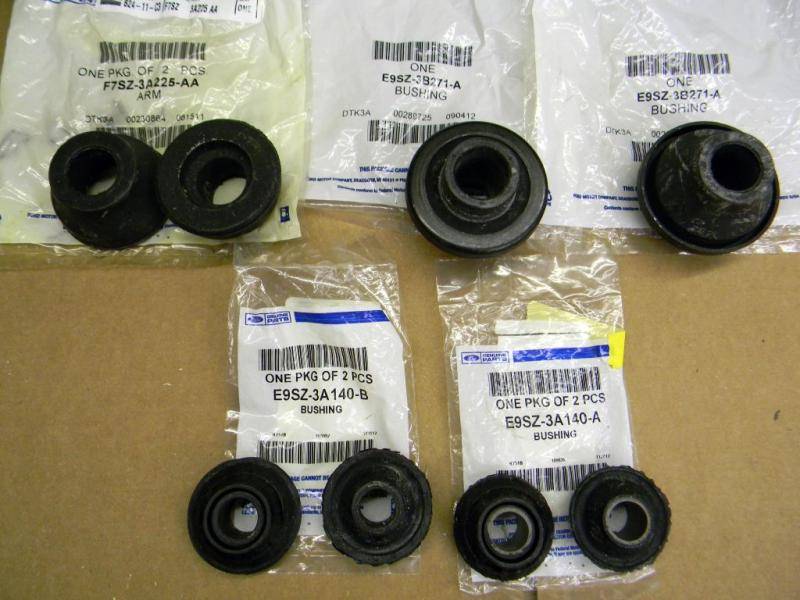

    Strut Rod Bushing (2).jpg

    Torque Wrench.jpg

    • Like Like x 1
    • slowmkviii

      slowmkviii Dedicated LVC Member

      Messages:
      5,543
      Likes Received:
      124
      Joined:
      Sep 28, 2007
      Location:
      Elk River, MN
      Can't wait to see your finished product

    • Markviiiedrea

      Markviiiedrea Speed Bump

      Messages:
      4,781
      Likes Received:
      166
      Joined:
      Sep 20, 2004
      Location:
      Bloomington, MN
      And.........subscribed.

    • Spree

      Spree Dedicated LVC Member

      Messages:
      1,164
      Likes Received:
      68
      Joined:
      May 26, 2012
      Location:
      Cambridge City, IN
      No one was at work tonight, so I thought I would take advantage of it and make (Forward Strut Rod Bushing Spacer's).

      With the help of everyone here on LVC, and the CNC machine's at work, this is what I came up with....

      (I followed the spec's above!)

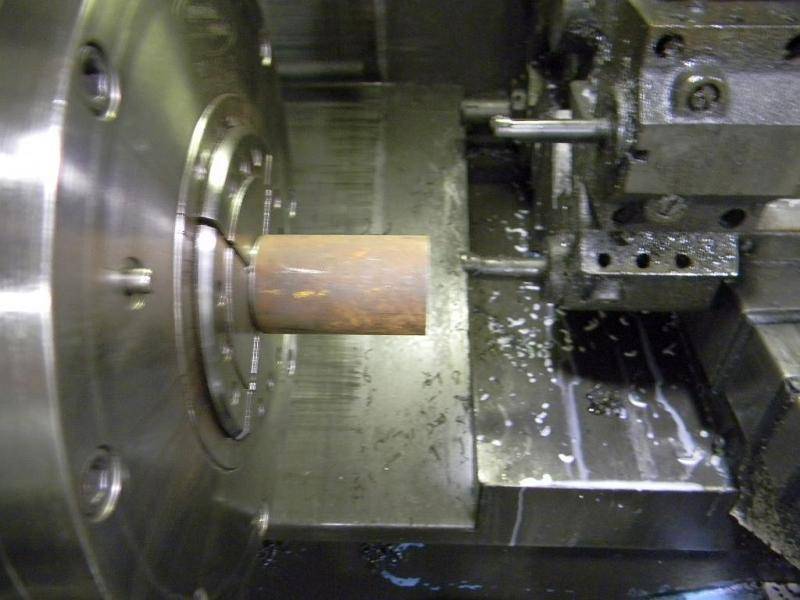

      1st pic....Raw Bar! (made to fit collet's, so no set up time was needed and I wouldn't mess with the operator's that run this machine).

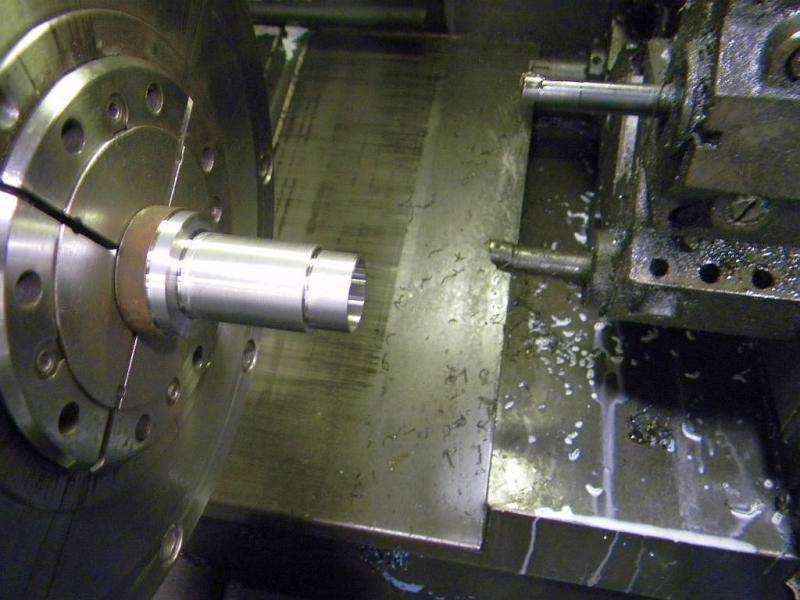

      2nd pic....(after running 1st half of 1st side), didn't take any pic's of second side but you get the idea!

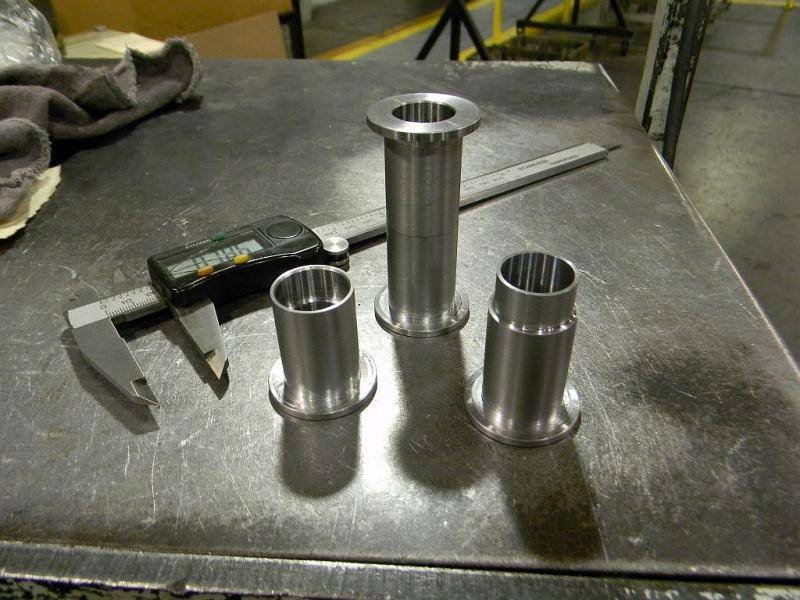

      3rd pic....(finished spacer's).

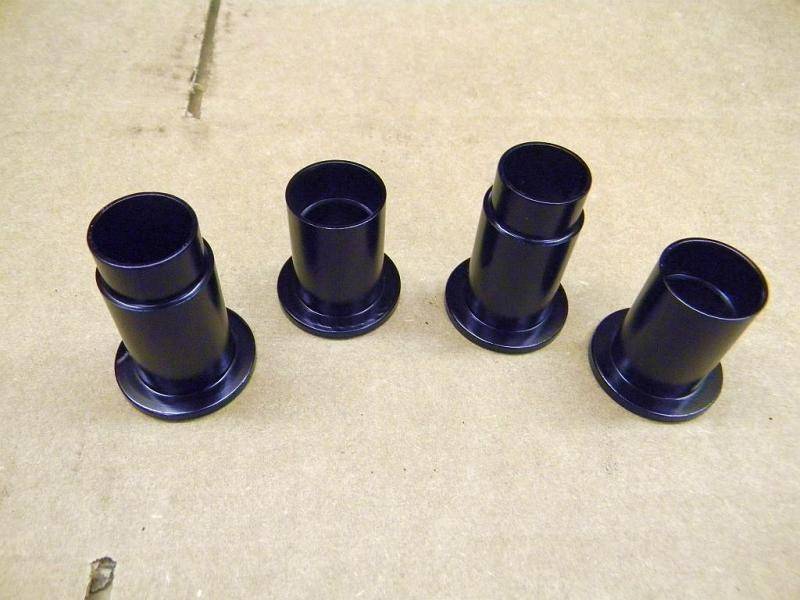

      4th pic....(painted and rust proofed, like that will help)!

      Each half took 3 minutes, (3 min + 3 min = 6 minutes....1 side).
      Drivers side and Passenger side were 12 minutes total.

      It took me a little while to get the 1st set and program done, (maybe 2.5 hours for solid bar).
      Had to rough it in (cut to length, turn down OD to fit collet in machine and drill pilot hole for boring bar).

      If I used tube (which I will do next time) it would only take the 12 minutes to run the part's + welding time (like DLF did). Maybe 30 minutes for both sides using this machine?

      If I had to do it again I would do it just like DLF's thread, (cut body then weld on washer, turn off weld's ), and call it done! (Too much work for a 1 pc washer and body). Then again slowmarkviii didn't have to enlarge forward stock washer, (which I still have to do)! hhmmm

      I did it this way because I wanted a 1pc body and washer with no welding involved!

      Next to come....Tear it all apart and replace LCA's, SRB's and spacers!! (lot's of pic's)

      Mazak SRB (1).jpg

      Mazak SRB (2).jpg

      Mazak SRB (3).jpg

      Mazak SRB (4).jpg

    • chris2523

      chris2523 93 Mark VIII

      Messages:
      7,890
      Likes Received:
      260
      Joined:
      Nov 8, 2007
      Location:
      Central MO
      hell yeah. excellent work.

    • Spree

      Spree Dedicated LVC Member

      Messages:
      1,164
      Likes Received:
      68
      Joined:
      May 26, 2012
      Location:
      Cambridge City, IN
      Thank you sir!
      But this is the least of my worries.... I can't find a thread on replacing any of these in detail and don't have a book to go by, sooo... I'm gonna have to wing it :). If everything goes right it should be a fricking nightmare!

    • Markviiiedrea

      Markviiiedrea Speed Bump

      Messages:
      4,781
      Likes Received:
      166
      Joined:
      Sep 20, 2004
      Location:
      Bloomington, MN
      Awesome! Nice work! So when can you make me a set? :)

      Doing strut rods are a straight forward job, depending on you rust level I would go out there now and soak the strut rod bolts in kroyal or PB. That's what allways gave me the most trouble.

      • Like Like x 1
      • 2002WRXSTi

        2002WRXSTi Dedicated LVC Member

        Messages:
        2,515
        Likes Received:
        26
        Joined:
        Nov 26, 2005
        Location:
        Neshanic NJ
        What kind of turning center were you using?

      • Marcus

        Marcus Dedicated LVC Member

        Messages:
        1,086
        Likes Received:
        49
        Joined:
        Aug 1, 2006
        Location:
        Chicago 'burbs

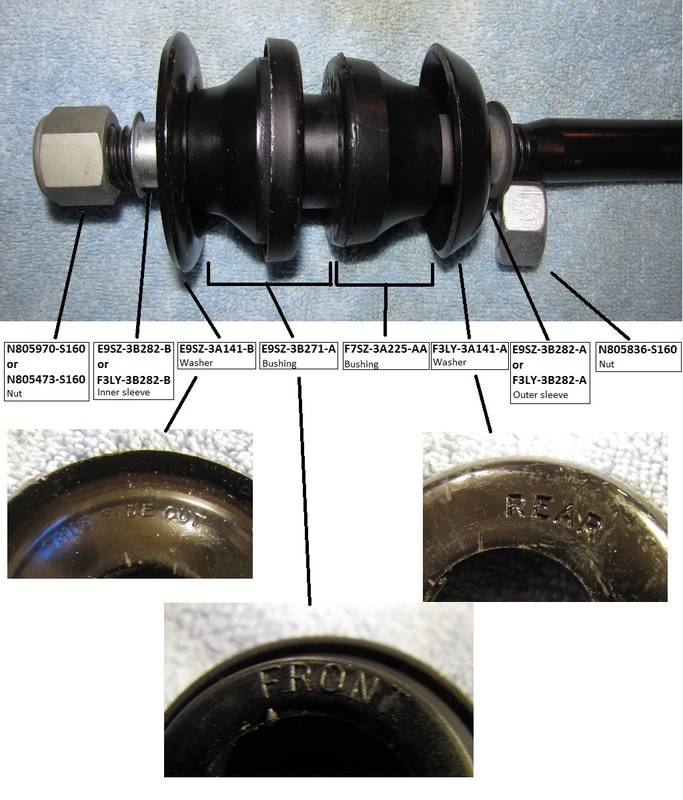

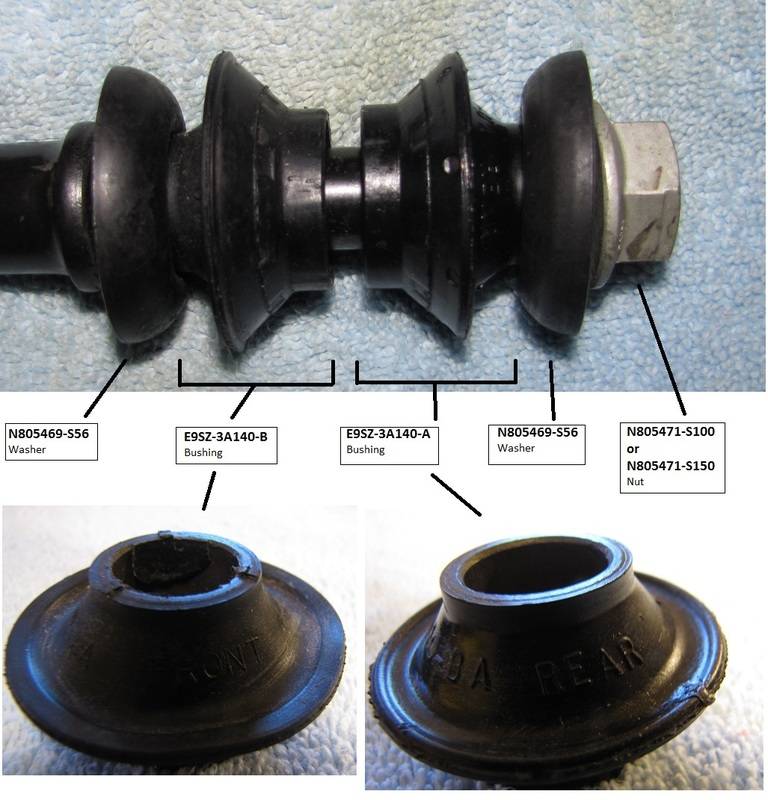

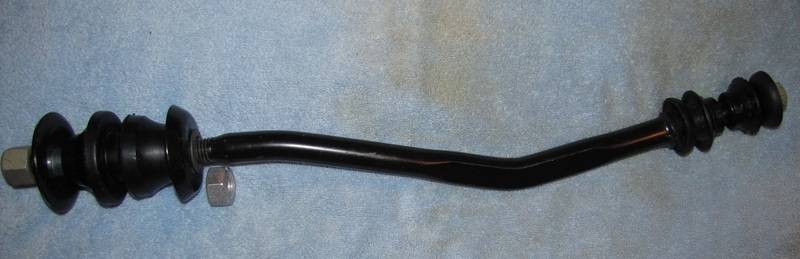

        For what it's worth, here are some pics of the proper positions of everything:





        • Like Like x 5
        • 97 Octane

          97 Octane Dedicated LVC Member

          Messages:
          614
          Likes Received:
          45
          Joined:
          Mar 31, 2011
          Location:
          SE*TN
          ^^ I like this presentation. Its like a an exploded line diagram come to life. Thanks Marcus.

        • Spree

          Spree Dedicated LVC Member

          Messages:
          1,164
          Likes Received:
          68
          Joined:
          May 26, 2012
          Location:
          Cambridge City, IN
          Thanx, those pics will help

          Mazak Quick Turn 20 with Mazatrol. Comes in handy when making something with multiple dimensions.

          I work for a tubing company, solid bar is hard to come by there, I've been looking around for tube that is 1.500 od x .700 id give or take a little, but haven't came up with anything yet, but I'm keeping my eye's open.

        • slowmkviii

          slowmkviii Dedicated LVC Member

          Messages:
          5,543
          Likes Received:
          124
          Joined:
          Sep 28, 2007
          Location:
          Elk River, MN
          Very nice

        • 2002WRXSTi

          2002WRXSTi Dedicated LVC Member

          Messages:
          2,515
          Likes Received:
          26
          Joined:
          Nov 26, 2005
          Location:
          Neshanic NJ
          Ah I used Mazak Turning and Milling machines in the shop that I got my first Mark VIII at. Bought it off of the engineer that got me a job there who was giving me rides to work when my S10 crapped out.

          That was in '04 and have had Mark's since then :cool:

        • Right on the Mark

          Right on the Mark Dedicated LVC Member

          Messages:
          4,509
          Likes Received:
          134
          Joined:
          Nov 1, 2006
          Location:
          here
          X2 Was hoping someone would lay this out nice.

        • Spree

          Spree Dedicated LVC Member

          Messages:
          1,164
          Likes Received:
          68
          Joined:
          May 26, 2012
          Location:
          Cambridge City, IN

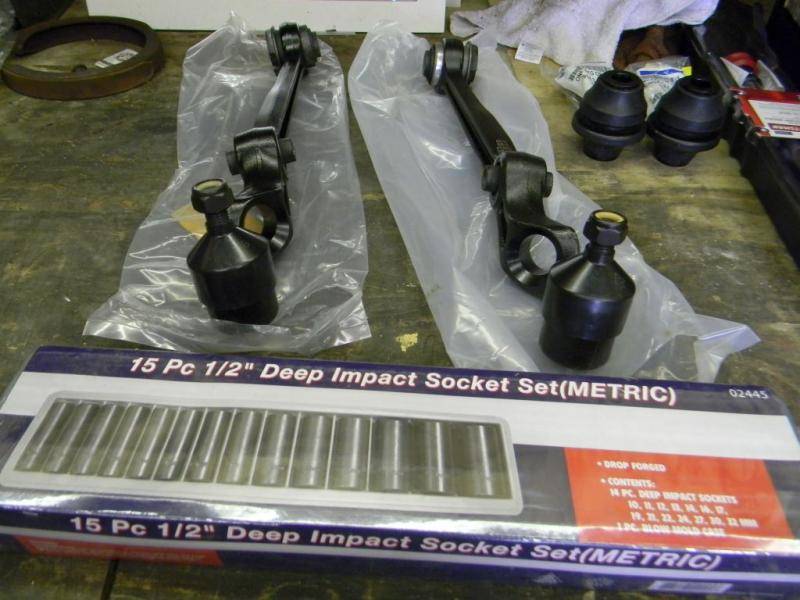

          Lower Control Arm's came in today. Deep well socket's arrived at the same time. If weather permit's this weekend won't come soon enough!
          Everything has been soaking in PB Blaster since last weekend. Hope everything goes nice and easy! Yeah right!

          Lower Control Arm.jpg

        • izackary

          izackary Well-Known LVC Member

          Messages:
          211
          Likes Received:
          4
          Joined:
          Aug 14, 2007
          Location:
          West MI
          Subbing, as my forward SRBs are needing replacement soon, too!! :)

          • Like Like x 1
          • Spree

            Spree Dedicated LVC Member

            Messages:
            1,164
            Likes Received:
            68
            Joined:
            May 26, 2012
            Location:
            Cambridge City, IN
            Stay tuned zack! As soon as this work is all done I'm gonna make more spacer's and supply everyone a set that has helped with this thread! Hopefully this thread will be a step by step pictorial as I couldn't fine what I needed on the internet. It will take me a little longer to fix it taking pic's and note's along my way but WTH, as it's not my DD so I can afford to take my time. Everyone above has good input but pulling everything apart will be a 1st for me and maybe you too.
            As soon as the rain end's :( I'm going to take inventory of ALL nut and bolt size's up front and post result's. If everything goes my way :) it goes up on jack stand's Friday.

          • izackary

            izackary Well-Known LVC Member

            Messages:
            211
            Likes Received:
            4
            Joined:
            Aug 14, 2007
            Location:
            West MI
            Thanks! As I mentioned on LOD, I'm hoping that my hardware has been well preserved by the generous supply of motor oil thanks to my leaky oil pan/gasket. :D

          • chicken

            chicken SHEOOOOOOOOT

            Messages:
            7,760
            Likes Received:
            21
            Joined:
            Apr 12, 2005
            Location:
            northern illinois
            if your planning it for this weekend, id run out to the car tonight and check to see if you have the right size for the the nut on the front of the strut rod. its big 30 something i think. also you might not be able to get the lower shock bolt out of the arm so be prepared to cut the bolt and sleeve, no point risking damaging the shock since your replacing the lower arm

            • Like Like x 1
            • Spree

              Spree Dedicated LVC Member

              Messages:
              1,164
              Likes Received:
              68
              Joined:
              May 26, 2012
              Location:
              Cambridge City, IN
              Thank's chicken! I did UCA's last summer and had air spring off then. I also just got a high impact deep well socket set in the mail today up to 32MM.

              I also just did inventory of all nut's and bolt's for the front end and size's are as follow's.

              Strut Rod front two nuts...............30MM
              Strut Rod back nut......................24MM
              Stabilizer bar end link X 2..............17MM
              Lower Control Arm ball joint...........24MM
              Air Spring lower shock mount X 2....21MM
              Tie Rod End ball joint....................18MM
              Caliper Slider X 2.........................12MM
              Caliper mount X 2........................15MM
              Brake Line..................................10MM
              Cam Bolt X 2...............................21MM
              Upper Control Arm to Spindle Arm...18MM
              Wheel Speed Sensor.....................10MM

              If anything is wrong please feel free to correct this or add something I have missed.

              As I was looking around why couldn't I put a jack under rotor (to keep everything from falling), remove cam bolt, remove front SR nut, remove back SR nut, remove air spring or release air, knock out ball joint to LCA and drop everything out, replace and start putting it back together? Will this work? Doe's anyone see anything wrong with this?

              • Like Like x 3
              • chris2523

                chris2523 93 Mark VIII

                Messages:
                7,890
                Likes Received:
                260
                Joined:
                Nov 8, 2007
                Location:
                Central MO
                its only a few extra bolts to remove the whole spindle entirely, but i guess that could work.

                i find its usually less hassle to just dissemble it all. personally, i don't find it too difficult.

                • Like Like x 1
                • izackary

                  izackary Well-Known LVC Member

                  Messages:
                  211
                  Likes Received:
                  4
                  Joined:
                  Aug 14, 2007
                  Location:
                  West MI
                  While you're on a roll...what size wrench would we use to grip the flats of the strut bar? :D

                • chris2523

                  chris2523 93 Mark VIII

                  Messages:
                  7,890
                  Likes Received:
                  260
                  Joined:
                  Nov 8, 2007
                  Location:
                  Central MO
                  crescent wrench. :D

                  • Like Like x 1
                  • izackary

                    izackary Well-Known LVC Member

                    Messages:
                    211
                    Likes Received:
                    4
                    Joined:
                    Aug 14, 2007
                    Location:
                    West MI
                    I'll just use my C-clamp, then. :p

                  • Spree

                    Spree Dedicated LVC Member

                    Messages:
                    1,164
                    Likes Received:
                    68
                    Joined:
                    May 26, 2012
                    Location:
                    Cambridge City, IN
                    Gave these a second coat of paint tonight, as they are a tight fit, with paint. I can't imagine power coat unless you compensate for that. I will probably have to work on the slip joint just to get them to go together smoothly.

                    I am planning to installing them.....short side in short bushing and long side in long bushing.....but pic's to come.

                    DLF didn't include this in his thread. (not sure if it matters but wish he did).

                    Mazak SRB (4).jpg
