MY strut rod bushing parts

slowmkviii

Dedicated LVC Member
Joined
Sep 28, 2007
Messages
5,660
Reaction score
152
Location
Elk River, MN

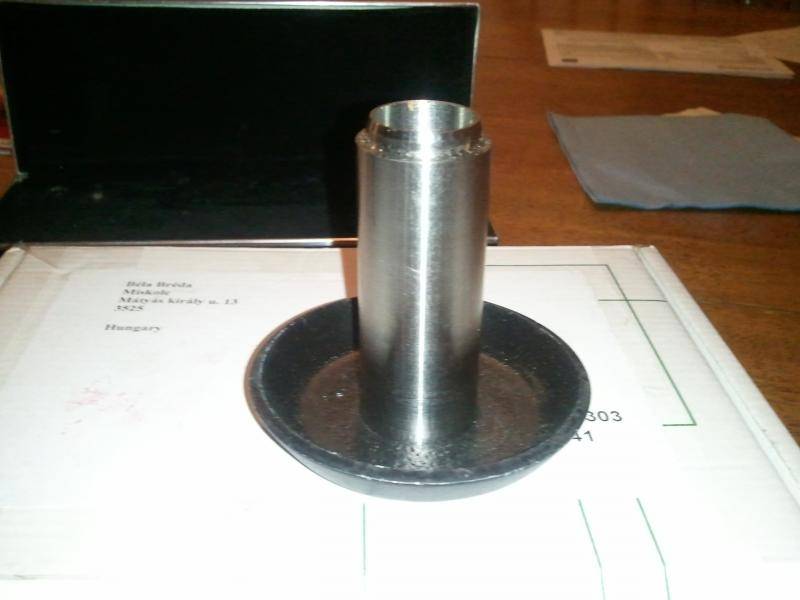

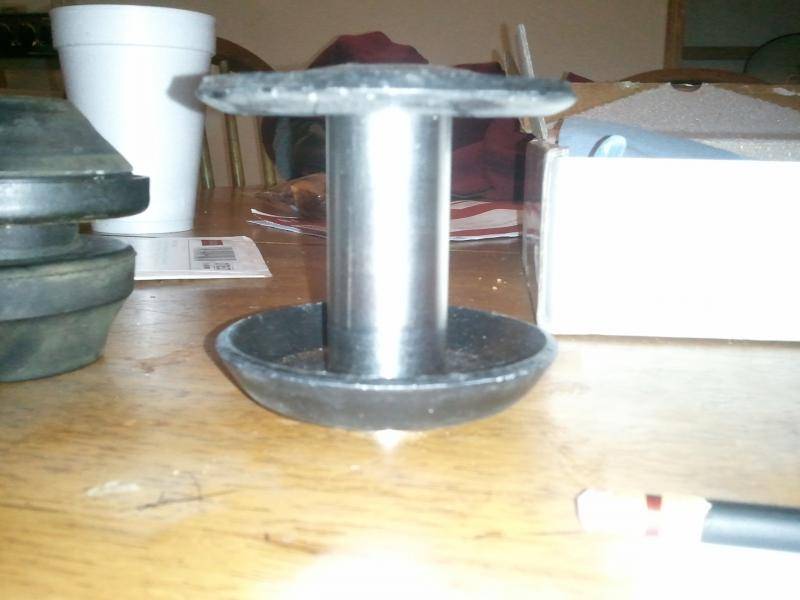

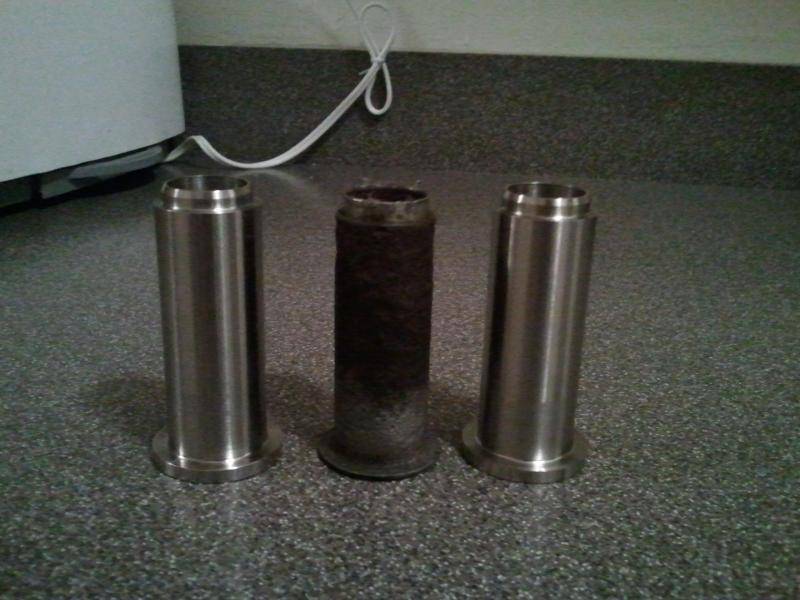

made these at work



chris2523

93 Mark VIII
Joined
Nov 8, 2007
Messages
7,910
Reaction score
266
Location
Central MO
not bad at all.
i thought the front strut rod to frame bushings were some sort of sleeve set up? that's what these look like.


kustomizingkid

Dedicated LVC Member
Joined
Oct 4, 2006
Messages
12,349
Reaction score
5
Location
Twin Cities
Can you throw up a set of specs and tolerances of those so people with lathe access don't have to do any thinking?


slowmkviii

Dedicated LVC Member
Joined
Sep 28, 2007
Messages
5,660
Reaction score
152
Location
Elk River, MN
I'll make a cleaned up drawing when I have time and post it.

Yes they were a sleeve set up originally I didn't think it necessary
to replicate them this is my design currently untested but will
shortly be going in my 95 followed by my 97


beerdog

Well-Known LVC Member
Joined
Aug 29, 2010
Messages
437
Reaction score
4
Location
Buffalo Grove, IL
I look forward to the completed product. I am assuming these are the front bushings. Are you aware the inner part is 2 sleeves with 1 slidding inside the other?


slowmkviii

Dedicated LVC Member
Joined
Sep 28, 2007
Messages
5,660
Reaction score
152
Location
Elk River, MN
disclaimer this is my car and my design
sizes are taken from my factory strut rod bushing parts
your parts may vary
if there is not tolerance it cause
it really doesn't matter
the (REF) if for reference to the thickness of the factory
strut rod busing plate on that side

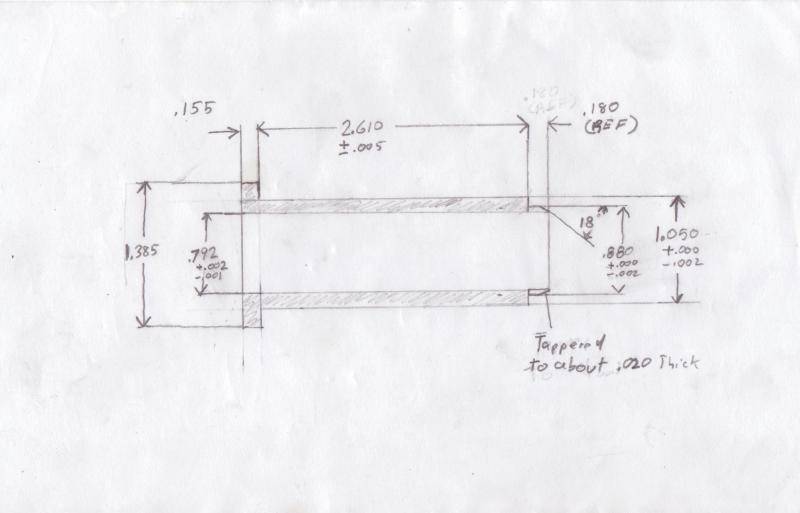

strut rod print.jpg


slowmkviii

Dedicated LVC Member
Joined
Sep 28, 2007
Messages
5,660
Reaction score
152
Location
Elk River, MN
change the 2.610 to
2.600
+.005
-.005

If I missed anything just ask.

Does this work for you KK?


98lincmk7lsc

Dedicated LVC Member
Joined
May 9, 2004
Messages
3,915
Reaction score
118
Location
Columbia, SC
I'd want to get slowmkviii's permission first. He did all the leg work. See if he'd like to make you a set first.


slowmkviii

Dedicated LVC Member
Joined
Sep 28, 2007
Messages
5,660
Reaction score
152
Location
Elk River, MN
I haven't had time to put them in so both my cars go clunk still
If you want to make a set for someone go ahaed. I have no time
to get on the lathe right now and no garage to even put in my own parts.


kustomizingkid

Dedicated LVC Member
Joined
Oct 4, 2006
Messages
12,349
Reaction score
5
Location
Twin Cities
Luke, call me next week when I get back into town and we can throw your bushings in at my house.


Stangman

Project car a.d.d.
Joined
Nov 18, 2008
Messages
2,070
Reaction score
22
Location
Sardinia, OH
Those look nice... if you go back with a factory bushing. I probably made a mistake going Poly...
