Lincoln Mark VIII Front Air Spring/Shocks NOT STRUTS

Status
Not open for further replies.

thaywood

Dedicated LVC Member
Joined
Apr 4, 2007
Messages
3,770
Reaction score
96
Location
Candor, North Carolina, United States

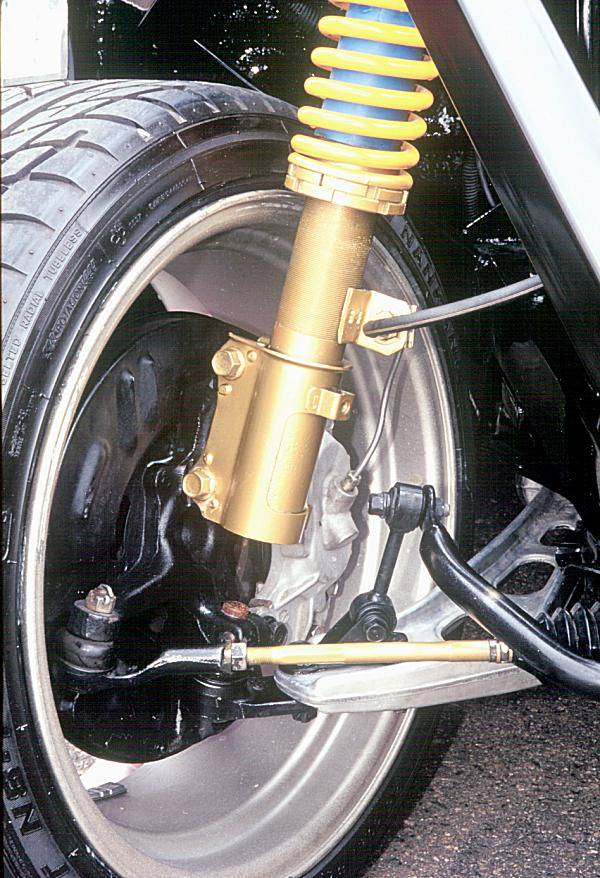

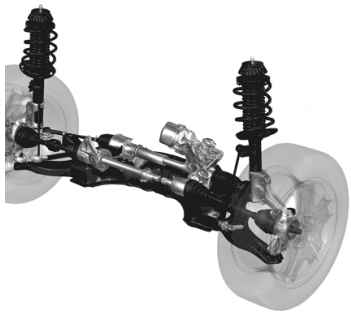

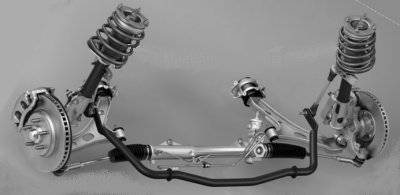

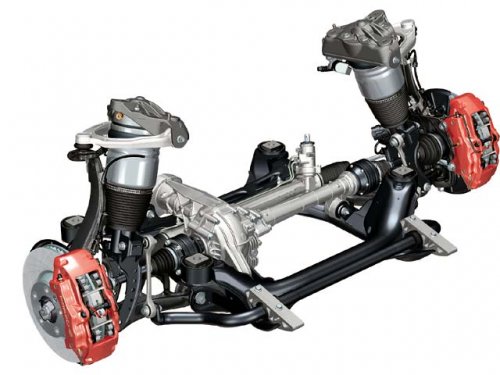

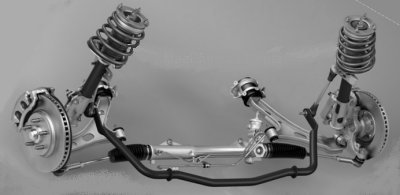

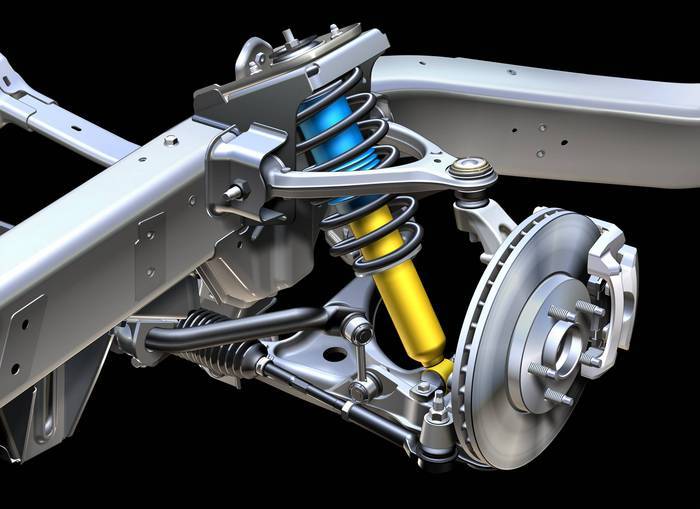

I just wanted to post a thread of my own about the front suspension of the 1993-1998 FN10 Lincoln Mark VIII. There seems to be a very popular and widespread misconception that the Mark VIII has "struts" in its front suspension. This is not the case. The Lincoln Mark VIII has what is commonly referred to as an "SLA" or Short-Long-Arm front suspension. This is in essence an "upper and lower control arm" suspension. The simple fact that the suspension uses an "upper control arm" negates the use of a strut in this application. In a strut suspension, the strut itself acts as the upper suspension locating link. There is no upper control arm in a strut suspension. Therefore the Mark VIII does NOT use struts in front. The Ford service manual calls them "Air Spring/Shock Absorber Assemblies", not struts. At least Ford knows the difference between shocks and struts, if nobody else does. I am a mechanic, and have been working on cars for most of my life. I have seen every kind of suspension system known to man. And the Mark VIII definitely does not use struts. If you need a comparison to tell the difference between a strut and an air spring/shock, or a coil-over shock for that matter, look at the Fox platform Lincoln Mark VII. It was based upon what is essentially a slightly larger Mustang chassis. Take the front wheel off and look at the suspension. There is a lower control arm, an air spring mounted to the lower arm, and a McPherson strut connecting the spindle to the shock tower under the hood. There is no upper control arm. That is a strut. A strut mounts directly to the spindle and acts as a suspension locating link. The air spring/shock on a Mark VIII mounts to the lower control arm and does not act as a suspension locating link. It acts only as a damper. It carries no lateral loads, only vertical loads. A strut is a lateral and vertical load bearing suspension member. That means that is carries the side-to-side loads as well as the up-and-down loads. This is a fact, not an opinion. Anyone who says that the Lincoln Mark VIII has front struts is WRONG. That is the way it is. Just call a Ford dealership and ask them what the service manual calls them. I know this sounds nitpicky, but this is one of my pet peeves. I am all about accruacy. When you work on vehicles, you have to be. And I like to make sure that I know what I am working on. Any mechanic can tell the difference between a strut and a shock. I know I am inviting all kinds of backfires here, so fire away. I'll be happy to back up anything I say with facts and proof. Thank you.

You're on some kind of crusade.

Technical definitions aside, I believe I ordered "air struts" when I replaced mine.

American Air Suspension sells "Air Struts."
http://www.americanairsuspension.com/cart/products.php?cat=3

Arnott Industries sells "Air suspension strut assemblies."
http://www.arnottindustries.com/part_LINCOLN_Air_Suspension_Parts_yid2_pid7.html

Strut Masters sells "Air struts."
http://www.strutmasters.com/catalog.php?cat=15

And I think the Ford part number# lists it as an Air Strut as well.

So, technical definitions aside, the part is called an air strut. Referring to it as anything else only serves to confuse.

You're on some kind of crusade.

Technical definitions aside, I believe I ordered "air struts" when I replaced mine.

American Air Suspension sells "Air Struts."
http://www.americanairsuspension.com/cart/products.php?cat=3

Arnott Industries sells "Air suspension strut assemblies."
http://www.arnottindustries.com/part_LINCOLN_Air_Suspension_Parts_yid2_pid7.html

Strut Masters sells "Air struts."
http://www.strutmasters.com/catalog.php?cat=15

And I think the Ford part number# lists it as an Air Strut as well.

So, technical definitions aside, the part is called an air strut. Referring to it as anything else only serves to confuse.

I would have to agree. It is commonly refered to as a strut by the industry. It even appears to look like a strut. Although the car has UCA & LCA There are always exceptions to the rules.

My Ford work shop manual calls it "an airsping/shock absorber assemble" But all after market sites and even Ford parts counter personnel, Call them struts. The word strut has become common place today! Like the tires on our cars, The word tire refers to the steel ring they used to hold together a wooden wagon wheel, But still today we call our rubber wheels,"tires".

Thanks for educating us yet again on the type of front suspension the Mark VIII has. Many of us know it is an SLA setup and not a mcpherson strut - its obvious. However, by dictionary definition our air spring assemblies could be considered to be struts, of sorts. We could say that it is the 'strut' part of the SLA setup. On another note, i assume your Mark is modified as you list it on your site as having 300hp / 300lbs/ft. You are about accuracy, afterall.

Thanks for educating us yet again on the type of front suspension the Mark VIII has. Many of us know it is an SLA setup and not a mcpherson strut - its obvious. However, by dictionary definition our air spring assemblies could be considered to be struts, of sorts. We could say that it is the 'strut' part of the SLA setup. On another note, i assume your Mark is modified as you list it on your site as having 300hp / 300lbs/ft. You are about accuracy, afterall.

For an English guy you write good American!!:D P.S. We still have to get together! "BEER"

For an English guy you write good American!!:D

Umm... Thanks? Shame no one understands me when i speak! :) Definitely merijon! Im just waiting for a brake booster then i can take a drive down to your place!

This is like calling a AA cell a battery! Or any size for that matter. One "battery" is a cell. When you link together two or more together then you get a battery. But most often people call a single cell a battery as do I.

By your definition, the car can operate without the air shock since, according to you, its not a strut and therefore supports no load.

But I am not sure where you are getting your definition from, but a strut is any structal device subject to compression that is designed to keep two parts apart. The forces can come from and angle, both lateral and horizontal. The strut that support the wings on small planes is a good example. In essence it follows the load path.

This is like calling a AA cell a battery! Or any size for that matter. One "battery" is a cell. When you link together two or more together then you get a battery. But most often people call a single cell a battery as do I.

By your definition, the car can operate without the air shock since, according to you, its not a strut and therefore supports no load.

But I am not sure where you are getting your definition from, but a strut is any structal device subject to compression that is designed to keep two parts apart. The forces can come from and angle, both lateral and horizontal. The strut that support the wings on small planes is a good example. In essence it follows the load path.

The "Automotive" definition of a "Strut" is somewhat different from the structural engineering definition. In the auto industry, a "strut" refers to the commonly used McPherson (front) or Chapman (rear) strut. This is a strut that consists of a shock absorber with a spring mounted on top that is mounted directly to the spindle and handles both the lateral and vertical loads of the front or rear suspension. This strut acts as both a damper and an upper suspension locating link, thus elimitating the upper control arm in conventional SLA suspensions. Therefore, any suspension consisting of an upper and a lower control arm can't have a strut suspension. You can't have a McPherson or Chapman strut if there is an upper control arm. Since the air spring/shock assembly in the Mark VIII is mounted to the lower control arm and not directly to the spindle, it can't be considered a McPherson Strut. It is in fact a shock absorber with an air spring attached. It only handles vertical loads and is not a suspension locating link.

I must however make one observation: the Mark VIII suspension does indeed have a "strut". It is the rod that connects the lower lateral link to the front of the subframe. It is called a "Lower Tension Strut". It is a rigid forged steel rod that prevents fore and aft movement of the lower lateral link in the front suspension.

I realize that this is a slightly petty and somewhat minor gripe and I probably need to shut up about it, but it still irritates me. Mainly because I love my Mark VIII and I wish to make sure that information about this car is relayed with as much accuracy as possible. In my personal opinion, struts should be the domain of cheap Japanese econoboxes, not luxury sport coupes like the Mark VIII. The Mark has a proper upper/lower control arm suspension as it should be. And it uses an air spring and shock absorber assembly, not a cheap, cheesy McPherson strut. Ironically, the first ever use of the McPherson strut was by Ford on the 1949 Vedette in France. It has since become a staple of the cheap car market because it saves money by simplifying the suspension design and eliminating the upper control arm and ball joint. I prefer to believe what the Ford Service manual calls them rather than what uninformed aftermarket vendors prefer to call them. BTW, just to make absolutely sure, I just called my local Ford dealer (Montgomery Motors, Troy NC, 910-572-1351) and their parts order manual lists them as "Spring and Shock Assemblies", $528.81 each new.

I think I'm going to make all you guys happy and "get over it" after this post. I think I have made my point and I know that I am right. I will continue to refer to my air spring/shocks in the correct manner and under no circumstances will I ever call them "struts". My 1987 Mustang had struts. My 1988 Thunderbird Turbo Coupe had struts. The new 2005 and up Mustangs have struts. Just about any FWD car you can name has struts. None of the cars mentioned have upper control arms. The 1984-1992 Mark VII and 1984-1987 Continental had McPherson Struts. The FN10 Mark VIII and MN12 T-Bird and Cougar all have SLA suspensions in front with "Spring and Shock Assemblies".
