hey guys this will be the official thread for my conversions/custom led mods and hydrodip customs.

Im offering the complete led conversion kits for 165 plus shipping.

The kits will come complete with all switches,hvac and gaugeface premodified for led lighting as well as the

led bulbs needed to replace your old incandescent and inefficiant bulbs.

before ordering please specify what optional switches you have available in your LS

that way i dont mod a full kit and find out you didnt need some of the switches(discount will be given if this is the case)

LVC members will get a lifetime warrenty on parts and labor minus shipping as long as you own the car

warrenty is for led conversion only

warrenty does not include instrument cluster bulbs

I also offer hydrodipped parts in carbon fiber and woodgrain finishes.

If you dont know hydrodipping is a chemical graphic process that when done will not fade,crack or peel.

hydro dip is 10 times better then vinyl wrap since vinyl will not withstand or last as long as hydrodipping.

Hydrodipped parts are weather proof and heat resistant so if you want a carbon fiber underhood piece such as your valve covers do not fear they can hold there shine without any problems.

i charge 70 cents per square inch so before you contact me about getting parts dipped please do the math

for example if you have a part that measures 5"x5" multiply that number to get 25 then take that number multiply it by .70 your cost will be 17.50 for that 5x5 piece

all hydrodipped parts will be cost plus shipping.

hydrodipping is a bit costly but if you weigh out the pros and cons between vinyl wrap and dipping

its a much better investment plus its so much sexier!!.


i also do led switch conversions for many other vehicles

Last edited:

adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago

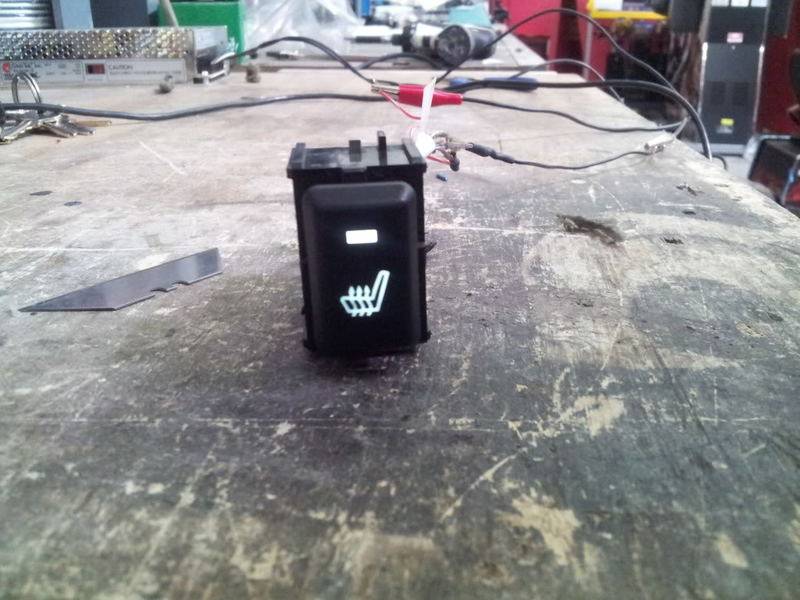

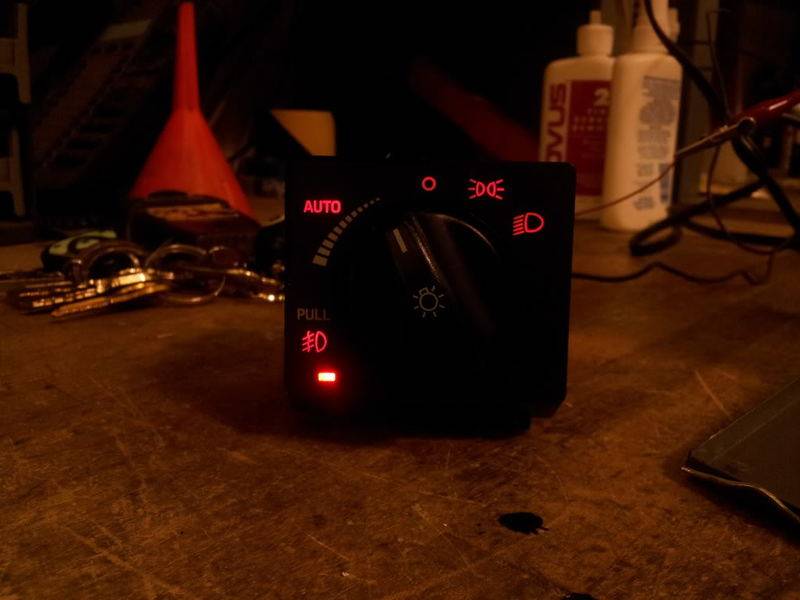

LS switch before

LS switch after





[/IMG]




Cf dipped parts

[/IMG]




Last edited:

Alax7

Dedicated LVC Member
Joined
Dec 18, 2008
Messages
7,816
Reaction score
40
Location
LA
Can you do a white background with the carbon fiber dip? Just like you did it in red, but in white?

Good work. I hope this goes well for you.


Alax7

Dedicated LVC Member
Joined
Dec 18, 2008
Messages
7,816
Reaction score
40
Location
LA
Do you have any pictures of the white?


weezyls03

Active LVC Member
Joined
Oct 24, 2012
Messages
119
Reaction score
3
Location
State college pa
I can't wait to get this cluster. it'll be the last addition for a while. i'll be up in july to grab the full conversion.


adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago
Can't wait to finally install one of my kits.**** I know the parts but never been in the car.how does that work


mlara1129

Dedicated LVC Member
Joined
Jun 29, 2010
Messages
4,100
Reaction score
37
Location
Tri-State Area
Not related to the subject but kinda liking that focus in your sig...any pics :shifty:


adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago
Not related to the subject but kinda liking that focus in your sig...any pics :shifty:

thanks for the complement.I wanted different so what better way to show it then with this.....


My interior


Custom led console by me
[video]http://static.photobucket.com/player.swf?file=http://vid1087.photobucket.com/albums/j464/adrst170/20130520_172359.mp4[/video]

Night shot
[video]http://static.photobucket.com/player.swf?file=http://vid1087.photobucket.com/albums/j464/adrst170/20130520_205246.mp4[/video]

This is what it looked like before I installed it.this console was done first then I did my svt center console
[/IMG]


adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago
I really enjoy doing this.its a fun Hobby.

What makes it even better is that people want this for there cars


adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago

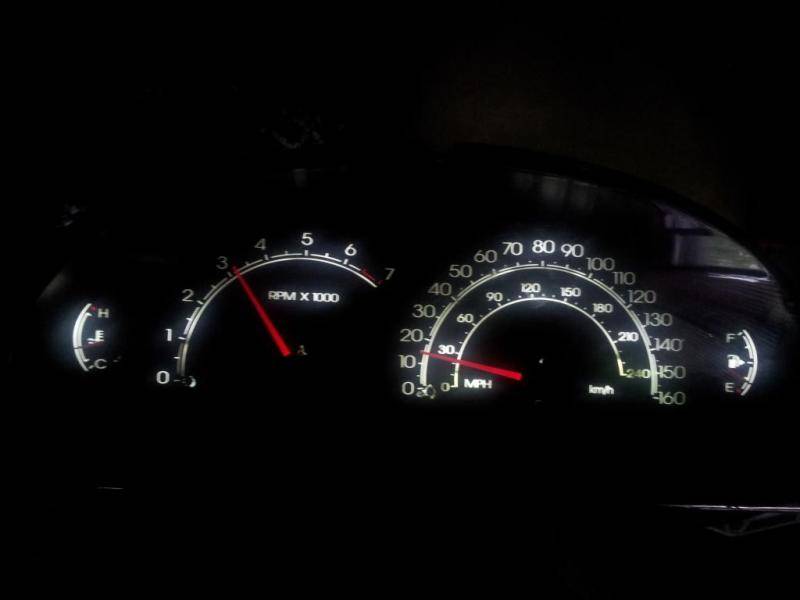

20130526_185353.jpg white gaugeface (led gaugeface bulb tester).im testing different types of replaceable led bulbs to give you guys the best looking gaugeface custom possible.

these shown didnt pass the test......

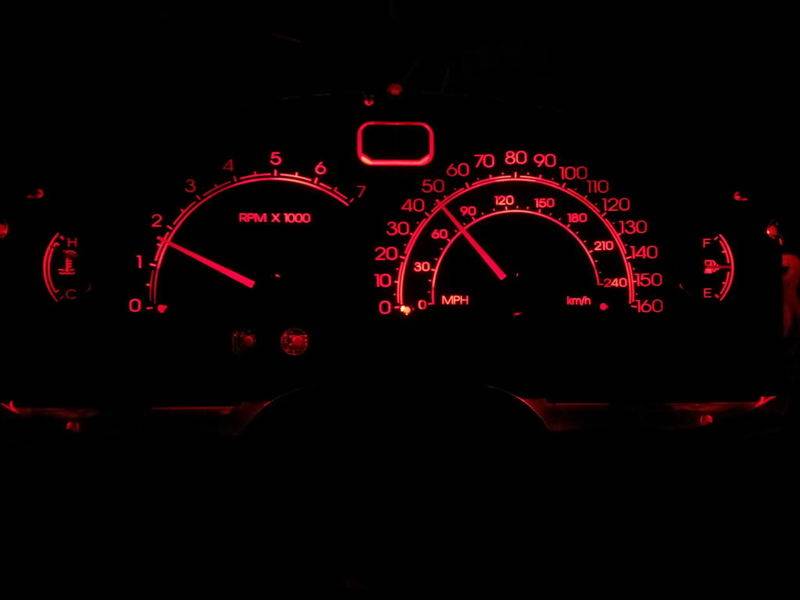

but the ones i send in my kits(red gaugeface up top)

by far have been the best.



Travdivs

Active LVC Member
Joined
Mar 9, 2013
Messages
56
Reaction score
2
Location
Lancaster
^Watch the video! Make sure to check the other 15 threads that will soon be coming with this link too! -_-


adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago

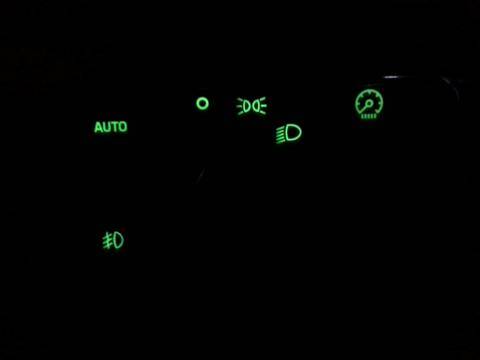

whats up with the headlight switch in your vid, most of it isnt lit.

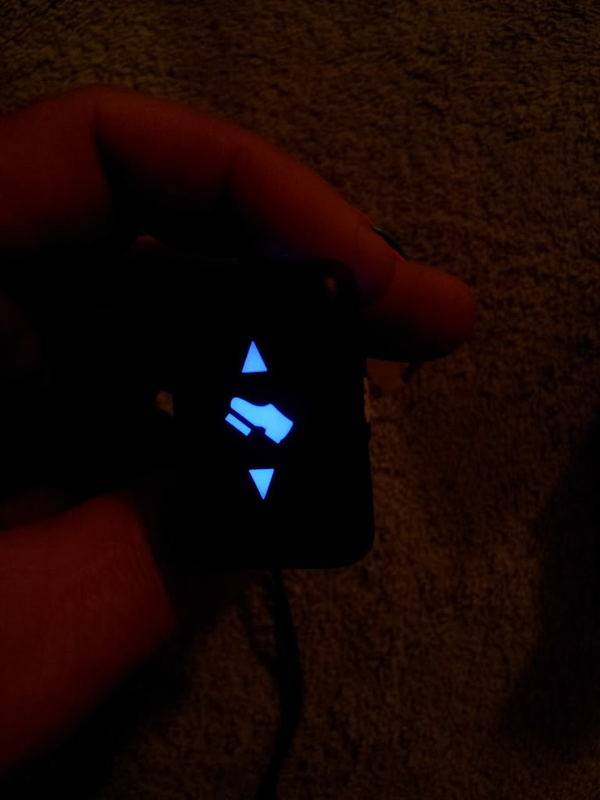

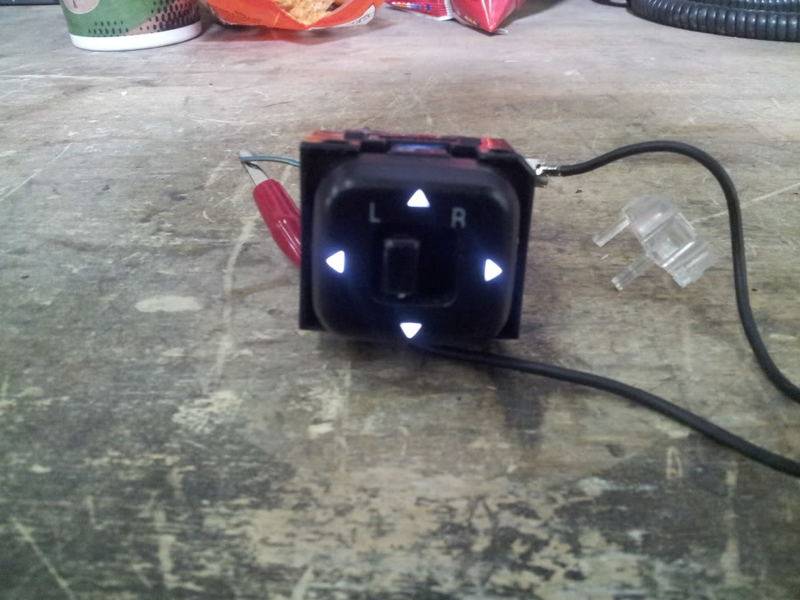

power mirror and info center switches will not easily light up completely with just installing a 5mm led as stated in your video you can get away with using 5mm on the memory seat switch but not with the other 2.

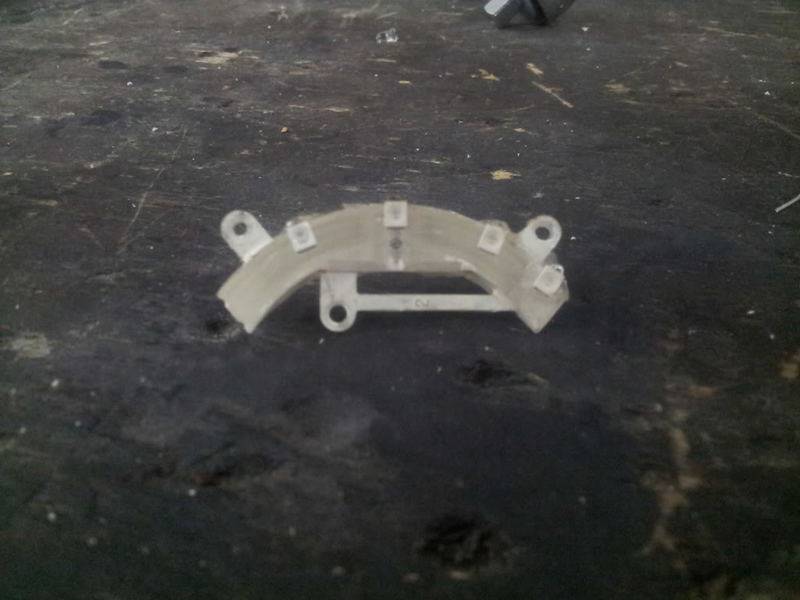

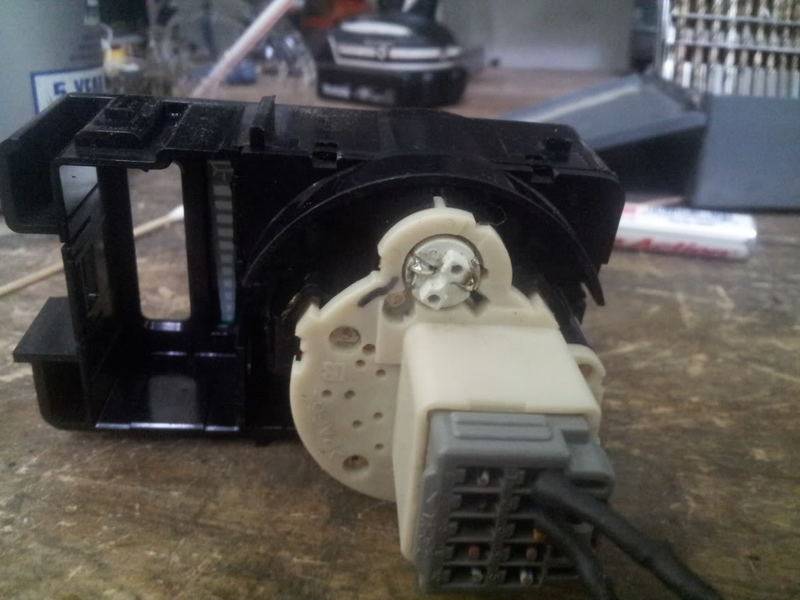

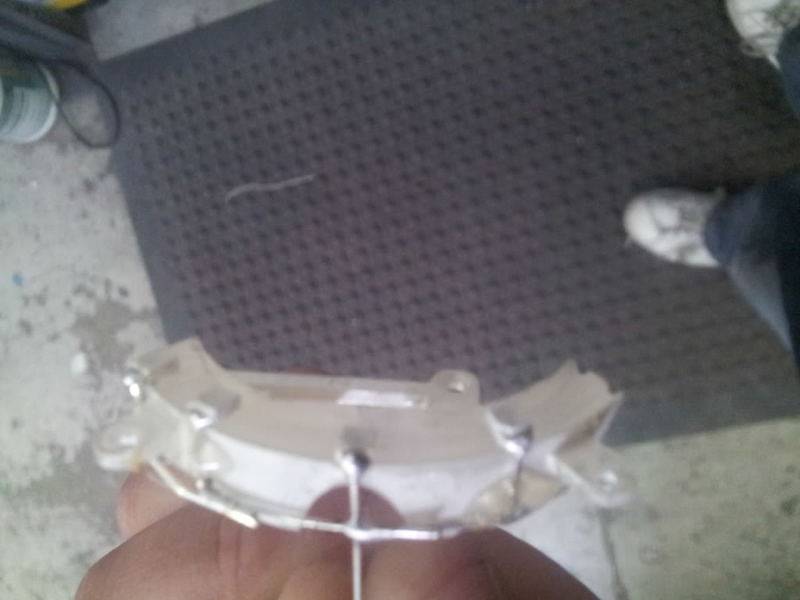

i had to do all this...


notice how i still used the oem socket,ohhh look at that soldering,yeah thats how i roll...

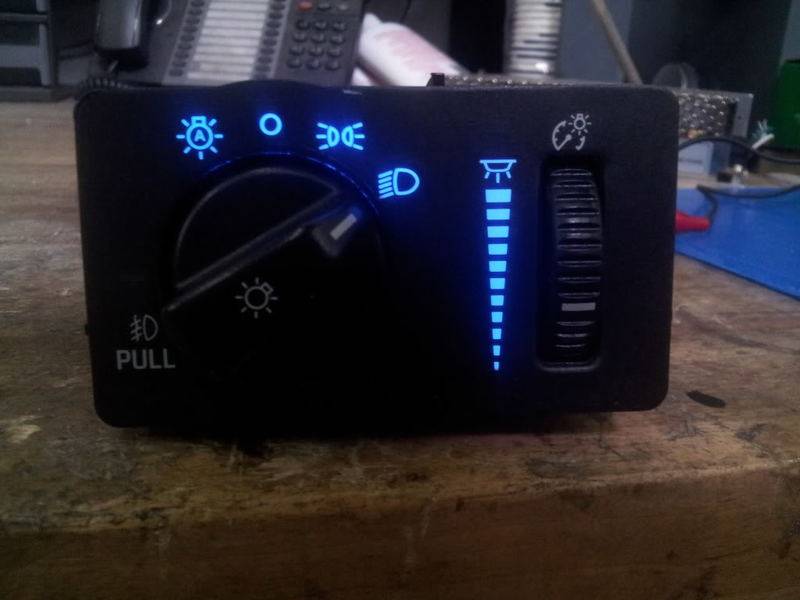

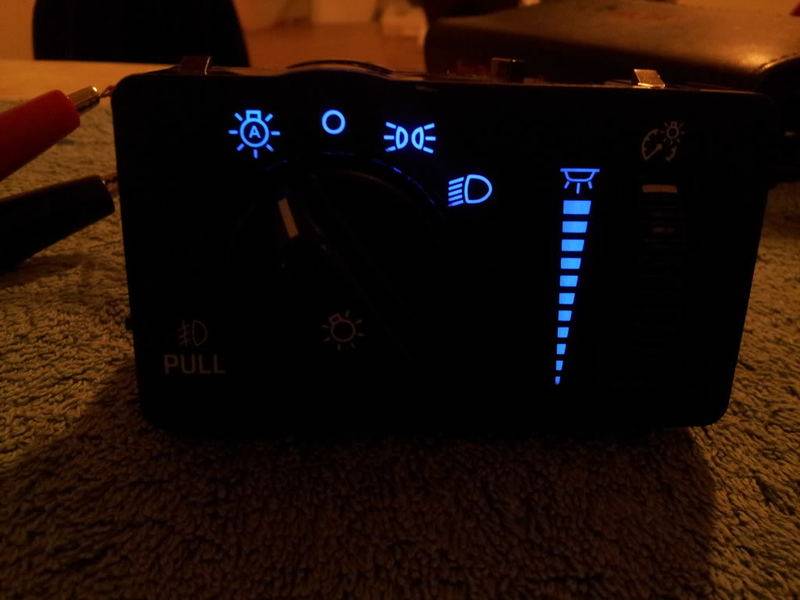

just to get this

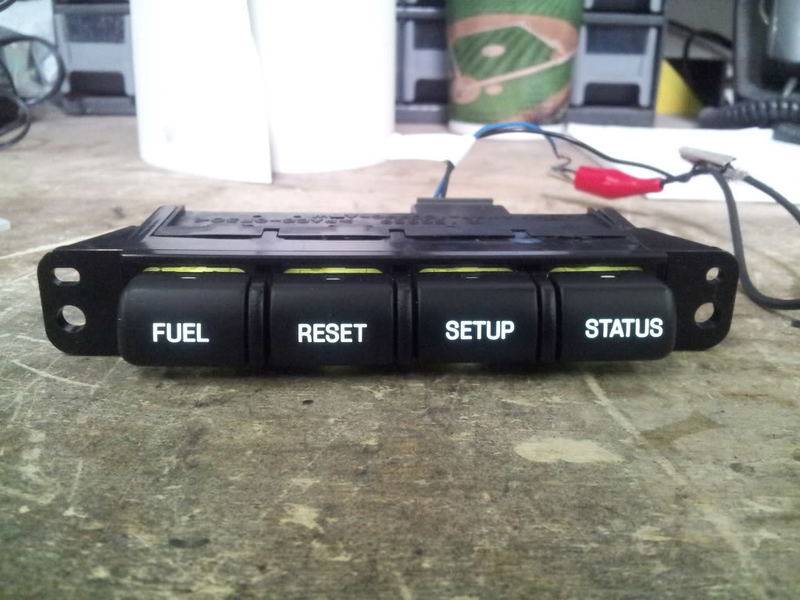

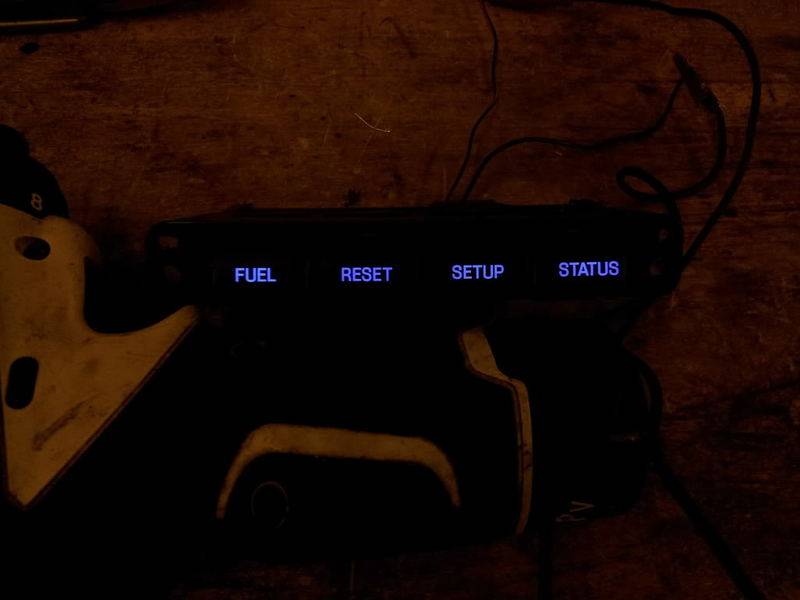

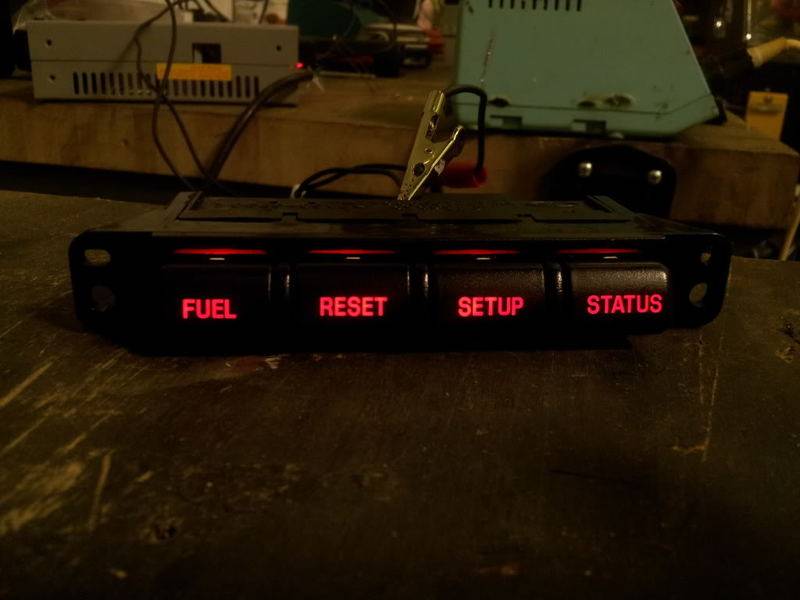

i spent over an hour to get that 2nd gen headlight switch perfect and that was just the headlight switch.i came across the same issue with the first gen power mirror switch and both gen info center 4 button switch assemblies. so when members purchase my kits...
they purchase perfect.





Last edited:

adrst2.3

Well-Known LVC Member
Joined
Jan 22, 2013
Messages
391
Reaction score
14
Location
chicago
If your talking to me Yeah they are.I'm thinking of a way to do a how to on the difficult parts just can't figure out the best way to do it

Last edited:

RollinLS

Dedicated LVC Member
Joined
Jul 4, 2005
Messages
4,775
Reaction score
151
Location
TBA
Looks great. I am REALLY considering pulling the trigger on this mod. All red interior.
