Help Locating Part - Vacuum Lines Throttle Body to EGR and Fuel Pressure Sensor

RJLipscomb

Active LVC Member
Joined
Dec 23, 2013
Messages
66
Reaction score
2
Location
Quantico
2006 V8:

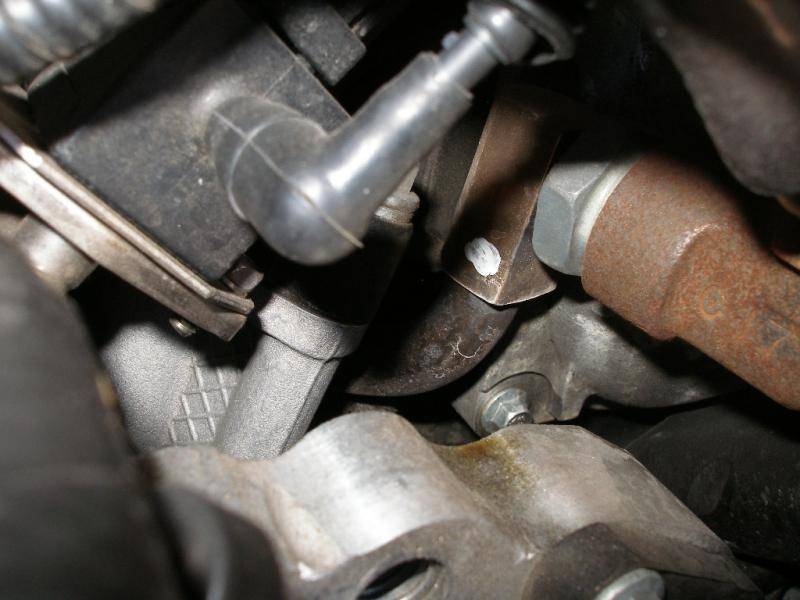

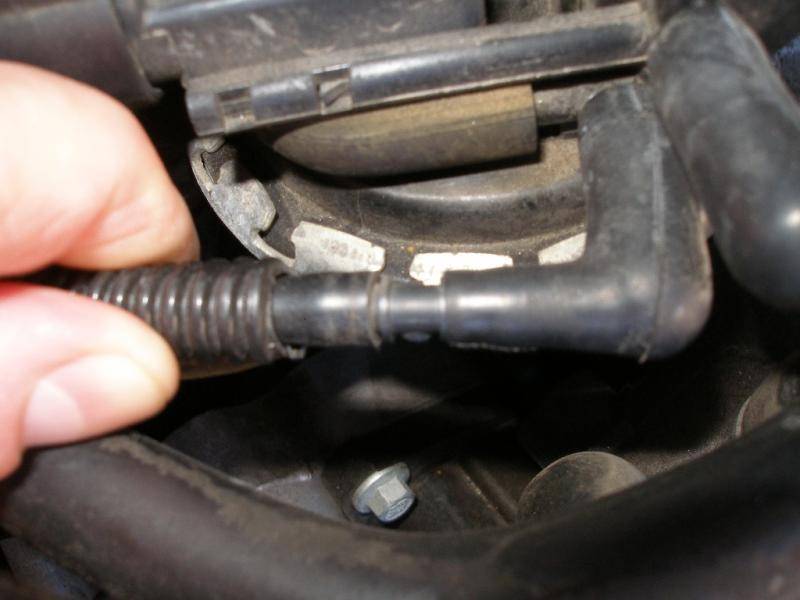

Can anyone identify this part and advise where I can get a new one?


I know it has connections identified as:
Fuel pressure sensor vacuum connector
Exhaust gas recirculation (EGR) system module vacuum connectors

I broke the hard plastic vacuum lines in several places. And though I have a temp fix in mind, I want to get a new part to complete the repair.



LS4me

Dedicated LVC Member
Joined
Apr 23, 2004
Messages
9,964
Reaction score
279
Location
San Diego
I bought some vacuum hose and fittings from NAPA and made my own harness. I broke the plastic line out of the old connectors and used straight connectors to attach the new line to the factory connector........









RJLipscomb

Active LVC Member
Joined
Dec 23, 2013
Messages
66
Reaction score
2
Location
Quantico
You can find it here I believe: http://clockspringremoval.blogspot.com/2009/07/06-lincoln-ls-v8-engine-parts-and.html

I believe its item number 6 if you scroll down. Don't take my word for it, wait on some others to chime in.

6 9E499 Fuel pressure sensor vacuum connector
7 9E498 Exhaust gas recirculation (EGR) system module vacuum connectors

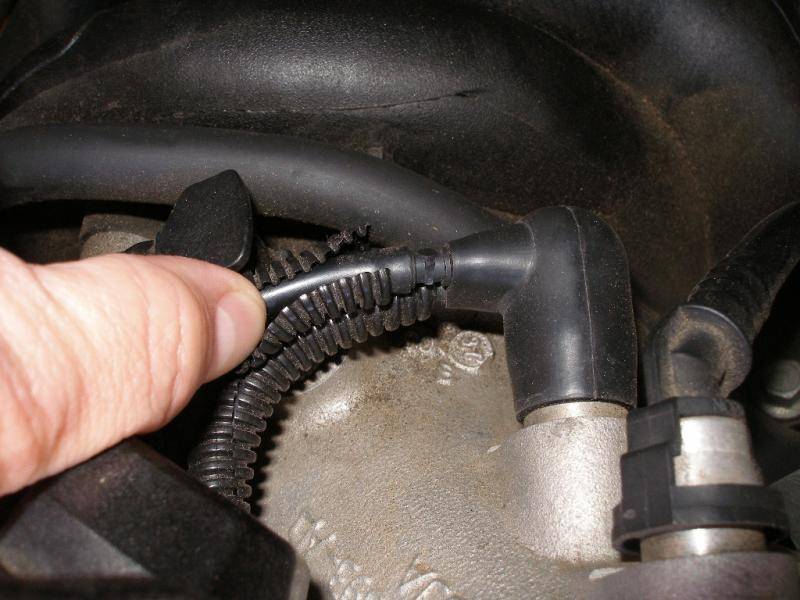

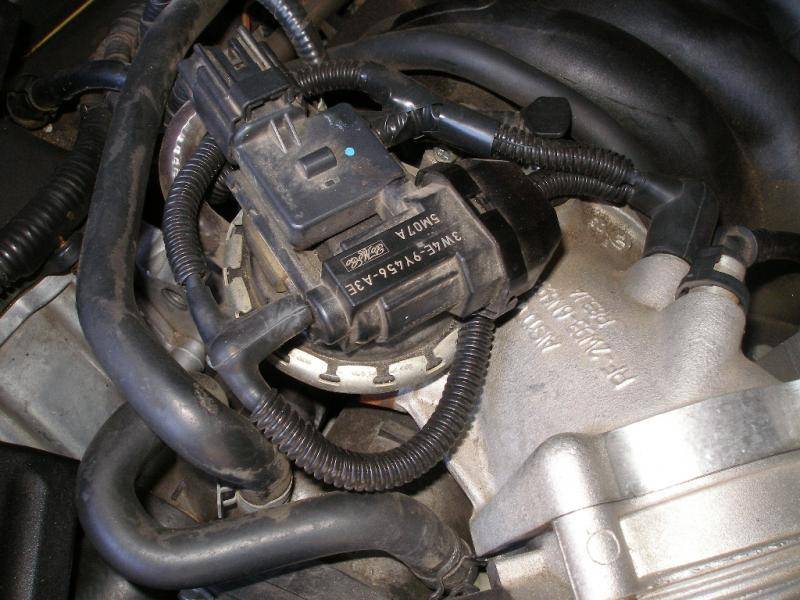

This is correct. The vacuum line has one (1) 9E499 connector and two (2) 9E498 connectors on one end. The other end has a connector to the back of the throttle body, actually the part between the throttle body and the intake manifold.


RJLipscomb

Active LVC Member
Joined
Dec 23, 2013
Messages
66
Reaction score
2
Location
Quantico
I bought some vacuum hose and fittings from NAPA and made my own harness. I broke the plastic line out of the old connectors and used straight connectors to attach the new line to the factory connector........

Thanks, that looks like it may be my only option. I was, still am, hoping to find a new vacuum harness already assembled and factory sealed. For now, I have added clear tubing over the hard plastic lines and sealed the ends, and a portion within the clear splice line, with silicone. However, this tubing is not suitably heat resistant and will not work as a permanent solution.


LS4me

Dedicated LVC Member
Joined
Apr 23, 2004
Messages
9,964
Reaction score
279
Location
San Diego

RJLipscomb

Active LVC Member
Joined
Dec 23, 2013
Messages
66
Reaction score
2
Location
Quantico
You can get it brand new, in the factory sealed bag from FordPartsGiant. I just recently got one myself.

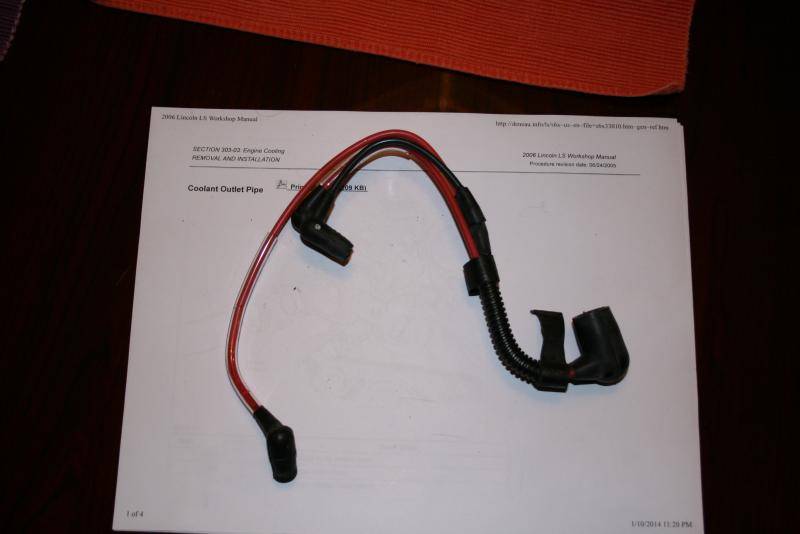

The vacuum hose assembly is 3W4Z-9E498-BA. It's just described as "connector."

I took my old shattered part to my local Ford. They were unsure based on the parts diagram but ordered one for me... $63 list - $45 discounted price. The parts diagram list the three connectors as different numbers and only one actually is the right number (3W4Z-9E498-BA) for the vacuum harness. Thanks FORD!

Easy in and done.


AmsterDutch

Dedicated LVC Member
Joined
Jul 9, 2017
Messages
2,330
Reaction score
443
Location
Midwest
2006 V8:

Can anyone identify this part and advise where I can get a new one?

View attachment 828465321

I know it has connections identified as:
Fuel pressure sensor vacuum connector
Exhaust gas recirculation (EGR) system module vacuum connectors

I broke the hard plastic vacuum lines in several places. And though I have a temp fix in mind, I want to get a new part to complete the repair.

View attachment 828465321
I think I ordered it through Rockauto or Ebay ...brand new ...its made in Mexico
