Heated seat light

AmsterDutch

Dedicated LVC Member
Joined
Jul 9, 2017
Messages
2,310
Reaction score
432
Location
Midwest
Noticed on my way to work that my heated seat lamp/light on the seat symbol is out...fuse? Or bulb?


joegr

Dedicated LVC Member
Joined
Dec 10, 2005
Messages
21,066
Reaction score
2,042
Location
Gulfport
Are you talking about the switch illumination, not the heat indicator? If the former: I am assuming that all the other illumination is working correctly. I think those are all LED, so unlikely (but not impossible) to fail. It would be more likely to be a wiring problem. There isn't a fuse just for that one button illumination. Cars would have thousands of fuses if every little thing was separately fused, as so many seem to hope for. If you have the interior illumination turned way down, you should try turning it up, before any more drastic checks. Could you post a picture?


AmsterDutch

Dedicated LVC Member
Joined
Jul 9, 2017
Messages
2,310
Reaction score
432
Location
Midwest
Are you talking about the switch illumination, not the heat indicator? If the former: I am assuming that all the other illumination is working correctly. I think those are all LED, so unlikely (but not impossible) to fail. It would be more likely to be a wiring problem. There isn't a fuse just for that one button illumination. Cars would have thousands of fuses if every little thing was separately fused, as so many seem to hope for. If you have the interior illumination turned way down, you should try turning it up, before any more drastic checks. Could you post a picture?

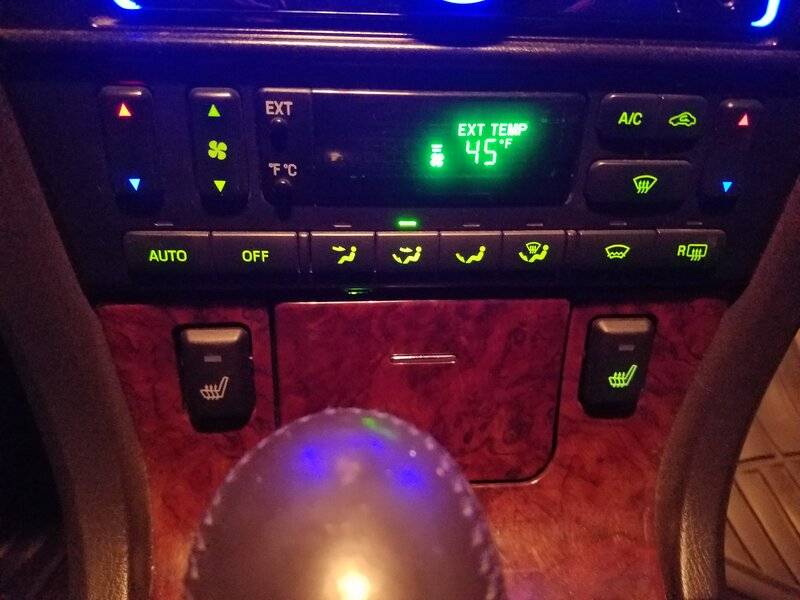

I will post a picture in the morning ...I figured it was a burnt out bulb and/or LED behind the indicator the green light still comes on when pushed in, it will be more clear what I am talking about with a picture, I should've posted a picture


AmsterDutch

Dedicated LVC Member
Joined
Jul 9, 2017
Messages
2,310
Reaction score
432
Location
Midwest


joegr

Dedicated LVC Member
Joined
Dec 10, 2005
Messages
21,066
Reaction score
2,042
Location
Gulfport
Yeah, I would guess wiring, or maybe the switch itself. (Unless, the 1st gen still used bulbs for that, then it could be the bulb.) I think that you could temporarily swap the switches and see if the problem moved to the right one, or stayed with the left one.


AmsterDutch

Dedicated LVC Member
Joined
Jul 9, 2017
Messages
2,310
Reaction score
432
Location
Midwest
Yeah, I would guess wiring, or maybe the switch itself. (Unless, the 1st gen still used bulbs for that, then it could be the bulb.) I think that you could temporarily swap the switches and see if the problem moved to the right one, or stayed with the left one.
Sounds Good, I'll give her a shot


AmsterDutch

Dedicated LVC Member
Joined
Jul 9, 2017
Messages
2,310
Reaction score
432
Location
Midwest
I assume the seat does actually heat up???
The passenger side heats but the driver side no...Like I said in an earlier post ...the green light on the actual switch does turn on when switch is pushed but no heat


OverseaJag

New LVC Member
Joined
May 2, 2022
Messages
5
Reaction score
0
Location
France
I guess it is the switch itself or maybe the seat heater control module.
Here is the electrical guide for the Jag, it must be the same for the Lincoln

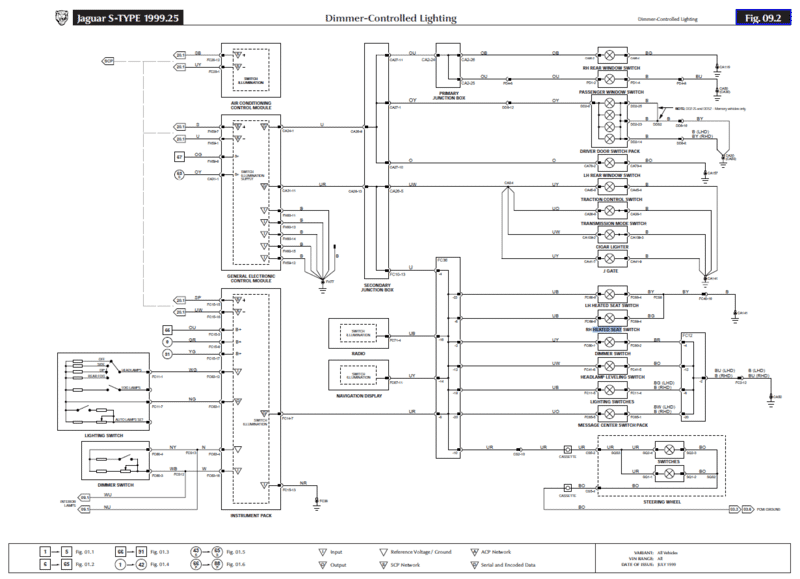

heated switch scheme.png

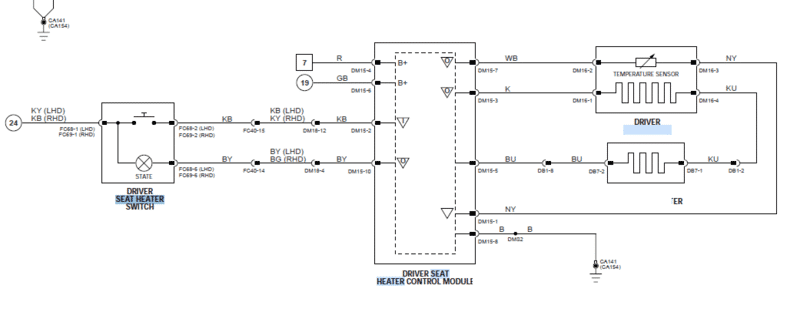

driver seat heater control module.png


craigh

Dedicated LVC Member
Joined
Nov 27, 2004
Messages
504
Reaction score
36
Location
Chanhassen, MN
If the light does not turn on and the seat does not heat it is not going to be the switch, but most likely one of the seat heating elements has broken. You can test them by taking the seat back off, finding the plug connectors for the individual elements and checking with an OHM meter. Resistance should be zero if the element is good.
