Cam Timing with Milled Heads

Lincoln Mark VIII Performance

  1. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    This is a question for people who have built Mod motors. I have read that you should not mill the 4 valve heads any more than .004 due to cam timing issues. What about adjustable cam gears to put cam timing back to spec. Have any of you done this? I have built several pushrod motors and used adjustable cam gear to get the cam where I want it in the power band.

    Thanks for any opinions and help with this.

  2. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Took my heads and block to my machinist today to be checked out. He is one of the best aluminum head machinist in the state of Ohio. I will post results and what route I will take.

  3. chris2523

    chris2523 93 Mark VIII

    Messages:
    7,869
    Likes Received:
    742
    Joined:
    Nov 8, 2007
    Location:
    Central MO
    so if you mill the heads, you should have the cams degreed.
    due to the sloppyness of the 4.6 design, you should degree the cams in a performance build anyway.

    http://www.modularheadshop.com/camdegree.aspx

  4. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Thanks for the link Chris, that is exactly what I am going to do. I am worried about the condition of my heads. My engine looks like it was severely overheated. My machinist may be able to weld them and resurface them. Have to wait and see what he says.

  5. ford nut

    ford nut Local nut case

    Messages:
    5,660
    Likes Received:
    234
    Joined:
    May 14, 2007
    Location:
    Farmington
  6. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Going with forged .030 pistons and h-beam rods. Not going crazy on this motor. I want to drive it. I have a Tbird SC that is my race car. The Mark will see the drag strip from time-to-time and that is the reason for the good pistons and rods. Thanks for the link, good reading.

  7. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Well, my machinist is under the weather and won't be able to do anything with me engine for at least two months. I found a nice 01 Cobra motor for a good price and I am debating what to do. The 01 has C-Heads so don't know if it will swap into my 97 without a lot of trouble. Any of you done this swap? Thanks for any info.

  8. ford nut

    ford nut Local nut case

    Messages:
    5,660
    Likes Received:
    234
    Joined:
    May 14, 2007
    Location:
    Farmington
  9. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Engine only has 58,000 miles on it. The more I read the better I think this swap is.

    Thanks for the link.

  10. ford nut

    ford nut Local nut case

    Messages:
    5,660
    Likes Received:
    234
    Joined:
    May 14, 2007
    Location:
    Farmington
    c heads alone make it a better swap, add your h beams and forged slugs, you would have a good base if you wanted to use a power adder at a later date.

  11. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    That is what I am going to do. I will probably go with a 03-04 supercharger set up.

  12. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Fordnut

    What is your opinion on the oil pump in the mod motor. I have read that they have failed because the gears are made of the sinter powdered metal just like the rods. Don't want to build this thing then have a oil pump failure.

  13. Right on the Mark

    Right on the Mark Dedicated LVC Member

    Messages:
    4,485
    Likes Received:
    384
    Joined:
    Nov 1, 2006
    Location:
    here
    Every mod build should replace the stock pump to a billet gear pump.

  14. ford nut

    ford nut Local nut case

    Messages:
    5,660
    Likes Received:
    234
    Joined:
    May 14, 2007
    Location:
    Farmington
    ^ What Frank said.

  15. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    I did some reading on this issue and what I found was if you keep your rpms below 7000 it shouldn't be an issue(stock engine and pump hasn't been removed). Also with the engine build take the rotating assembly and get it balanced. Oil pump also needs to be centered on the crankshaft, if it is off any vibration will cause the gears to start rubbing the case and crankshaft leading to failure.
    Hope this helps people with future builds.

  16. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    I also did some reading about the C-head. I think there is a way to run this head with the B-head intake. From what I have read the C-head is a better head due to the flow velocity. Now with that said where can you get some cheap C-heads? The Continentals from 99 to 03 have the C-head with a dual port intake. Under the intake the Continental has an adapter that mounts its intake that looks exactly like our IRMC plate. I found some C-heads on a 2000 Continental close to where I live and I plan on getting them. I will post updates with pictures as soon as I get the heads.

  17. chris2523

    chris2523 93 Mark VIII

    Messages:
    7,869
    Likes Received:
    742
    Joined:
    Nov 8, 2007
    Location:
    Central MO
    i don't know anyone who has tried the b intake to c head adapter.
    i believe the mach 1 and similar intakes are quite good, and most people just use those.

  18. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    If you can use your existing intake it would cost less, most of the Mach1 and Cobra intakes cost $400.00 and up.

  19. chris2523

    chris2523 93 Mark VIII

    Messages:
    7,869
    Likes Received:
    742
    Joined:
    Nov 8, 2007
    Location:
    Central MO
    seems like a small price to pay when you are already building a motor.

  20. ford nut

    ford nut Local nut case

    Messages:
    5,660
    Likes Received:
    234
    Joined:
    May 14, 2007
    Location:
    Farmington
    Its better to make a plan and stick with it.

    If its a PD blower then c head is the ticket, if you found a 01 cobra that is short a
    intake, forget any b head intake... save for the PD parts... if you don't have the patience or pocket book
    hit the stang boards hard for a good c head intake, like Chris said its a cheaper part of the build.
    Half of what makes a c head attractive for N/A street is the intake that goes with it.
    If its N/A then now is the time to kick around cams.

    But you have to decide.... which way you go dictates the rest of the build.

  21. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Well let me explain what my goals are for the present.
    1) get my mark viii to run mid 8's in the 1/8 and mid 13's in the 1/4. I run pro class at my local drag strip and I want a back up if my Tbird goes down. My Tbird is way faster than that runs high 7's and low 12's.

    2) make the build as inexpensive as possible and extract all the performance I can from current set up

    With this said I did a lot of reading on the mod motor and I can achieve the goals outlined without forced induction. The Mark engine can put down 400 whp and live. After that you need forged rods and pistons,
    go above 600whp and you need a forged steel crank.

    3) I located a 22,000 mile 97 Mark engine locally, I went and picked it up yesterday.

    Modification

    A) take rotating assembly and get it balanced
    B) install windage tray and a Cobra dampener (the Cobra piece is heavier and will absorb more vibration) this will allow higher rpm.
    C) port exhaust manifolds out to 2.5" and install 2.5" full exhaust.
    D) 3500 stall converter and 4.10 gears
    E) 42# injectors with lightning MAF with matching electronics (E85 fuel)

    All the above is for now if I want more I will go with forced induction later.

  22. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States

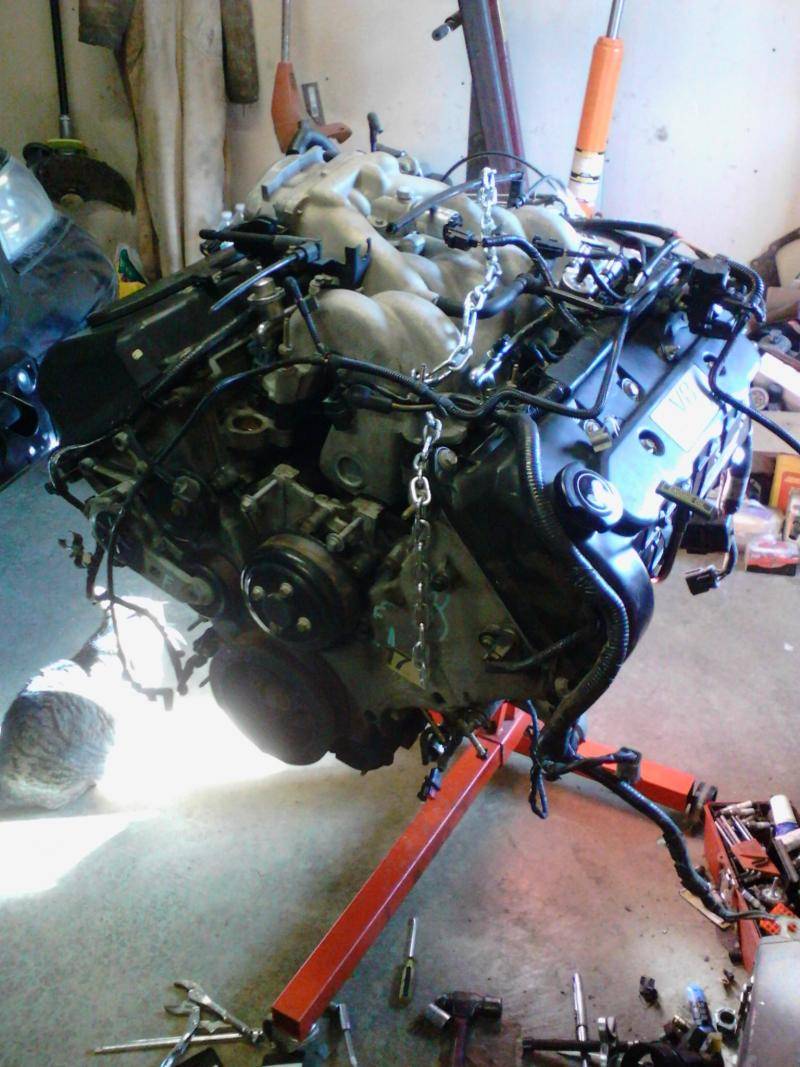

    New engine IMG_20141231_133006.jpg


  23. ford nut

    ford nut Local nut case

    Messages:
    5,660
    Likes Received:
    234
    Joined:
    May 14, 2007
    Location:
    Farmington
    Nice find!
    Your goals are achievable.

    My thoughts...
    Cobra intake....
    Cobra intake cams... degreed.
    03/04 termi exhaust manifolds with steering shaft mod and x pipe
    stall convertor
    J-mod trans
    4:10s trac lock
    one piece drive shaft "a must"
    Green top fuel pump
    Dam good tune with a x cal to data log
    That should put you there.

    Inexpensive and a Mark usually don't go together.
    Unless your name is Frank...:p

  24. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States
    Did some measuring today and the driver side exhaust cannot be ported to 2.5" The passenger side can be ported out. I am looking at a set of exhaust manifolds from a 03 Mach 1. The driver side looks like it can be ported out to 2.5" It also looks like it can be used on our cars. I can't believe that Ford made one manifold over 2.5" on one side then choked the other side at less than 2" this will cause a bad imbalance of power from one side to the other. This is bad for the engine. IMG_20150102_115706.jpg IMG_20150102_115451.jpg

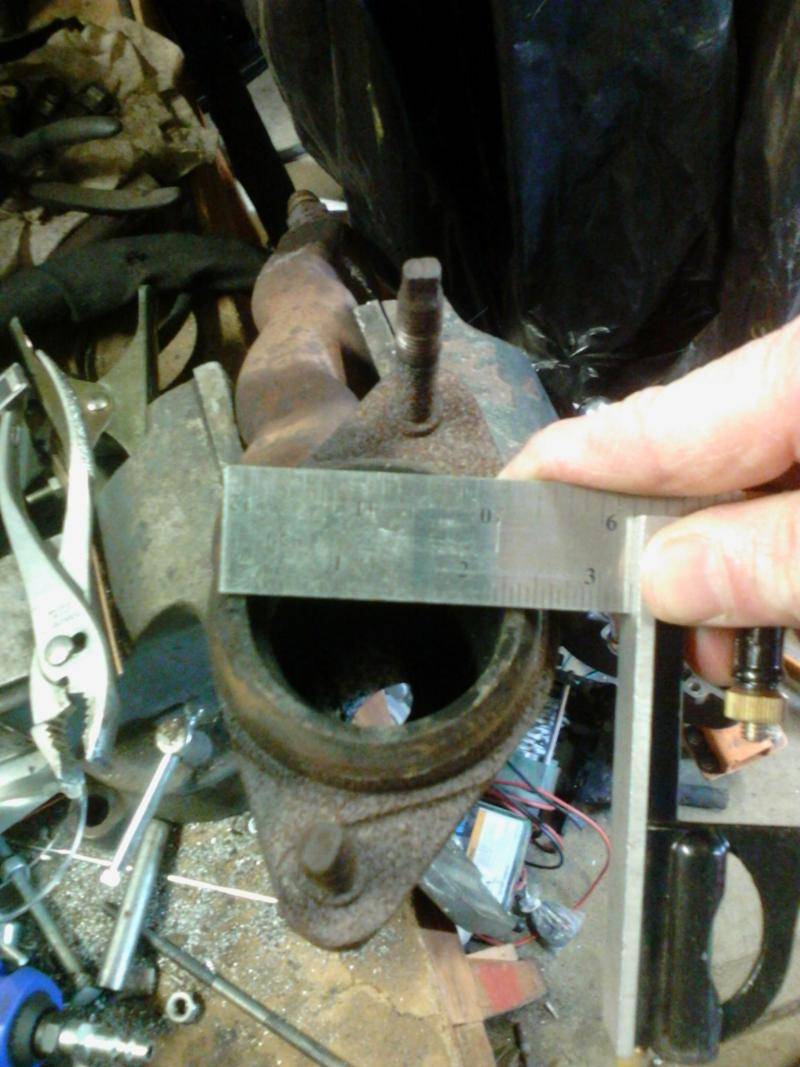

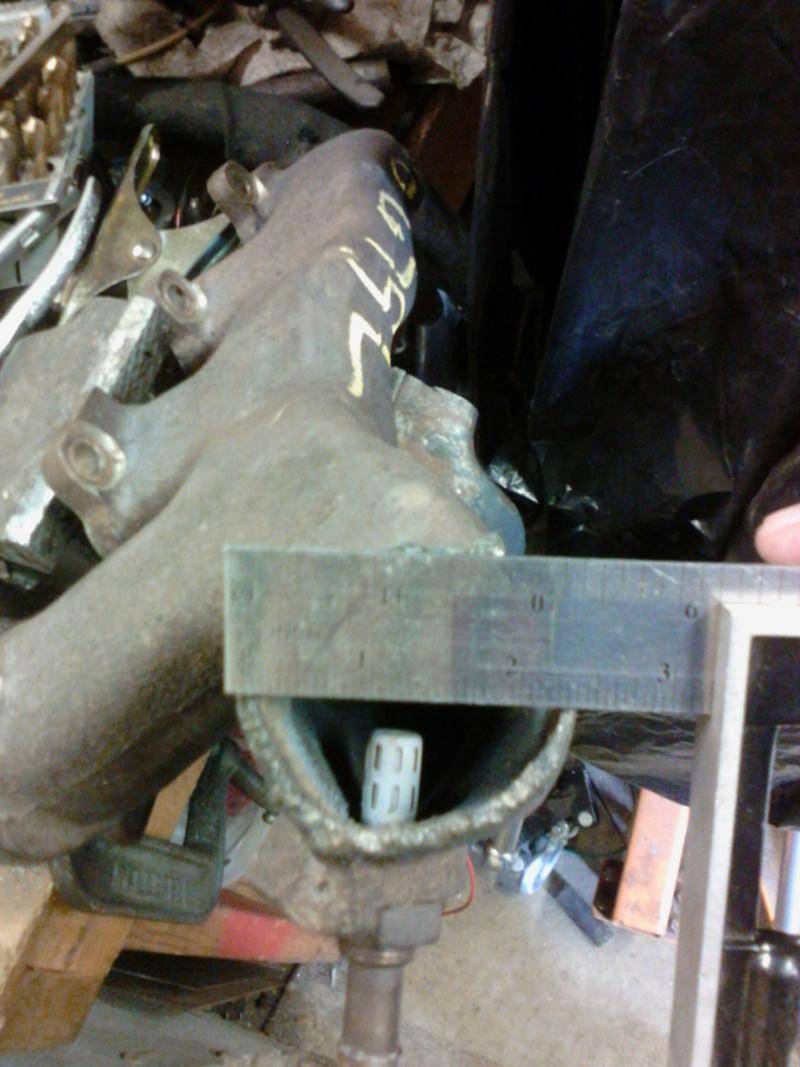

    Attached two pictures of the driver side and passenger side exhaust manifolds. The driver side isn't even 2" on the outside, the passenger side side can be opened up to 2.5" I will update when I get some Mach 1 manifolds.



  25. robsMarkVIII

    robsMarkVIII Active LVC Member

    Messages:
    56
    Likes Received:
    9
    Joined:
    Nov 25, 2014
    Location:
    United States

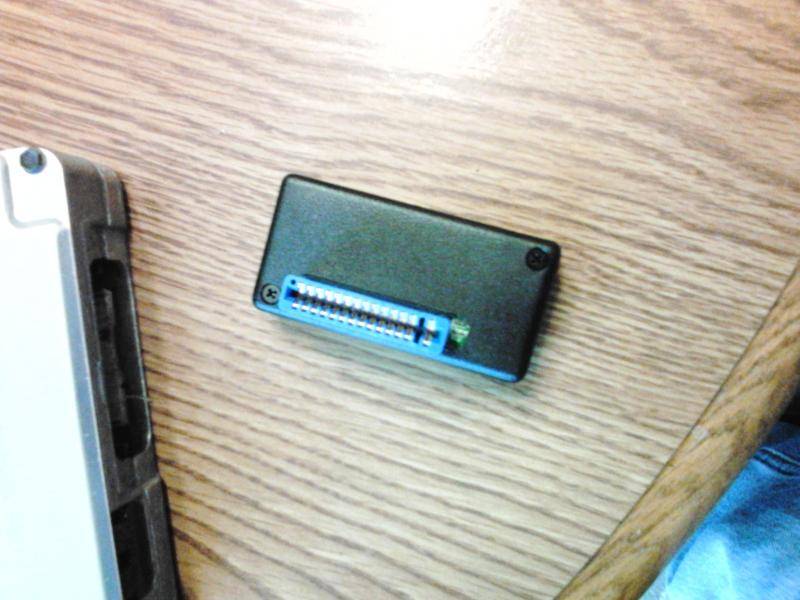

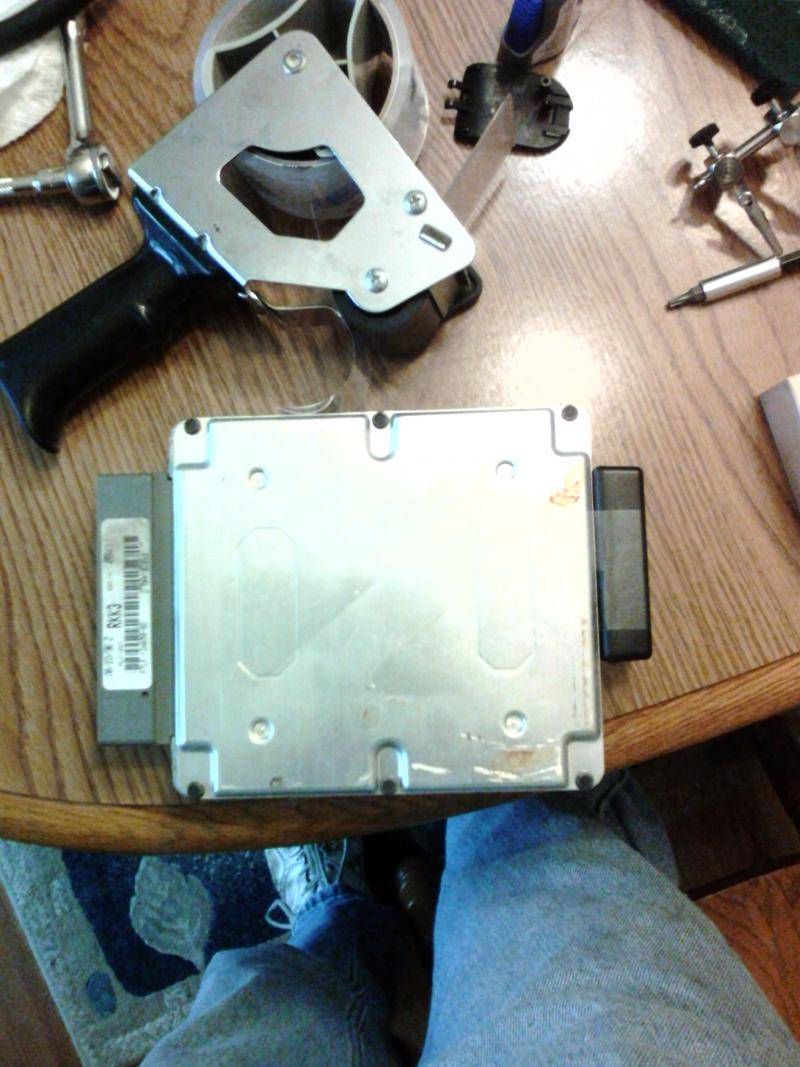

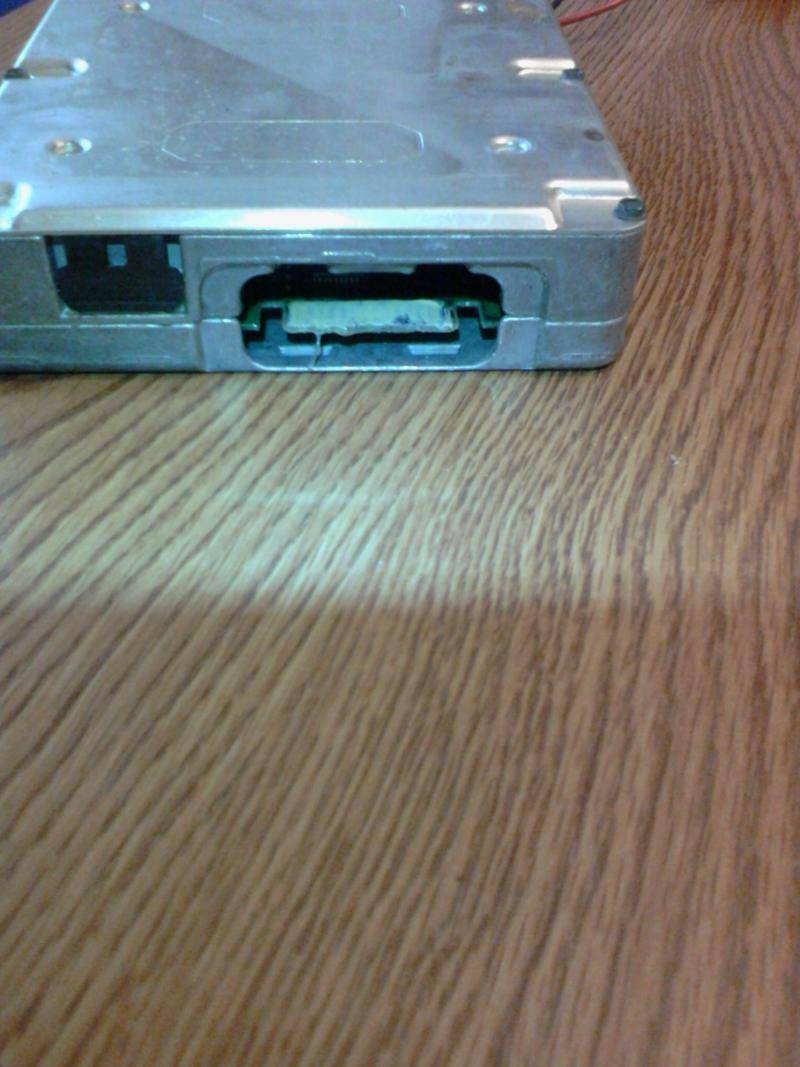

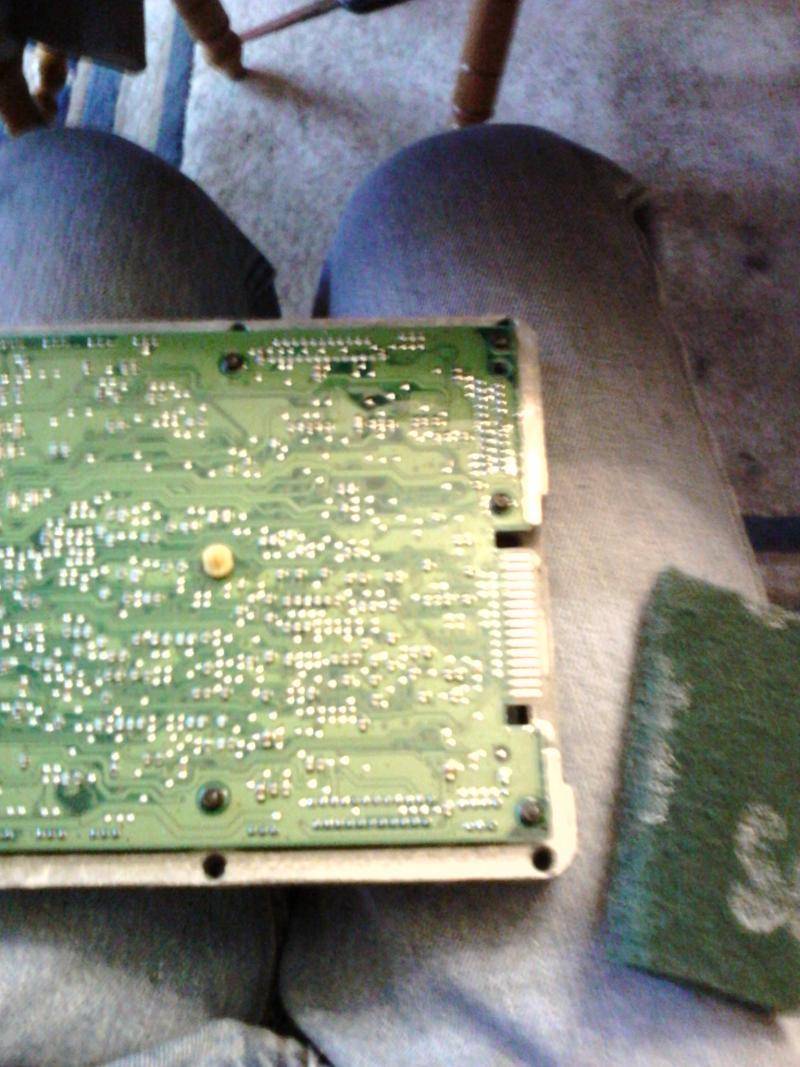

    Installed a tweecer and started modifying the calibration. IMG_20150103_115536.jpg IMG_20150103_110705.jpg IMG_20150103_114840.jpg IMG_20150103_110649.jpg
