C.O.P. Conversion Started

Lincoln Mark VIII

  1. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    Well,

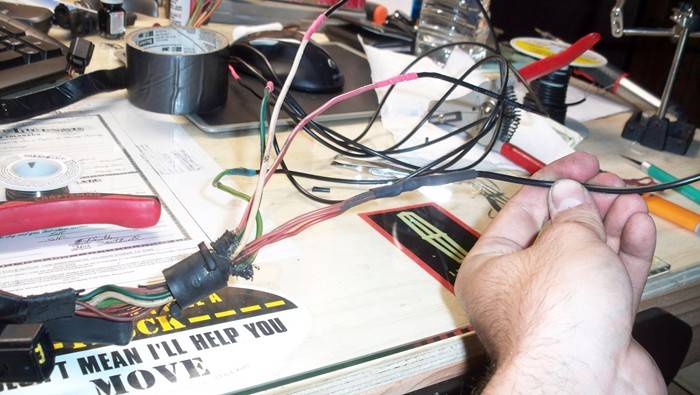

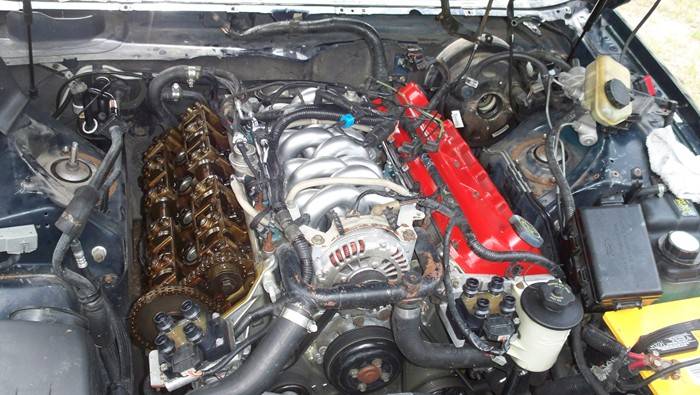

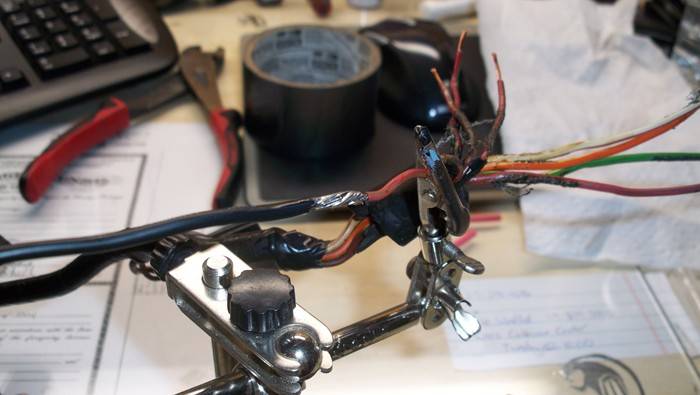

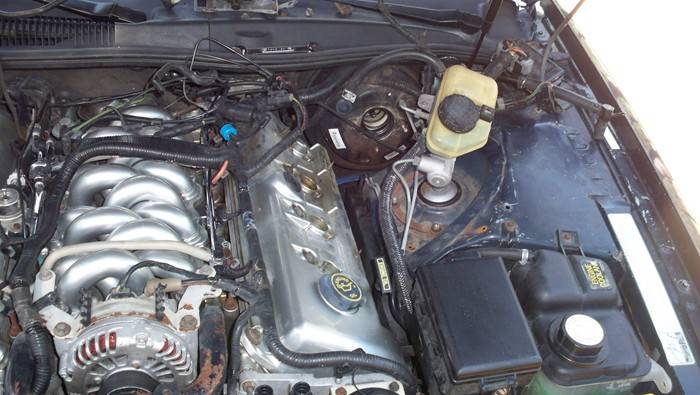

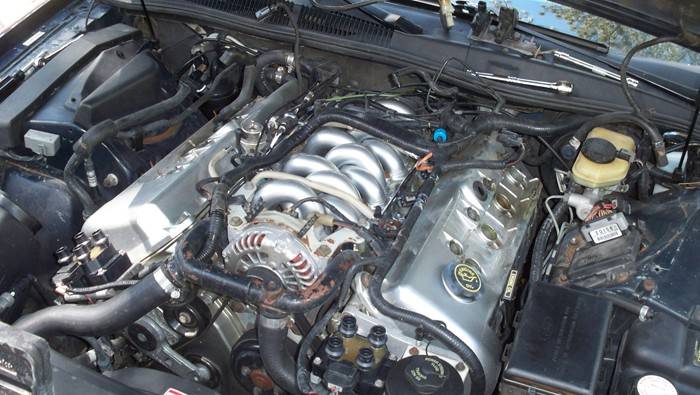

    I've been saying I'm gonna do it for a long time, but I've commited myself now. I forgot how much of a pain it is to R&R the cam covers. I'm working on the harness soldering now.


    Mike











  2. unity

    unity Dedicated LVC Member

    Messages:
    5,110
    Likes Received:
    25
    Joined:
    Oct 31, 2006
    Location:
    Green Bay
    Awwww.... you took the easy route. I swapped the entire engine to get COP valve covers! lol

    Let me know if you have any questions. But I bet ya got it figured out, not too hard to do.

  3. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    PMing you now................

  4. kustomizingkid

    kustomizingkid Dedicated LVC Member

    Messages:
    12,433
    Likes Received:
    4
    Joined:
    Oct 4, 2006
    Location:
    Twin Cities

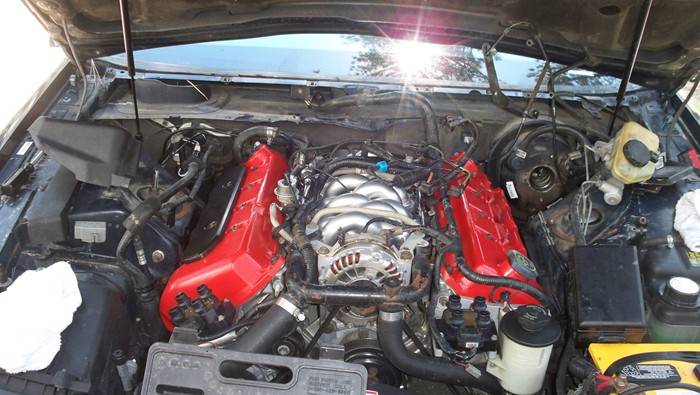

    Those are some awesome looking coil covers!

  5. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    Thanks Kid! :D

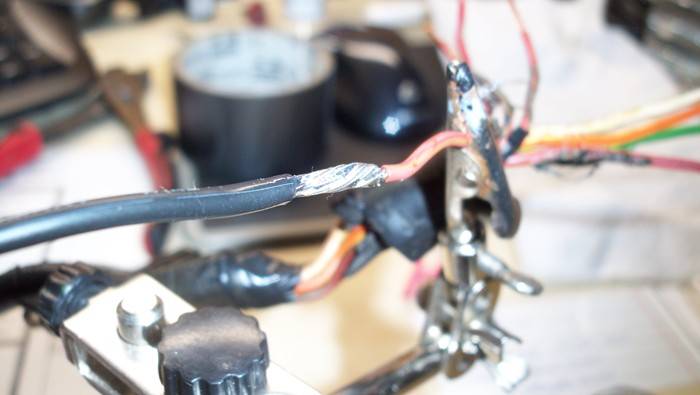

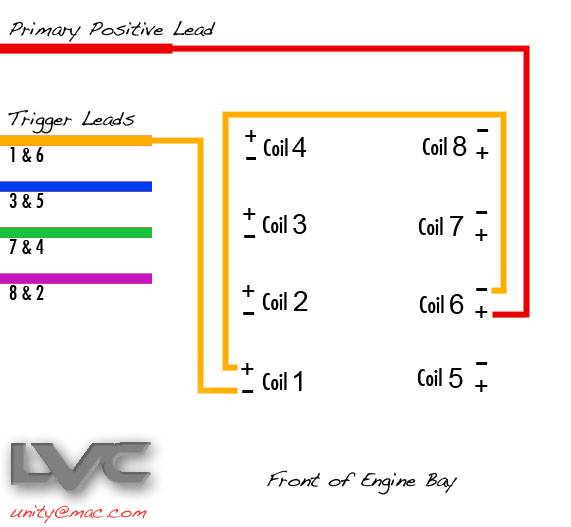

    These will be replaced soon, I just did'nt want to spend any more money than I had to. Assymbley Soldering is done, now all I need to do is go outside and connect everything to the car. I went with a bit different method of connection unity. Take a look at the diagrams and let me know what you think.

    If I have a problem with voltage, I can always pull it apart and add a seperate voltage input. This was a much easier method.


    Mike

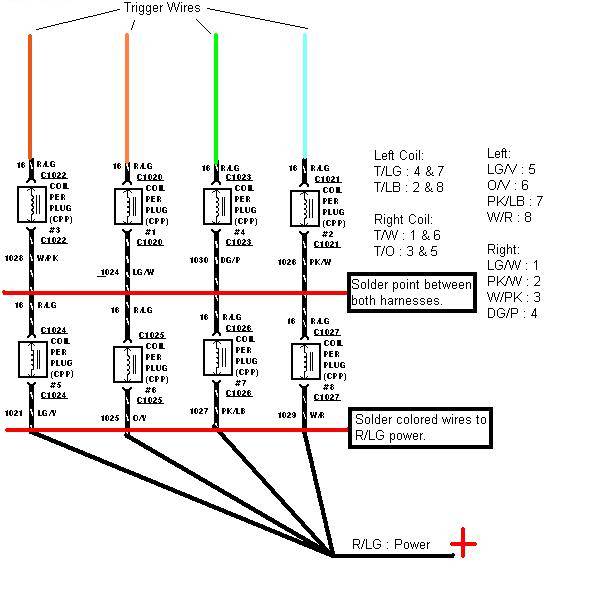

    Soldering Diagram.JPG

  6. unity

    unity Dedicated LVC Member

    Messages:
    5,110
    Likes Received:
    25
    Joined:
    Oct 31, 2006
    Location:
    Green Bay
    That looks the same as I did pretty much. Trigger in on neg, loop positive to neg on the other side then out to shared positive so they are in series. Should work just fine!

  7. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO

    No REAL advantage performance wise.


    I did however, notice a better feeling idle, and it SEEMS to have a smoother revv-up. Not to mention the engine LOOKS 10X better.

  8. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    Allright

    I'm bringing this to the top for Dieseldan. I have removed all the meaning less posts in here in an effort to get it back to the point.

    I have to thank Unity for the wiring information, it REALLY helped me out.


    Mike


  9. 87TTOPGT420

    87TTOPGT420 Dedicated LVC Member

    Messages:
    1,425
    Likes Received:
    15
    Joined:
    Aug 6, 2008
    Location:
    South Woodslee, Ontario
    Cop is such a cleaner look

  10. Right on the Mark

    Right on the Mark Dedicated LVC Member

    Messages:
    4,509
    Likes Received:
    134
    Joined:
    Nov 1, 2006
    Location:
    here
    More pics soon right? I would like to see all cops on VC with the cover off and wire harness ran to them. Pics of what doing to stock coil plugs.
    Just more pics!!

  11. mespock

    mespock Marxists - Socialists

    Messages:
    14,494
    Likes Received:
    20
    Joined:
    Jun 15, 2004
    Location:
    Boscobel, Wisconsin, United States
    Looks great Mike ...

  12. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    Jeez guys......That blue car does'nt even exist any more.

    Well.......In various other cars maybe.

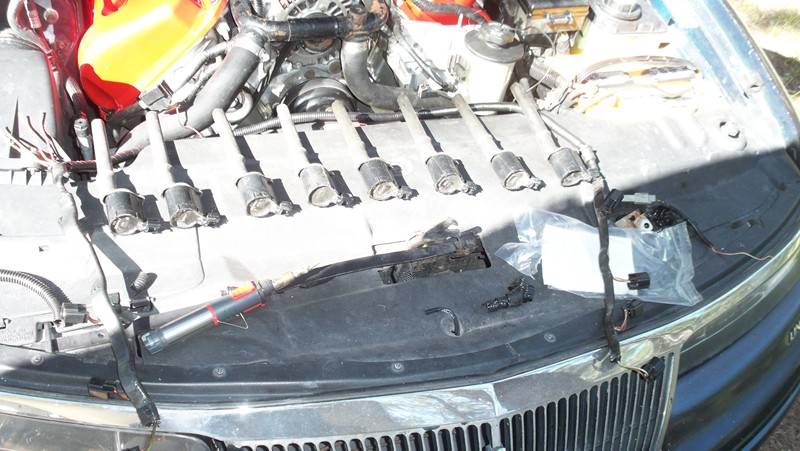

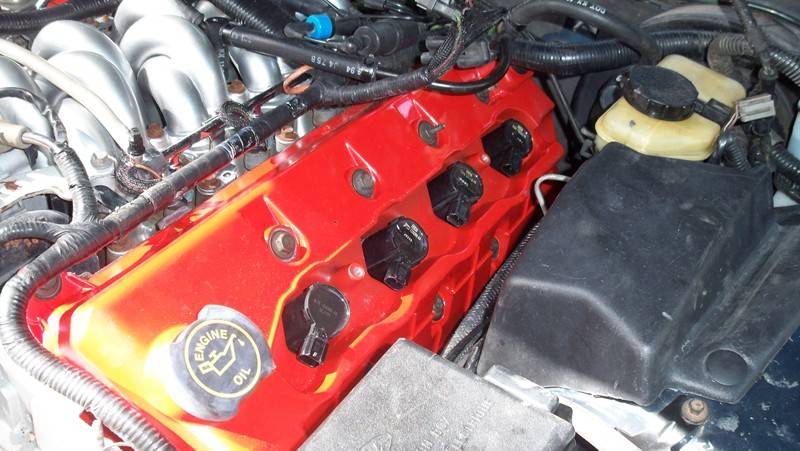

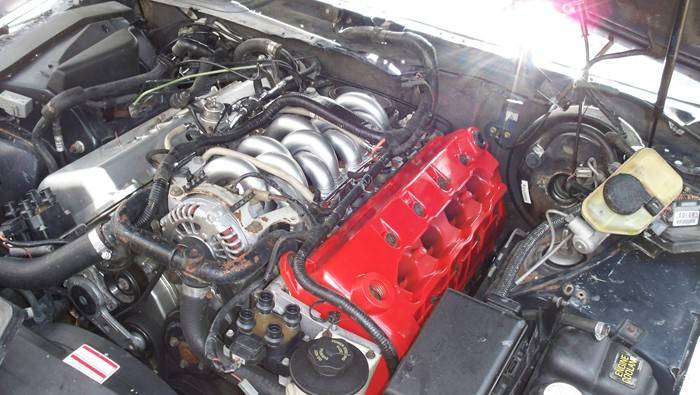

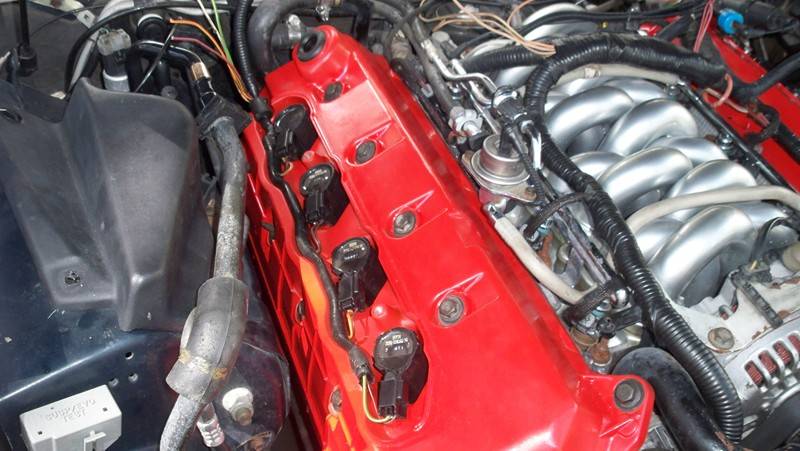

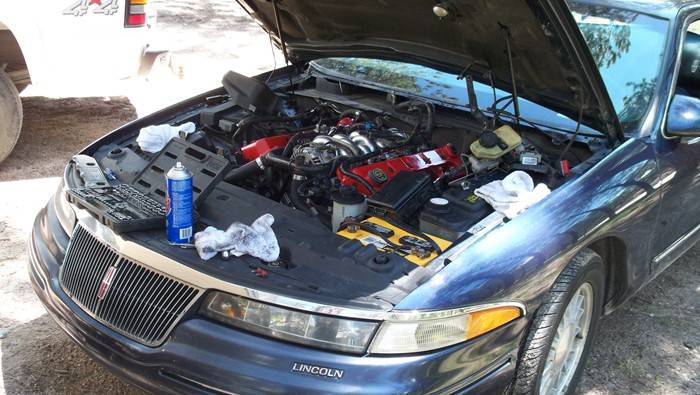

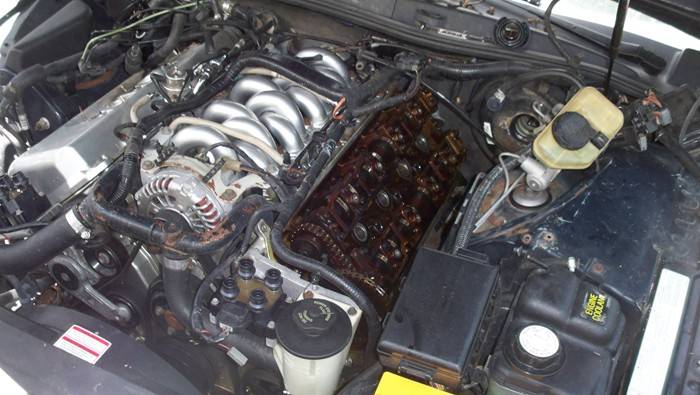

    Here are the pics you requested "right on the mark". (taken the same day.)

    Mike





  13. Right on the Mark

    Right on the Mark Dedicated LVC Member

    Messages:
    4,509
    Likes Received:
    134
    Joined:
    Nov 1, 2006
    Location:
    here
    Thanks, I have been thinking of doing this. But owning a LS I know all to well about COP failure. I'm sure the mk8's are not that bad though.

  14. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando
    Thank you SO much Mike for the link. I just picked up a set of COP valve covers from M_Maker, they are actually the covers that Jamie took off his car. I have 1 harness that I have already lengthened the wires, I guess I oughta take a few pictures of it. I am buying the harness peices from Jamie as soon as he is freed up enough for me to come down and pick up the harness/coils. Haven't decided on a color for the valve covers yet...

  15. danny_holtermann

    danny_holtermann Dedicated LVC Member

    Messages:
    1,961
    Likes Received:
    0
    Joined:
    Nov 4, 2007
    Location:
    Green Bay
    what exactly do you gain when you switch to cop? just the looks?

  16. chicken

    chicken SHEOOOOOOOOT

    Messages:
    7,760
    Likes Received:
    21
    Joined:
    Apr 12, 2005
    Location:
    northern illinois
    no ugly plug wires hiding the beautiful engine

  17. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando

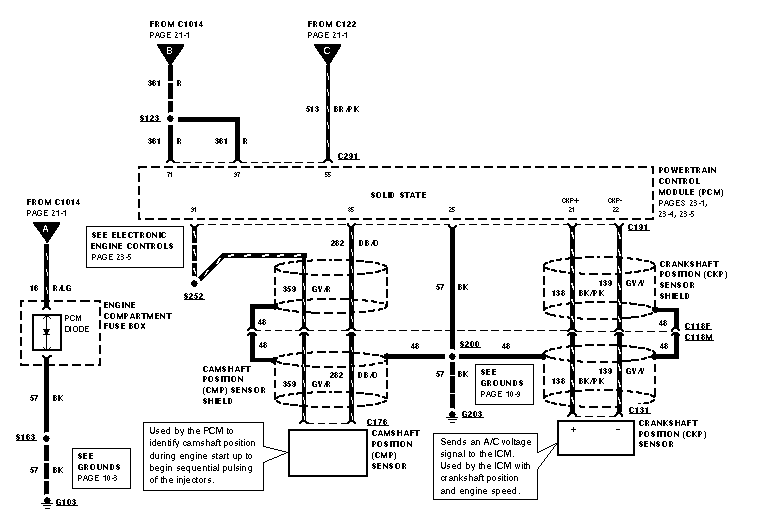

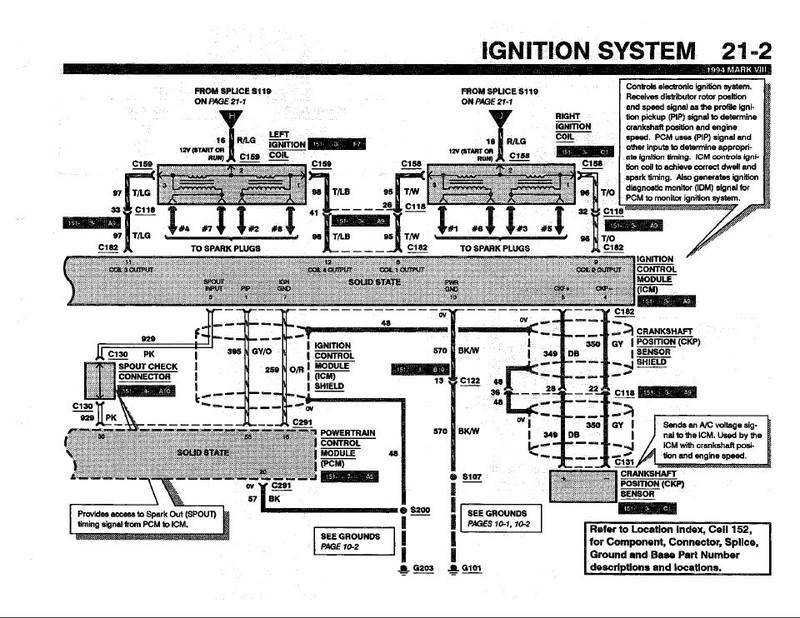

    94 Mark Ignition Wiring

    97 Mark Ignition Wiring

  18. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando

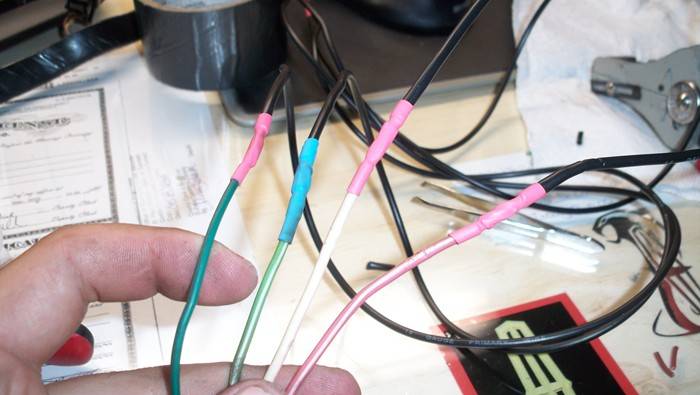

    I need to stare at these wiring diagrams some more, I'm not sure I understand your wiring diagram above... I figured I would add the above diagrams here for more information on the topic. On the harness that I have been playing with, I lengthened the 4 colored wires on the harness. Then there are the 4 wires that are all the same color code, I assumed they were a ground, but now I guess they are power? Also, I assume that this means that the system is still wired up as a waste spark system, basically 4 channels instead of 8? Is that correct? I'm pretty sure I am over complicating this, I am very good at wiring, just a little harder to wrap my brain around it without the car sitting right in front of me.

  19. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    Yes, it's still a waste spark system. And you are most definatly over complicating things.


    :)

  20. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando
    I had a long reply typed out, but then I came up with this... Is this the same as what you did? I just don't follow your 1 picture very well...


  21. Stangman

    Stangman Project car a.d.d.

    Messages:
    2,070
    Likes Received:
    22
    Joined:
    Nov 18, 2008
    Location:
    Sardinia, OH
    Absolutely amazing work Mike. I envy your ambition to modify/perfect these cars...

    I would love to see threads like these compiled in to a special Mark VIII tech section... instead of rooting thru 475,962 & 1/3 different threads...

    It sure would help noobs too.

    COP coversion, 5 speed conversion, cobra intake swap, hub/caliper swap, chickens dual compressor setup, sequential taillights... all good info that (I think) would do real well in a special compiled section. JMO

  22. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando
    Definately cleans up the engine compartment, thats the only reason I'm doing it.

  23. 94m5

    94m5 Dmaup's Daddy

    Messages:
    5,456
    Likes Received:
    81
    Joined:
    Oct 22, 2004
    Location:
    Colorado Springs, CO
    Yea that's a way of graphing it I suppose. The way this works out is,

    You are applying power to the positive terminal of one cylinder's ignition coil, taking power from that same coil's negative and running it to the opposing cylinder's positive input. From there, you tie that coil's negative to the trigger wire back to the PCM.

    When the PCM commands spark, it closes to ground and lights off both coils.

    Mike.

  24. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando
    Awesome, sounds good. Thanks!

  25. DieselDan

    DieselDan Dedicated LVC Member

    Messages:
    2,678
    Likes Received:
    59
    Joined:
    Oct 18, 2009
    Location:
    Orlando

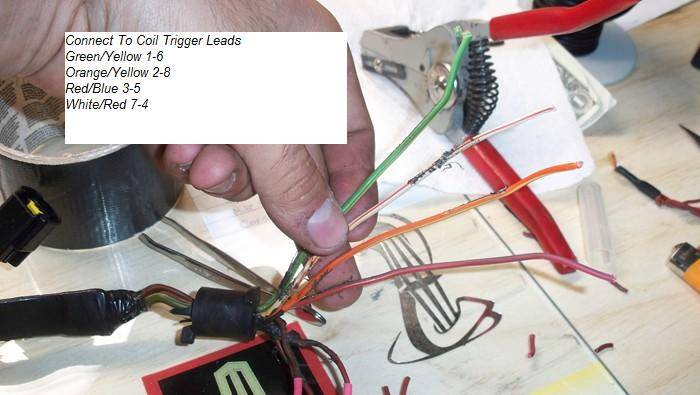

    Sooo... I separated the COP harness from the rest of the vehicle harness tonight. My thought on the COP is to run all 8 coils in parallel instead of the series. I'm not trying to reinvent the wheel or anything, but the wirin is already there, I just have to pair up the cylinders and connect them to the 4 coil trigger wires. The only real pro I could think of is that I one coil becomes open, it would take out 2 cylinders, the way I plan on doing it would only lose 1 cylinder, per bad coil. It also seems like there will be the same amount of wiring using both of our methods... I have some pictures that I'll post as soon as I get home.
