Any interest in CDC look-a-like mesh?

Lincoln LS

  1. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    I am trying to get some mesh from the company pektel bought the Mclaren look-a-like sheets from. It's a weaved mesh like the CDC mesh and the one they have is very very similar in size to the CDC mesh. There is one that is slightly smaller and slightly larger then the real cdc mesh, I measured, and we are probably going with the one that is slightly smaller. The difference is very minimal. I am in for sure, Ls4me seems pretty interested as well. So far it's me and him that have been talking about it so I made this thread to get others on board. I called today and got some info, but the sales guy was not there today to get me all the details. I will call tomorrow again.

    Here is the mesh I am talking about and we would get it in a diagonal cut like the cdc mesh.It looks to be actual size in the pictures, you can take a ruler and measure and it will be the same when you get it. CDC mesh is in between #3 and #4 and even those 2 are close so you can see there will be minor differences.

    http://www.ametco.com/wirecloth/index.php

    Pektel managed to get him and 3 others on board for his buy. The total came out to 65 shipped per person for pieces big enough for a top grille and bottom grille with extra for possibly one more set, or if you mess up as back up. I have to talk to the right guy to get the price of the sheet so prices will come later. The company cut them in 2 pieces and shipped to each person address from the company when pektel did it. Planning on doing the same.

    I have been wanting to buy this sheet since I got my cdc grille. If not enough people jump in on this, I'll just buy it regardless and try to make grilles to sale, but it's better if you do your own.Anyone else on board? It will bring th price down and you'll have a mesh that looks better than that welded flat mesh from ebay.

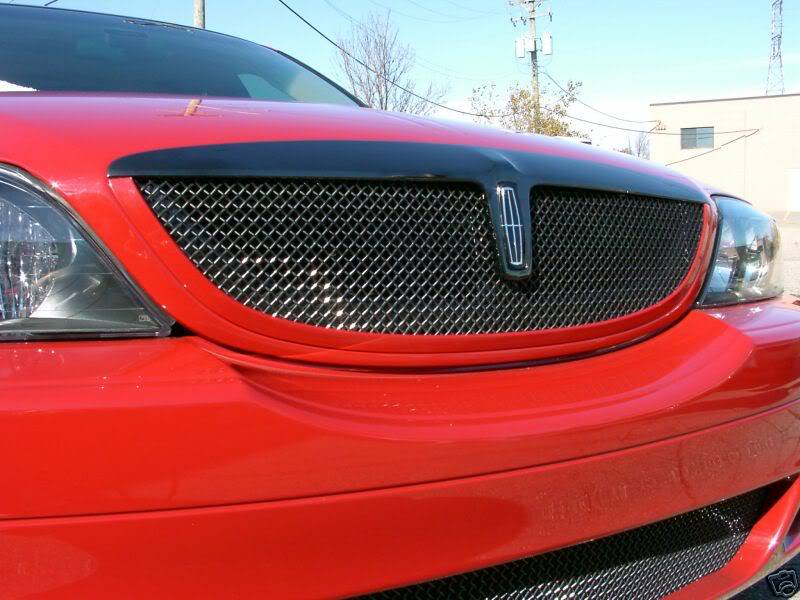

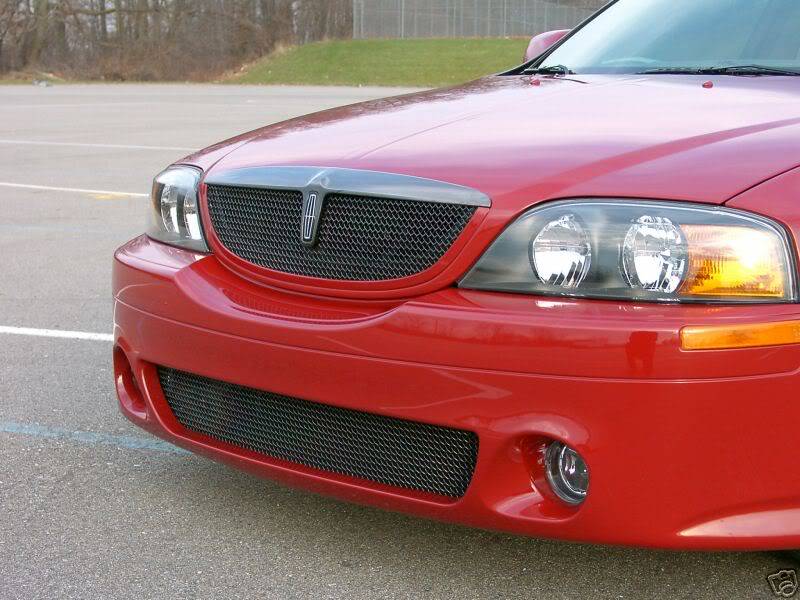

    Here are some pics for those who dont know what a cdc mesh looks like.

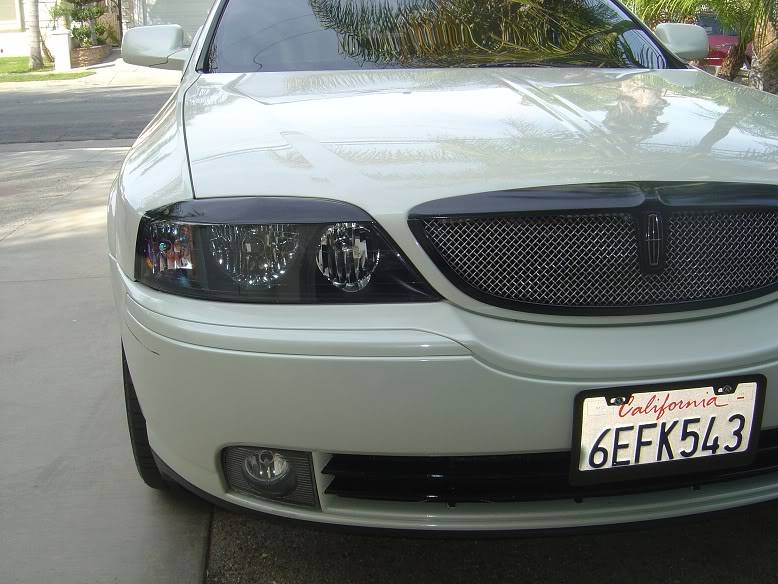

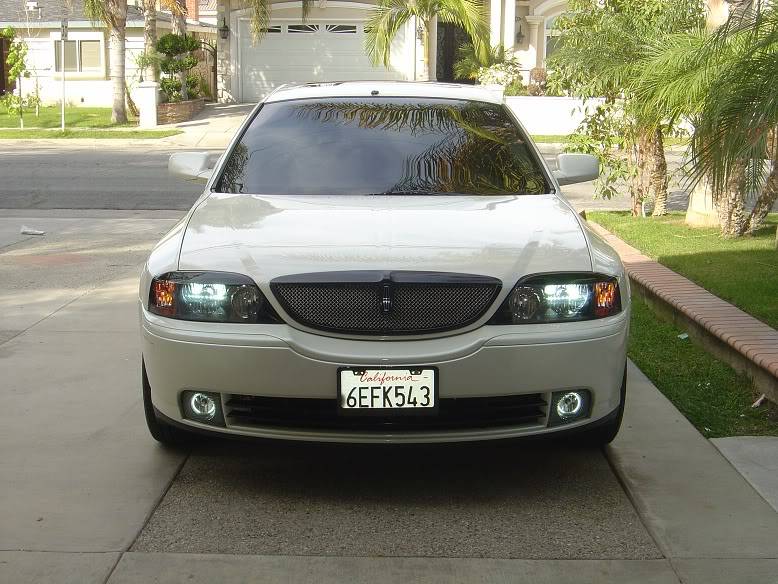

    MINE



  2. stallone 81

    stallone 81 Dedicated LVC Member

    Messages:
    1,000
    Likes Received:
    0
    Joined:
    Jan 1, 2010
    Location:
    New Jersey
    i want that cdc bodykit

  3. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
  4. Angel12

    Angel12 Dedicated LVC Member

    Messages:
    1,099
    Likes Received:
    0
    Joined:
    Jan 26, 2009
    Location:
    Toronto
    i got the bumper only for sale if anyone needs one ...lol

  5. LS4me

    LS4me Dedicated LVC Member

    Messages:
    9,960
    Likes Received:
    271
    Joined:
    Apr 23, 2004
    Location:
    San Diego
    By this do you mean we will need a template? Is there one floating around here?

  6. 04silverls

    04silverls Active LVC Member

    Messages:
    98
    Likes Received:
    0
    Joined:
    Sep 13, 2009
    Location:
    Danville
    i need one send me pm with info

  7. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    You mean one to cut the grille? I can make a template from my cdc mesh. How do you do a template. Is it just a drawing not to scale with measurements and that sort of things?

  8. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA

    This is just for the weave mesh. If you mean a complete grille with that mesh by "I need one", that'll be a little later when I have more time to fab some up. I will be picking up an extra stock grille to see how is will mount with that.

  9. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    Lol. Wrong place to get attention for that but you might get a buyer at random.

  10. NYC LS8

    NYC LS8 Dedicated LVC Member

    Messages:
    8,334
    Likes Received:
    15
    Joined:
    Mar 9, 2004
    Location:
    Carpentersville, IL
    Pektel got some of that stuff made up for us a while back. I bought one but never bothered to try and put it on, so I sold it to someone here.Try a search by pektel's name and threads started by him, You should be able to find it.

    :Beer

  11. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
  12. Lincoln Luebbe

    Lincoln Luebbe Dedicated LVC Member

    Messages:
    1,881
    Likes Received:
    1
    Joined:
    Jun 20, 2005
    Location:
    Lincoln Lane
    Is there any way to see what the mesh you are talking about? I really like the CDC, but I kind of want to see the smaller weave if possible.

  13. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    Sorry, forgot to post the link. First post is updated, thanks for catching that.

  14. pektel

    pektel Dedicated LVC Member

    Messages:
    10,951
    Likes Received:
    55
    Joined:
    Jun 15, 2007
    Location:
    up nort
    The material I got (well, WE got), was sold in 48" x 96" sheets. The material we wanted was perforated plastic, to look like the mclaren grille. It was real sturdy stuff. Too sturdy for my taste, because it did not want to conform to the compound curved design of the lower grille. I could never get it to sit right, but I have kind of high standards when it comes to something like that. If I can't get it to look factory, it's coming off.

    The wire mesh would be a different story. But I am not sure the size of sheets it comes in.

  15. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    Comes in 3' wide and 4'. I dont know if we'll have enough length if we cut it diagonally like the cdc mesh for a lower matching grille. Looks like 4' would be enough for top grille only. If we have it cut how it is in the picture shown in the link, then we would have enough for top and bottom.

  16. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    Not even shaping it outside and using a heat gun on it to make it bend and stay?

  17. pektel

    pektel Dedicated LVC Member

    Messages:
    10,951
    Likes Received:
    55
    Joined:
    Jun 15, 2007
    Location:
    up nort
    On a gen 1 I believe the lower grille opening is only like 39 or 40"

    I never tried a heat gun, Alax. It was not abs plastic though. It was a pvc material. I don't think it's as responsive to heat.

  18. Lincoln Luebbe

    Lincoln Luebbe Dedicated LVC Member

    Messages:
    1,881
    Likes Received:
    1
    Joined:
    Jun 20, 2005
    Location:
    Lincoln Lane
    Isn't the CDC grille mesh kind of woven? The link for 3 & 4 just looks like squares, isn't the CDC more like #8 design-wise?

  19. LS4me

    LS4me Dedicated LVC Member

    Messages:
    9,960
    Likes Received:
    271
    Joined:
    Apr 23, 2004
    Location:
    San Diego
    Yes. The others are supposed to be woven also. It's just harder to see with the weave so "large".

  20. Lincoln Luebbe

    Lincoln Luebbe Dedicated LVC Member

    Messages:
    1,881
    Likes Received:
    1
    Joined:
    Jun 20, 2005
    Location:
    Lincoln Lane
    So examples 3 & 4 are indeed woven? Is the picture not actual szie?

  21. Lincoln Jealous

    Lincoln Jealous Dedicated LVC Member

    Messages:
    3,126
    Likes Received:
    13
    Joined:
    Aug 8, 2009
    Location:
    Location: Location: Location: Location: Location:
    where can i find that trim piece that goes along the bottom half, i see them on everyone's homemade mesh grills, just curious, im still pondering the lse grille

  22. Alax7

    Alax7 Dedicated LVC Member

    Messages:
    7,816
    Likes Received:
    38
    Joined:
    Dec 18, 2008
    Location:
    LA
    They are all woven mesh in the link. It is just hard to see from the way the picture was taken. Check out #3 again but look closely at the shadows on it, it will help you see that it is woven.

    So mesh 3 only comes in 3 ft, mesh 4 comes in 3 and 4 ft. If we cut diagonally like the cdc mesh is, we need about 3.5 ft to have a piece wide enough for to make a grille. If we cut diagonally like the cdc mesh, we wont be able to make a piece wide long enough for the bottom grille to match. That is if we cut it diagonally like the CDC mesh. If we chosse to cut it like it is pictured in the link, we will be able to make a top and bottom grille with even the 3ft wide mesh. If we cut it like in the link, out of 3 ft wide, we would get anouop and bottom grilles. Let me know what you guys want.

    PRICE- 216 for #4 and 204 for #3. So far we have Ls4me and me in this. If we get a total of 4 ppl we it would be about 54, if we get 5 it would be about 43, 6 would be about 36. I dont think it includes shipping so ad shipping. 6 people is for the mesh cut like in the link, I would have to calculate how many people for it cut diagonally.

    Let me know what you guys want, Cut diagonally like the CDC mesh or straight across

  23. LS4me

    LS4me Dedicated LVC Member

    Messages:
    9,960
    Likes Received:
    271
    Joined:
    Apr 23, 2004
    Location:
    San Diego
    I would cut it diagonally. IMHO, a vertical pattern would look dumb. It totally lacks character.

  24. FASTLLS

    FASTLLS Dedicated LVC Member

    Messages:
    6,998
    Likes Received:
    0
    Joined:
    Sep 4, 2009
    Location:
    Upper Peninsula, Michigan
    Damn! I wish I had the money right now! That looks bit@hin!

  25. LS4me

    LS4me Dedicated LVC Member

    Messages:
    9,960
    Likes Received:
    271
    Joined:
    Apr 23, 2004
    Location:
    San Diego
    It's a CDC only part. You would need a gen2 grille and remove the center section. Someone here did it, but I don't remember just whom.
