2003 LS aftermarket radio install

Lincoln LS

  1. Nicholas Venuti

    Nicholas Venuti New LVC Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Apr 10, 2014
    Hi i was wondering if anyone can help me with this issue that just arose. i just installed an appradio 3 and took out the old factory 6-disk unit. The issue i am running into is the with the wiring schematics that match my car are the ones for the 04 module and not the 03. After i hooked it up to test the sound quality from the speakers i found out every thing works minus the subwoofers in the back. i looked at the radio speaker thread in this forum, but like i said it seems like the wiring is different in my 03 than what was posted.

  2. joegr

    joegr Dedicated LVC Member

    Messages:
    19,260
    Likes Received:
    1,353
    Joined:
    Dec 10, 2005
    Location:
    Gulfport
    AFAIK, the early 03s had gen I style radio wiring, and the later 03s had gen II style radio wiring. You'll need the harness to connect to the 8 pin connector. It will have two RCAs and two amp enable wires. One of the RCAs and one of the amp enable wires is for the subs in the back (they are mono). The other RCA and amp wire is for the center console speakers (if you have those). It's best not to connect this unless your radio has a mono center channel output (it doesn't). Be sure to use a 1K to 2K ohm resistor between the radio's amp enable out wire and the sub amp enable wire in the harness.

    • Like Like x 1
    • Nicholas Venuti

      Nicholas Venuti New LVC Member

      Messages:
      2
      Likes Received:
      0
      Joined:
      Apr 10, 2014
      Okay so i bought an 8-pin metra wire harness with the 2 RCAs and it does not fit... just my luck. So im thinking about splicing the wires to the RCA but i do not know what wires i should put together. I cant find the diagrams anywhere for this car. any ideas?

    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,260
      Likes Received:
      1,353
      Joined:
      Dec 10, 2005
      Location:
      Gulfport
      Gen II colors for the subs on the 8-pin are:
      Yellow/red - sub amp enable
      Gray/red - sub audio - (ground/shield of RCA)
      White/red - sub audio + (center of RCA)

    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,900
      Likes Received:
      349
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
    • RigsLS

      RigsLS Dedicated LVC Member

      Messages:
      7,761
      Likes Received:
      513
      Joined:
      Mar 10, 2012
      ^ same links Loud

    • joegr

      joegr Dedicated LVC Member

      Messages:
      19,260
      Likes Received:
      1,353
      Joined:
      Dec 10, 2005
      Location:
      Gulfport

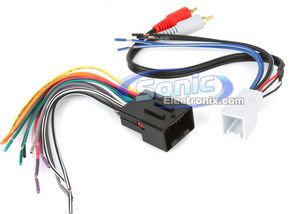

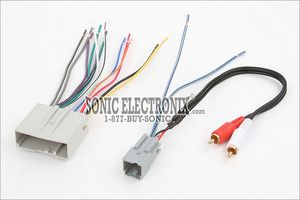

      Weird, for me they are two different links, one to the 70-5519 and the other to the 70-5521

    • RigsLS

      RigsLS Dedicated LVC Member

      Messages:
      7,761
      Likes Received:
      513
      Joined:
      Mar 10, 2012
      Odd, it does for me now as well, this morning, I had clicked both links and got the same -5519 product page.
      Even repeated it and opened it in two separate tabs. Wierd ... was only my first coffee of the day but
      I could have swore I had separately clicked both links individually and gotten the same -5519 connector.

      <shrugs> happens to me on the weather channel website a lot also. :runaway:

    • zrxinch

      zrxinch Active LVC Member

      Messages:
      79
      Likes Received:
      4
      Joined:
      Mar 20, 2013
      Location:
      San Diego
    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,900
      Likes Received:
      349
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
      Lowest common denominator.

      bwaahahahahahaha! lol j/k

    • RigsLS

      RigsLS Dedicated LVC Member

      Messages:
      7,761
      Likes Received:
      513
      Joined:
      Mar 10, 2012
      <blush> Think it might have something to do with old age?
      ... at least I can look forward to my new glasses in the mail this week.

    • RigsLS

      RigsLS Dedicated LVC Member

      Messages:
      7,761
      Likes Received:
      513
      Joined:
      Mar 10, 2012
      Loud, what kinda music you into?

      have you tried DECAF zips 25hz?

      Not sure if you're into that kinda thing: http://ram-designs.com/decaf/

      big downloads, RAR compressed but well worth it.
      couple of test tones files also.


      // sorry thread jack done //

    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,900
      Likes Received:
      349
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
      all kinds, from classic country, bluegrass, rock, rap, dubstep, jazz and maybe a little classical...

      thanks, I'll give those a look!



      I would say with the warmer weather moving in, my playlist right now is almost all Aaron Lewis, Eric Church, Colt Ford, The LACs, Skrillex, and some Cadillac Three...

    • jrand

      jrand Banned

      Messages:
      848
      Likes Received:
      6
      Joined:
      Jul 27, 2012
      Location:
      C
      sunny ledfurd?

    • RigsLS

      RigsLS Dedicated LVC Member

      Messages:
      7,761
      Likes Received:
      513
      Joined:
      Mar 10, 2012
      http://ram-designs.com/decaf/

      try downloading file: Decaf RAR 26

      and play file: Blown Instrumental (26andUp).mp3 in your car!

      If you have REAL good audio and CAN hit those real lows, you'll buzz out on that track!

      Not much of a song as it's strictly only an Instrumental track but it hit the REAL lows. TOO LOW !!!!

      (ps: I can't with what I've currently got in my winter beater)

    • thenextdon13

      thenextdon13 LVC Member

      Messages:
      32
      Likes Received:
      3
      Joined:
      Mar 11, 2014
      Location:
      Oregon
      I have a 2000 LS with alpine system, and am having problems with the subwoofer/mids plug on the Metra 70-5519.

      The connector body is slightly too large, and the pin rows on the metra plug are too far apart. Instead of lining up with the connector slots where the pins were supposed to go, they lined up with the release/disassembly slots. I've read a couple places of other people having this problem. Anyone here hear of it?

    • 1LoudLS

      1LoudLS Dedicated LVC Member

      Messages:
      9,900
      Likes Received:
      349
      Joined:
      Mar 31, 2008
      Location:
      Ann Arbor
      the only problem i have with that harness, are sometimes (actually a lot) the pins are not pointing exactly straight. i need to take a pick tool (a key can work in a pinch) and bend them a little, then the harness slides right in and clicks locked.


      I have never had a problem where the harness wasn't the right size... I can tell you that I've easily used that harness well over a hundred times, lincolns, f150s, explorers, escapes, mustangs, doesn't matter, always works after a little adjustment.

    • R34SklnNsn

      R34SklnNsn Active LVC Member

      Messages:
      52
      Likes Received:
      3
      Joined:
      Jun 4, 2014
      Location:
      N. GA
      I had this same problem with my install. I ended up pulling the pins out of the metra harness and just sliding them into the factory sub plug. Worked for me until the factory subs blew the foam surrounds out and I just installed a 12" sub and amp I had.

    • thenextdon13

      thenextdon13 LVC Member

      Messages:
      32
      Likes Received:
      3
      Joined:
      Mar 11, 2014
      Location:
      Oregon
      Turns out I got it to fit, with some coercing/bending of pins. Still doesn't lock correctly.. I took the red guide/lockplate off and used it to press into the metra kit and make the pins line up. It now inserts properly, but the pins are splayed out a bit. I took pictures, which can be found here:
      http://www.c-j-l.net/Home/audio/metra-70-5519-fittment-issues
