2.5 Hour DYNO TUNE = 337.9 HP & 405.4 TORQUE

Lincoln LS Performance

  1. Brock

    Brock Active LVC Member

    Messages:
    55
    Likes Received:
    2
    Joined:
    Nov 10, 2007
    Location:
    Tarboro

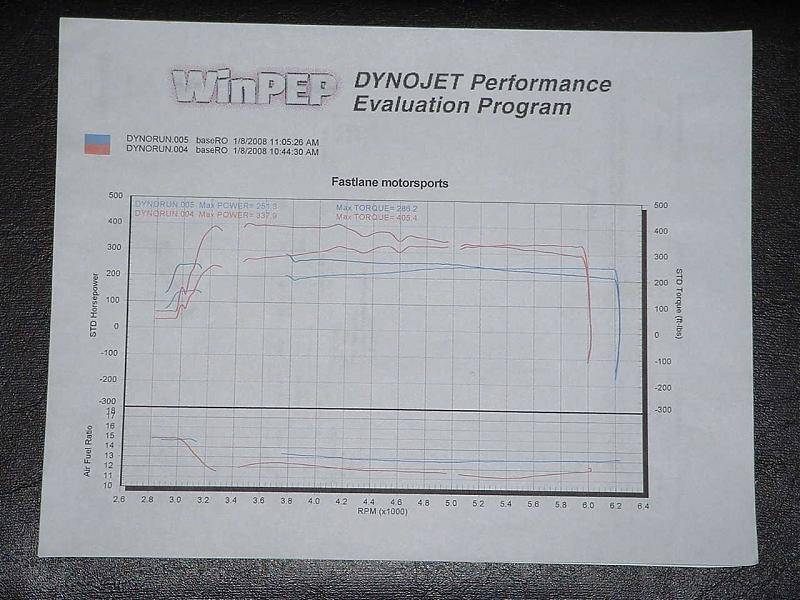

    The chart can be seen clearer if you click on the forum below.
    http://brocktownsend.forum5.com/viewtopic.php?t=1367&mforum=brocktownsend

    http://www.fastlanemotorsports.us/UHome.asp

    (Factory tune run produced 229.2 HP and 245.3 TORQUE. The "Blue Line" run of 251.3 HP and 286.2 TORQUE was a "HARD SHIFT PERFORMANCE TUNE." The "RED LINE" run of 337.9 HP and 405.4 TORQUE was with a 100 shot of dry nitrous. The graph shows spark misses which the tuner told me was caused by the plug gap. I gapped them down from 44 to 37, but he said they should be gapped between 32 and 34. BT)

    FASTLANE 2.5 Hour Dyno Tune I.jpg

  2. Quik LS

    Quik LS Dedicated LVC Member

    Messages:
    5,873
    Likes Received:
    10
    Joined:
    Jun 7, 2004
    Location:
    Austin, TX
    good numbers - con grats!

  3. Brock

    Brock Active LVC Member

    Messages:
    55
    Likes Received:
    2
    Joined:
    Nov 10, 2007
    Location:
    Tarboro
    Congratulations would go to Caleb, the young son of the owner who is smart as a tack, and a gentleman to boot. Rare in this day and time.

  4. ILLS

    ILLS Dedicated LVC Member

    Messages:
    1,208
    Likes Received:
    1
    Joined:
    Jul 8, 2007
    Location:
    Gulfport, MS
    That is some pretty nice torque numbers. Closing that gap will help if you are having a little blowout occurring. You will probably lose a little bit of power in the area's of the curve that the spark is not blowing out but you will be better off overall.

  5. Brock

    Brock Active LVC Member

    Messages:
    55
    Likes Received:
    2
    Joined:
    Nov 10, 2007
    Location:
    Tarboro
    Yes, the HP was what I was expecting, but the TORQUE was quite surprising. I was also happy with the air/fuel ratio. I know it is a tossup, but I was wondering what I should close them to, as I would rather do it only once. I guess 33 to be in the middle?

  6. NYC LS8

    NYC LS8 Dedicated LVC Member

    Messages:
    8,334
    Likes Received:
    24
    Joined:
    Mar 9, 2004
    Location:
    Carpentersville, IL
    Noice!!!!

  7. Jayce 1971

    Jayce 1971 Active LVC Member

    Messages:
    183
    Likes Received:
    0
    Joined:
    Dec 4, 2007
    Location:
    KS
    Impressive

    What impresses me the most is the "blue line" reading with the tune. 20hp and 40ft/lb's with an aftermarket tune is amazing. Can't wait to get an Xcal.:D

  8. Garbone

    Garbone Dedicated LVC Member

    Messages:
    912
    Likes Received:
    0
    Joined:
    May 3, 2007
    Location:
    Kirkland
    Any chance you could post a pic of how you have it plumbed in?

  9. 98LSC32V

    98LSC32V Dedicated LVC Member

    Messages:
    3,227
    Likes Received:
    24
    Joined:
    Apr 17, 2005
    Location:
    Bay Area
    How was the A/F ratio measured out the tail pipe?

  10. Brock

    Brock Active LVC Member

    Messages:
    55
    Likes Received:
    2
    Joined:
    Nov 10, 2007
    Location:
    Tarboro
    "Any chance you could post a pic of how you have it plumbed in?"

    Copied and pasted from my photo gallery below.

    COMPUCAR Nitrous In Bag EFI Dry Kit 100 HP NX NOS, KKM Tru-Rev Sport Induction Kit, SCT Xcal3, and Custom 2.5" Magnaflow exhaust system.

    Nitrous Setup Pictures
    http://brocktownsend.forum5.com/viewtopic.php?t=1144&mforum=brocktownsend

    "How was the A/F ratio measured out the tail pipe? "

    I don't know, but I will find out if this will help you..

  11. ILLS

    ILLS Dedicated LVC Member

    Messages:
    1,208
    Likes Received:
    1
    Joined:
    Jul 8, 2007
    Location:
    Gulfport, MS


    The place probably just shoved a tailpipe sniffer up his tailpipe and that was that. That is how most dyno shops do it.

  12. Brock

    Brock Active LVC Member

    Messages:
    55
    Likes Received:
    2
    Joined:
    Nov 10, 2007
    Location:
    Tarboro
    "The place probably just shoved a tailpipe sniffer up his tailpipe and that was that. That is how most dyno shops do it."

    That is how the first shop I used did it, and FastLane is closed now.

    ILLS: what is the alternative?

  13. Brock

    Brock Active LVC Member

    Messages:
    55
    Likes Received:
    2
    Joined:
    Nov 10, 2007
    Location:
    Tarboro
    "What impresses me the most is the "blue line" reading with the tune. 20hp and 40ft/lb's with an aftermarket tune is amazing. Can't wait to get an Xcal."

    Jayce 1971:

    The tune that came with it produced 232.45 HP and 257.64 TORQUE. That DYNO shop then told me I should go to FastLane for their DYNO tune, since all he had was Sniper which didn't support the LS. He said that nothing could beat an actual DYNO tune, and at least in this instance, he was correct. The 2.5 hour DYNO tune cost $170 complete, but with the increase to 251.3 HP and 286.2 TORQUE, I feel that it was well worth it.

    • Like Like x 1
    • AndrewCoja

      AndrewCoja Well-Known LVC Member

      Messages:
      255
      Likes Received:
      0
      Joined:
      Oct 19, 2007
      Location:
      The Woodlands
      I agree, that's more HP than you'd get from a 250 dollar intake.

    • ILLS

      ILLS Dedicated LVC Member

      Messages:
      1,208
      Likes Received:
      1
      Joined:
      Jul 8, 2007
      Location:
      Gulfport, MS


      The best way to do it would be to weld a bung dedicated for wideband use in front of the cat's and screw your sensor in there. This usually requires more work and money than what some people prefer.

      One alternative to that is to screw in a wideband sensor into your existing O2 sensor rear bung and use that.

      The tailpipe sniffer is the most widely used because it is by far the quickest. Just shove it in and ensure it doesn't move. Not as accurate as the sensor being mounted pre-cat but still just fine to tune with.

    • ILLS

      ILLS Dedicated LVC Member

      Messages:
      1,208
      Likes Received:
      1
      Joined:
      Jul 8, 2007
      Location:
      Gulfport, MS


      What that guy failed to mention is that most dyno's do not load the engine correctly for what kind of drag that car will see when actually driving down the road. That means while it may make a good power number on the dyno it may not be safe doing it on the street. I have personally seen cars that dyno good numbers but still lost to a street tuned car because it was tuned under real conditions.

      I prefer to street/track tune all the cars I deal with and then if I am curious what power they made I throw them on the dyno. There are some things you can do on the street that you cannot on a dyno. On the flipside there are certain things you can do on the dyno that you cannot on the street. There are benefits to both approaches. That guy only told you one side of the story unfortunately.

      Regardless of what he told you it seems you are satisfied which is what matters.

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      10
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      here is some detail on what I did - > http://www.lincolnvscadillac.com/showpost.php?p=219118&postcount=480

    • ILLS

      ILLS Dedicated LVC Member

      Messages:
      1,208
      Likes Received:
      1
      Joined:
      Jul 8, 2007
      Location:
      Gulfport, MS
    • cammerfe

      cammerfe Dedicated LVC Member

      Messages:
      3,748
      Likes Received:
      189
      Joined:
      Oct 27, 2007
      Location:
      Metro Detroit
      Question for 'Quik' and 'Ills'

      If I am understanding your comments regarding the installation of the wide-band O2 sensor, are you leaving the sensor in permanently? I ask because I was under the impression that having an un-powered sensor in place is an invitation to its destruction. 'They must be electrically heated to not foul out'. Is there something I don't uderstand here? :confused:
      KenS from Ben's Place

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      10
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      you're right. Mine is permenantly installed and attached to my LiveWire - so I can keep an eye on the realtime display - or include it in the datalogging.

      When you install it - you have to make sure it starts with the car (so that it is always heated if the car is running), and install a re-calibration button that allows you to re-calibrate it once in a while. A wideband in the exhaust without being heated will be ruined quickly.

      When you install it - you have to check for grounding offsets - to ensure that the reading the datalogger is getting is correct. with the LC-1, Sensor and datalogger all using different grounding points you can be off a fraction of a volt - which can make a big difference.

    • cammerfe

      cammerfe Dedicated LVC Member

      Messages:
      3,748
      Likes Received:
      189
      Joined:
      Oct 27, 2007
      Location:
      Metro Detroit
      Perm install of O2 sensor

      I have no use for a permanent display but would not mind an install with a pigtail into which to plug the Innovate hardware, the SCT and the laptop. I'd happily buy another sensor for each of my applications. Do you know of a location for a schematic to accomplish this, including the re-cal and 'hot' connection?

      KenS from Ben's Place

    • Quik LS

      Quik LS Dedicated LVC Member

      Messages:
      5,873
      Likes Received:
      10
      Joined:
      Jun 7, 2004
      Location:
      Austin, TX
      I used an Innovate Motor Sports LC-1 -> http://www.innovatemotorsports.com/products/lc1.php

      it comes with the wiring diagrams for the re-cal and hot. However - you have to install the 'head' to get the sensor to heat - so really what you want is to install a bung into each vechiles' exhaust ( http://www.innovatemotorsports.com/xcart/product.php?productid=16286&cat=250&page=1 ) and then you can remove the plug and install the sensor as needed.

      here is the article I used - > http://www.innovatemotorsports.com/forums/showthread.php?t=2671

    • ILLS

      ILLS Dedicated LVC Member

      Messages:
      1,208
      Likes Received:
      1
      Joined:
      Jul 8, 2007
      Location:
      Gulfport, MS


      The LC-1 in my LS is permanently mounted and turns on with ignition power when the car is started. It is in operation at all times that the car is so that my AFR gauge works and shows me what my AFR's are doing. I consider an AFR gauge mandatory in a car running forced induction for maximum safety.

      My separate tuning wideband is only installed into the vehicle whenever I want to tune it. Otherwise the sensor is taken out and the other bung is plugged shut.

    • ILLS

      ILLS Dedicated LVC Member

      Messages:
      1,208
      Likes Received:
      1
      Joined:
      Jul 8, 2007
      Location:
      Gulfport, MS



      Quik there is a full LC-1 to Xcal2 integration tutorial. It is in Adobe Acrobat format and about 1.52 MB in size. It basically is a concentrated and organized version of that thread from the Innovate forums that you posted. It contains anything from basic setup to wiring of the LC-1 (or LM-1) to the 9 pin Mini Din cable that the Xcal2 uses, calculating ground offsets, and setting up Livelink for the analog datalogging formula. As you know, your Livewire cable (6 pin firewire cable) is different than the one that the Xcal2 uses (9 pin Mini Din) for analog input.

      If either of you wants that file just PM me for my email address and I can send it to you. There is a link to that file on the Innovate site but I forget where it is and do not feel like looking right now. ;)

      EDIT: I wasn't as lazy as I thought I was today. Here is the link to that tutorial file in Adobe Acrobat. LINK

    • cammerfe

      cammerfe Dedicated LVC Member

      Messages:
      3,748
      Likes Received:
      189
      Joined:
      Oct 27, 2007
      Location:
      Metro Detroit
      Thanks Much. I probably had it somewhere in my Innovate material, but had no idea how to find it. I'll see it's put to good use.

      KenS from Ben's Place
