Paddle Shifts On The Lincoln LS
Well – I’ve
wanted to do this for a while – and finally found a write-up by
an M3 performance group that helped me get all the pieces together.
Well – I’ve wanted to do this for a while – and finally found a write-up by an M3 performance group that helped me get all the pieces together.
Here’s what you’ll
Two of - 2750241 SPDT 12V 1AMP Relay (RadioShack) $4.29 (I’ll explain why later).

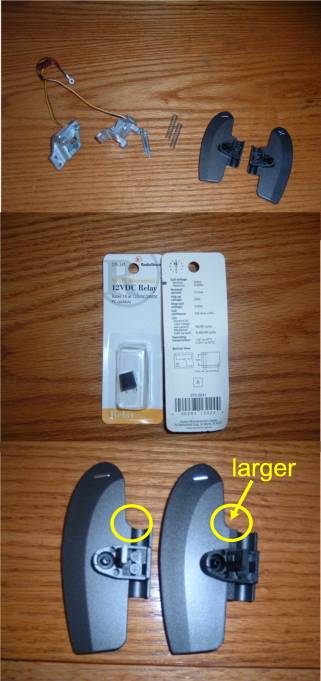

The 32-34-7-833-040 – Assy ‘SMG’ Switch Set CLP comes with a set of paddles – but I ordered a set that had a longer reach.
First – get the steering wheel off – the hardest part of the entire job. Follow the steps in the service manual – disconnect the negative battery post (to disable the airbag) – and disassemble. You will need the $5 two-prong hub puller from AutoZone to get the wheel off.

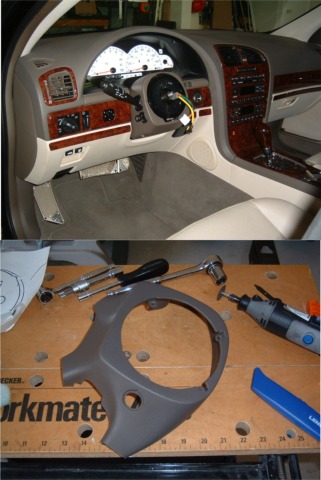

Second – get the plastic shroud off the back of the wheel.

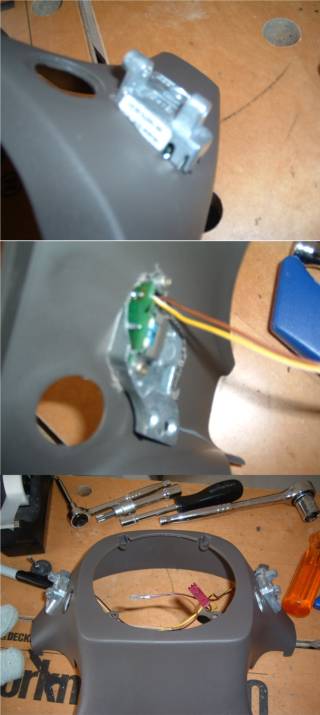

Third – spend some time lining up the paddles and using a dremel tool cut a hole so that the top part of the mechanism sticks through the plastic shroud. Looks a little ‘Borg-ish’ but it’s on the back of the steering wheel – so it will be hard to see.

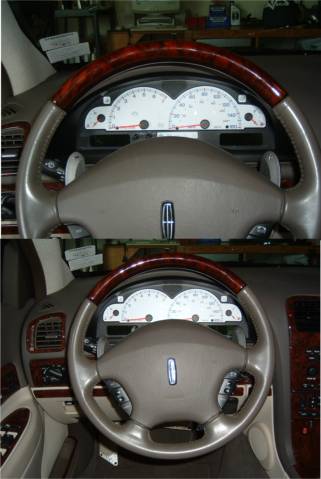

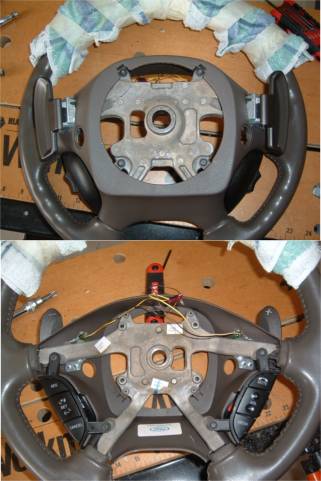

Step four – mount the remaining hardware – and reassemble the steering wheel. Clip the yellow wires from the switches apart, leave the black ones together (with the eyelet) and ground them to the steering wheel frame using one of the screws the hold the plastic shroud in place.
Step 5 - Here is where the relays come in.
The BMW SMG paddles are typical switches that close a circuit when depressed – however – the LS SST signals the computer of a up-shift or down-shift by opening the circuit. So you have to create a small circuit that energizes the relay when the paddle is depressed, which open the circuit in the SST up-shift or down-shift link.
I wired mine into the console.

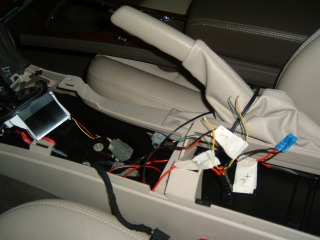

Here’s a shot of the wiring before I cleaned it up:
Reassemble the console and enjoy!!!
They work just like in the
SMG BMW - pull toward the steering wheel. Works pretty good - the LS ignores
any input from the paddles unless the shifter is in SST mode so there
is no chance of an accident getting use to the paddles on the wheel.
