REMOVAL
        1. Disconnect the battery
          ground cable.
        2. Remove the air cleaner
          outlet tube.
         3. CAUTION: The coolant drain procedure must be followed exactly or
          damage to the engine may occur.

          3. CAUTION: The coolant drain procedure must be followed exactly or
          damage to the engine may occur.
        Drain the engine cooling
          system.
        4. Remove the cowl vent screen.

        5. Remove the engine compartment
          brace.

        6. Disconnect the accelerator
          and speed control cables.

        7. Disconnect the vacuum
          hoses.

        8. Disconnect the vacuum
          line.

        9. Disconnect the EGR valve
          to exhaust manifold tube

        10. Remove the EGR valve.


          - A. Remove the two bolts.

- B. Remove the valve and
            discard the gasket.


        11. Disconnect the camshaft
          position (CMP) sensor electrical connector and separate the connector
          from the fuel injection supply manifold.


         12. CAUTION: To remove normal fittings, squeeze the tabs and pull straight
          out or damage to the fitting may occur.

          12. CAUTION: To remove normal fittings, squeeze the tabs and pull straight
          out or damage to the fitting may occur.
        Disconnect the evaporative
          emission canister purge valve line.


          13. Disconnect the fuel pressure sensor electrical connector.


        14. Disconnect the vacuum
          connector from the fuel pressure sensor.


        15. Disconnect the fuel line.
        16. Remove the electrical
          connectors from the bracket.

          - 1. LH knock sensor (KS).

- 2. Cylinder head temperature
            (CHT) sensor.

        17. Remove the nut and the
          bracket.


          18. Remove the bracket.

          - 1. Remove the hose.
- 2. Remove the nuts and
            the bracket.


          19. Raise the engine wiring harness and disconnect the LH fuel injector
          connectors.





        20. Disconnect the electrical
          connectors.

          - · Idle air control
            (IAC) valve.
- · Throttle position
            (TP) sensor.


          21. Disconnect the crankcase ventilation tube from the RH valve cover.



          22. Disconnect the hoses (1) from the throttle body and the retaining
          clips (2).




        23. Raise the engine wiring
          harness and disconnect the RH fuel injectors.


          24. Remove the Delta PFE sensor.

          - 1. Disconnect the electrical
            connector.
- 2. Disconnect the hoses.

- 3. Remove the bolts and
            the sensor.




        25. NOTE: The throttle body
          and adapter are shown removed for clarity. It is not necessary to remove
          the throttle body and adapter to remove the intake manifold. Remove
          the bolts and the stud (2) in the sequence shown.


          26. NOTE: The throttle body, adapter and EGR valve are shown removed
          for clarity. NOTE: Position the throttle body heater return hose out
          of the way before removing the throttle body.
        Remove the intake manifold.



         27. CAUTION: Do not use metal scrapers, wire brushes, power abrasive
          discs or other abrasive means to clean the sealing surfaces. These tools
          cause scratches and gouges, which make leak paths. Use a plastic scraping
          tool to clean the surfaces.

          27. CAUTION: Do not use metal scrapers, wire brushes, power abrasive
          discs or other abrasive means to clean the sealing surfaces. These tools
          cause scratches and gouges, which make leak paths. Use a plastic scraping
          tool to clean the surfaces.
        Clean the sealing surfaces.


          - · Inspect the gaskets
            and install new gaskets if necessary.


        Installation
        1. If removed, install the
          gaskets.


          2. NOTE: Make sure that the throttle body heater return hose is positioned
          between the heat shield and the intake manifold.

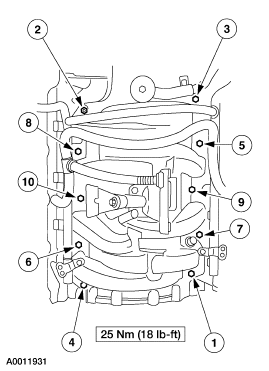

        Install the intake manifold
          and tighten the bolts in the sequence shown.


        3. Install the Delta PFE
          sensor.

          - 1. Install the sensor
            and the bolts.
- 2. Connect the electrical
            connector.
- 3. Connect the hoses.


        4. Connect the RH fuel injectors
          and position the engine wiring harness.

        5. Connect the hoses (1)
          and install the hose in the clip (2).


        6. Connect the crankcase
          ventilation tube.


          7. Connect the IAC valve and TPS electrical connectors.


          8. Connect the LH fuel injector connectors and position the engine wiring
          harness.


        9. Install the bracket.

          - 1. Install the bracket
            and nuts.
- 2. Install the hose.


          10. Install the bracket and the nut.


          11. Install the electrical connectors on the bracket.

          - 1. Install the LH KS connector.

- 2. Install the CHT sensor
            connector.



        12. Connect the fuel line.

        13. Connect the vacuum connector
          to the fuel pressure sensor.


          14. Connect the fuel pressure sensor electrical connector.


          15. Connect the evaporative emission canister purge valve line.




        16. Connect the CMP sensor
          electrical connector and position the connector on the fuel injection
          supply manifold.


          17. Connect the EGR valve to exhaust manifold tube.


          18. NOTE: EGR valve to exhaust manifold tube is removed for clarity.


          - Install the EGR valve.

- 1. Install a new gasket
            and the valve.
- 2. Install the two bolts.



        19. Tighten the tube.


          20. Connect the vacuum line.


          21. Connect the vacuum hoses.


        22. Connect the accelerator
          and speed control cables.


          23. Install the engine compartment brace.


          24. Install the cowl vent screen.
        25. Install the air cleaner
          outlet tube. .
        26. Connect the battery ground
          cable.
         27. CAUTION: The cooling system filling and bleeding procedure must
          be followed exactly or damage to the engine may occur.

          27. CAUTION: The cooling system filling and bleeding procedure must
          be followed exactly or damage to the engine may occur.
        Fill and bleed the engine
          cooling system.
